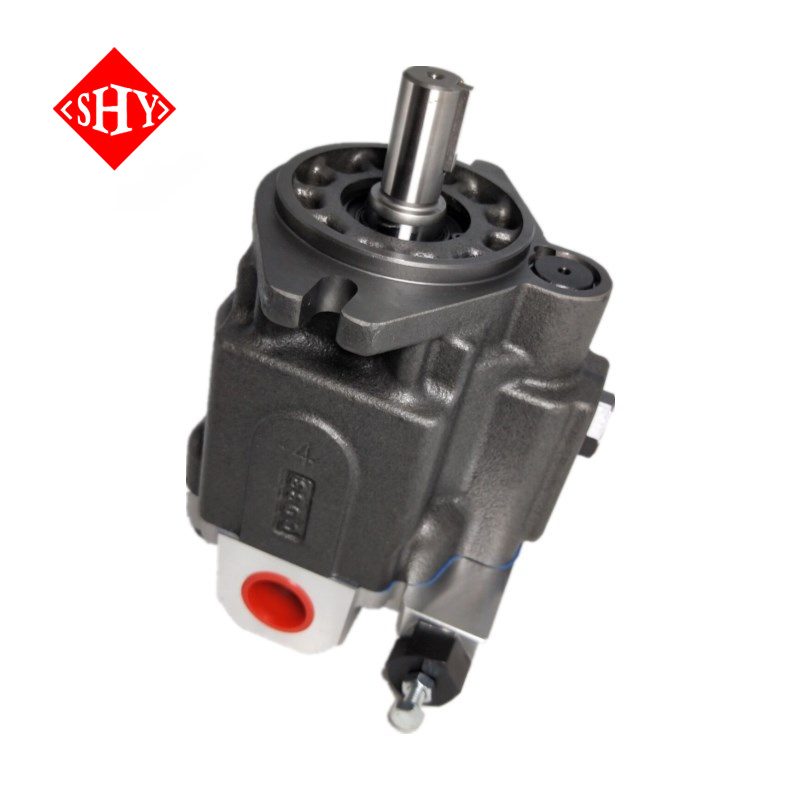

The AR series represents a broad range of positive displacement hydraulic pumps, with models such as AR16 and AR22, where the numerical designation directly indicates displacement—approximately 16 cm³/rev or 22 cm³/rev, respectively. This series offers flexibility in displacement, control options, and installation configurations to suit diverse operational needs.
ARL1, by contrast, is a specific sub-model within the AR series, designed for lower displacement applications. For instance, ARL1-6 delivers 6.2 cm³/rev, while ARL1-8 provides 8.5 cm³/rev. The “L1” suffix denotes this displacement class, making it ideal for compact or precision-driven systems.
Additional model codes further specify key features: “F” or “L” indicate flange or base mounting, respectively; “01” denotes pressure compensation control, commonly used in ARL1 units. Suction port orientation is marked by “S” (right-side) or “A” (bottom), ensuring correct installation alignment.
In essence, ARL1 serves as a specialized, displacement-specific option within the versatile AR family.
