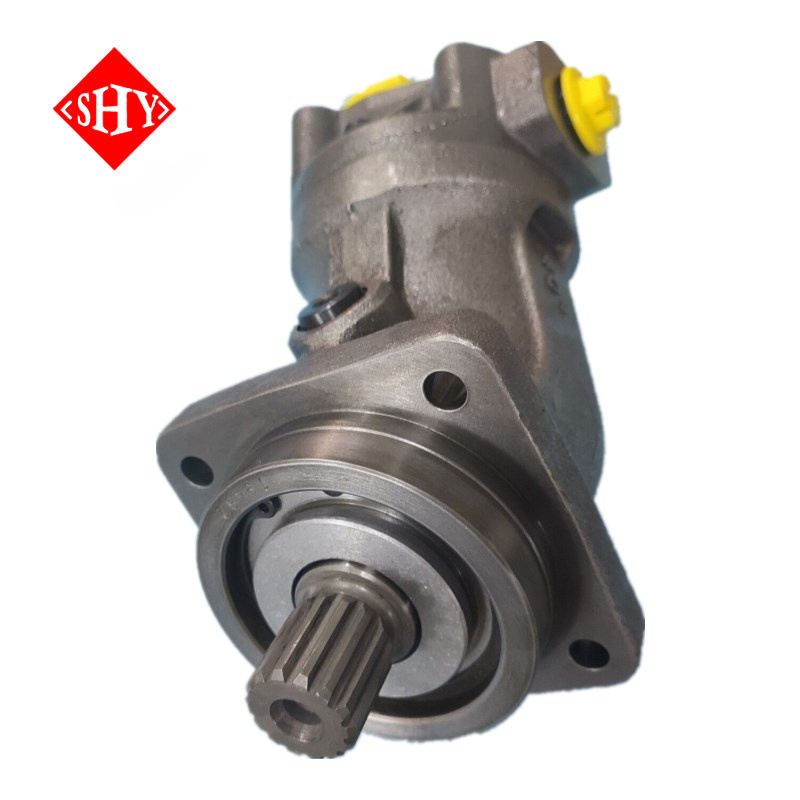

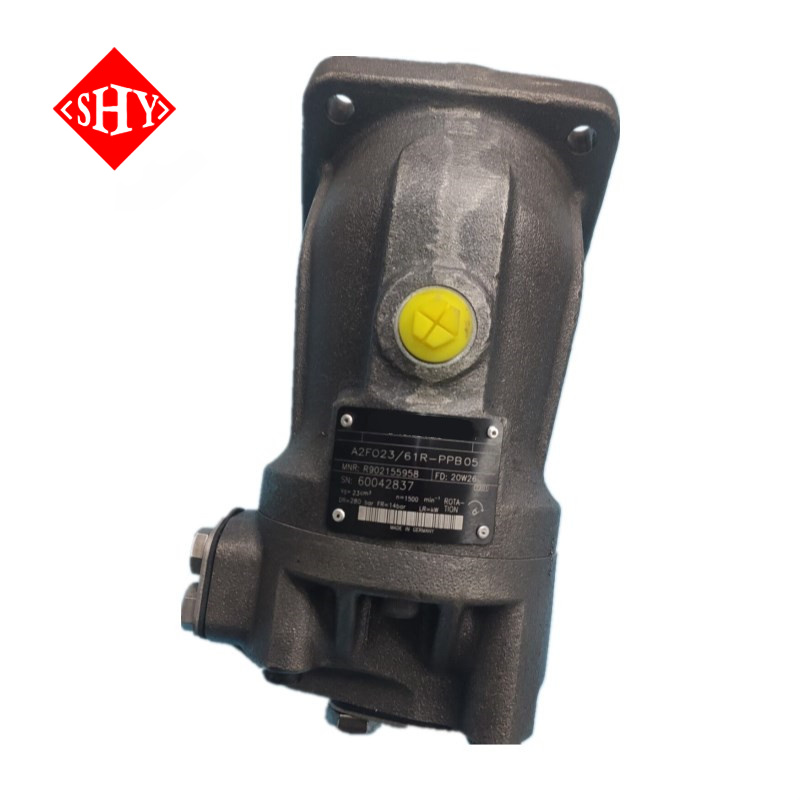

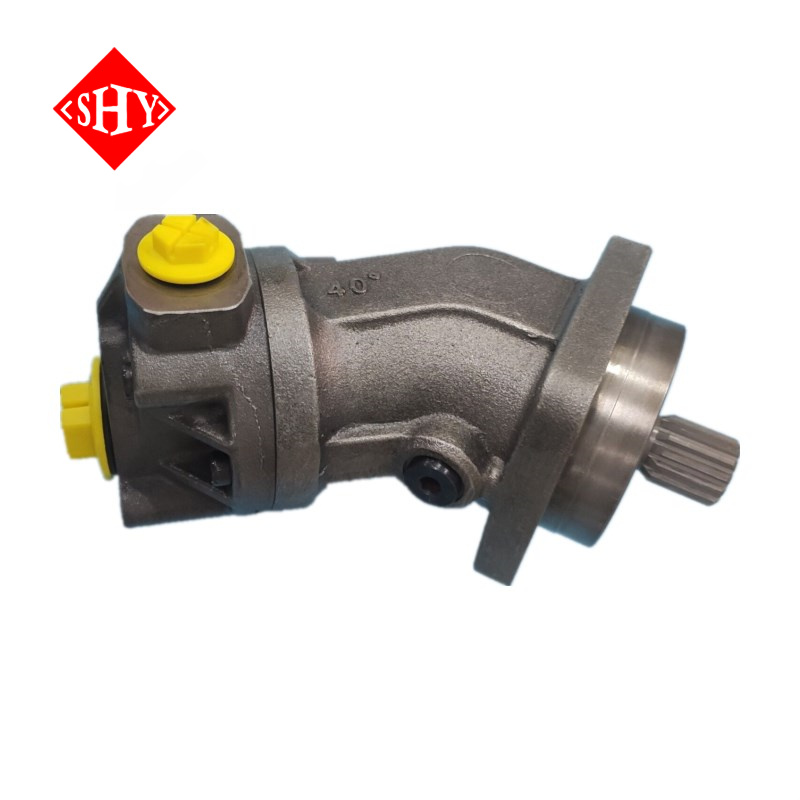

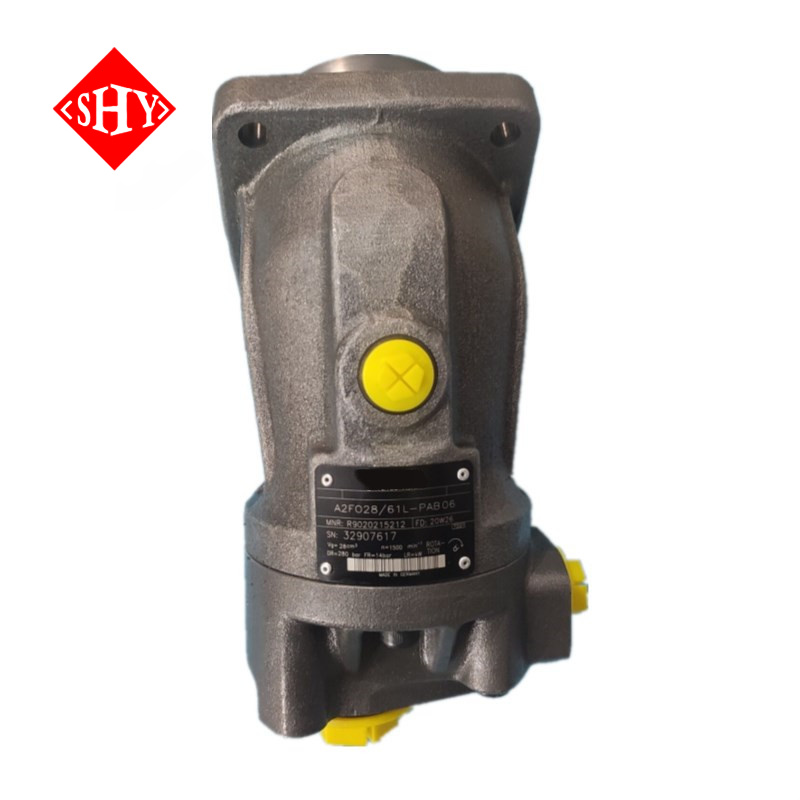

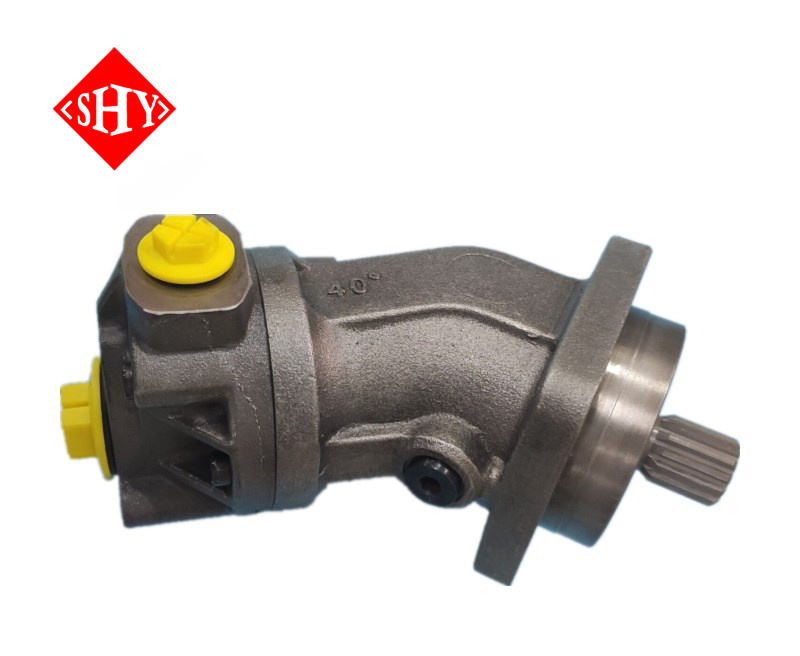

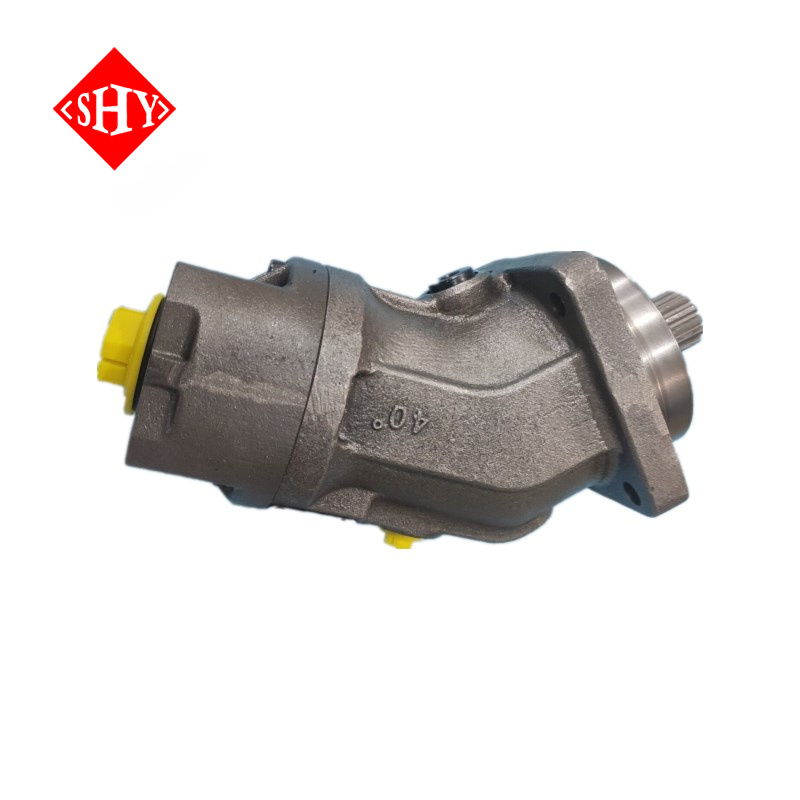

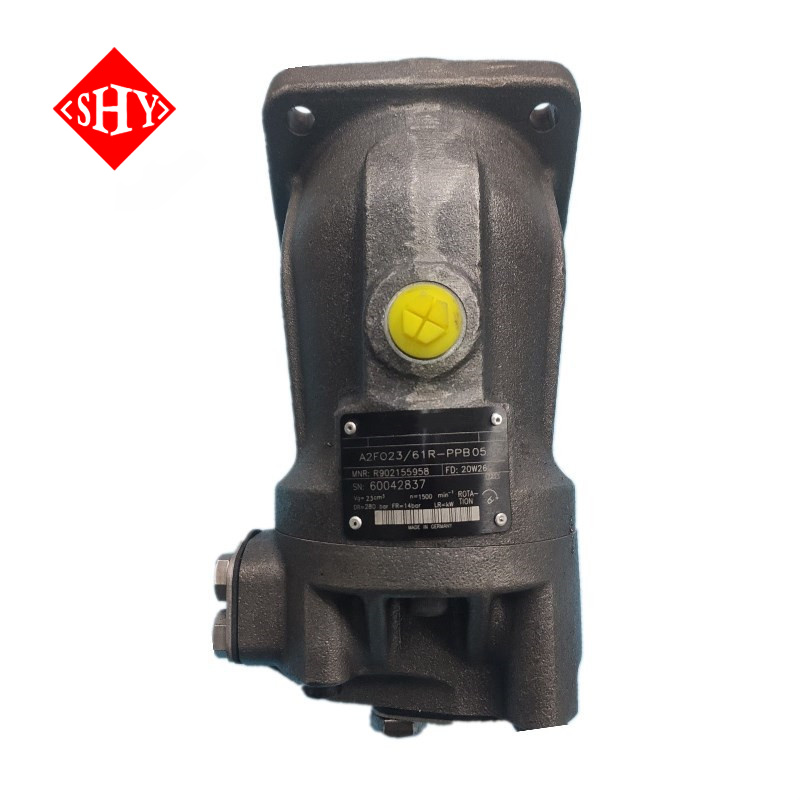

A2F A2FO A2FLO A2FL0 A2F0 Hydraulic Axial Piston Fixed Pump

A2FO Product series:

Size

Nominal pressure/Maximum pressure

A2FO 5

4600/5100 psi (315/350 bar)

A2FO 10，A2FO 12，A2FO 16，A2FO 23，A2FO 28，A2FO 32，

A2FO 45，A2FO 56，A2FO 63，A2FO 80，A2FO 90，A2FO 107，

A2FO 125，A2FO 160，A2FO 180，A2FO 200

5800/6500 psi (400/450 bar)

A2FO 250，A2FO 355，A2FO 500

A2FLO 250，A2FLO 355，A2FLO 500，A2FLO 710，A2FLO 1000

5100/5800 psi (350/400 bar)

Features:

Fixed pump with axial tapered piston rotary group of bent-axis design, for hydrostatic drives in an open circuit

For use in mobile and stationary applications

The flow is proportional to the drive speed and displacement

The drive shaft bearings are designed for the bearing service life requirements usually encountered in these areas

High power density

Small dimensions

High total efficiency

Economical design

One-piece tapered piston with piston rings for sealing

A2FO 5

A2FO 10

A2FO 12

A2FO 16

A2FO 23

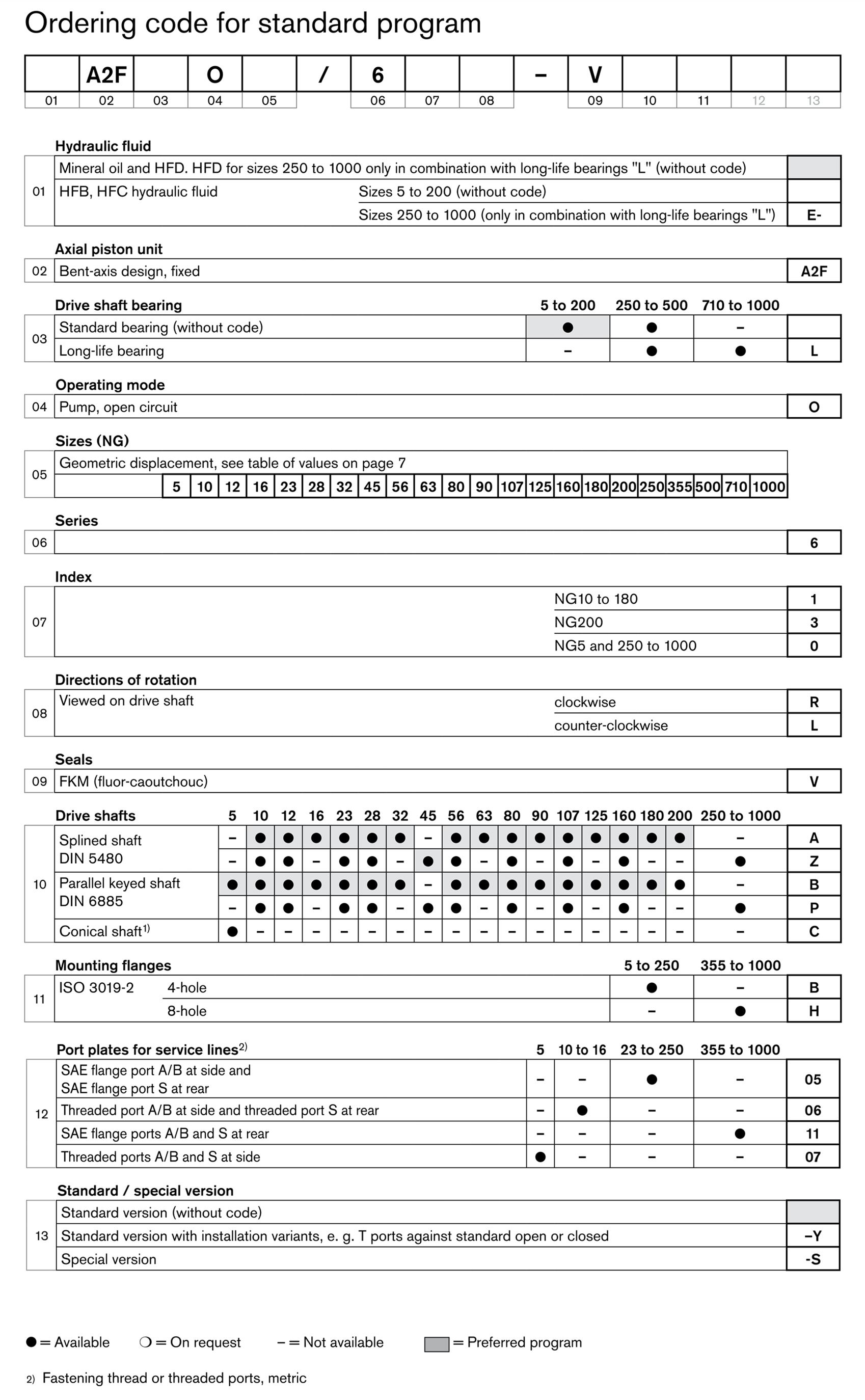

A2FO5/60R-VBB07

A2FO10/61R-VAB06

A2FO12/61R-VAB06

A2FO12/61R-VAB06

A2FO23/61R-VAB05

A2FO5/60R-VCB07

A2FO10/61R-VZB06

A2FO12/61R-VZB06

A2FO12/61R-VBB06

A2FO23/61R-VZB05

A2FO5/60L-VBB07

A2FO10/61R-VBB06

A2FO12/61R-VBB06

A2FO12/61L-VAB06

A2FO23/61R-VBB05

A2FO5/60L-VCB07

A2FO10/61R-VPB06

A2FO12/61R-VPB06

A2FO12/61L-VBB06

A2FO23/61R-VPB05

–

A2FO10/61L-VAB06

A2FO12/61L-VAB06

A2FO12/61R-NAB06

A2FO23/61L-VAB05

–

A2FO10/61L-VZB06

A2FO12/61L-VZB06

A2FO12/61R-NBB06

A2FO23/61L-VZB05

–

A2FO10/61L-VBB06

A2FO12/61L-VBB06

A2FO12/61L-NAB06

A2FO23/61L-VBB05

–

A2FO10/61L-VPB06

A2FO12/61L-VPB06

A2FO12/61L-NBB06

A2FO23/61L-VPB05

–

A2FO10/61R-NAB06

A2FO12/61R-NAB06

A2FO12/61R-PAB06

A2FO23/61R-NAB05

–

A2FO10/61R-NZB06

A2FO12/61R-NZB06

A2FO12/61R-PBB06

A2FO23/61R-NZB05

–

A2FO10/61R-NBB06

A2FO12/61R-NBB06

A2FO12/61L-PAB06

A2FO23/61R-NBB05

–

A2FO10/61R-NPB06

A2FO12/61R-NPB06

A2FO12/61L-PBB06

A2FO23/61R-NPB05

–

A2FO10/61L-NAB06

A2FO12/61L-NAB06

–

A2FO23/61L-NAB05

–

A2FO10/61L-NZB06

A2FO12/61L-NZB06

–

A2FO23/61L-NZB05

–

A2FO10/61L-NBB06

A2FO12/61L-NBB06

–

A2FO23/61L-NBB05

–

A2FO10/61L-NPB06

A2FO12/61L-NPB06

–

A2FO23/61L-NPB05

–

A2FO10/61R-PAB06

A2FO12/61R-PAB06

–

A2FO23/61R-PAB05

–

A2FO10/61R-PZB06

A2FO12/61R-PZB06

–

A2FO23/61R-PZB05

–

A2FO10/61R-PBB06

A2FO12/61R-PBB06

–

A2FO23/61R-PBB05

–

A2FO10/61R-PPB06

A2FO12/61R-PPB06

–

A2FO23/61R-PPB05

–

A2FO10/61L-PAB06

A2FO12/61L-PAB06

–

A2FO23/61L-PAB05

–

A2FO10/61L-PZB06

A2FO12/61L-PZB06

–

A2FO23/61L-PZB05

–

A2FO10/61L-PBB06

A2FO12/61L-PBB06

–

A2FO23/61L-PBB05

–

A2FO10/61L-PPB06

A2FO12/61L-PPB06

–

A2FO23/61L-PPB05

A2FO 28

A2FO 32

A2FO 45

A2FO 56

A2FO 63

A2FO28/61R-VAB05

A2FO32/61R-VAB05

A2FO45/61R-VZB05

A2FO56/61R-VAB05

A2FO63/61R-VAB05

A2FO28/61R-VZB05

A2FO32/61R-VBB05

A2FO45/61R-VPB05

A2FO56/61R-VZB05

A2FO63/61R-VBB05

A2FO28/61R-VBB05

A2FO32/61L-VAB05

A2FO45/61L-VZB05

A2FO56/61R-VBB05

A2FO63/61L-VAB05

A2FO28/61R-VPB05

A2FO32/61L-VBB05

A2FO45/61L-VPB05

A2FO56/61R-VPB05

A2FO63/61L-VBB05

A2FO28/61L-VAB05

A2FO32/61R-NAB05

A2FO45/61R-NZB05

A2FO56/61L-VAB05

A2FO63/61R-NAB05

A2FO28/61L-VZB05

A2FO32/61R-NBB05

A2FO45/61R-NPB05

A2FO56/61L-VZB05

A2FO63/61R-NBB05

A2FO28/61L-VBB05

A2FO32/61L-NAB05

A2FO45/61L-NZB05

A2FO56/61L-VBB05

A2FO63/61L-NAB05

A2FO28/61L-VPB05

A2FO32/61L-NBB05

A2FO45/61L-NPB05

A2FO56/61L-VPB05

A2FO63/61L-NBB05

A2FO28/61R-NAB05

A2FO32/61R-PAB05

A2FO45/61R-PZB05

A2FO56/61R-NAB05

A2FO63/61R-PAB05

A2FO28/61R-NZB05

A2FO32/61R-PBB05

A2FO45/61R-PPB05

A2FO56/61R-NZB05

A2FO63/61R-PBB05

A2FO28/61R-NBB05

A2FO32/61L-PAB05

A2FO45/61L-PZB05

A2FO56/61R-NBB05

A2FO63/61L-PAB05

A2FO28/61R-NPB05

A2FO32/61L-PBB05

A2FO45/61L-PPB05

A2FO56/61R-NPB05

A2FO63/61L-PBB05

A2FO28/61L-NAB05

–

–

A2FO56/61L-NAB05

–

A2FO28/61L-NZB05

–

–

A2FO56/61L-NZB05

–

A2FO28/61L-NBB05

–

–

A2FO56/61L-NBB05

–

A2FO28/61L-NPB05

–

–

A2FO56/61L-NPB05

–

A2FO28/61R-PAB05

–

–

A2FO56/61R-PAB05

–

A2FO28/61R-PZB05

–

–

A2FO56/61R-PZB05

–

A2FO28/61R-PBB05

–

–

A2FO56/61R-PBB05

–

A2FO28/61R-PPB05

–

–

A2FO56/61R-PPB05

–

A2FO28/61L-PAB05

–

–

A2FO56/61L-PAB05

–

A2FO28/61L-PZB05

–

–

A2FO56/61L-PZB05

–

A2FO28/61L-PBB05

–

–

A2FO56/61L-PBB05

–

A2FO28/61L-PPB05

–

–

A2FO56/61L-PPB05

–

A2FO 80

A2FO 90

A2FO 107

A2FO 125

A2FO 160

A2FO80/61R-VAB05

A2FO90/61R-VAB05

A2FO107/61R-VAB05

A2FO125/61R-VAB05

A2FO160/61R-VAB05

A2FO80/61R-VZB05

A2FO90/61R-VBB05

A2FO107/61R-VZB05

A2FO125/61R-VBB05

A2FO160/61R-VZB05

A2FO80/61R-VBB05

A2FO90/61L-VAB05

A2FO107/61R-VBB05

A2FO125/61L-VAB05

A2FO160/61R-VBB05

A2FO80/61R-VPB05

A2FO90/61L-VBB05

A2FO107/61R-VPB05

A2FO125/61L-VBB05

A2FO160/61R-VPB05

A2FO80/61L-VAB05

A2FO90/61R-NAB05

A2FO107/61L-VAB05

A2FO125/61R-NAB05

A2FO160/61L-VAB05

A2FO80/61L-VZB05

A2FO90/61R-NBB05

A2FO107/61L-VZB05

A2FO125/61R-NBB05

A2FO160/61L-VZB05

A2FO80/61L-VBB05

A2FO90/61L-NAB05

A2FO107/61L-VBB05

A2FO125/61L-NAB05

A2FO160/61L-VBB05

A2FO80/61L-VPB05

A2FO90/61L-NBB05

A2FO107/61L-VPB05

A2FO125/61L-NBB05

A2FO160/61L-VPB05

A2FO80/61R-NAB05

A2FO90/61R-PAB05

A2FO107/61R-NAB05

A2FO125/61R-PAB05

A2FO160/61R-NAB05

A2FO80/61R-NZB05

A2FO90/61R-PBB05

A2FO107/61R-NZB05

A2FO125/61R-PBB05

A2FO160/61R-NZB05

A2FO80/61R-NBB05

A2FO90/61L-PAB05

A2FO107/61R-NBB05

A2FO125/61L-PAB05

A2FO160/61R-NBB05

A2FO80/61R-NPB05

A2FO90/61L-PBB05

A2FO107/61R-NPB05

A2FO125/61L-PBB05

A2FO160/61R-NPB05

A2FO80/61L-NAB05

–

A2FO107/61L-NAB05

–

A2FO160/61L-NAB05

A2FO80/61L-NZB05

–

A2FO107/61L-NZB05

–

A2FO160/61L-NZB05

A2FO80/61L-NBB05

–

A2FO107/61L-NBB05

–

A2FO160/61L-NBB05

A2FO80/61L-NPB05

–

A2FO107/61L-NPB05

–

A2FO160/61L-NPB05

A2FO80/61R-PAB05

–

A2FO107/61R-PAB05

–

A2FO160/61R-PAB05

A2FO80/61R-PZB05

–

A2FO107/61R-PZB05

–

A2FO160/61R-PZB05

A2FO80/61R-PBB05

–

A2FO107/61R-PBB05

–

A2FO160/61R-PBB05

A2FO80/61R-PPB05

–

A2FO107/61R-PPB05

–

A2FO160/61R-PPB05

A2FO80/61L-PAB05

–

A2FO107/61L-PAB05

–

A2FO160/61L-PAB05

A2FO80/61L-PZB05

–

A2FO107/61L-PZB05

–

A2FO160/61L-PZB05

A2FO80/61L-PBB05

–

A2FO107/61L-PBB05

–

A2FO160/61L-PBB05

A2FO80/61L-PPB05

–

A2FO107/61L-PPB05

–

A2FO160/61L-PPB05

A2FO 180

A2FO 200

A2FO 250

A2FO 355

A2FO 500

A2FO180/61R-VAB05

A2FO200/63R-VAB05

A2FO250/60R-VZB05

A2FO355/60R-VZH11

A2FO500/60R-VZH11

A2FO180/61R-VBB05

A2FO200/63R-VBB05

A2FO250/60R-VPB05

A2FO355/60R-VPH11

A2FO500/60R-VPH11

A2FO180/61L-VAB05

A2FO200/63L-VAB05

A2FO250/60L-VZB05

A2FO355/60L-VZH11

A2FO500/60L-VZH11

A2FO180/61L-VBB05

A2FO200/63L-VBB05

A2FO250/60L-VPB05

A2FO355/60L-VPH11

A2FO500/60L-VPH11

A2FO180/61R-NAB05

A2FO200/63R-NAB05

–

–

–

A2FO180/61R-NBB05

A2FO200/63R-NBB05

–

–

–

A2FO180/61L-NAB05

A2FO200/63L-NAB05

–

–

–

A2FO180/61L-NBB05

A2FO200/63L-NBB05

–

–

–

A2FO180/61R-PAB05

A2FO200/63R-PAB05

–

–

–

A2FO180/61R-PBB05

A2FO200/63R-PBB05

–

–

–

A2FO180/61L-PAB05

A2FO200/63L-PAB05

–

–

–

A2FO180/61L-PBB05

A2FO200/63L-PBB05

–

–

–

A2FLO 250

A2FLO 355

A2FLO 500

A2FLO 710

A2FLO 1000

A2FLO250/60R-VZB05

A2FLO355/60R-VZH11

A2FLO500/60R-VZH11

A2FLO710/60R-VZH11

A2FLO1000/60R-VZH11

A2FLO250/60R-VPB05

A2FLO355/60R-VPH11

A2FLO500/60R-VPH11

A2FLO710/60R-VPH11

A2FLO1000/60R-VPH11

A2FLO250/60L-VZB05

A2FLO355/60L-VZH11

A2FLO500/60L-VZH11

A2FLO710/60L-VZH11

A2FLO1000/60L-VZH11

A2FLO250/60L-VPB05

A2FLO355/60L-VPH11

A2FLO500/60L-VPH11

A2FLO710/60L-VPH11

A2FLO1000/60L-VPH11

Displacement geometric,

per revolution

Vg

cm3

4.93

10.3

12

16

22.9

28.1

32

45.6

56.1

63

80.4

Speed maximum

n_nom

rpm

5600

3150

3150

3150

2500

2500

2500

2240

2000

2000

1800

nmax

rpm

8000

6000

6000

6000

4750

4750

4750

4250

3750

3750

3350

Flow at n_nom

q_V

L/min

27.6

32

38

50

57

70

80

102

112

126

145

Power at

Dp = 350 bar

P

kW

14.5

19

22

29

33

41

47

60

65

74

84

Dp = 400 bar

P

kW

–

22

25

34

38

47

53

68

75

84

96

Torque

at V_g and

Dp = 350 bar

T

Nm

24.7

57

67

89

128

157

178

254

313

351

448

Dp = 400 bar

T

Nm

–

66

76

102

146

179

204

290

357

401

512

Rotary stiffness

c

kNm/rad

0.63

0.92

1.25

1.59

2.56

2.93

3.12

4.18

5.94

6.25

8.73

Moment of inertia for rotary group

J_GR

kgm2

0.00006

0.0004

0.0004

0.0004

0.0012

0.0012

0.0012

0.0024

0.0042

0.0042

0.0072

Maximum angular acceleration

a

rad/s2

5000

5000

5000

5000

6500

6500

6500

14600

7500

7500

6000

Case volume

V

L

0.17

0.17

0.17

0.2

0.2

0.2

0.33

0.45

0.45

0.55

Mass (approx.)

m

kg

2.5

6

6

6

9.5

9.5

9.5

13.5

18

18

23

Size

NG

90

107

125

160

180

200

250

355

500

710

1000

Displacement geometric,

per revolution

Vg

cm3

90

106.7

125

160.4

180

200

250

355

500

710

1000

Speed maximum

n_nom

rpm

1800

1600

1600

1450

1450

1550

1500

1320

1200

1200

950

nmax

rpm

3350

3000

3000

2650

2650

2750

1800

1600

1500

1500

1200

Flow at n_nom

q_V

L/min

162

171

200

233

261

310

375

469

600

852

950

Power at

Dp = 350 bar

P

kW

95

100

117

136

152

181

219

273

350

497

554

Dp = 400 bar

P

kW

108

114

133

155

174

207

–

–

–

–

–

Torque

at V_g and

Dp = 350 bar

T

Nm

501

594

696

893

1003

1114

1393

1978

2785

3955

5570

Dp = 400 bar

T

Nm

573

679

796

1021

1146

1273

–

–

–

–

–

Rotary stiffness

c

kNm/rad

9.14

11.2

11.9

17.4

18.2

57.3

73.1

96.1

144

270

324

Moment of inertia for rotary group

J_GR

kgm2

0.0072

0.0116

0.0116

0.022

0.022

0.0353

0.061

0.102

0,178

0.55

0.55

Maximum angular acceleration

a

rad/s2

6000

4500

4500

3500

3500

11000

10000

8300

5500

4300

4500

Case volume

V

L

0.55

0.8

0.8

1.1

1.1

2.7

2.5

3.5

4.2

8

8

Mass (approx.)

m

kg

23

32

32

45

45

66

73

110

155

325

336
