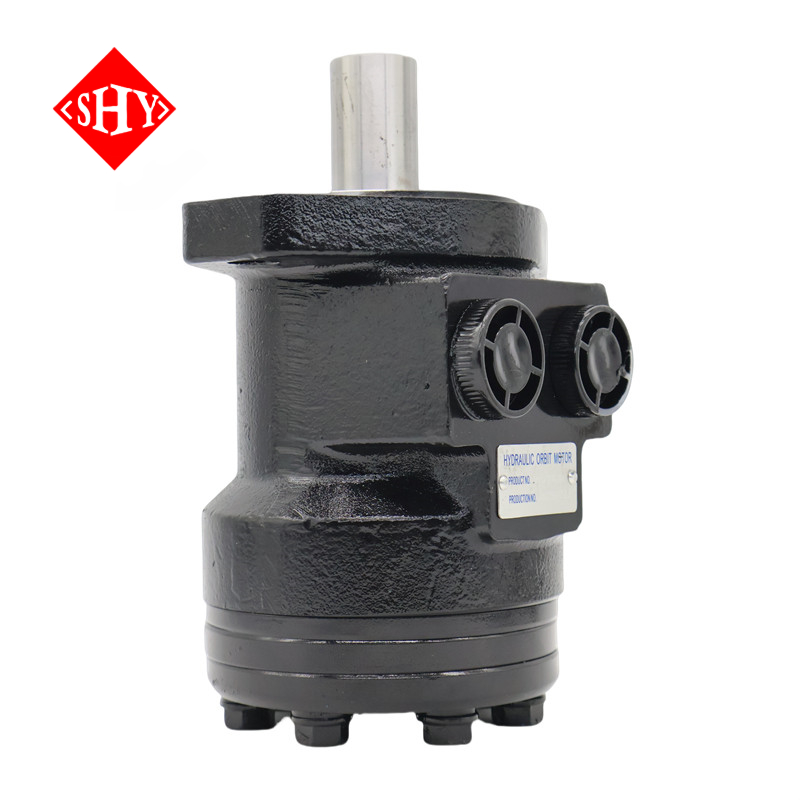

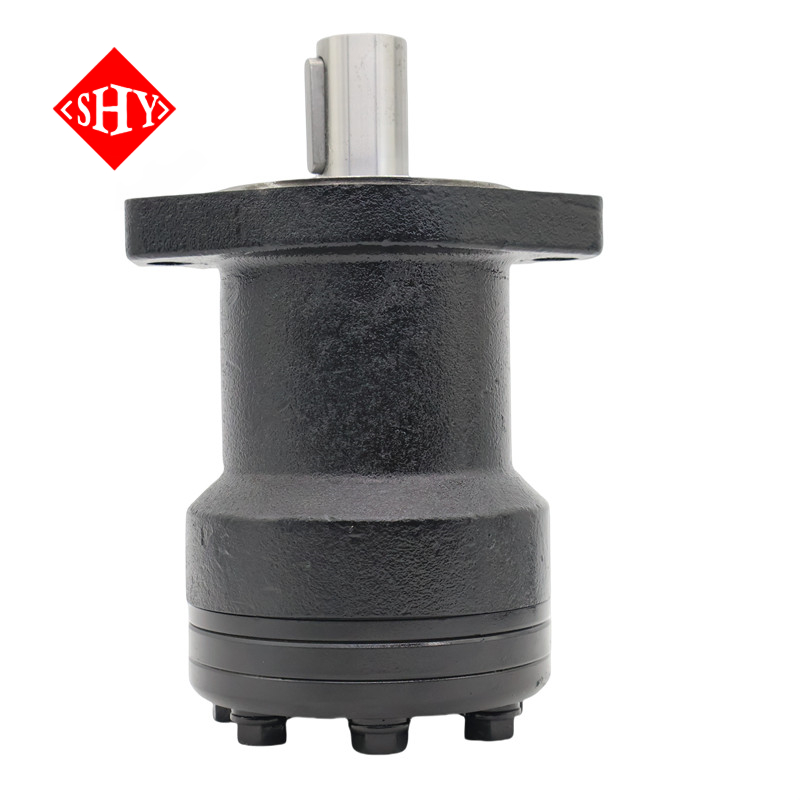

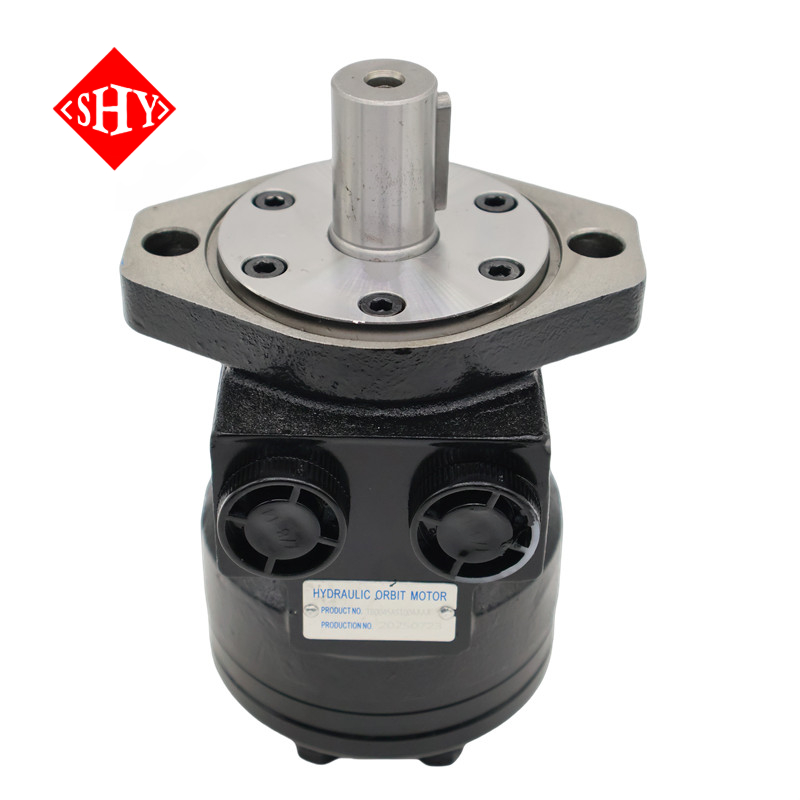

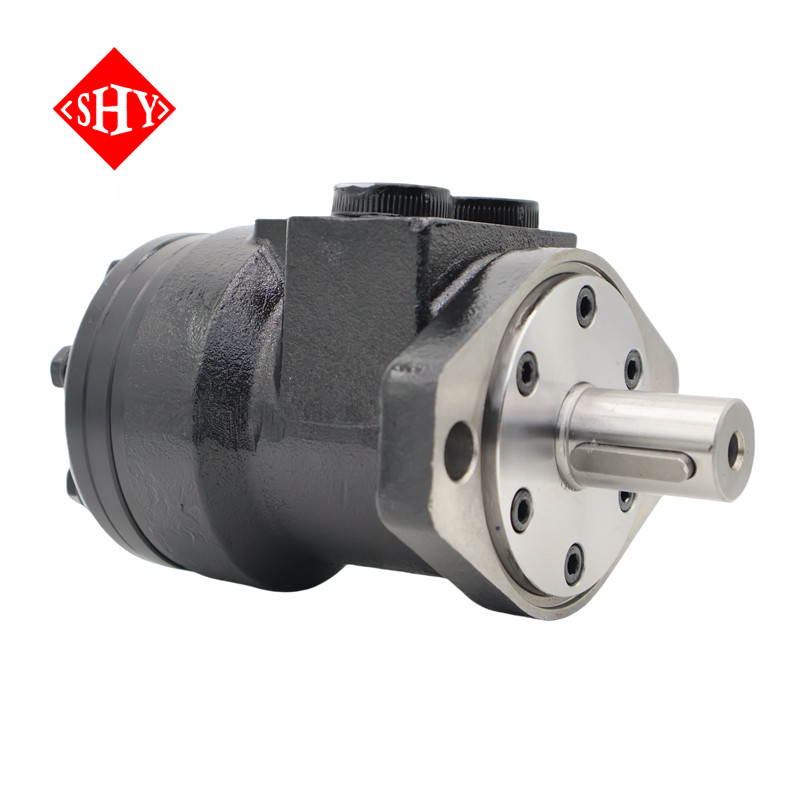

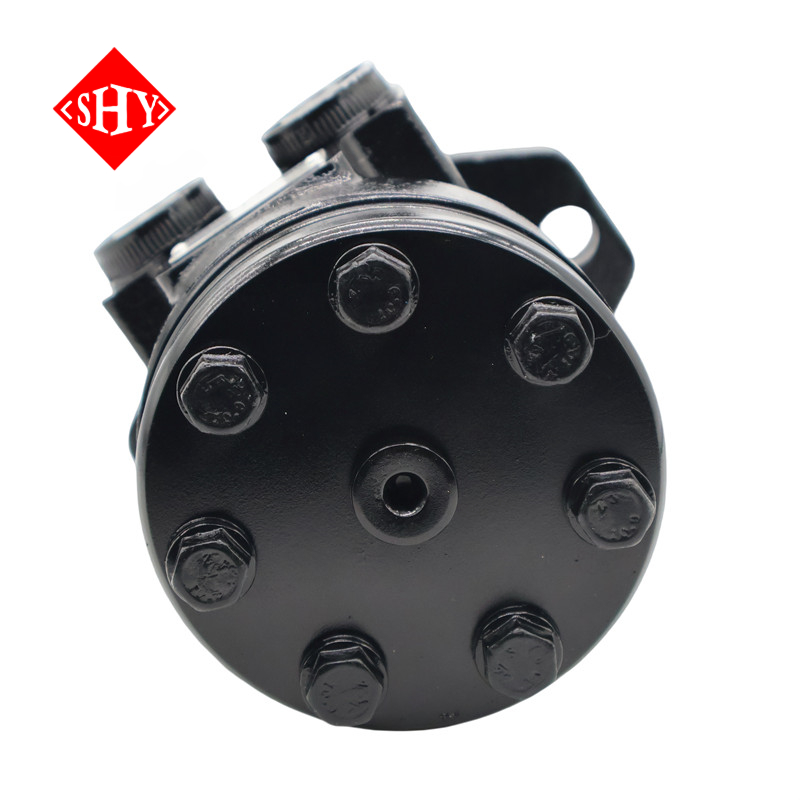

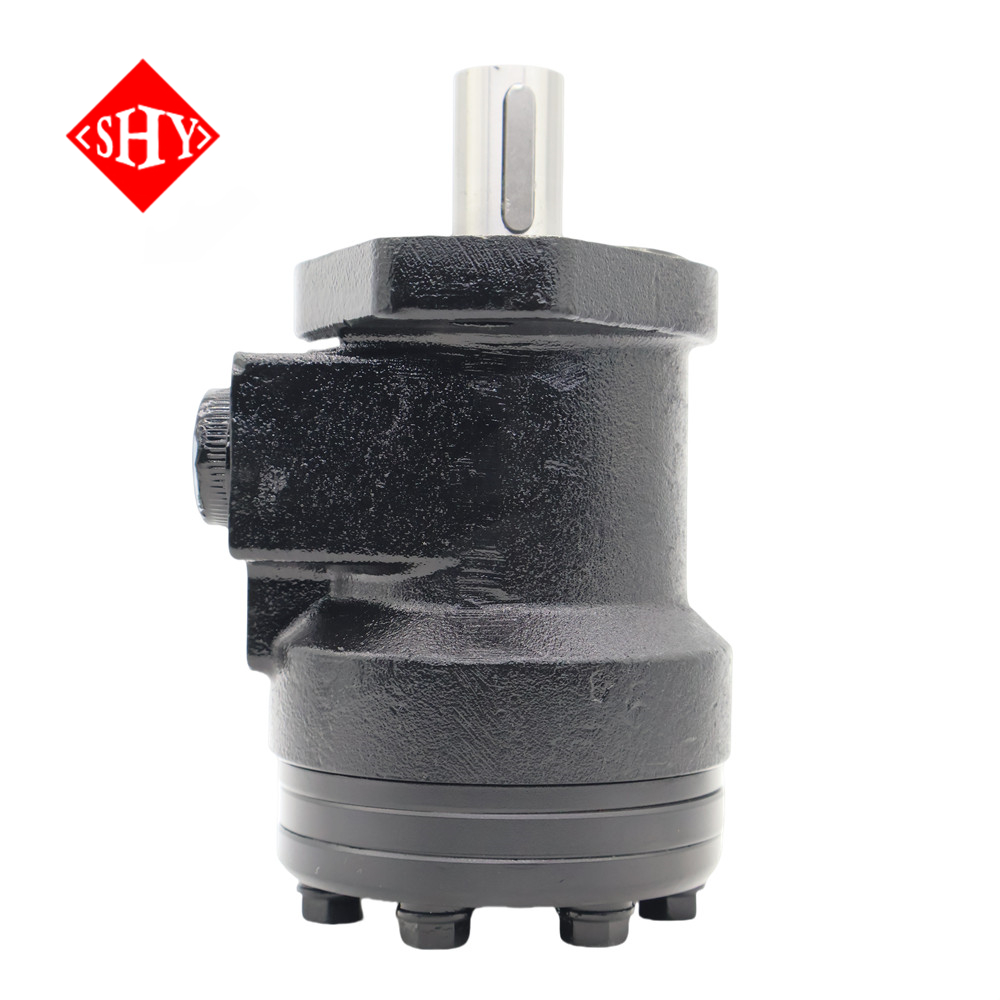

TG Orbital Hydraulic Cycloid Motor

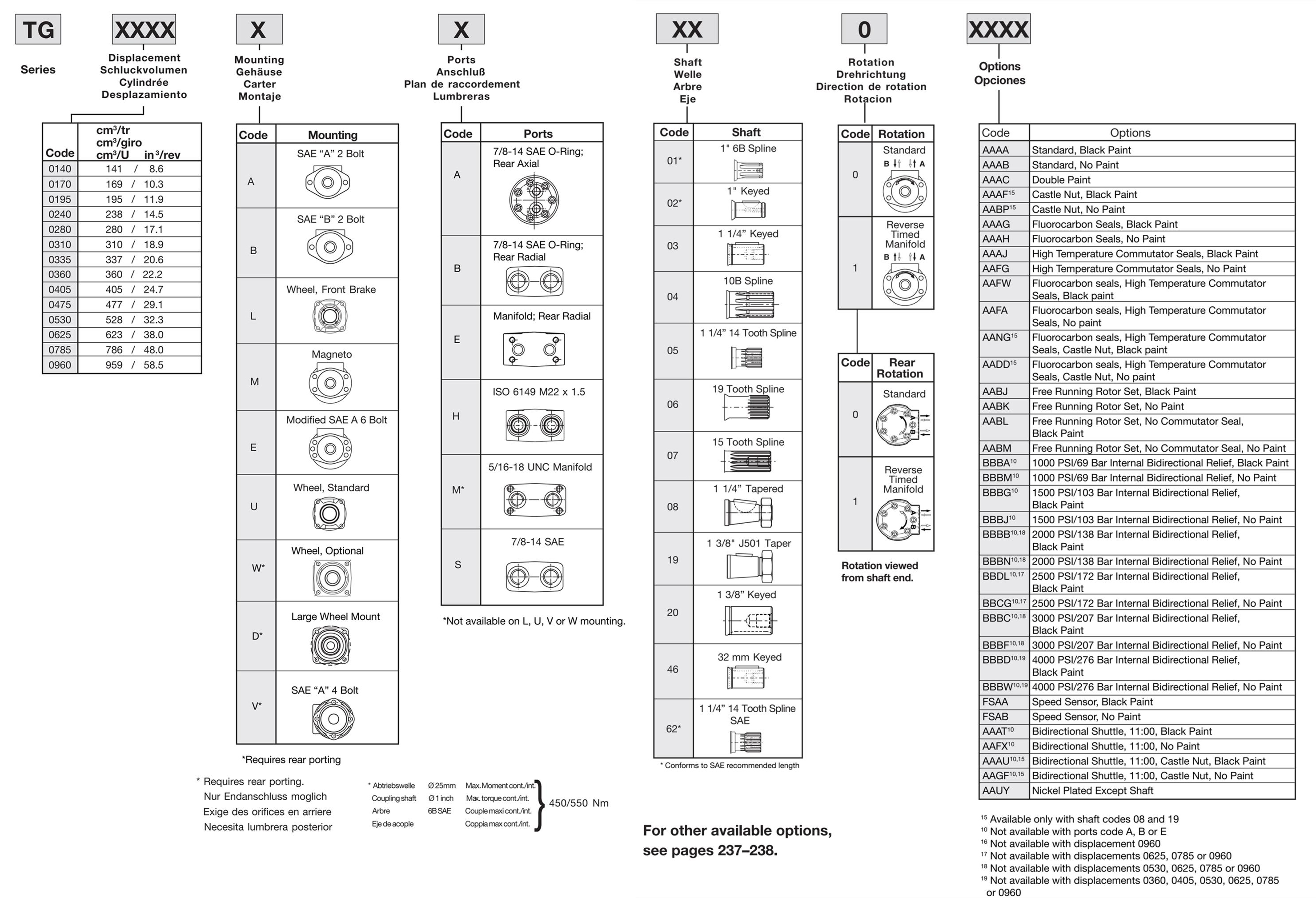

TG Model parameter selection

The model code mainly consists of the following five parts: Displacement, Mounting, Ports, Shaft, and Rotation

such as : TG 0140 A S 01 0 AAAA

TG Displacement

Mounting

Ports

Shaft

Rotation

TG 0140

A

SAE “A” 2 Bolt

A

7/8-14 SAE O-Ring; Rear Axial

01

1" 6B Spline

0

Standard

TG 0170

B

SAE “B” 2 Bolt

B

7/8-14 SAE O-Ring; Rear Radial

02

1" Keyed

1

Reverse Timed Manifold

TG 0195

L

Wheel, Front Brake

E

Manifold; Rear Radial

03

1 1/4” Keyed

TG 0240

M

Magneto

H

ISO 6149 M22 x 1.5

04

10B Spline

TG 0280

E

Modied SAE A 6 Bolt

M

5/16-18 UNC Manifold

05

1 1/4” 14 Tooth Spline

TG 0310

U

Wheel, Standard

S

7/8-14 SAE

06

19 Tooth Spline

TG 0335

W

Wheel, Optional

07

15 Tooth Spline

TG 0360

D

Large Wheel Mount

08

1 1/4” Tapered

TG 0405

V

SAE “A” 4 Bolt

19

1 3/8" J501 Taper

TG 0475

20

1 3/8” Keyed

TG 0530

46

32 mm Keyed

TG 0625

62

1 1/4” 14 Tooth Spline SAE

TG 0785

TG 0960
