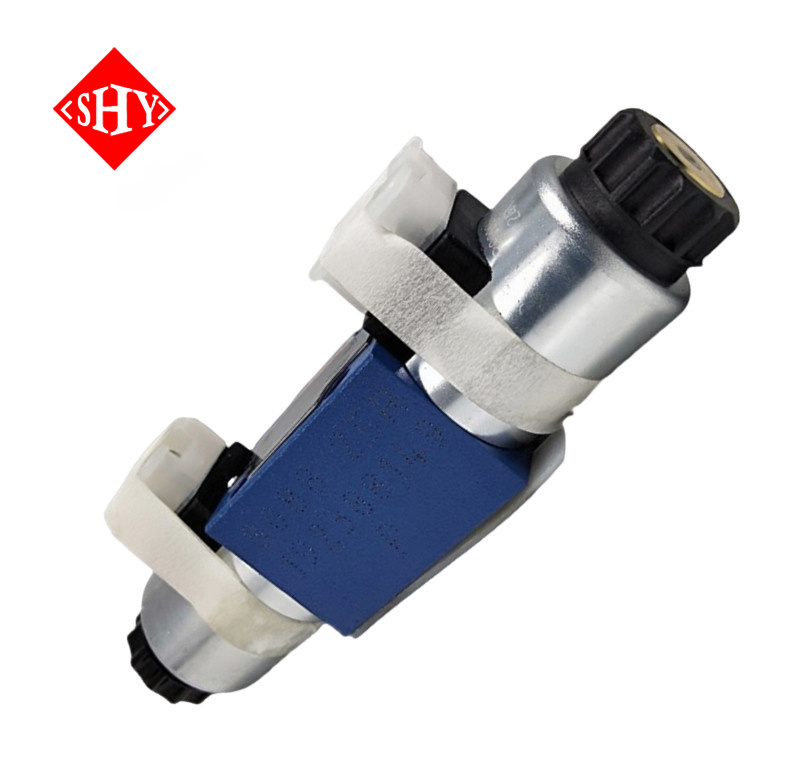

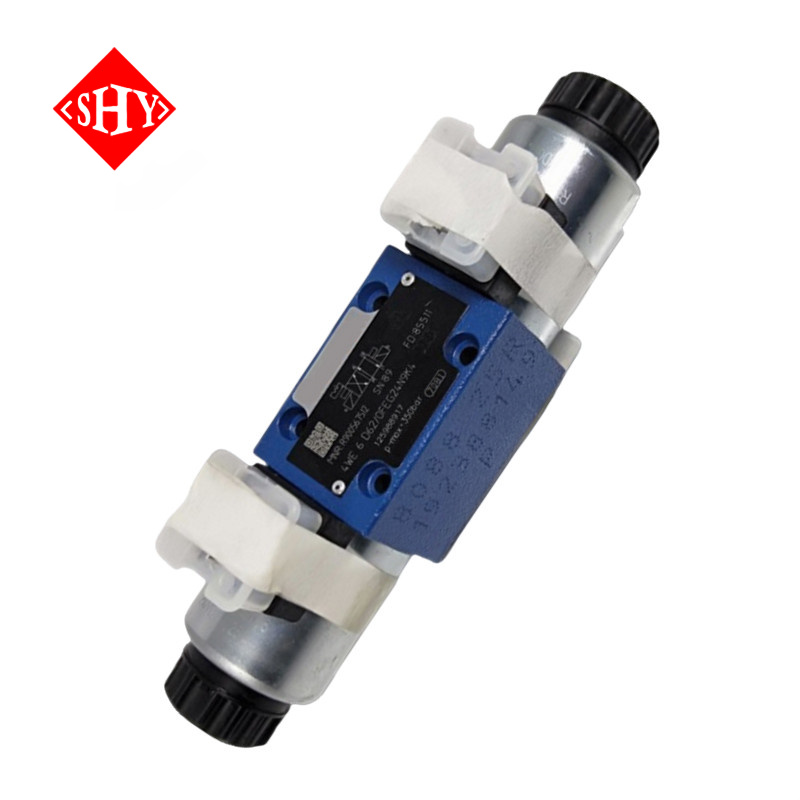

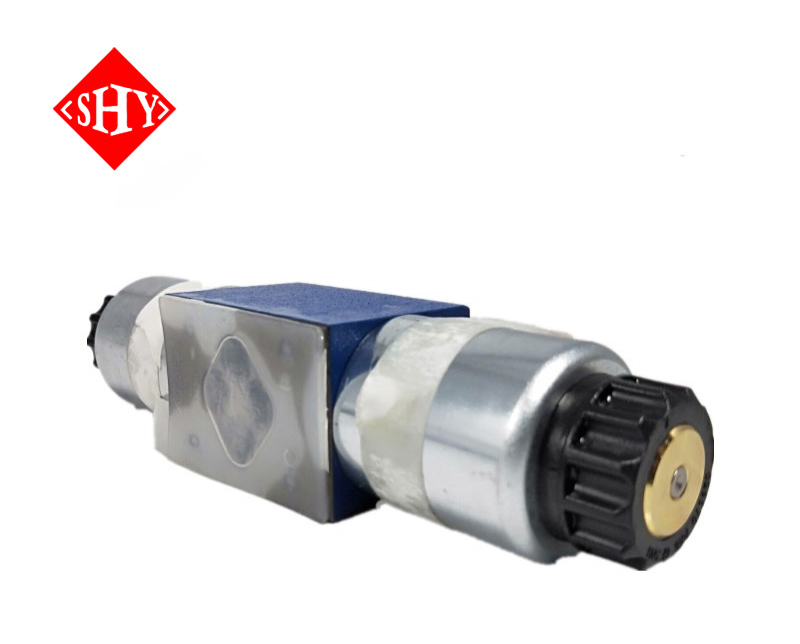

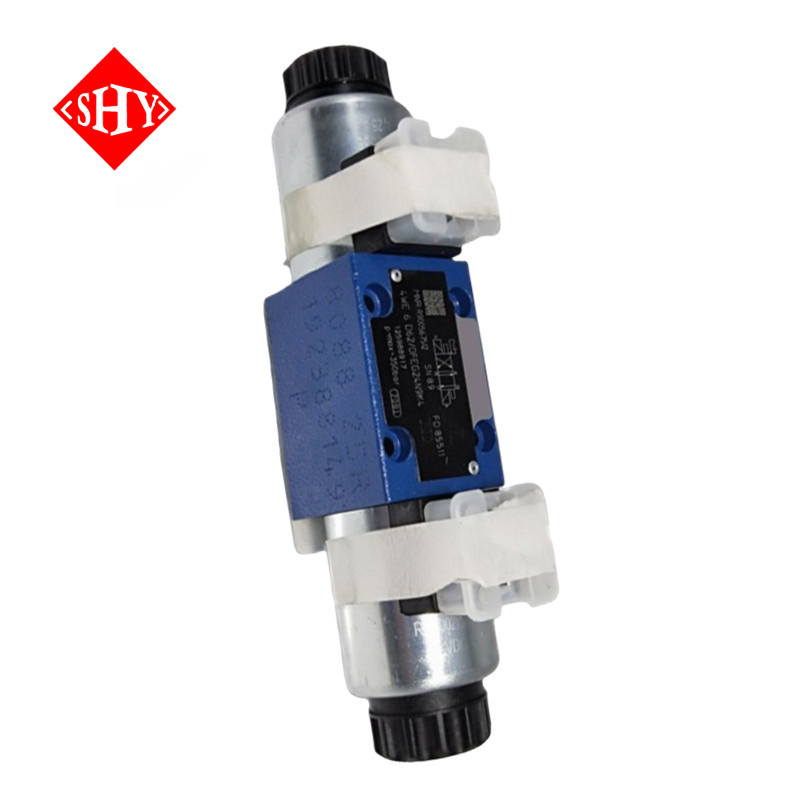

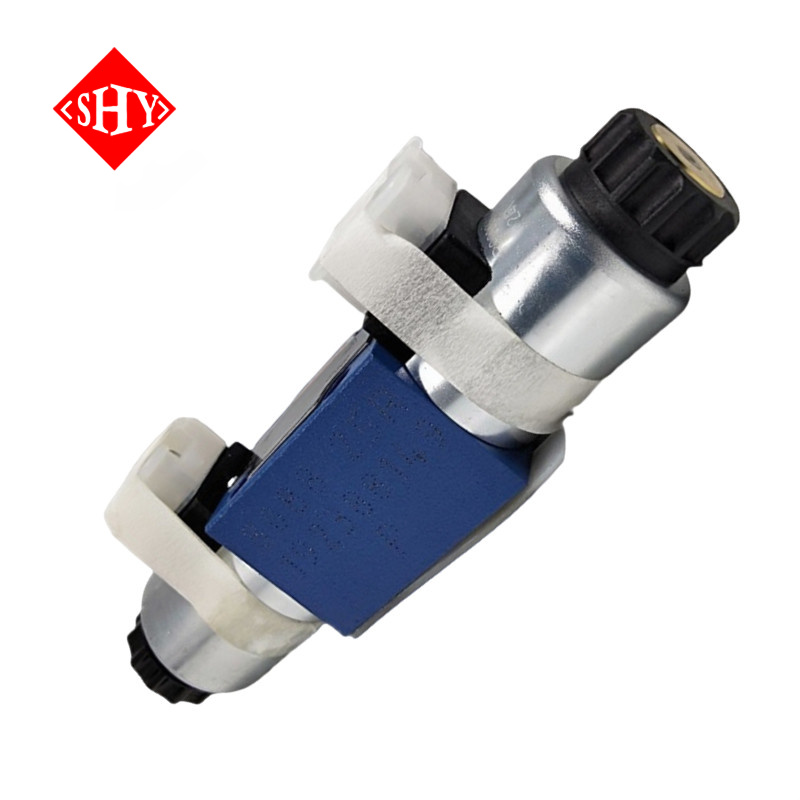

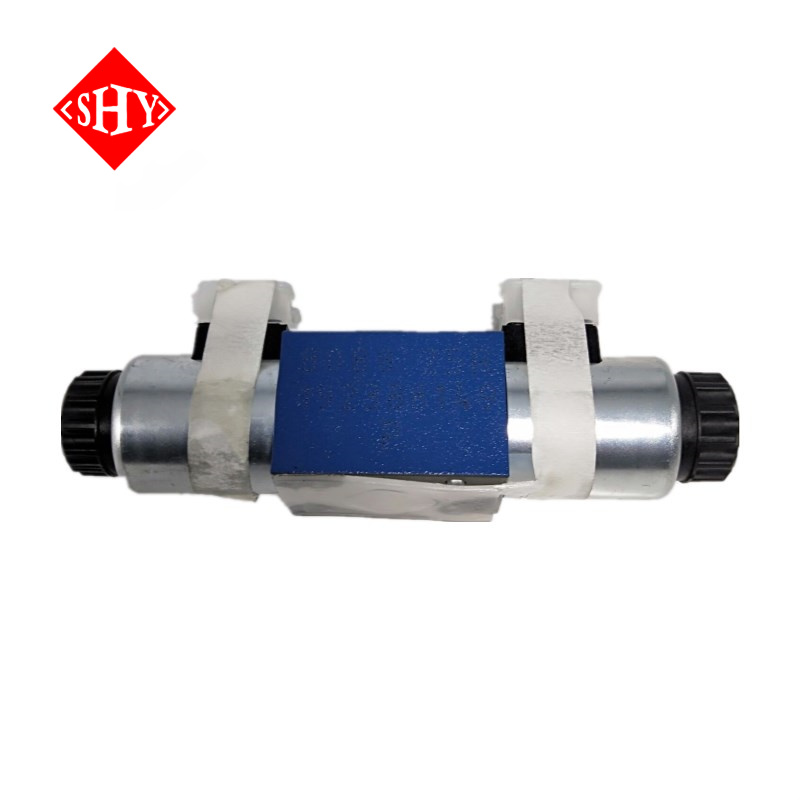

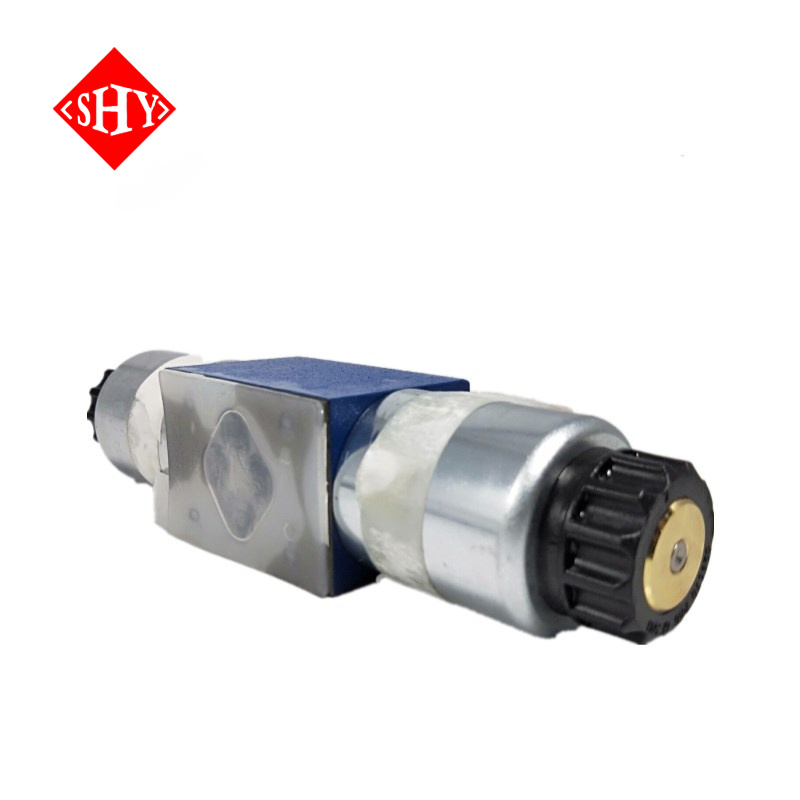

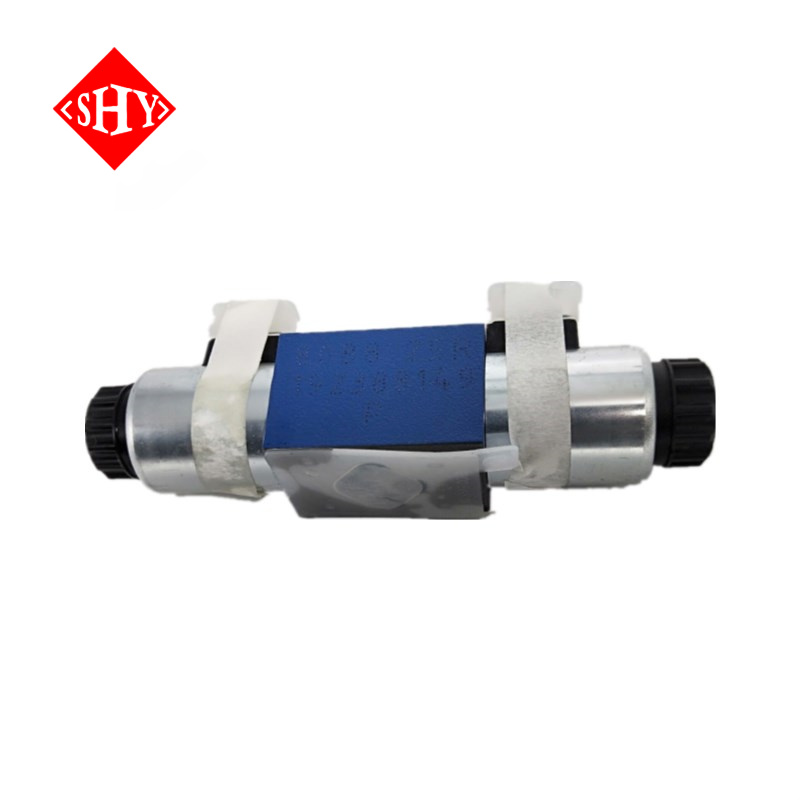

WE 3WE 4WE Hydraulic Direct Operated With Solenoid Actuation Directional Spool Valve | |||
Features | |||
3WE6 | 4WE6 | 3WE10 | 4WE10 |
Direct solenoid operated directional spool valve, high performance version; Porting pattern to DIN 24340 form A, without locating pin hole (standard); NFPA T3.5.1 MR1 and ANSI B93.7 D03; Porting pattern to ISO 4401, with locating pin hole; NFPA T3.5.1 MR1 and ANSI B93.7 D03; Wet pin DC or AC solenoids with removable coil; Solenoid coil can be rotated through 90°; It is not necessary to open the pressure tight chamber when changing the coil; Electrical connections either as individual or central connections Hand override, optional. | 4/3, 4/2 or 3/2 directional design; High-power solenoid; Porting pattern according to ISO 4401-05-04-0-05 and NFPA T3.5.1 R2-2002 D05; Wet-pin AC solenoids with detachable coil; Solenoid coil can be rotated by 90°; The coil can be changed without having to open the pressure-tight chamber; Electrical connection as individual or central connection; Manual override, optiona. | ||
Standard Types | |||
Modrl | Material Number | Modrl | Material Number |
4WE 6 J6X/EG12N9K4 | R900567496 | 4WE 6 J6X/EG24N9K4 | R900561288 |
3WE 6 A6X/EG24N9K4 | R900561180 | 4WE 6 M6X/EG24N9K4 | R900577475 |
3WE 6 B6X/EG24N9K4 | R900561270 | 4WE 6 Q6X/EG24N9K4 | R900561292 |
4WE 6 C6X/EG24N9K4 | R900561272 | 4WE 6 R6X/EG24N9K4 | R900571012 |
4WE 6 C6X/OFEG24N9K4 | R900564107 | 4WE 6 T6X/EG24N9K4 | R900934414 |
4WE 6 D6X/EG24N9K4 | R900561274 | 4WE 6 U6X/EG24N9K4 | R900572785 |
4WE 6 D6X/0FEG24N9K4 | R900567512 | 4WE 6 W6X/EG24N9K4 | R900568233 |
4WE 6 E6X/EG24N9K4 | R900561278 | 4WE 6 H6X/EW23ON9K4 | R900911762 |
4WE 6 EA6X/EG24N9K4 | R900561280 | 4WE 6 Y6X/EG24N9K4 | R900561276 |
4WE 6 EB6X/EG24N9K4 | R900561281 | 4WE 6 D6X/EW110N9K4 | R900551704 |
4WE 6 H6X/EW23ON9K4 | R900912494 | 4WE 6 D6X/OFEW110N9K4 | R900552321 |
4WE 6 G6X/EG24N9K4 | R900561282 | 4WE 6 E6X/EW110N9K4 | R900558641 |
4WE 6 H6X/EG24N9K4 | R900561286 | 4WE 6 J6X/EW110N9K4 | R900551703 |
4WE 6 HA6X/EG24N9K4 | R900549534 | 3WE 6 A6X/EW230N9K4 | R900915672 |
Type WE directional valves are solenoid operated directional spool valves. They control the start, stop and direction of flow.

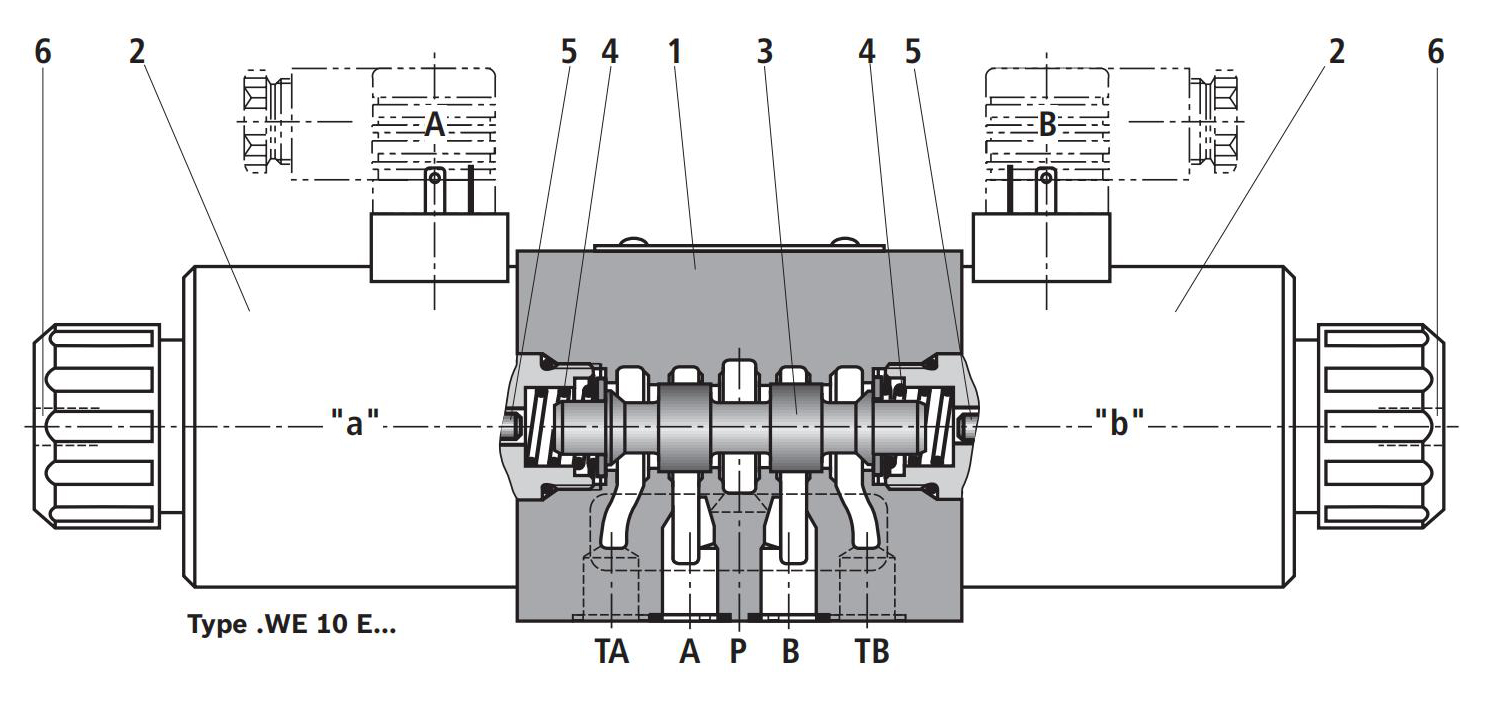

Essentially the directional control valves consist of housing (1), one or two solenoids (2), the control spool (3), and one or two return springs (4).
In the de-energised condition the control spool (3) is held in the neutral or initial position by means of return springs (4) (except
for impulse spools). The control spool (3) is operated via wet pin solenoids (2).
To guarantee satisfactory operation care should be taken to ensure that the solenoid pressure chamber is filled with oil.
The force of the solenoids (2) acts via the plunger (5) on the control spool (3) and pushes this from its neutral position into
the required end position. This permits fl ow from P to A and B to T or P to B and A to T.
When solenoid (2) is de-energised, the control spool (3) is returned to its neutral position by means of the return springs (4).
An optional hand override (6), allows movement of the control spool (3) without energising the solenoid.
