| 50T 150T 250F Fixed Displacement Single Double Combination Vane Pump |

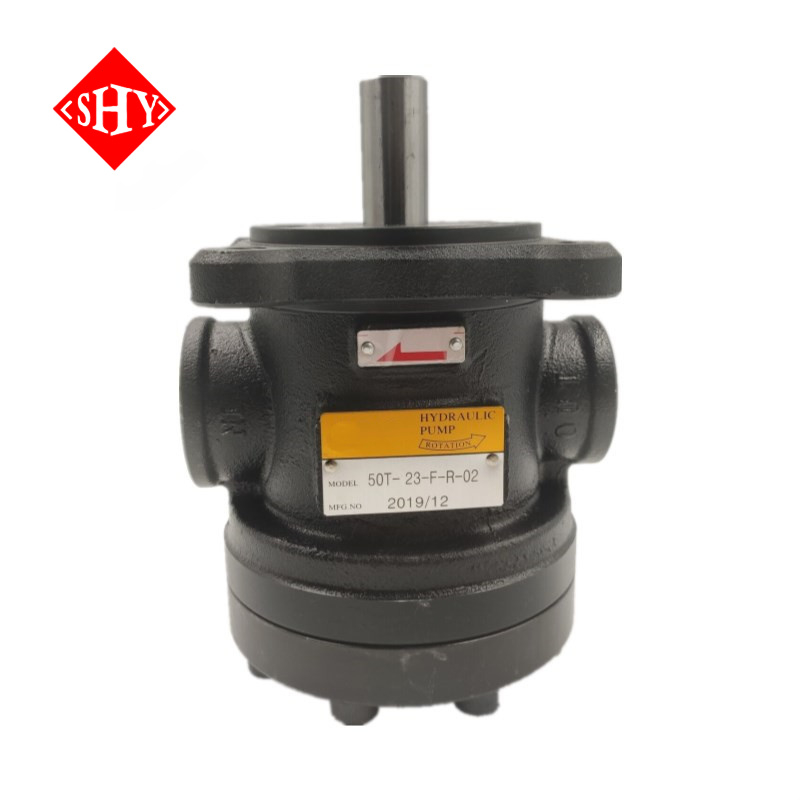

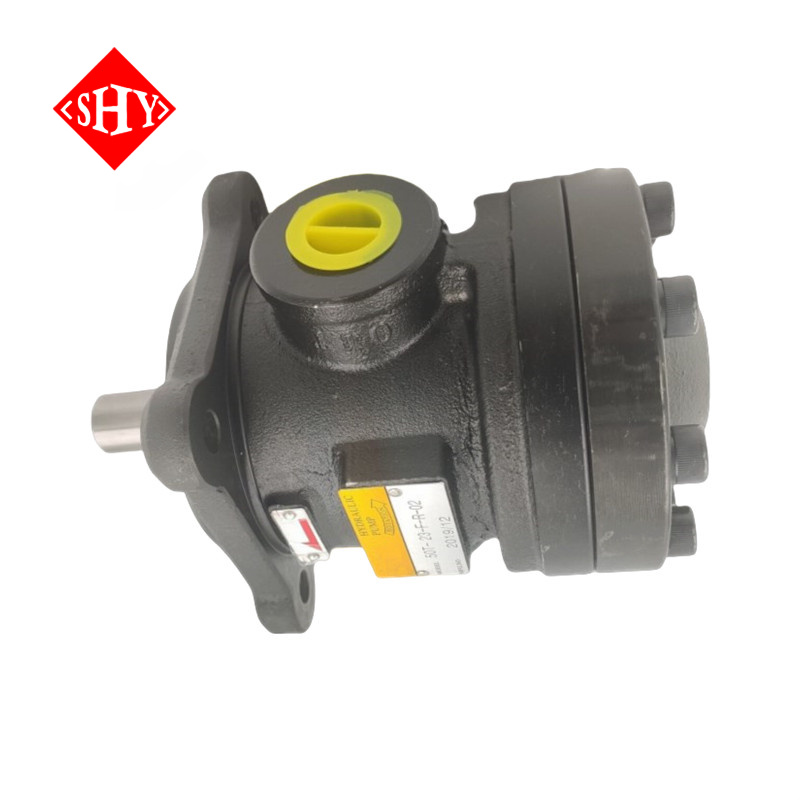

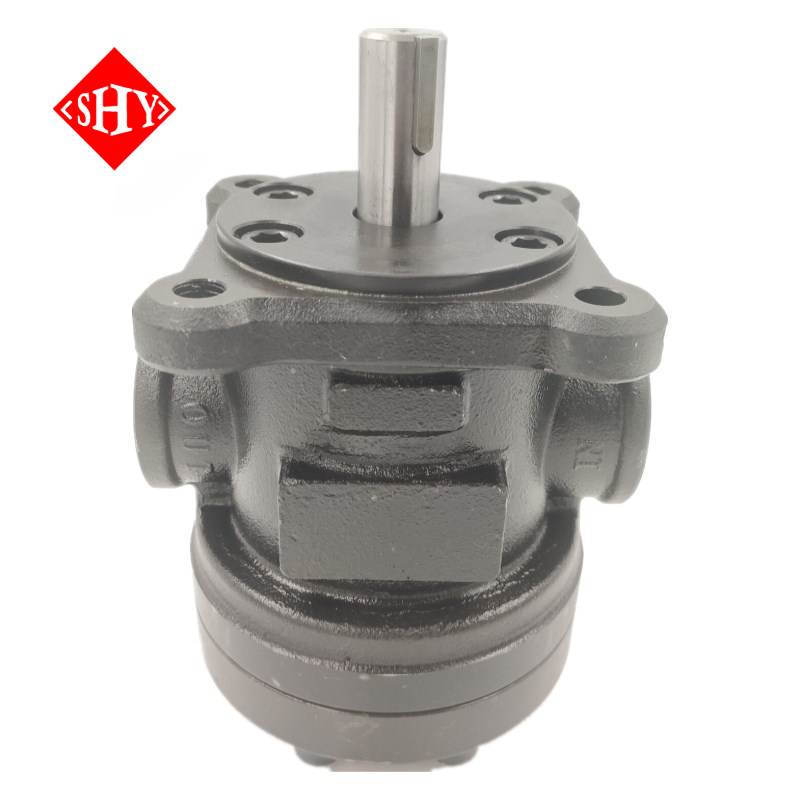

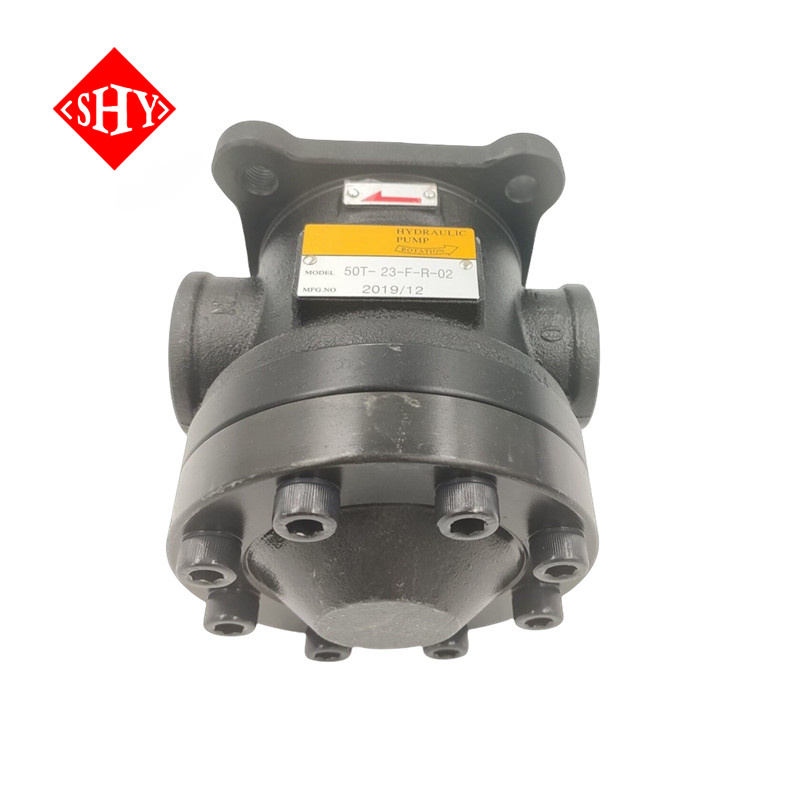

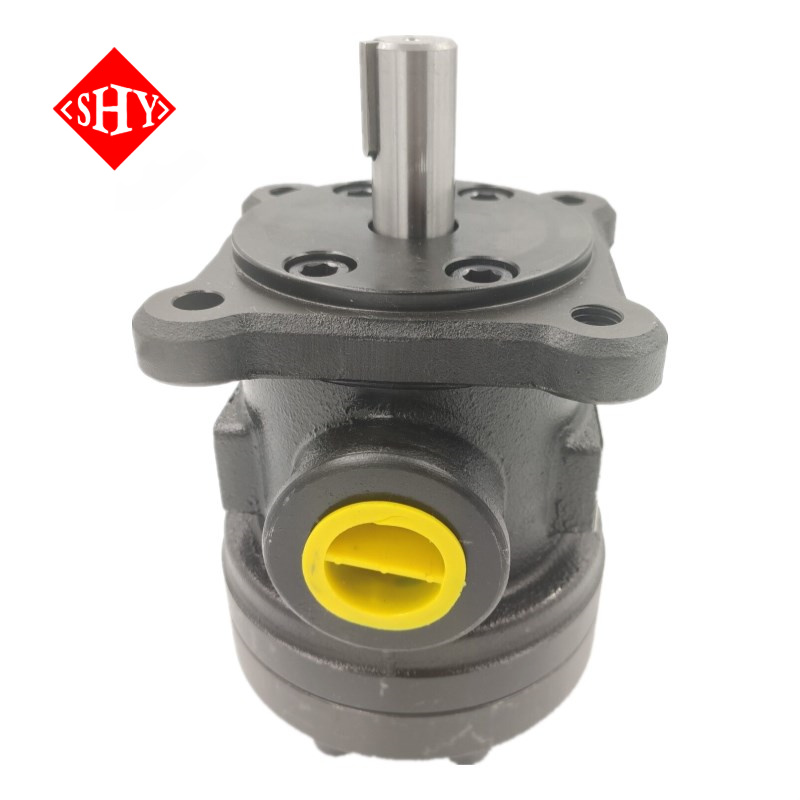

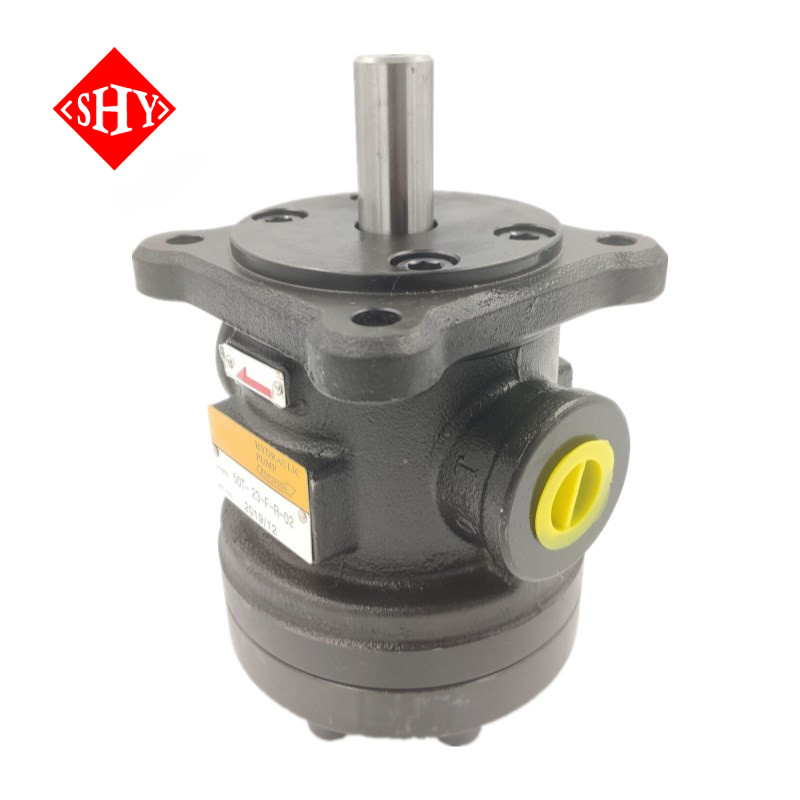

Single Pumps These pumps are widely used as a source ofhydraulic power. They combine stable performance and robust construction with a wide range of delivery rates. |
Double Pumps Two single pumps, driven by a common shaft, have two discharge ports so that the output flow can be supplied to separate circuits. |
Combination Pumps Consists of a double pump with either two relief valves, or one relief and one unloading and check valve incorporated within a common housing. The pressure ofeach pump can be independently adjusted. Remote control or high-low two-pressure control is possible. |

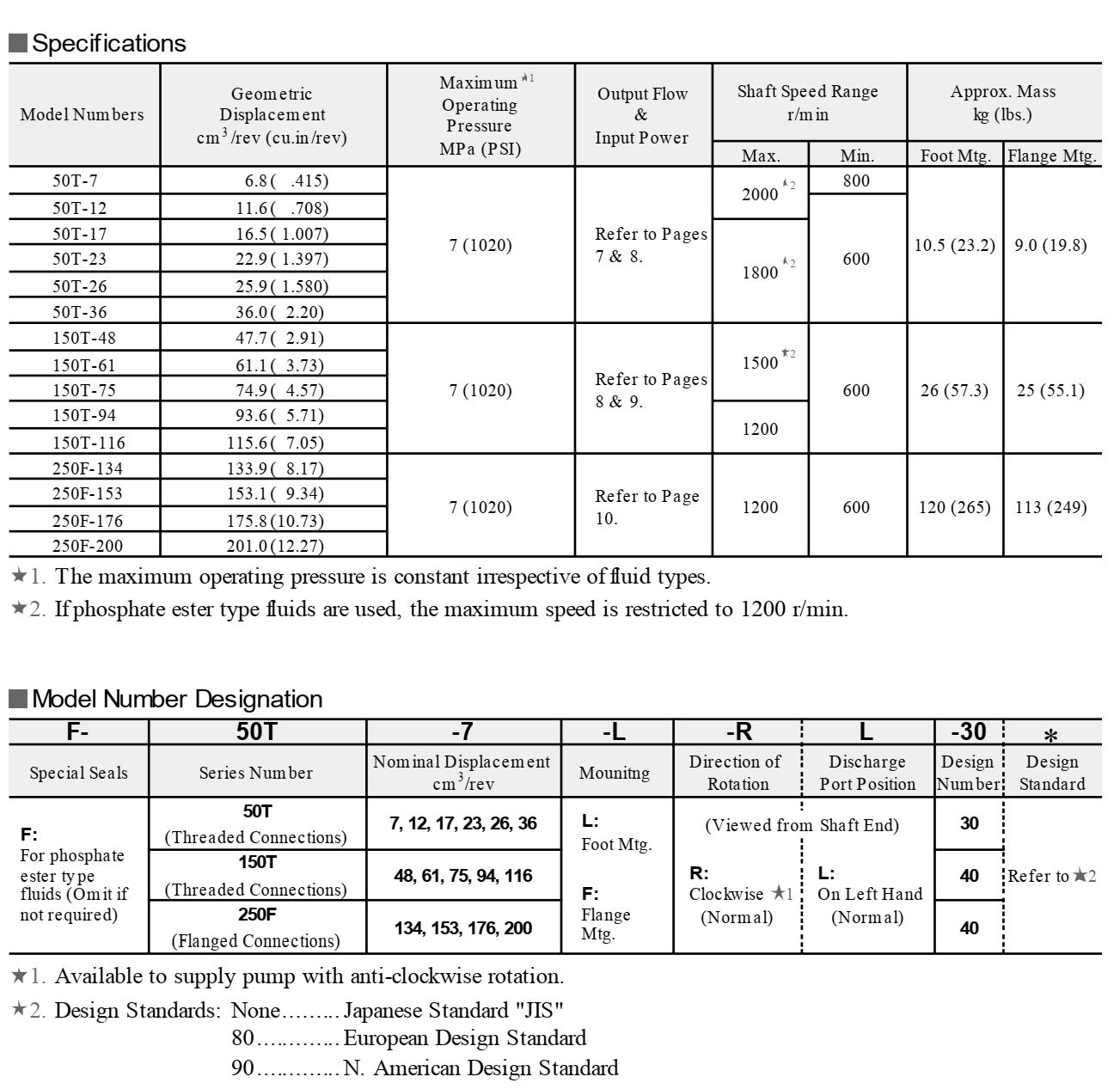

Specifications
Model Numbers | Geom etric Displacem ent cm 3 /rev (cu.in /rev) | Maximum Operating Pressure MPa (PSI) | Shaft Speed Range r/m in | Approx. Mass kg (lbs.) | ||
Max. | Min. | Foot Mtg. | Flange Mtg. | |||
50T-7 | 6.8 (0.415) | 7 (1020) | 2000 | 800 | 10.5 (23.2) | 9.0 (19.8) |
50T-12 | 11.6 (0.708) | 600 | ||||
50T-17 | 16.5 ( 1.007) | 1800 | ||||
50T-23 | 22.9 ( 1.397) | |||||
50T-26 | 25.9 ( 1.580) | |||||
50T-36 | 36.0 ( 2.20) | |||||
150T-48 | 47.7 ( 2.91) | 7 (1020) | 1500 | 600 | 26 (57.3) | 25 (55.1) |
150T-61 | 61.1 ( 3.73) | |||||
150T-75 | 74.9 ( 4.57) | |||||
150T-94 | 93.6 ( 5.71) | 1200 | ||||
150T-116 | 115.6 ( 7.05) | |||||
250F-134 | 133.9 ( 8.17) | 7 (1020) | 1200 | 600 | 120 (265) | 113 (249) |
250F-153 | 153.1 ( 9.34) | |||||
250F-176 | 175.8 (10.73) | |||||
250F-200 | 201.0 (12.27) | |||||
Model Number Designation
F- | 50T | -7 | -L | -R | L | -30 |
Special Seals | Series Number | Nom inal Displacement cm 3/rev | Mounitng | Direction of Rotation | Discharge Port Position | Design Number |
F: For phosphate ester type fluids (Om it if not required) | 50T (Threaded Connections) | 7, 12, 17, 23, 26, 36 | L: Foot Mtg. F: Flange Mtg. | (Viewed from Shaft End) | 30 | |
150T (Threaded Connections) | 48, 61, 75, 94, 116 | R: Clockwise (Norm al) | L: On Left Hand (Norm al) | 40 | ||
250F (Flanged Connections) | 134, 153, 176, 200 | 40 | ||||
Ordering code for standard program：
150T：Series Number
48 or 61 or 75 or 94 or 116：Nominal Displacement，cm3 /rev
L or F：L: Foot Mtg ；F: Flange Mtg
R or L：Direction of Rotation（Viewed from Shaft End）：R：Clockwise；L：Anti-clockwise
L：Discharge Port Position：On Left Hand（Viewed from Shaft End）
40：Design Number
