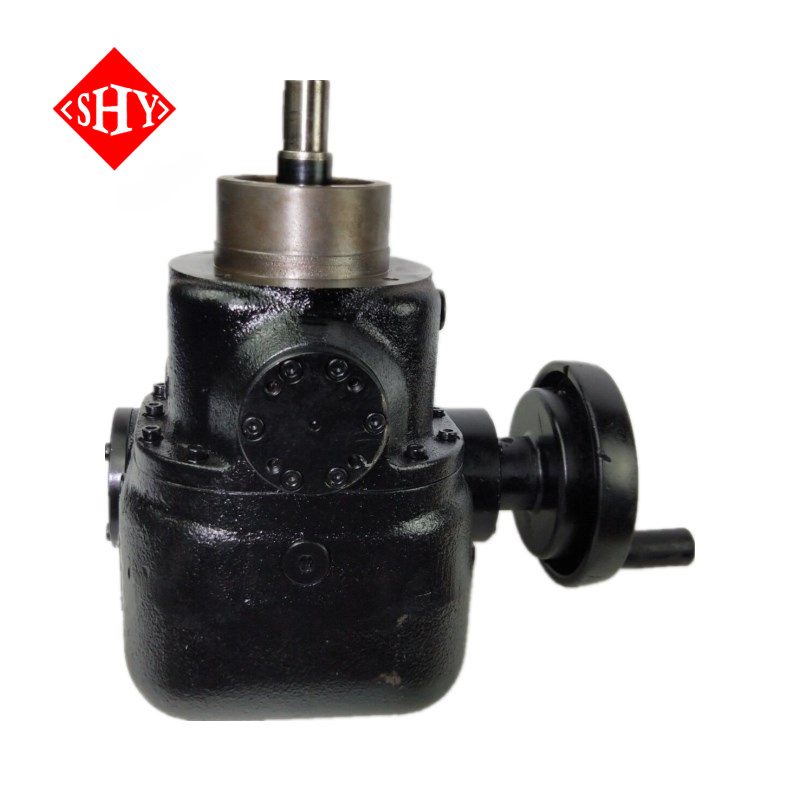

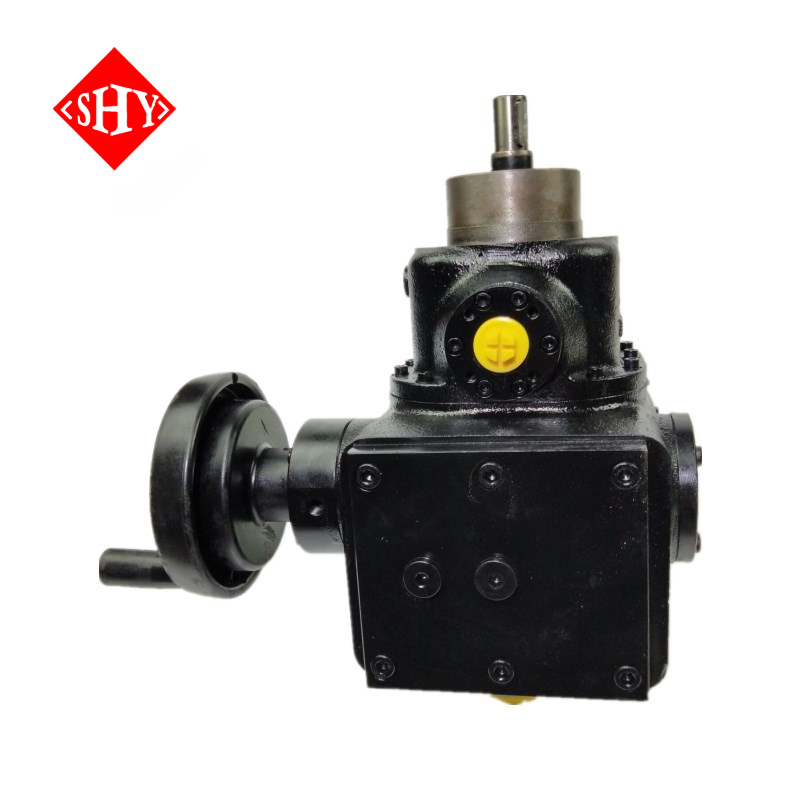

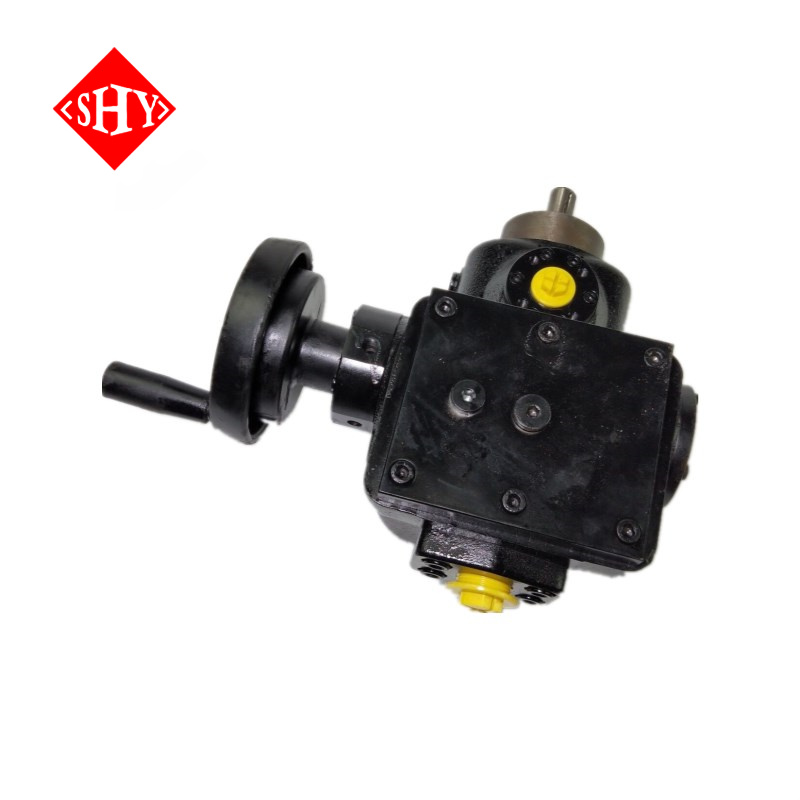

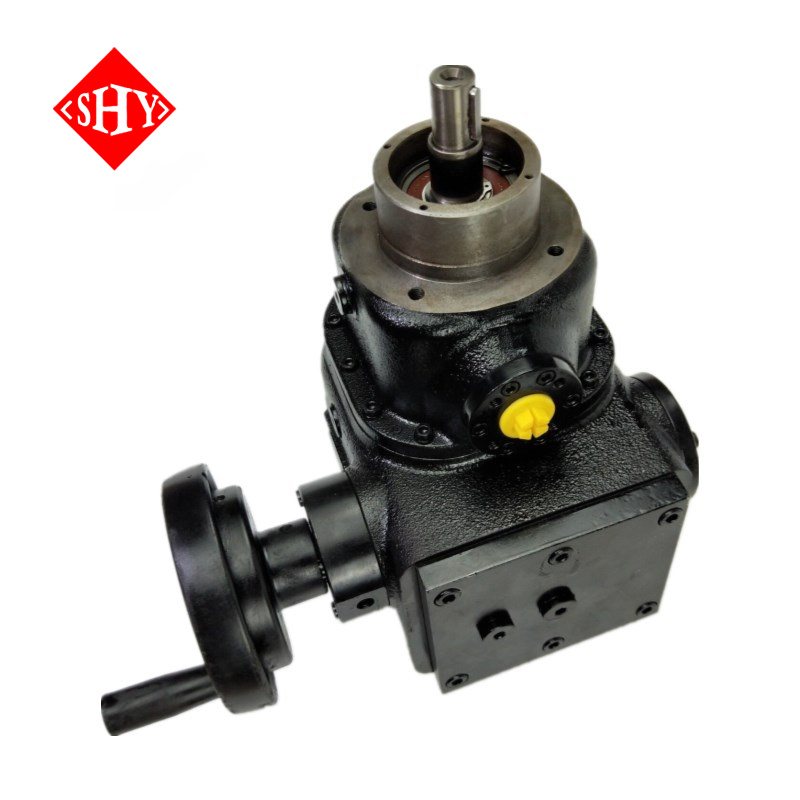

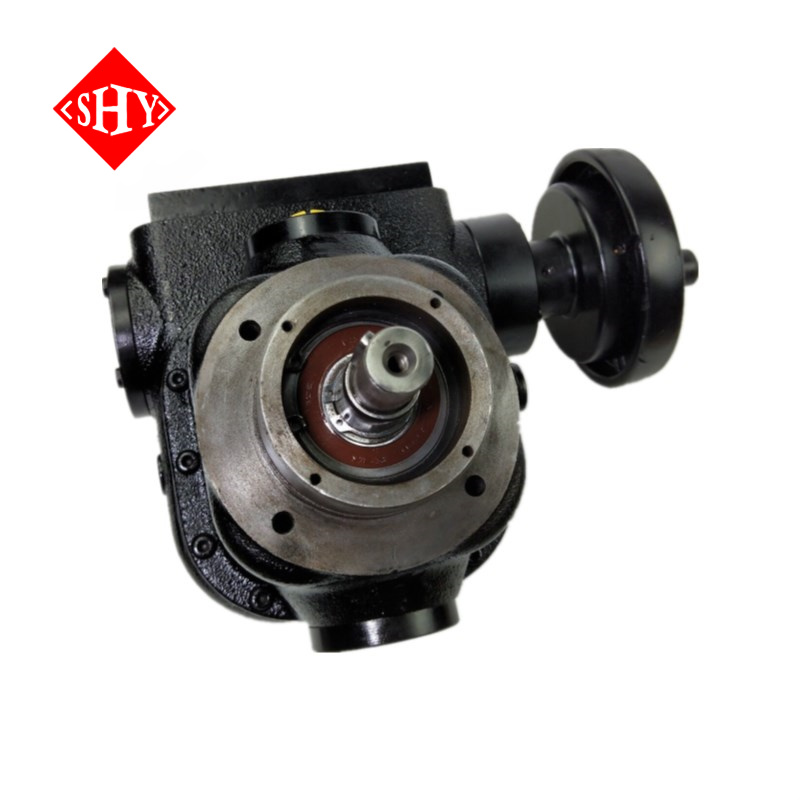

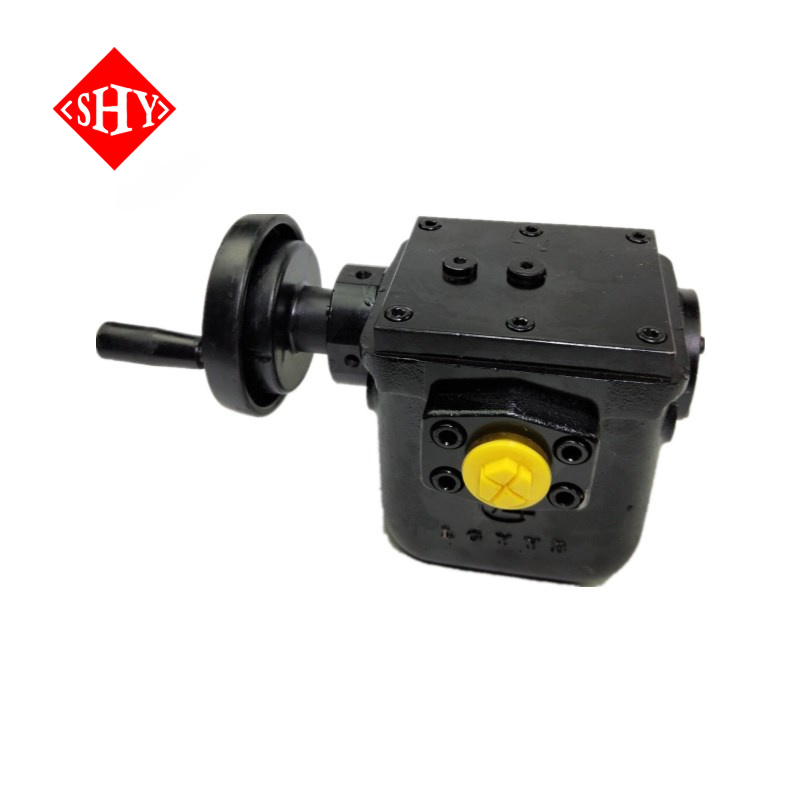

| A2VK Axial Piston Variable Pump | ||||
| Data sheet | ||||
| Size | 12 to 107 Series | |||
| Series | 1 and 4 | |||
| Nominal pressure | 250 bar | |||
| Maximum pressure | 315 bar | |||
| Features | ||||
| – Variable axial piston pump for pumping and metering polyurethane components | ||||
| – High metering accuracy and reproducibility of the variable pumped volumes | ||||
| – Robust manual adjustment via handwheel with integral precision measuring scale | ||||
| – Operating pressure up to 250 bar | ||||
| – Low pulsation of the pumped medium | ||||
| – Pump components are compatible with the pumped media (polyol, isocyanate) due to special pairings of materials and sealing elements | ||||
| – Low-noise | ||||
| – Excellent volumetric efficiency for high metering accuracy | ||||
| – Double shaft seals with buffer fluid ports to guarantee safe operation (and protect the environment) | ||||
| – With corrosion protection | ||||
Table of values
Size | 12 | 28 | 55 | 107 | |||
Displacement | Vg max | cm3 | 11.6 | 28.1 | 54.8 | 107 | |
Flow at speed n | qv max | n = 735 rpm | l/min | 8.3 | 20 | 39.1 | 76.3 |
n = 970 rpm | l/min | 10.9 | 26.4 | 51.6 | 100.7 | ||
n = 1450 rpm | l/min | 16.3 | 39.5 | 77.1 | 150.5 | ||
n = 1800 rpm | l/min | 20.3 | 49.1 | 95.7 | 186.8 | ||
Power at Dp = 250 bar and speed n | Pmax | n = 735 rpm | kW | 3.4 | 8.3 | 16.3 | 31.8 |
n = 970 rpm | kW | 4.5 | 11 | 21.5 | 41.9 | ||
n = 1450 rpm | kW | 6.8 | 16.5 | 32.1 | 62.7 | ||
n = 1800 rpm | kW | 8.4 | 20.4 | 39.9 | 77.8 | ||
Ordering code for standard program：
A complete model, for example：A2VK12MAGR4G1PE1-SO2
