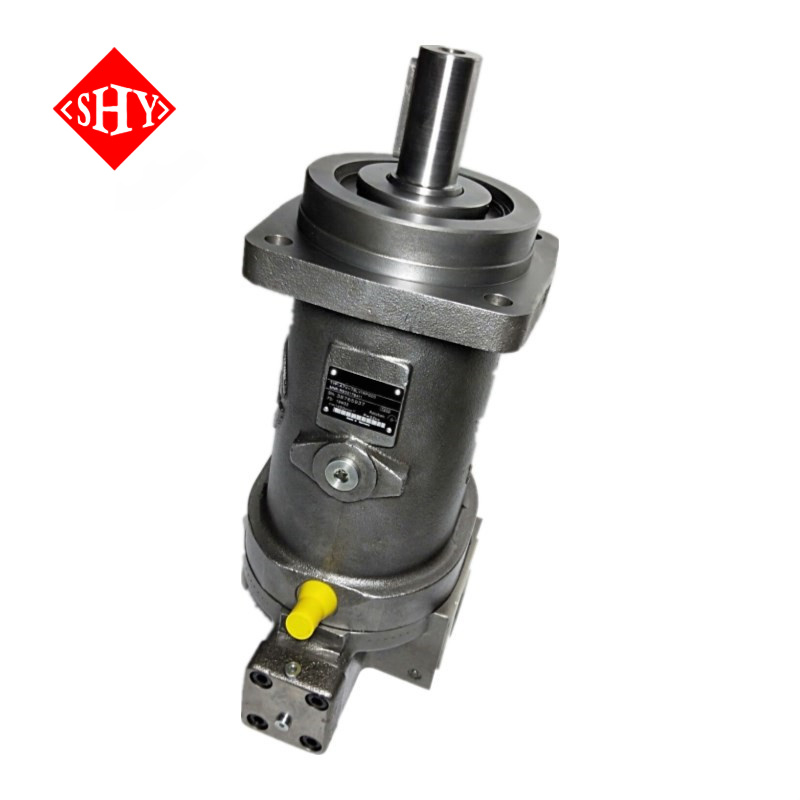

To ensure reliable operation of the A7V variable displacement piston pump and prevent common issues such as abnormal pressure and slow response, proper maintenance is critical. The following measures help avoid contamination, wear, and system failure:
Oil Management
Daily Oil Check: Before startup, inspect oil color and clarity. Maintain oil level at 2/3 of the tank gauge. Top up with the same grade of hydraulic oil if low.
Timely Oil Replacement: Change hydraulic oil every 2,000–5,000 hours, depending on operating conditions. Fully drain old oil and flush the tank interior with new oil before refilling.
Oil Quality Monitoring: Regularly test viscosity, acid value, and moisture content. Replace oil immediately if degradation or contamination is detected.
Filter Maintenance
Regular Filter Inspection: Check inlet and return filters frequently for clogging or damage.
Scheduled Filter Replacement: Replace filter elements according to manufacturer recommendations or more frequently in dusty or high-load environments.
Prevent Contamination: Ensure all ports are sealed during maintenance. Avoid introducing dirt, water, or debris into the system.
Proper Installation & Operation
Keep the suction port facing upward and use short, properly sized suction lines (flow velocity: 0.8–1.0 m/s). Maintain suction pipe end within 200 mm above the lowest oil level.
Align the pump and motor shafts precisely, using the pump shaft as the reference to ensure coaxiality.
Provide independent support for inlet and outlet piping—never transfer pipeline weight to the pump.
Install the pump on a solid foundation, extending 50–70 mm beyond the base, and ensure proper leveling to minimize vibration.
Following these practices significantly reduces the risk of malfunction and extends pump service life.
