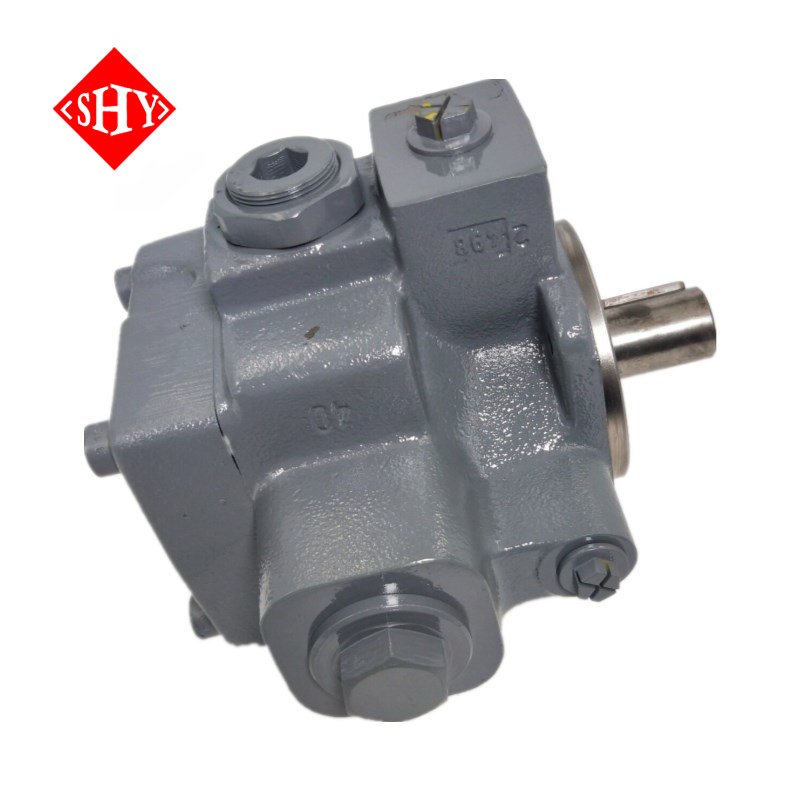

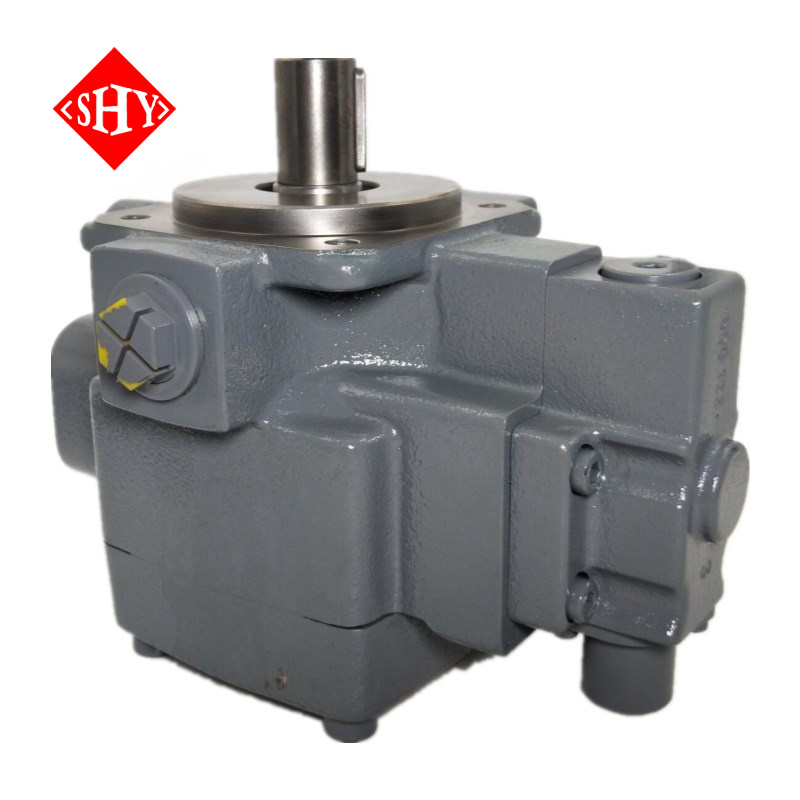

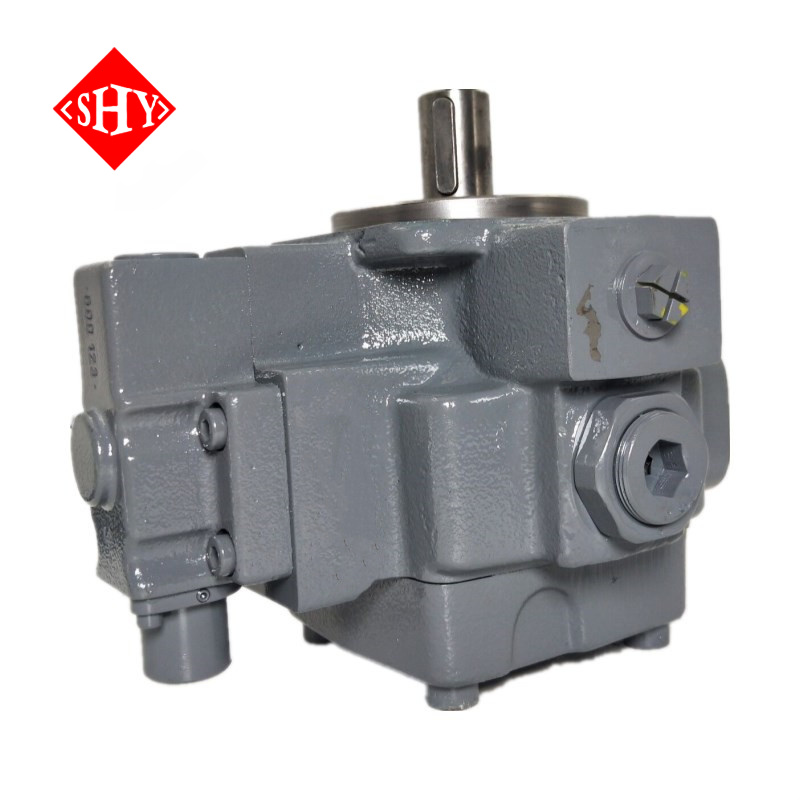

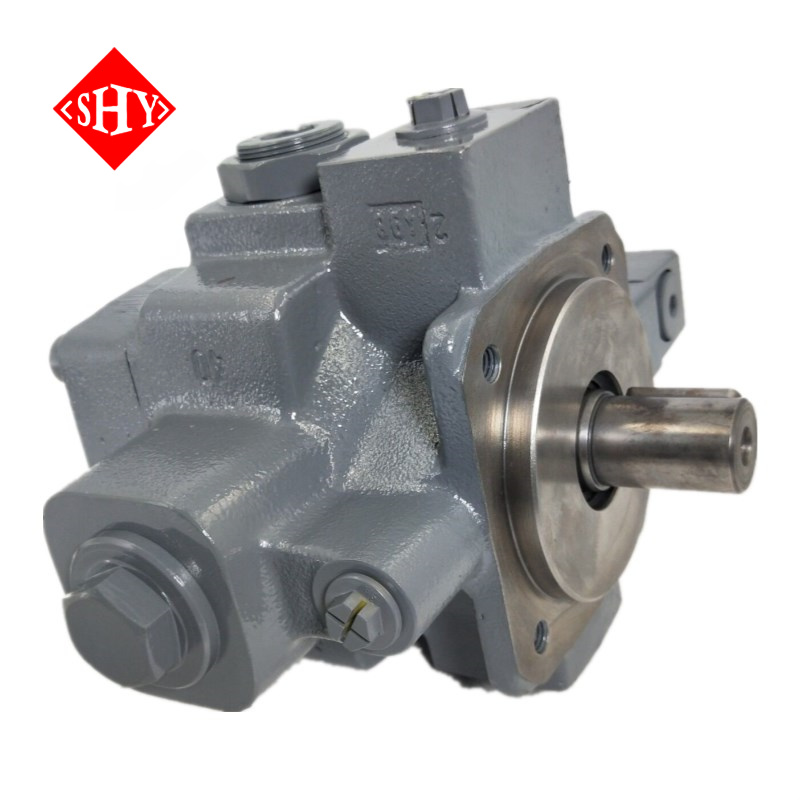

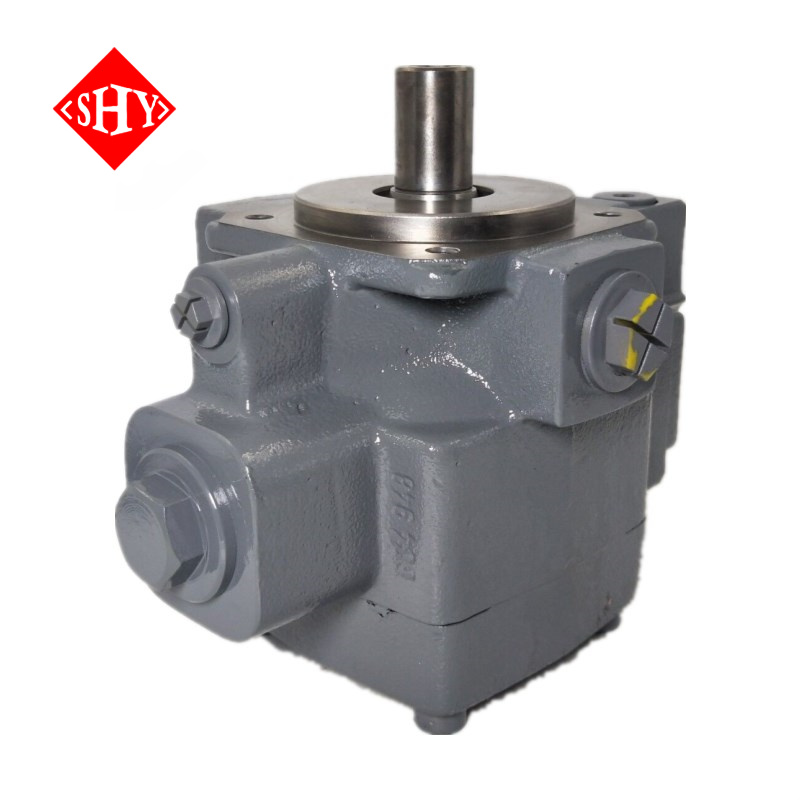

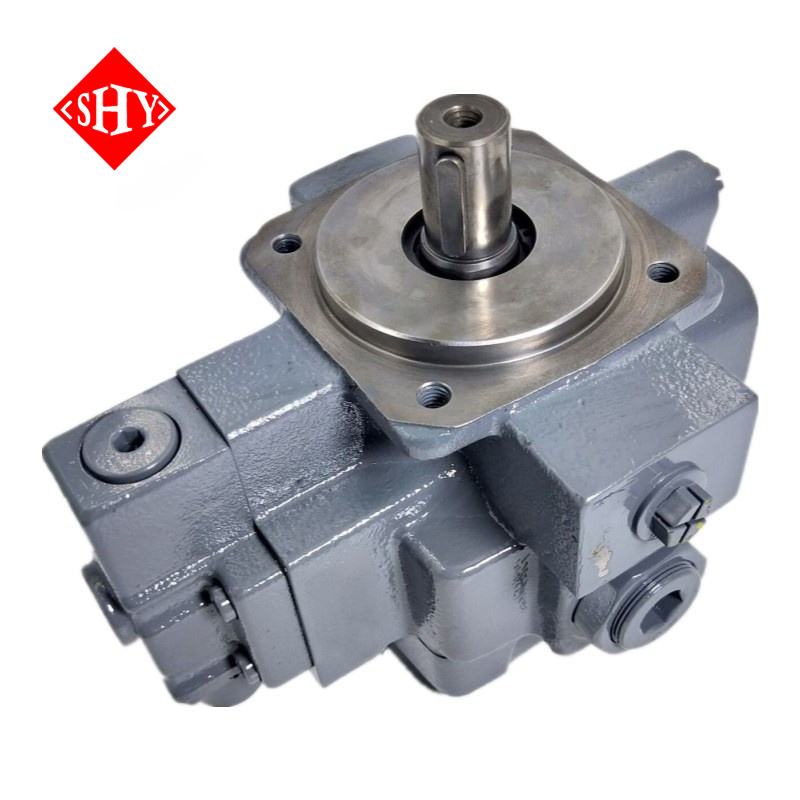

1PV2V3 1PV2 V3-30/40 Hydraulic Variable Volume Control Program Vane Pump
– easy commissioning due to automatic bleed facility
– low noise level
– high bearing life because of hydrodynamically lubricated plain bearings
– bronze-faced starting and control plates, giving low friction characteristics during marginal lubrication conditions.
Technical data | Symbol | Units | Nominal sizes | |||
V3/12 | V3/25 | V3/40 | V3/63 | |||
Nominal displacement | Vg | cm3/rev | 8.5 | 19 | 32 | 47 |
Nominal output flow at n = 1450 rpm, p = 1 MPa | Qn | L/min | 13 | 27.5 | 47 | 67 |
Speed range | n | min–1 | 950 up to 1800 | |||
Spring type | C25, C40, C63, C100 | |||||
Pressure range | p | bar | 12 ... 25 20 ... 40 30 ... 63 50 ... 100 | |||
Operating pressure: input outlet | p p | bar bar | 0.2 (underpressure) up to 5 (overpressure) max. 100 – continuous op. pressure | |||
Leakage port | p | bar | max. 2 | |||
Max. torque (drive shaft) | Mk | Nm | 54 | 61.8 | 235 | 353 |
Hydraulic medium | mineral oils HLP DIN 51 524 part 2 | |||||
Temperature range | tpo | oC | –10 up to +70 | |||
Fluid filtration | µm | 25 absolute (ß20≥100) We recommend 10 µm in order to achieve long working life, with heavy loading, high duty and low viscosity | ||||
Oil viscosity range | n | m2/s | 16 ·10–6 up to 160 ·10–6 at operation temperature and zero stroke pressure < 63 bar 25 ·10–6 up to 160 ·10–6 at operation temperature and zero stroke pressure > 63 bar max. 800 ·10–6 when starting up and oil delivering max. 200 ·10–6 when starting up at zero stroke | |||
Efficiency | see curves | |||||
Weight | m | kg | 6.25 | 11.1 | 26.5 | 29.5 |

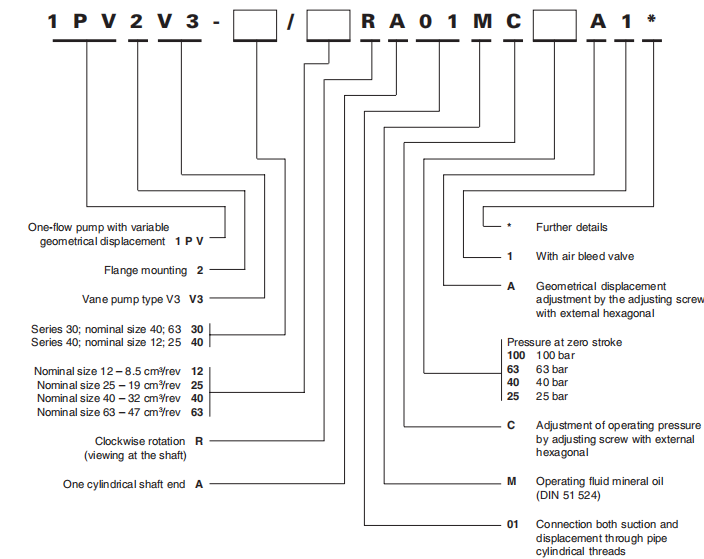

Ordering code for standard program：
The 1PV2V3 series is engineered as a reliable core component in advanced hydraulic systems, widely applied in machine tools, construction machinery, and industrial equipment. These pumps offer precise flow regulation and robust performance under diverse operating conditions, making them ideal for applications requiring dynamic pressure control and energy efficiency.
Key Performance Features:
Working Pressure Range: 12–100 bar (with peak up to 120 bar)
Displacement Range: 10–100 cc/rev, with variable adjustment capability
Model Designation Example: Suffix “MC25A1” indicates a displacement of 25 cc/rev
Adjustment Precision: ±2% accuracy, response time ≤0.5 seconds—ideal for precision control environments
Efficiency Standards: Volumetric efficiency ≥92%, mechanical efficiency ≥85%, surpassing industry benchmarks for vane pump energy performance
Temperature Management: Designed for continuous operation with oil temperature maintained at ≤65°C (cooling system recommended)
Construction: Cast iron housing with single-stage design, compatible with standard hydraulic oil media
Flow Regulation Mechanism:
Flow is easily adjusted via an integrated handle system:
For light-load stabilization: Adjust the grey lock nut and rotate the yellow ring clockwise (~15° increments).
Under heavy-load stall conditions: Use the blue lock nut and red adjusting ring similarly to restore stable pressure output.
Installation & Operational Guidelines:
To ensure optimal performance and longevity:
Maintain proper tank ventilation or use pressurized tanks to prevent suction deficiency
Install a filter at the suction port and ensure pipeline bends have a radius of at least 1.5× the pipe diameter to avoid cavitation
Prior to initial startup, fill the pump with oil and perform a 5-minute no-load run to purge air
Maintenance Guidelines:
To ensure long service life and consistent performance, we recommend the following maintenance practices:
Regular inspection of seals and filter elements—deteriorated hydraulic oil can accelerate pump wear
Replacement of the filter element every 500 operating hours
Inspection of the variable mechanism for wear every 2,000 hours
Use of ISO VG46 anti-wear hydraulic oil with a viscosity range of 40–100 cSt for optimal lubrication and system protection
Troubleshooting Support:
Common operational issues can be efficiently addressed through targeted diagnostics:
Insufficient flow or abnormal pressure: Inspect the distribution mechanism and sealing components
Stuck variable mechanism: Clean the regulating valve or replace contaminated hydraulic oil
Pressure fluctuations: Likely caused by wear on the distribution plate—check for surface damage or consider replacement
Abnormal noise: Often due to oil contamination; a thorough cleaning of the fuel tank and filtration system is recommended
Key Precautions:
Conduct regular checks on seal integrity to prevent leakage and maintain system efficiency
Avoid extended operation under overpressure conditions to protect the contact surfaces between blades and stator from premature wear
Model Examples:
1PV2V3-40/12RA01MC100A1: 40 cc/rev displacement, 12 bar pressure, with variable control
1PV2V3-30/63RA01MC25A1: 30 cc/rev, 63 bar—suitable for integration into high-pressure hydraulic systems
Industry Applications:
These pumps are engineered to meet diverse industrial needs, including:
Construction Machinery: Compatible with the walking motor drive systems of excavators
Machine Tools: Ideal for rapid clamping applications using hydraulic chucks (capable of meeting ≥80 bar pressure requirements)
General Industrial Systems: Effective in hydraulic pressure control and lubrication circuits across variable load conditions
