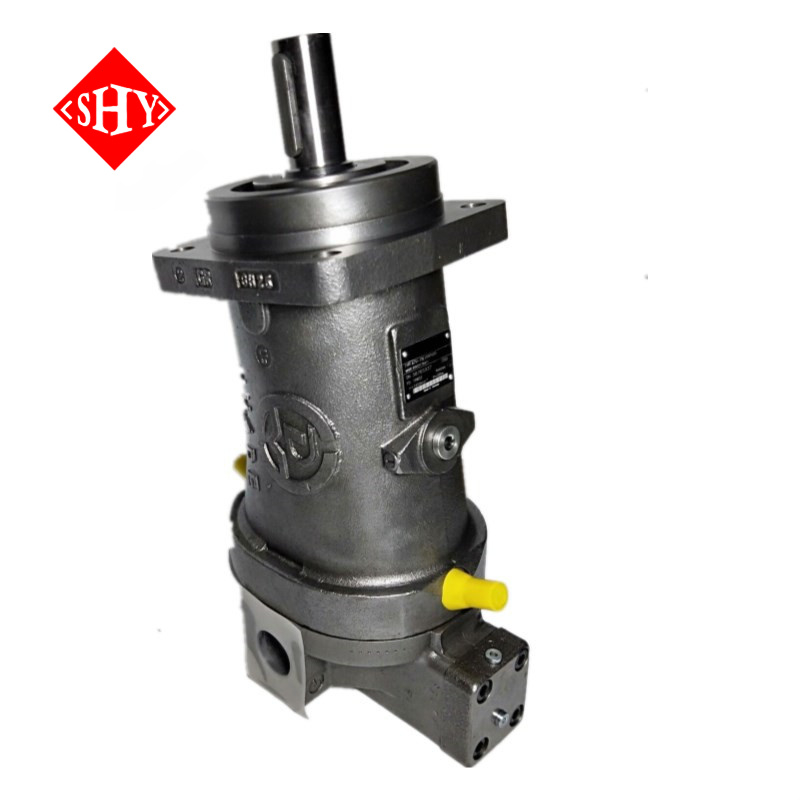

The A7V hydraulic pump is an inclined-axis axial piston variable displacement pump, engineered for high efficiency, precise control, and reliable performance in demanding applications. Below is an overview of its core structure and working principle:
Structural Composition
Key components include:
Cylinder Block: Houses multiple plungers that rotate with the drive shaft.
Plungers: Reciprocate within the cylinder bores to draw in and discharge hydraulic fluid.
Swashplate (Inclined Plate): The heart of the variable displacement mechanism. By adjusting the swashplate angle (α), the pump controls plunger stroke length, enabling real-time flow adjustment to match load demands.
Drive Shaft: Transmits torque via an inclined design, allowing smoother power transfer and higher power density compared to traditional radial or straight-axis pumps.
Valve Plate (Oil Distribution Plate): Separates inlet and outlet chambers, ensuring unidirectional oil flow and minimizing internal leakage.
Servo Control System: Enables rapid, precise response to external pressure or flow commands, supporting constant power, pressure, or flow control modes.
Working Principle
The A7V pump operates on the principle of volumetric displacement: as the cylinder block rotates, the plungers reciprocate due to the angled swashplate. This motion creates alternating suction and discharge cycles. Oil is drawn in through the inlet port when the plunger retracts, then expelled under pressure during the forward stroke. By varying the swashplate angle, the pump adjusts displacement—delivering maximum flow at full tilt and reducing output to zero when the plate is neutral.
This design ensures energy-efficient operation, reduced heat generation, and excellent responsiveness across dynamic loads.
Combined with proper installation and maintenance—such as correct alignment, clean oil management, and regular filter replacement—the A7V pump delivers long service life in construction, mining, agriculture, and industrial systems.
