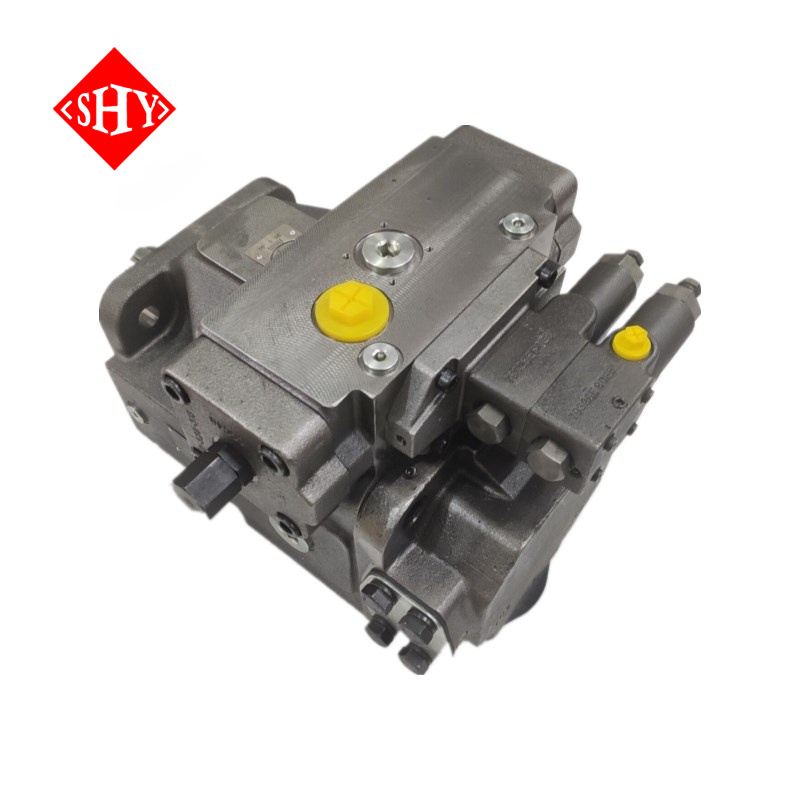

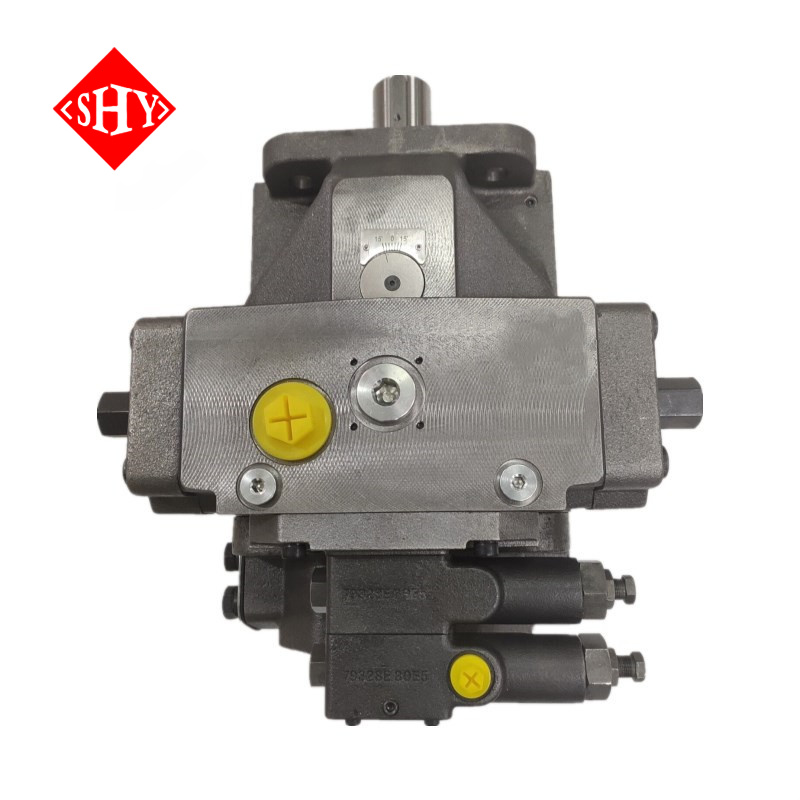

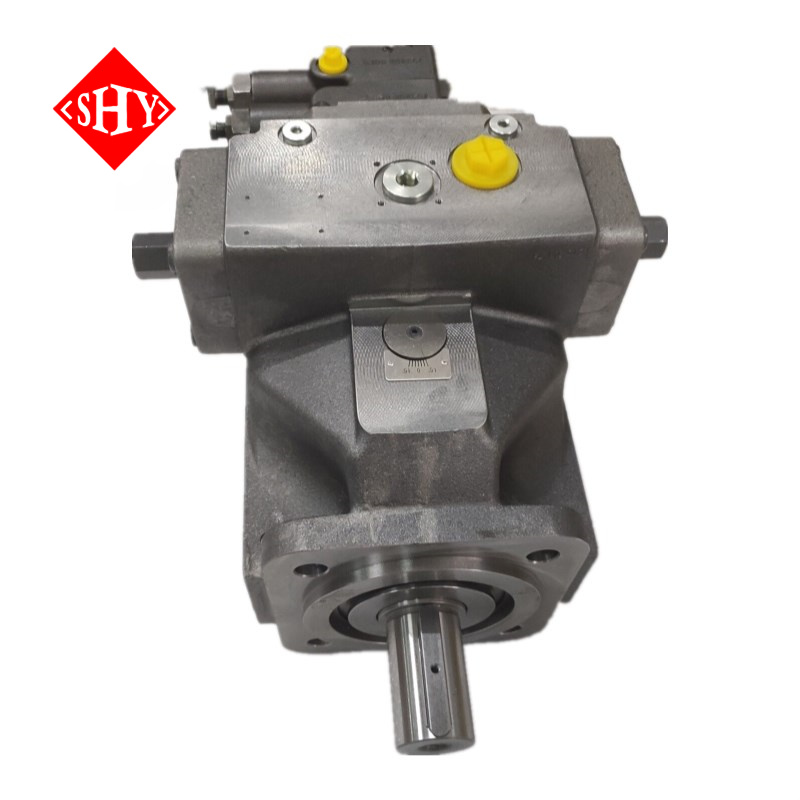

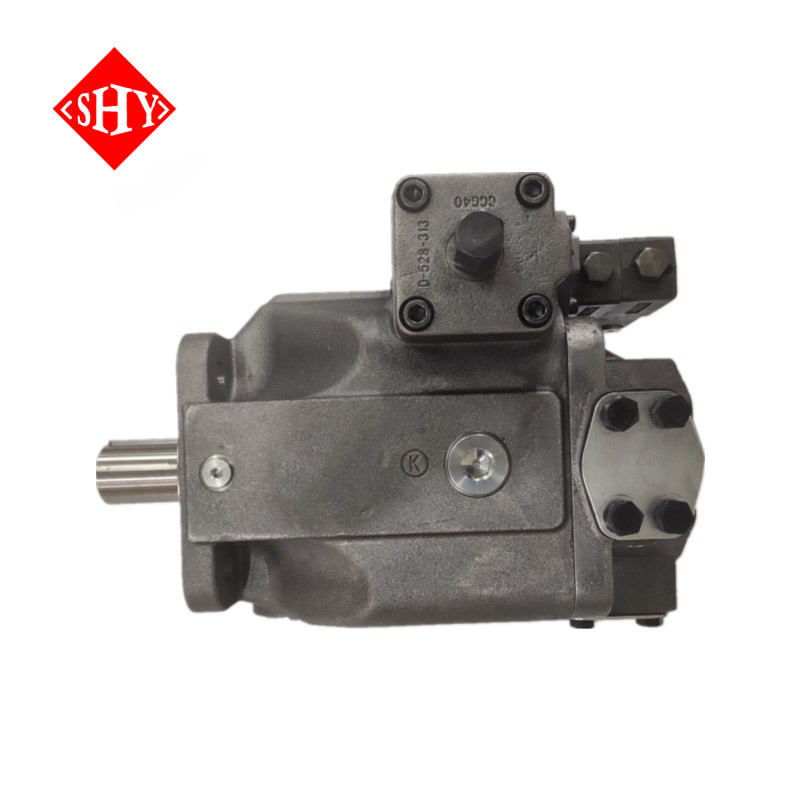

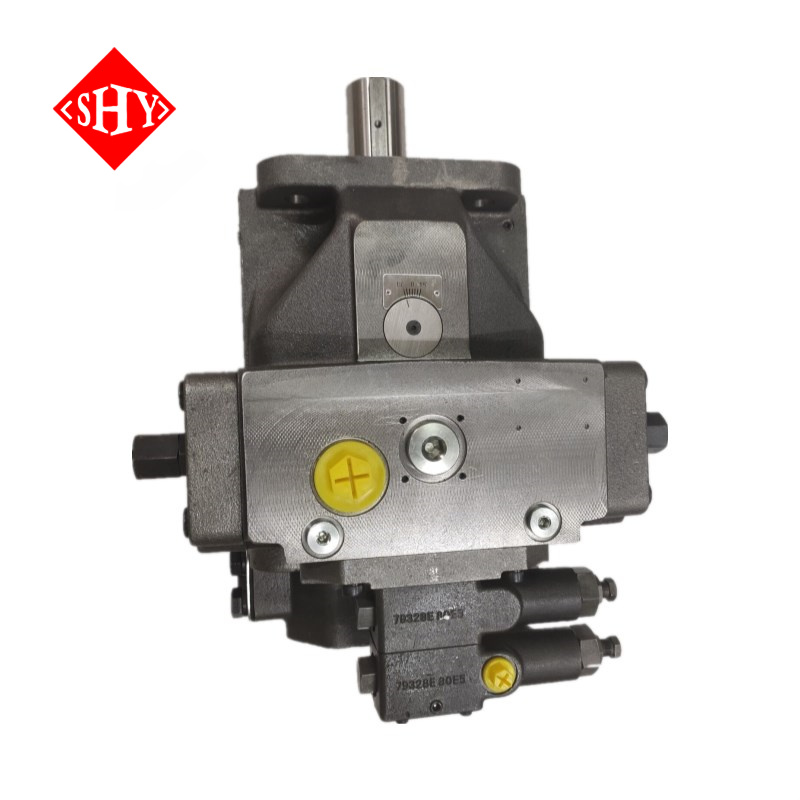

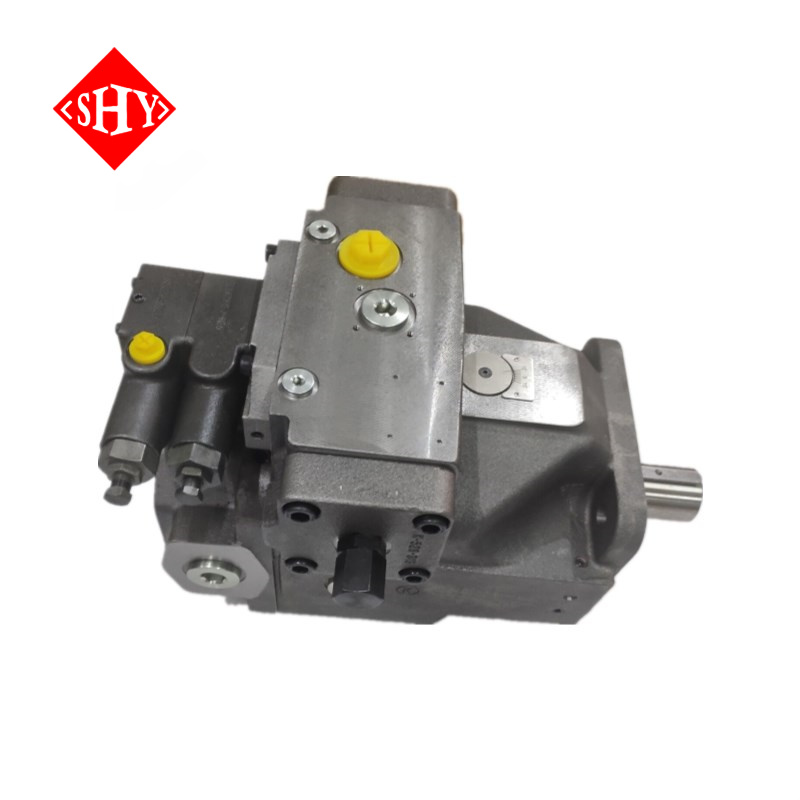

A4 A4VSO A4VSLO Hydraulic Axial Flow Piston Variable Pump

A4 A4VSO A4VSLO A4VSO40 A4VSO71 A4VSO125 A4VSO180 A4VSO250 A4VSO355 A4VSO500 A4VSO750 A4VSO1000 A4VSLO750 Hydraulic Axial Flow Piston Variable Pump

Quantity:
Availability:





Inquire Add to Basket

Product Description

A4 A4VSO A4VSLO A4VSO40 A4VSO71 A4VSO125 A4VSO180 A4VSO250 A4VSO355 A4VSO500 A4VSO750 A4VSO1000 A4VSLO750 Hydraulic Axial Flow Piston Variable Pump
Data sheet
Series			10, 11 and 30
Size			40 to 1000
Nominal pressure			350 bar
Peak pressure			400 bar
Features
– Axial piston pump in swash plate design for hydrostatic drives in open circuit operation
– The flow is proportional to the input drive speed and displacement. By adjusting the swash plate angle it is possible to infinitely vary the output flow.
– Excellent suction characteristics
– Low noise level
– Long service life
– Modular design
– Short response times
– Variable through drive options
– Visual swivel angle indicator
– Optional mounting position
– Operation on HF-fluids under reduced operational data possible

Table of values (theoretical values, without considering efficiencies and tolerances; values rounded off)

Size				40	71	125	180	250/ H	355/ H	500/ H	750	750 with Impeller	1000
Displacement		V_{g max}	cm³	40	71	125	180	250/250	355/355	500/500	750	750	1000
Speed
max. at V_{g max}		n_{o max}	rpm	2600	2200	1800	1800	1500/1900	1500/1700	1320/1500	1200	1500	1000
max. at V_g ≤ V_{g max} (speed limit)		n_{o max zul.}	rpm	3200	2700	2200	2100	1800/2100	1700/1900	1600/1800	1500	1500	1200
Flow
at n_{o max}		q_{vo max}	L/min	104	156	225	324	375/475	533/604	660/750	900	1125	1000
at n_E = 1500 rpm		q_{VE max}	L/min	60	107	186	270	375	533	581	770	1125	–
Power Δp = 350 bar
at no max		P_{o max}	kW	61	91	131	189	219/277	311/352	385/437	525	656	583
at n_E = 1500 rpm		P_{E max}	kW	35	62	109	158	219	311	3393)	4493)	656	–
Torque
bat V_{g max}	Δp = 350 bar	T_max	Nm	223	395	696	1002	1391	1976	2783	4174	4174	5565
	Δp = 100 bar	T	Nm	64	113	199	286	398	564	795	1193	1193	1590
Rotary stiffness
Shaft end P		c	kNm/rad	80	146	260	328	527	800	1145	1860	1860	2730
Shaft end Z		c	kNm/rad	77	146	263	332	543	770	1136	1812	1812	2845
Moment of inertia rotary group		J_TW	kgm²	0,0049	0,0121	0,03	0,055	0,0959	0,19	0,3325	0,66	0,66	1,20
Angular acceleration max.		a	rad/s²	17000	11000	8000	6800	4800	3600	2800	2000	2000	1450
Case volume		V	L	2	2,5	5	4	10	8	14	19	22	27
Weight (with press. contr.) approx.		m	kg	39	53	88	102	184	207	320	460	490	605

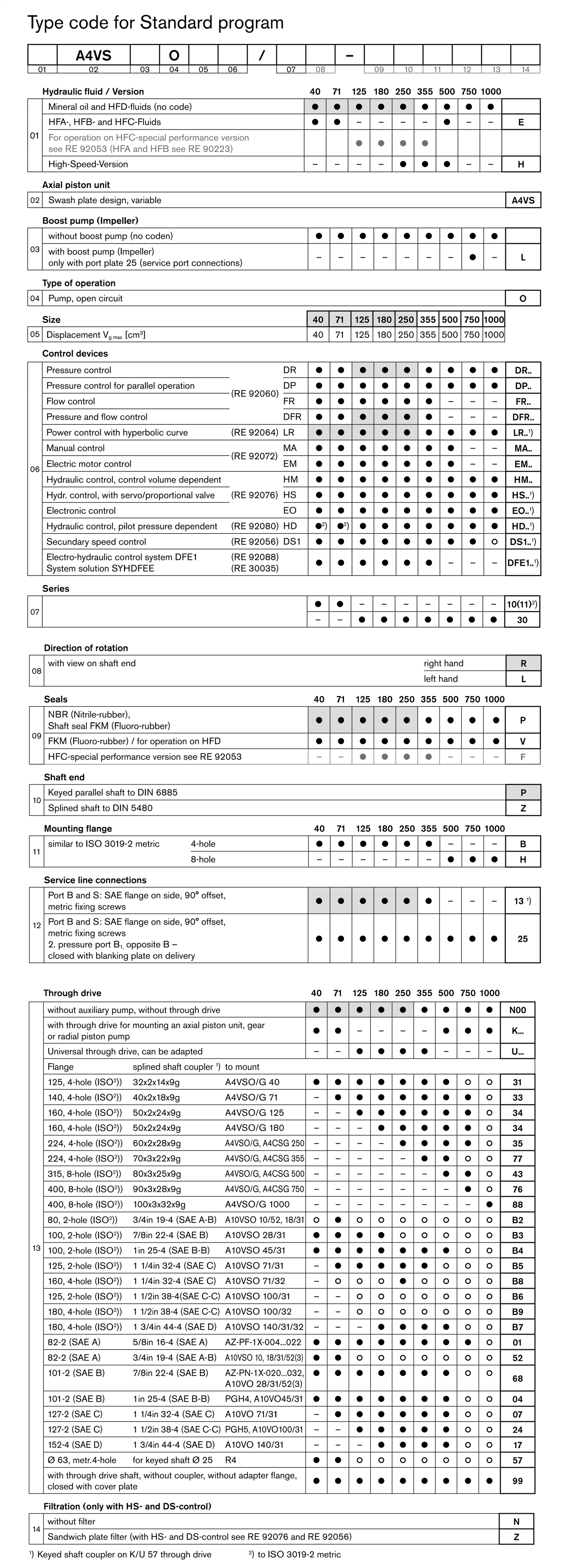

Ordering code for standard program：

A4VSO or A4VSLO：

 A4VSO：without boost pump

A4VSLO：with boost pump (Impeller) ，only with port plate 25 (service port connections)
 40 or 71 or 125 or 180 or 250 or 355 or 500 or 750 or 1000： Displacement Vg max [cm3]
DR or DP or FR or DFR or LR or MA or EM or HM or HS or EO or HD or DS1 or DFE1：Control devicesDR：Pressure control
DP：Pressure control for parallel operation
FR：Flow control
DFR：Pressure and flow control
LR：Power control with hyperbolic curve
MA：Manual controlEM：Electric motor control
HM：Hydraulic control, control volume dependent
HS：Hydr. control, with servo/proportional valve
EO：Electronic control
HD：Hydraulic control, pilot pressure dependent
DS1：Secundary speed control
DFE1：Electro-hydraulic control system DFE1
 10(11) or 30： Series
 10（11）：Versions with HD-controls only in series 11
 30：Series
 R or L： with view on shaft end：R：right hand；L：left hand
 P or V or F： Seals
 P：NBR (Nitrile-rubber), Shaft seal FKM (Fluoro-rubber)
 V：FKM (Fluoro-rubber) / for operation on HFD
 F：FKM (Fluoro-rubber) / for operation on HFD
 P or Z： Shaft end
 P：Keyed parallel shaft to DIN 6885
 Z：Splined shaft to DIN 5480
 B or H： Mounting flange，similar to ISO 3019-2 metric
 B：4-hole
 H：8-hole
 13 or 25： Service line connections
 13：Port B and S: SAE flange on side, 90° offset, metric fixing screws
 25：Port B and S: SAE flange on side, 90° offset, metric fixing screws 2.  pressure port B1, opposite B – closed with blanking plate on delivery
 N00 or K or U： Through drive
 N00：without auxiliary pump, without through drive
 K：with through drive for mounting an axial piston unit, gear
or radial piston pump
 U：Universal through drive, can be adapted
 31 or 33 or 34 or 34 or 35 or 77 or 43 or 76 or 88 or B2 or B3 or B4 or B5 or B8 or B6 or B9 or B7 or 01 or 52 or 68 or 04 or 07 or 24 or 17 or 57 or 99： Flange ，splined shaft coupler，to mount
 31：125, 4-hole (ISO)，32x2x14x9g，A4VSO/G 40
 33：140, 4-hole (ISO2)) 40x2x18x9g A4VSO/G 71
 34：160, 4-hole (ISO2)) 50x2x24x9g A4VSO/G 125
 34：160, 4-hole (ISO2)) 50x2x24x9g A4VSO/G 180
 35：224, 4-hole (ISO2)) 60x2x28x9g A4VSO/G, A4CSG 250
 77：224, 4-hole (ISO2))，70x3x22x9g，A4VSO/G, A4CSG 355
 43：315, 8-hole (ISO2))，80x3x25x9g，A4VSO/G, A4CSG 500
 76：400, 8-hole (ISO2))，90x3x28x9g，A4VSO/G, A4CSG 750
 88：400, 8-hole (ISO2))，100x3x32x9g，A4VSO/G 1000
 B2：80, 2-hole (ISO2))，3/4in 19-4 (SAE A-B)，A10VSO 10/52, 18/31
 B3：100, 2-hole (ISO2))，7/8in 22-4 (SAE B)，A10VSO 28/31
 B4：100, 2-hole (ISO2))，1in 25-4 (SAE B-B)，A10VSO 45/31
 B5：125, 2-hole (ISO2))，1 1/4in 32-4 (SAE C)，A10VSO 71/31
 B8：160, 4-hole (ISO2))，1 1/4in 32-4 (SAE C)，A10VSO 71/32
 B6：125, 2-hole (ISO2))，1 1/2in 38-4(SAE C-C)，A10VSO 100/31
 B9：180, 4-hole (ISO2))，1 1/2in 38-4 (SAE C-C)，A10VSO 100/32
 B7：180, 4-hole (ISO2))，1 3/4in 44-4 (SAE D)，A10VSO 140/31/32
 01：82-2 (SAE A)，5/8in 16-4 (SAE A)，AZ-PF-1X-004...022
 52：82-2 (SAE A)，/4in 19-4 (SAE A-B)，A10VSO 10, 18/31/52(3)
 68：101-2 (SAE B)，7/8in 22-4 (SAE B)，AZ-PN-1X-020...032, A10VO 28/31/52(3)
 04：101-2 (SAE B)，1in 25-4 (SAE B-B)，PGH4, A10VO45/31
 07：127-2 (SAE C)，1 1/4in 32-4 (SAE C)，A10VO 71/31
 24：127-2 (SAE C)，1 1/2in 38-4 (SAE C-C)，PGH5, A10VO100/31
 17：152-4 (SAE D)，1 3/4in 44-4 (SAE D)，A10VO 140/31
 57：Ø 63, metr.4-hole，for keyed shaft Ø 25 R4
 99：with through drive shaft, without coupler, without adapter flange, closed with cover plate
 N or Z： Filtration (only with HS- and DS-control)

 N：without filter
 Z：Sandwich plate filter (with HS- and DS-control see RE 92076 and RE 92056)

 A complete model, for example：A4VSO125DR/30R-FPB13N00
