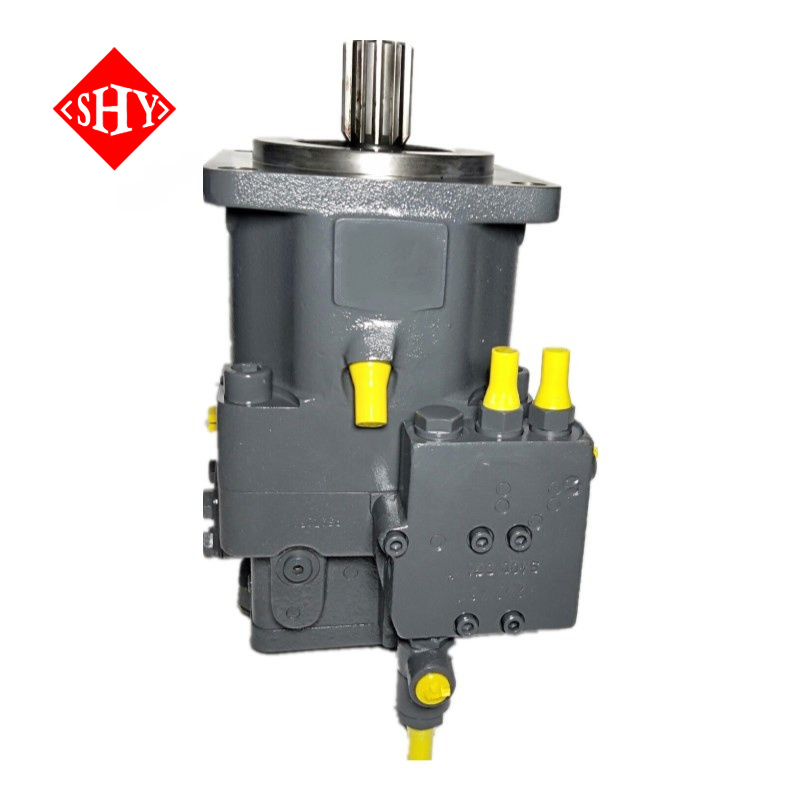

Troubleshooting checklist for A11VO and A11VLO series axial piston pumps, designed to support efficient diagnosis and maintenance in real-world applications. As trusted providers of high-performance hydraulic solutions, we understand the critical importance of system reliability, uptime, and operational efficiency.
1. Abnormal Pressure (Failure to Build or Fluctuating Pressure)
Common causes include a stuck control valve—such as blockage or spring failure in DG valves—obstruction in the pilot oil circuit (e.g., clogged damping holes), or system leakage from blocked drain lines or degraded high-pressure joints.
Recommended Actions: Inspect the control valve for cleanliness and structural integrity, clear any obstructions in the pilot circuit to ensure proper oil flow, and verify the sealing performance of both drain and high-pressure piping connections.
2. Insufficient Output Flow
This may stem from inadequate suction due to low tank levels, air ingress in the inlet line, or a clogged filter. Additional factors include incomplete pump priming or trapped air, as well as malfunctions in the variable displacement mechanism—such as an insufficient swashplate angle.
Recommended Actions: Confirm adequate oil level, inspect inlet line seals, and assess filter condition. Pre-fill the return port and perform thorough air bleeding. Adjust the swashplate angle to the specified range to restore optimal displacement.
3. Vibration and Noise
Excessive noise often indicates mechanical misalignment between the pump and motor shafts or worn bearings. It may also result from degradation of the variable head bearing due to poor lubrication or contaminated oil.
Recommended Actions: Realign the drive shaft precisely and evaluate bearing condition. Ensure consistent lubrication and monitor oil cleanliness to protect sensitive components.
4. Pump Overheating
Heat buildup can arise from mechanical friction caused by incorrect clearances in moving parts, or fluid friction due to low-viscosity oil or restricted filters.
Recommended Actions: Verify that all internal clearances meet manufacturer specifications. Replace hydraulic fluid with a suitable viscosity grade and clean or replace any obstructed filters promptly.
5. Oil Leakage
External leaks typically originate from a failed main shaft seal or surface damage on the shaft itself. Internal leakage may occur due to seal deterioration from overheating or particulate contamination.
Recommended Actions: Replace damaged oil seals and repair or polish the shaft surface as needed. Regularly assess oil temperature and cleanliness to extend seal life.
To maximize service life and performance, we strongly recommend implementing routine inspections of oil cleanliness, filter status, and seal integrity. Avoiding dry running and prolonged overpressure conditions will further enhance system durability.
