Present a technical and application-based comparison between two of the most widely used axial piston variable displacement pumps—A10VO and A10VSO—to support your decision-making process and explore potential collaboration opportunities in delivering optimized hydraulic solutions to your market.

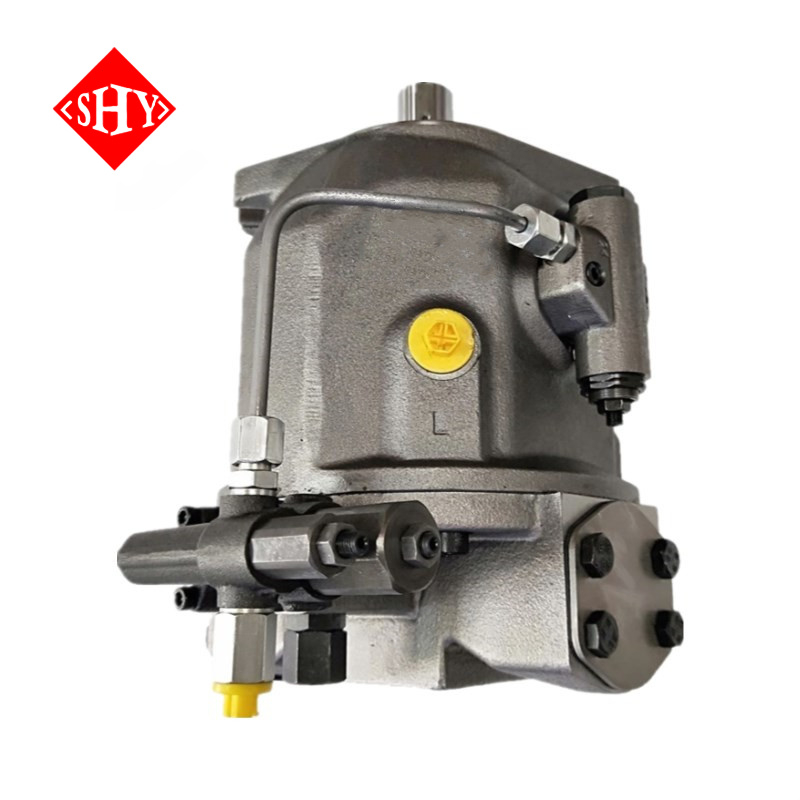

Both the A10VO and A10VSO are inclined disc axial piston pumps that enable stepless displacement adjustment through changes in the swashplate angle. However, their control mechanisms and operational focuses differ significantly, making each uniquely suited to specific applications.
The A10VO pump operates on a constant power control principle. When system pressure reaches a preset threshold, the power valve activates, driving the variable piston to reduce the swashplate’s tilt angle. This ensures consistent output power. Its pressure-flow curve demonstrates linearity (segment ab), with increased slope in segment bc due to dual spring action—ideal for maintaining efficiency under fluctuating loads.
In contrast, the A10VSO pump features coordinated regulation via flow control (FR) and pressure control (DR) valves. The FR valve dynamically adjusts the swashplate angle based on load demand, maintaining a stable pressure differential between ports B and X. Meanwhile, the DR valve ensures displacement returns to near zero when system pressure exceeds the set limit, preserving only the necessary pilot flow—making it highly responsive and energy-efficient in precision-driven environments.
Key comparative insights:
Pressure Rating: A10VO supports 210–250 bar (open systems), while A10VSO handles higher pressures of 280–350 bar, suitable for demanding industrial drives.
Control Flexibility: A10VO offers constant pressure, constant flow, or proportional control; A10VSO provides advanced options including DFR1 for combined pressure and flow regulation.
Applications: A10VO excels in energy-saving open circuits such as petroleum equipment, whereas A10VSO is preferred in machine tools, plastic machinery, and high-pressure industrial applications like forging.
Design Features: A10VO features an open circuit with through-shaft drive; A10VSO adopts a slant disc design with low-noise operation.
Typical Models: A10VO45DFR/31R-PSC62N00 (A10VO series); A10VSO71DFR1/31R-PPA12N00 (A10VSO series).
For high-pressure industrial environments requiring precise control, we recommend the A10VSO series. For open-loop, energy-conscious systems—particularly in oil and gas—we suggest the A10VO series.
