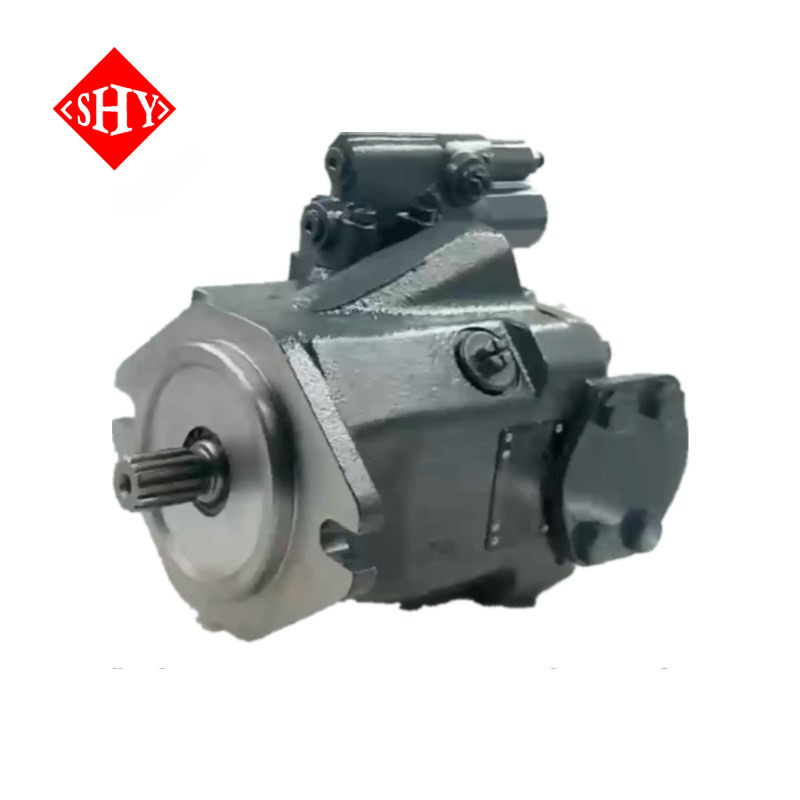

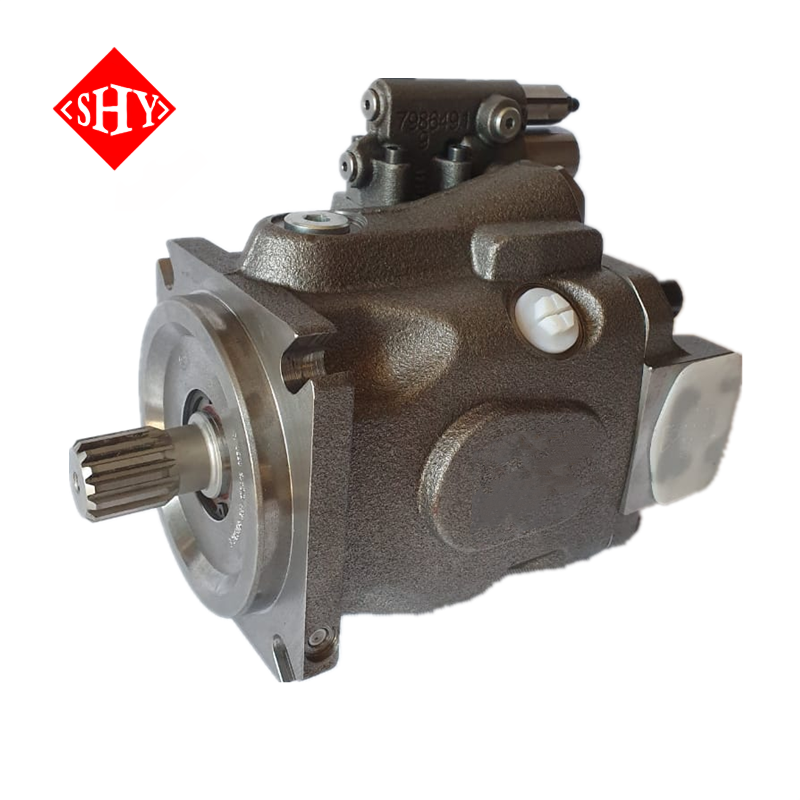

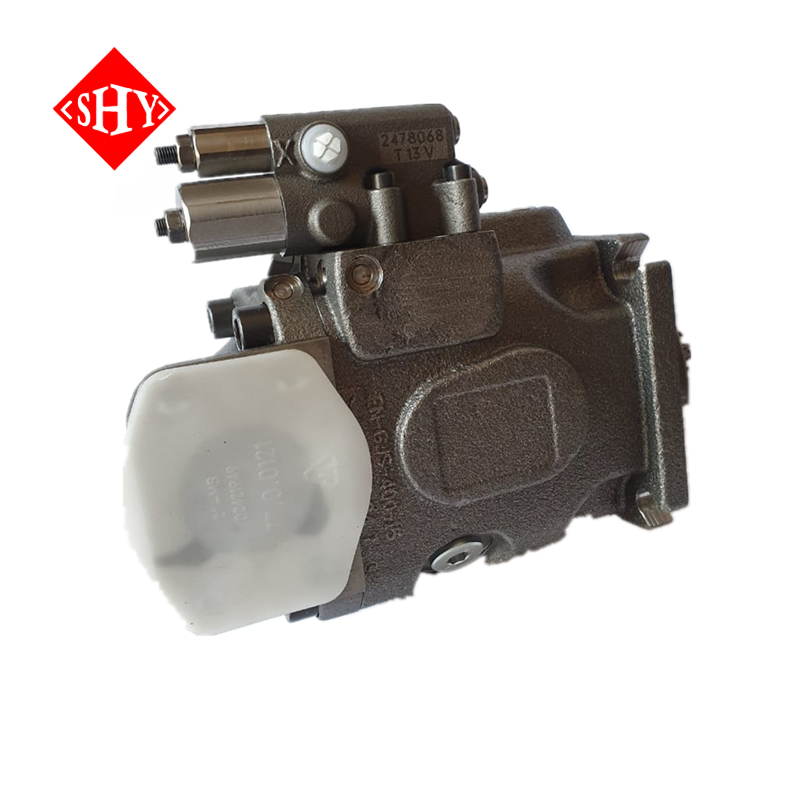

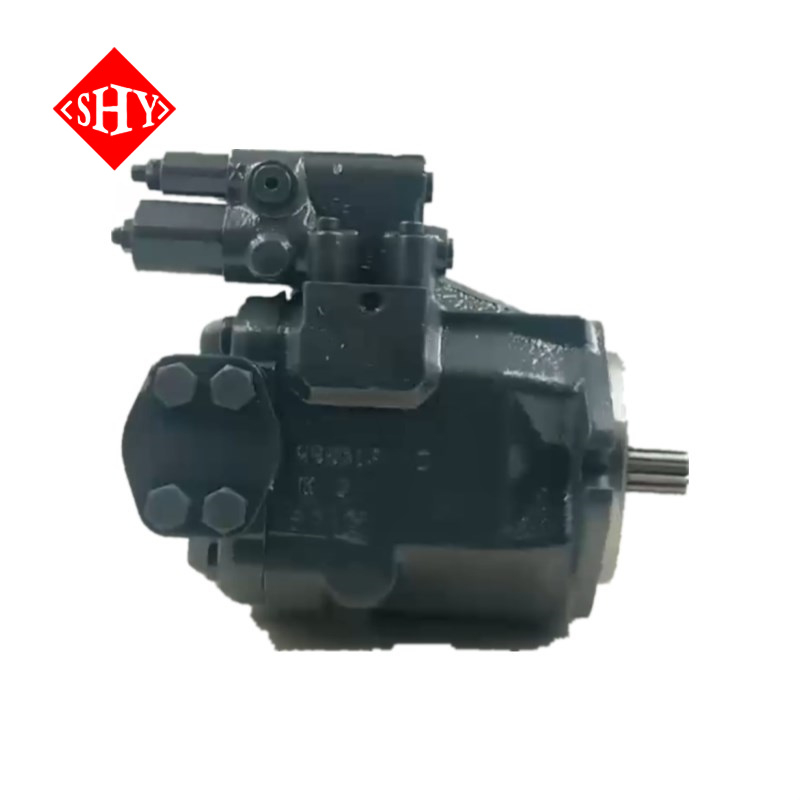

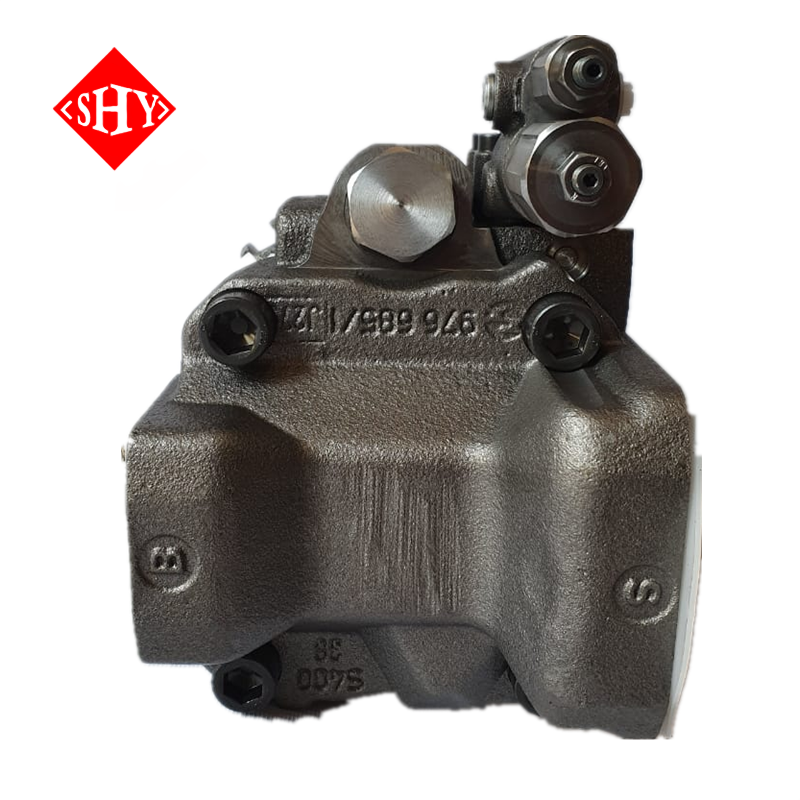

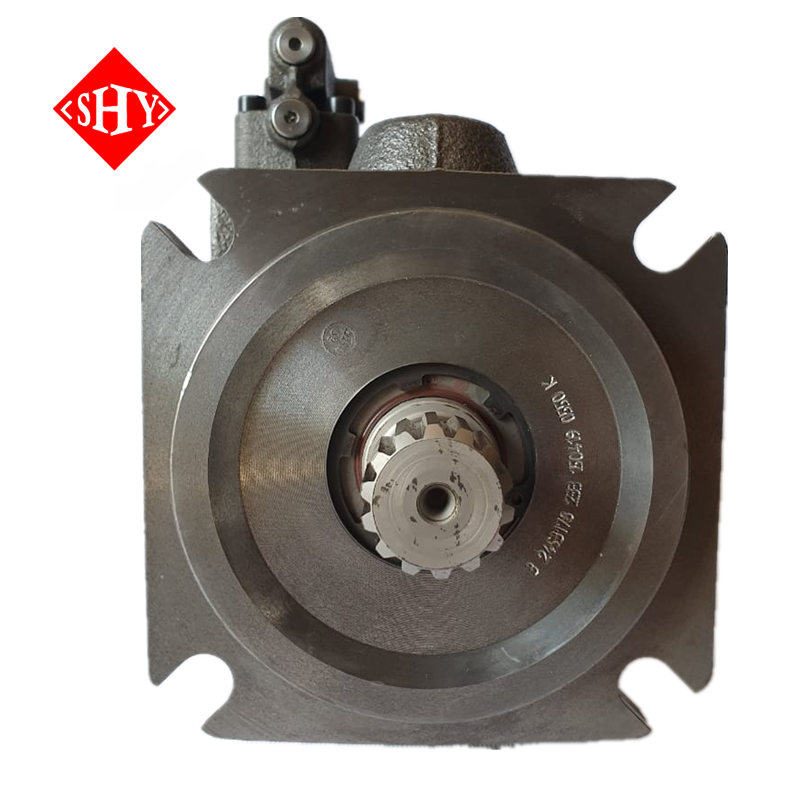

Common operations related to A10VNO hydraulic pumps, as well as troubleshooting guidance and maintenance suggestions for the system .
One of the most frequently encountered issues is insufficient or no output flow. This may stem from low oil levels, air ingress in the inlet line, clogged filters, or high oil viscosity. Internal leakage due to scratches on the distribution plate or degraded seals can also contribute. We recommend verifying tank levels, inspecting inlet line integrity, cleaning or replacing filters, and conducting periodic internal inspections to address seal wear and surface damage.
Abnormal system pressure—either too high or too low—often points to deviations in control valve settings (e.g., DR valve) or valve core blockages. Wear on the variable mechanism’s ear shaft can impair swashplate adjustment, while sudden load changes or overflow valve malfunctions may further destabilize pressure. Regular calibration of control valves, inspection of mechanical wear, and functional testing of relief components are essential preventive measures.
Unusual vibration and noise should not be overlooked. These symptoms commonly arise from misalignment between the pump and motor shafts (exceeding 0.1mm tolerance), inadequate lubrication or contamination in the variable head bearings, or loose mounting hardware. Precision alignment, timely bearing replacement, and routine bolt tightening can effectively mitigate these concerns.
Overheating of the pump body typically results from excessive clearances in critical moving parts such as plunger and cylinder bore assemblies. Blocked drain lines or elevated backpressure in the return circuit (above 0.5 bar) may restrict oil flow, while aged fluid or cooling system inefficiencies exacerbate thermal buildup. We advise monitoring component clearances, ensuring unobstructed drainage, and adhering to strict oil change intervals.
Oil leakage remains a persistent issue, often caused by aged or incorrectly installed spindle oil seals, loose pipe connections, or damaged housing sealing surfaces. Proactive seal replacement, proper installation practices, and regular inspection of joint integrity are key to preventing fluid loss and maintaining system cleanliness.
Delayed response in variable displacement control may indicate blockage in the damping orifice of the control valve, sticking variable pistons, spring fatigue, or irregularities in electrical proportional signals. Cleaning precision orifices, verifying piston mobility and spring condition, and validating sensor inputs and signal stability are critical steps for restoring responsiveness.
To ensure long-term reliability, we strongly recommend implementing a structured maintenance schedule: inspect seals and oil cleanliness every 2,000 operating hours, and replace hydraulic fluid every 1,000–3,000 hours or semi-annually, whichever comes first. For installation, horizontal orientation is preferred; however, if vertical mounting is necessary, thorough pre-filling and air evacuation are mandatory to prevent cavitation and dry starts.
