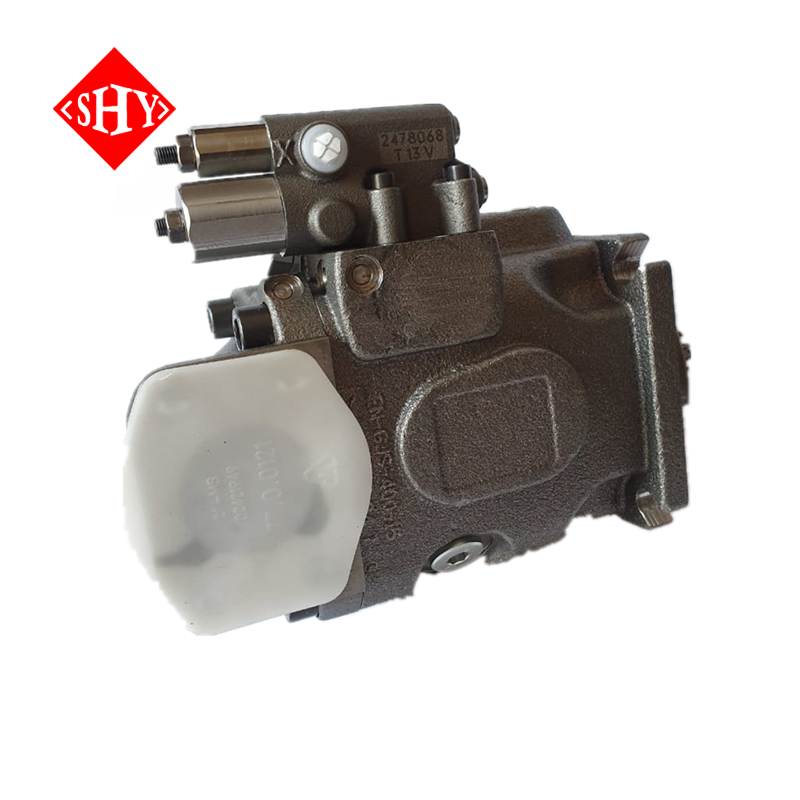

A10VNO hydraulic pump, a product designed to deliver reliable performance in high-pressure industrial applications.
The A10VNO pump features a sophisticated internal structure built around three core systems. First, its swashplate and plunger mechanism enables stepless displacement control by adjusting the swashplate angle. The plunger and slipper assembly forms a hydrostatic bearing that minimizes friction, while the rotating cylinder block and valve plate clearly separate suction and pressure zones for optimal efficiency.
Second, the variable displacement control system uses a control piston actuated by hydraulic signals to adjust the swashplate position, with a return spring ensuring fail-safe default displacement. Integrated control valves—such as DR (pressure-controlled) and FR (flow-regulating) types—precisely manage oil pressure to maintain desired output under varying load conditions.
Third, auxiliary components enhance durability and performance. A pre-compression chamber stabilizes pressure in the plunger cavity, reducing flow pulsation and mechanical impact. Strategically placed drilling channels ensure consistent lubrication, provided correct orientation is maintained during installation.
Designed with modularity in mind, the A10VNO pump is widely used in construction equipment, machine tools, and other demanding environments. It offers high efficiency, low operational noise, and robust performance under continuous load.
