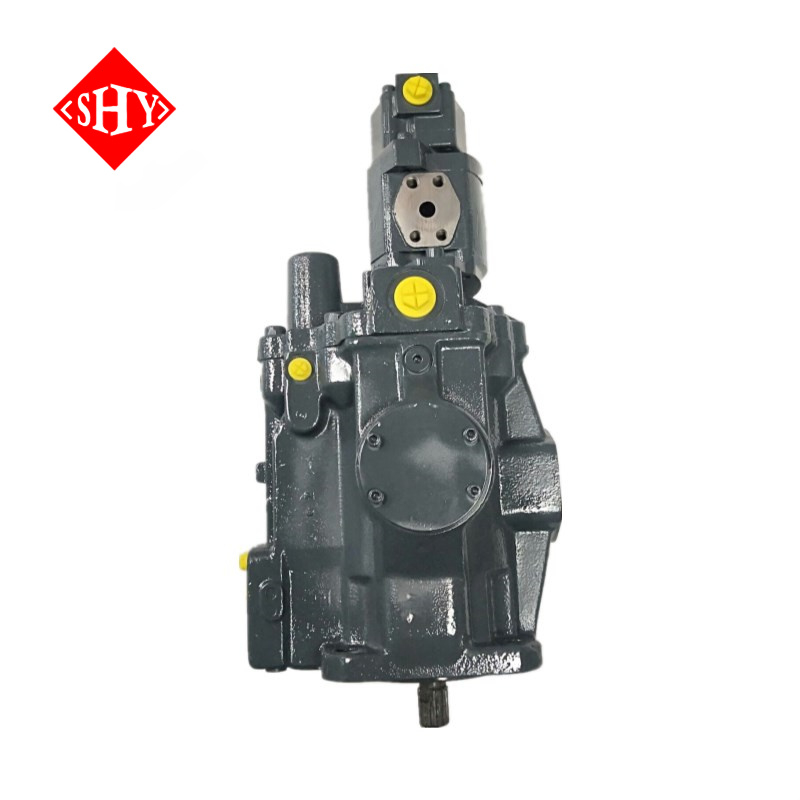

A10VD series hydraulic piston pump, a high-performance solution engineered for demanding industrial applications. Designed with precision and built for reliability, the A10VD pump features an advanced internal structure that ensures optimal efficiency, low noise, and exceptional durability in high-pressure hydraulic systems.
At the heart of the pump lies a sophisticated plunger and tilting swashplate mechanism. The swashplate adjusts the plunger stroke infinitely by varying its angle, enabling precise displacement control. Plungers move reciprocally within the cylinder block, while the slipper shoes maintain hydrostatic contact with the swashplate, significantly reducing friction and wear. The cylinder block and valve plate work in tandem to separate suction and pressure zones, ensuring unidirectional oil flow and smooth operation.
The variable displacement control system enhances responsiveness and adaptability. It includes a control piston that actuates the swashplate based on hydraulic signals, a reset spring that returns the swashplate to maximum displacement in the absence of control pressure, and a range of integrated control valves—such as DR (constant pressure) and FR (pressure-flow) valves—that regulate system performance according to real-time demands.
Additional design elements further improve operational stability. A pre-compression chamber helps balance chamber pressure, minimizing pressure surges, while strategically placed process holes ensure proper lubrication and correct assembly orientation.
Thanks to its modular architecture, the A10VD pump can be easily customized and integrated into diverse applications, including construction machinery, machine tools, and other industrial equipment. Its compact design, combined with high efficiency and quiet operation, makes it a competitive choice in modern hydraulic systems.
