A3HG Series A3HG16 A3HG37 A3HG56 A3HG71 A3HG100 A3HG145 A3HG180 Hydraulic High Pressure Variable Displacement Piston Pump

A3HG16 A3HG37 A3HG56 A3HG71 A3HG100 A3HG145 A3HG180 Hydraulic Variable Displacement Piston Pump
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

1


A3HG Series A3HG16 A3HG37 A3HG56 A3HG71 A3HG100 A3HG145 A3HG180 Hydraulic High Pressure Variable Displacement Piston Pump

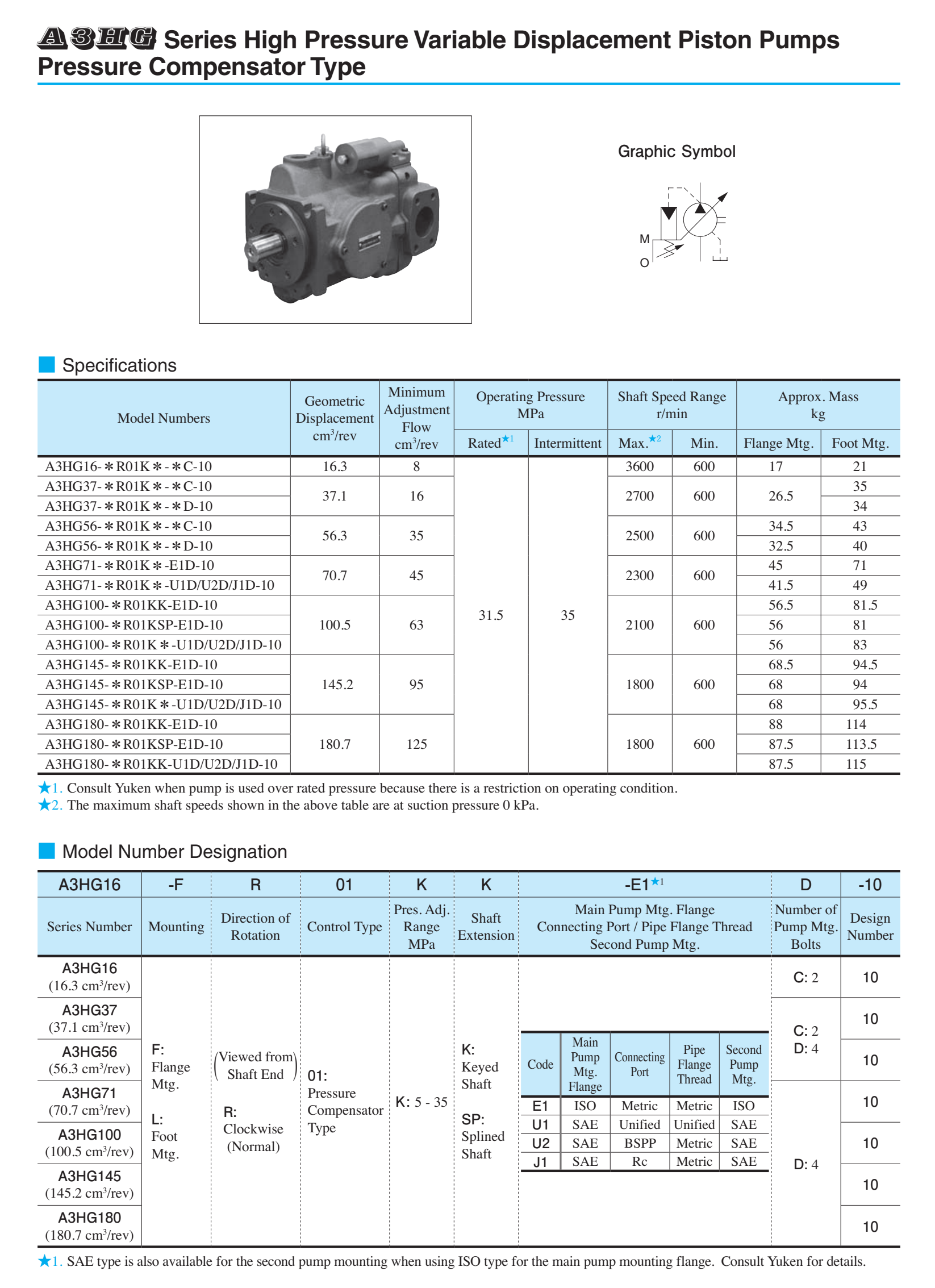

■ Specifications

Model Numbers

Geometric Displacement

cm3/rev

Minimum Adjustment Flow

cm3/rev

Operating  Pressure

MPa

Shaft Speed

Range

r/min

Approx.

Mass

kg

Rated

Intermittent

Max.

Min.

Flange

Mtg.

Foot

Mtg.

A3HG16-＊R01K＊-＊C-10

16.3

8

31.5

35

3600

600

17

21

A3HG37-＊R01K＊-＊C-10

37.1

16

2700

600

26.5

35

A3HG37-＊R01K＊-＊D-10

34

A3HG56-＊R01K＊-＊C-10

56.3

35

2500

600

34.5

43

A3HG56-＊R01K＊-＊D-10

32.5

40

A3HG71-＊R01K＊-E1D-10

70.7

45

2300

600

45

71

A3HG71-＊R01K＊-U1D/U2D/J1D-10

41.5

49

A3HG100-＊R01KK-E1D-10

100.5

63

2100

600

56.5

81.5

A3HG100-＊R01KSP-E1D-10

56

81

A3HG100-＊R01K＊-U1D/U2D/J1D-10

56

83

A3HG145-＊R01KK-E1D-10

145.2

95

1800

600

68.5

94.5

A3HG145-＊R01KSP-E1D-10

68

94

A3HG145-＊R01K＊-U1D/U2D/J1D-10

68

95.5

A3HG180-＊R01KK-E1D-10

180.7

125

1800

600

88

114

A3HG180-＊R01KSP-E1D-10

87.5

113.5

A3HG180-＊R01KK-U1D/U2D/J1D-10

87.5

115

Ordering code for standard program：

A3HG： Series Number
16 or 37 or 56 or 71 or 100 or 145 or 180 ： Displacement
F or L： F：Flange Mtg；L：Foot Mtg.
R or L： Looking onto drive shaft . R：clockwise；L：anti-clockwise
01 or 07 or 09V or 14： Control Type
01：Pressure Compensator Type
07：Pilot Pressure Control Type Pressure Compensator
09V：Constant Power Control Type With External Pilot
14：Load Sensing Type
K： Pres. Adj. Range MPa . K: 5 - 35
K or SP： Shaft Extension . K: Keyed Shaft；SP：Splined Shaft

E1 or U1 or U2 or J1： Main Pump Mtg. Flange Connecting Port / Pipe Flange Thread Second Pump Mtg.
C or D： Number of Pump Mtg. Bolts . C：2；D：4
10： Design Number


A complete model, for example：A3HG145 FR01KSP-E1DCSM

A3HG

123



23456
