R901000842 Replace Rexroth DBET Type Valve DBET-61/50G24K4V DBET-6X/50G24K4V

R901000842 Replace Rexroth DBET Type Valve DBET-61/50G24K4V DBET-6X/50G24K4V

Warranty: 12 Months just like OEM Pump

Mark: SENHENGYUAN Hydraulics
Short Lead Time, Prompt Delivery

Wechat:+86 188-7629-1732

Whatsapp:+86 188-7629-1732

E: wise@fjzhenyuan.com

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

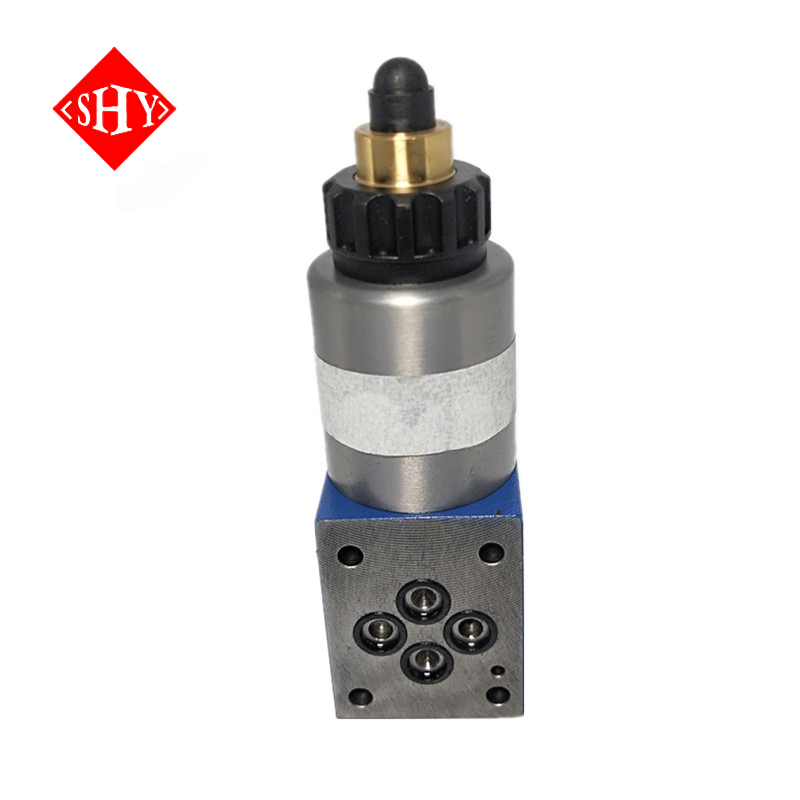

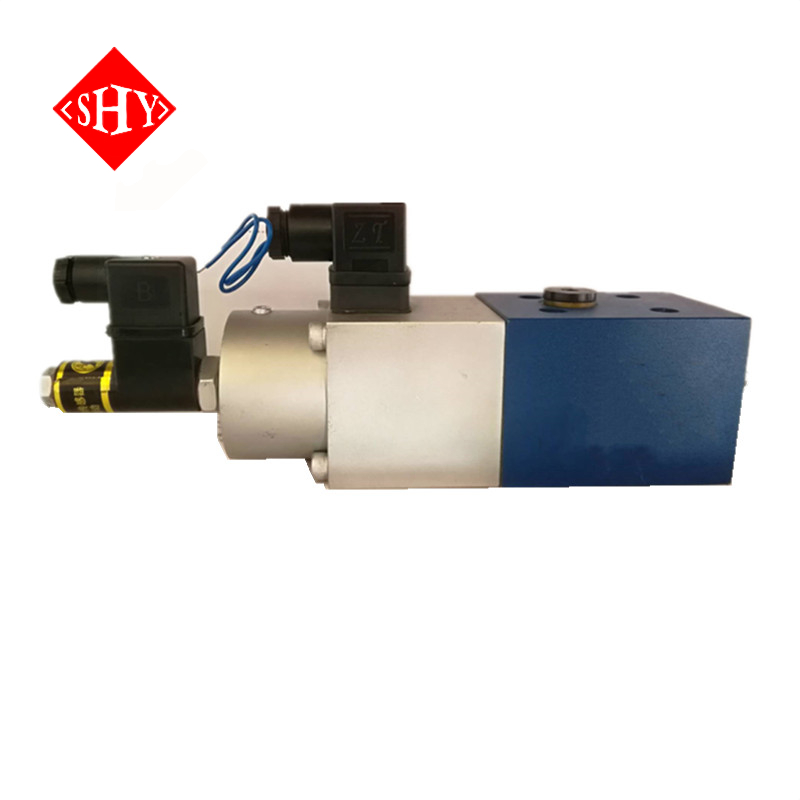

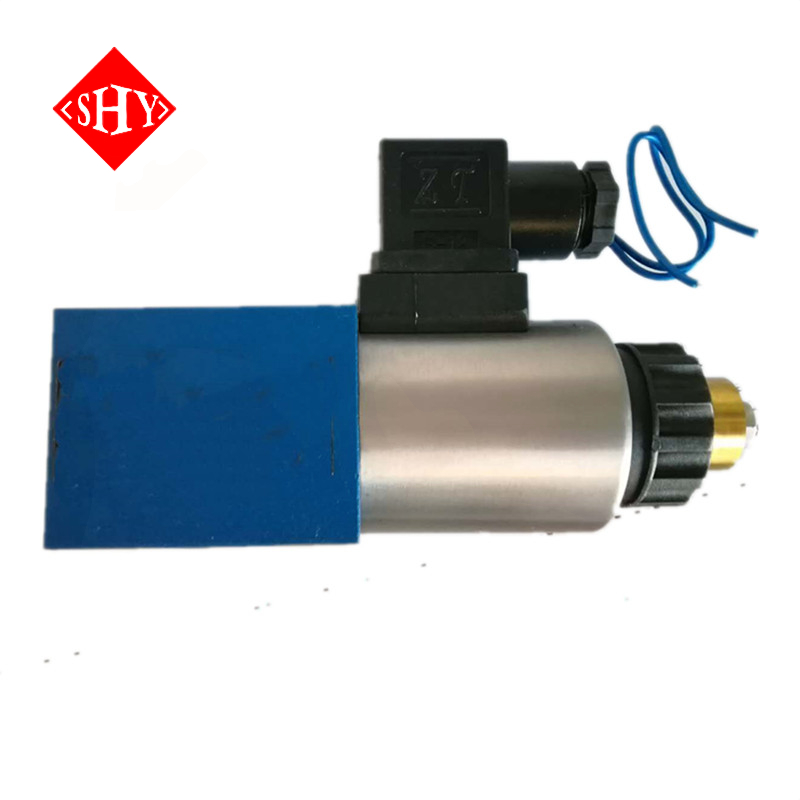

R901000842 is a direct‑operated proportional pressure relief valve, designed as a drop‑in replacement for Rexroth DBET‑61/50G24K4V and DBET‑6X/50G24K4V. It belongs to Rexroth’s DBET series, featuring a poppet‑seat design for precise, stepless system pressure regulation via a proportional solenoid.

Core Features

Type: Direct‑operated proportional pressure relief valve
Nominal Size: 6
Max Operating Pressure: 350–420 bar
Max Flow: 2 L/min
Control: Proportional solenoid with central thread, detachable coil; requires external amplifier (24 VDC supply)
Mounting: Subplate mounting, porting pattern conforms to ISO 4401‑3, NFPA T3.5.1M R, ANSI B93.7 D03
Seal: V = FKM (fluororubber), suitable for high‑temperature and chemical‑resistant applications
Function: Limits system pressure proportionally to the electrical command signal; zero command sets minimum pressure
Application: Industrial hydraulic systems, machine tools, presses, plastic injection molding, mobile equipment

Technical Specifications

Parameter	Value
Part Number	R901000842
Replacement Models	DBET‑61/50G24K4V, DBET‑6X/50G24K4V
Series	DBET
Nominal Size	6
Max Operating Pressure	350–420 bar
Max Flow Rate	2 L/min
Supply Voltage	24 VDC
Seal Material	FKM (V)
Mounting	Subplate (ISO 4401‑3)
Weight	~2 kg
Ambient Temp	−20°C to +70°C
Fluid Compatibility	Mineral oil, synthetic fluids (DIN 51524)

More models:

R901409981	DBET-6X/100G24-8K4M-6
R901348360	DBET-6X/100G24-8K4V
R901301788	DBET-6X/100G24-8K4V
R901191520	DBET-6X/100G24K4M
R901000845	DBET-6X/100G24K4V
R901412375	DBET-6X/100YG24-8K4M-6
R901344474	DBET-6X/100YG24-8K4V
R901348359	DBET-6X/100YG24-8K4V
R901369043	DBET-6X/100YG24-8K4V-7
R901194749	DBET-6X/100YG24K4M
R901065549	DBET-6X/100YG24K4V
R901420176	DBET-6X/200G24-8K4M-6
R901170278	DBET-6X/200G24-8K4V
R901191521	DBET-6X/200G24K4M
R901000846	DBET-6X/200G24K4V
R901298533	DBET-6X/200G24K4V-5
R901065551	DBET-6X/200G24K4V=LB
R901375103	DBET-6X/200YG24-8K4M-340
R901529934	DBET-6X/200YG24-8K4M-6
R901383767	DBET-6X/200YG24-8K4M-8
R901377147	DBET-6X/200YG24-8K4V
R901369045	DBET-6X/200YG24-8K4V-7
R901194748	DBET-6X/200YG24K4M
R901065548	DBET-6X/200YG24K4V
R901191522	DBET-6X/250G24K4M
R901198956	DBET-6X/250YG24K4M
R901383287	DBET-6X/315G24-8K4M
R901367022	DBET-6X/315G24-8K4M-6
R901170279	DBET-6X/315G24-8K4V
R901392818	DBET-6X/315G24-8K4V-6
R901191523	DBET-6X/315G24K4M
R901000847	DBET-6X/315G24K4V
R901378802	DBET-6X/315G24K4V-667
R901065553	DBET-6X/315G24K4V=DE
R901065552	DBET-6X/315G24K4V=LB
R901416841	DBET-6X/315YG24-8K4M
R901408219	DBET-6X/315YG24-8K4M-6
R901374806	DBET-6X/315YG24-8K4M-8
R901308350	DBET-6X/315YG24-8K4V
R901348355	DBET-6X/315YG24-8K4V
R901369047	DBET-6X/315YG24-8K4V-7
R901194747	DBET-6X/315YG24K4M
R901065547	DBET-6X/315YG24K4V
R902650849	DBET-6X/350 G24K4 V RD 29162
R901403499	DBET-6X/350G24-8K4M
R901348354	DBET-6X/350G24-8K4V
R901318924	DBET-6X/350G24-8K4V
R901191524	DBET-6X/350G24K4M
R901000848	DBET-6X/350G24K4V
R901409577	DBET-6X/350G24K4V-320
R901373134	DBET-6X/350YG24-8K4M
R901443821	DBET-6X/350YG24-8K4V
R901369048	DBET-6X/350YG24-8K4V-7
R901194745	DBET-6X/350YG24K4M
R901065546	DBET-6X/350YG24K4V
R901229279	DBET-6X/420G24-8K4V
R901108319	DBET-6X/420G24K4V
R901529292	DBET-6X/420YG24-8K4M
R901097344	DBET-6X/420YG24K4V
R901412251	DBET-6X/50G24-8K4M-6
R901278288	DBET-6X/50G24-8K4V
R901348347	DBET-6X/50G24-8K4V
R901000842	DBET-6X/50G24K4V
R901406176	DBET-6X/50YG24-8K4M
R901193279	DBET-6X/50YG24-8K4M-6
R901369036	DBET-6X/50YG24-8K4V-7
R901065545	DBET-6X/50YG24K4V
R901236313	DBET-6X=350G24K4V
R901351510	DBET-6X=420G24K4V-320
