Key Features

• Direct interchangeable with Rexroth Z2FS16 series valves

• OEM equivalent performance and dimensions

• Provides both throttle and check functions in one compact valve

• Stable flow control for reliable system operation

• High‑quality construction for industrial hydraulic applications

• Suitable for use in machinery, presses, construction equipment, and hydraulic power units

Applications

• Hydraulic power units

• Industrial hydraulic systems

• Machine tools

• Construction machinery

• Hydraulic presses and automation systems

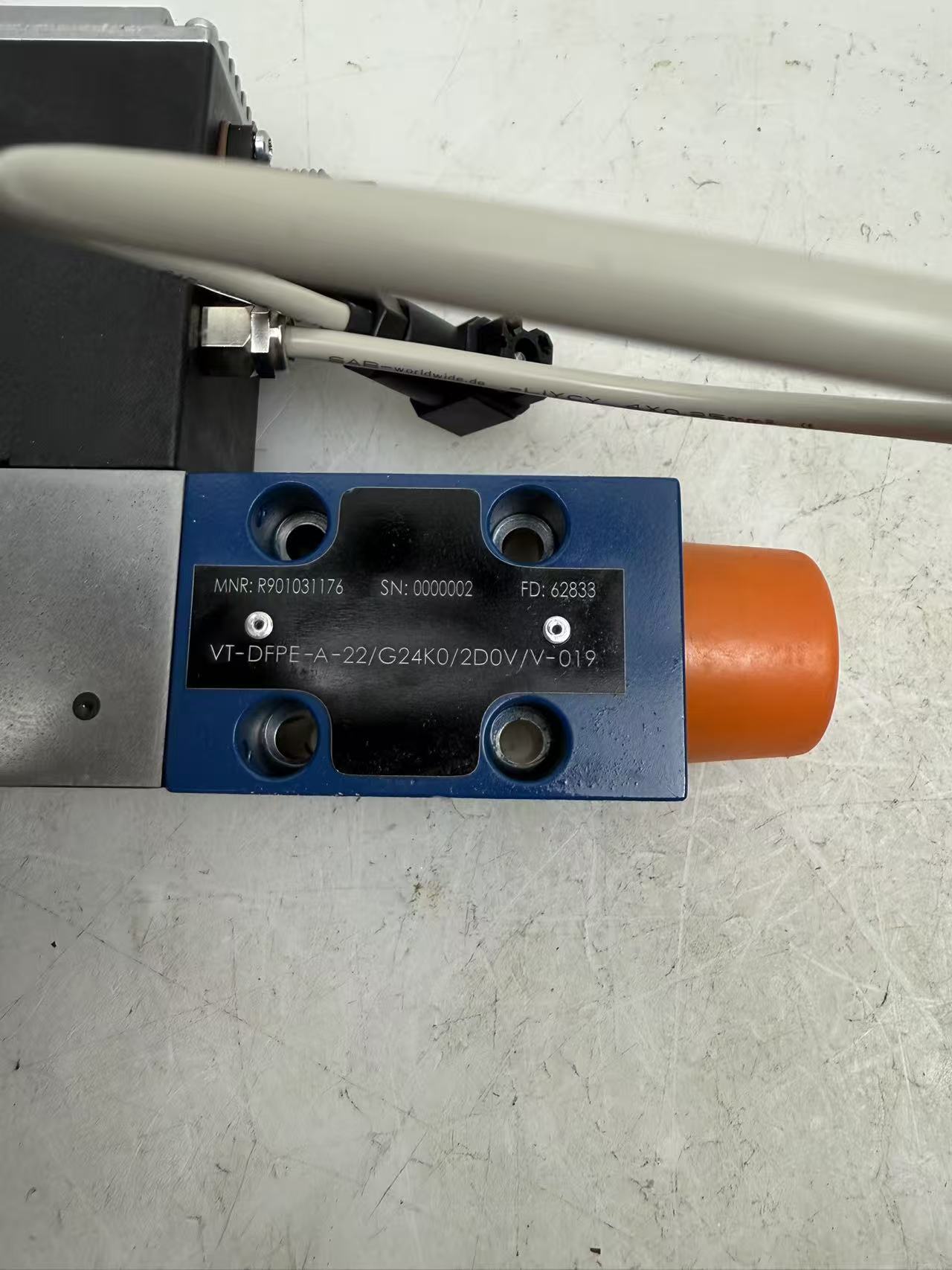

• Type Code:

• 01		02		03		04	05		06	07	08	09		10		11
  	-		-		/	G24	K0	/					/	V	-	*

  Series

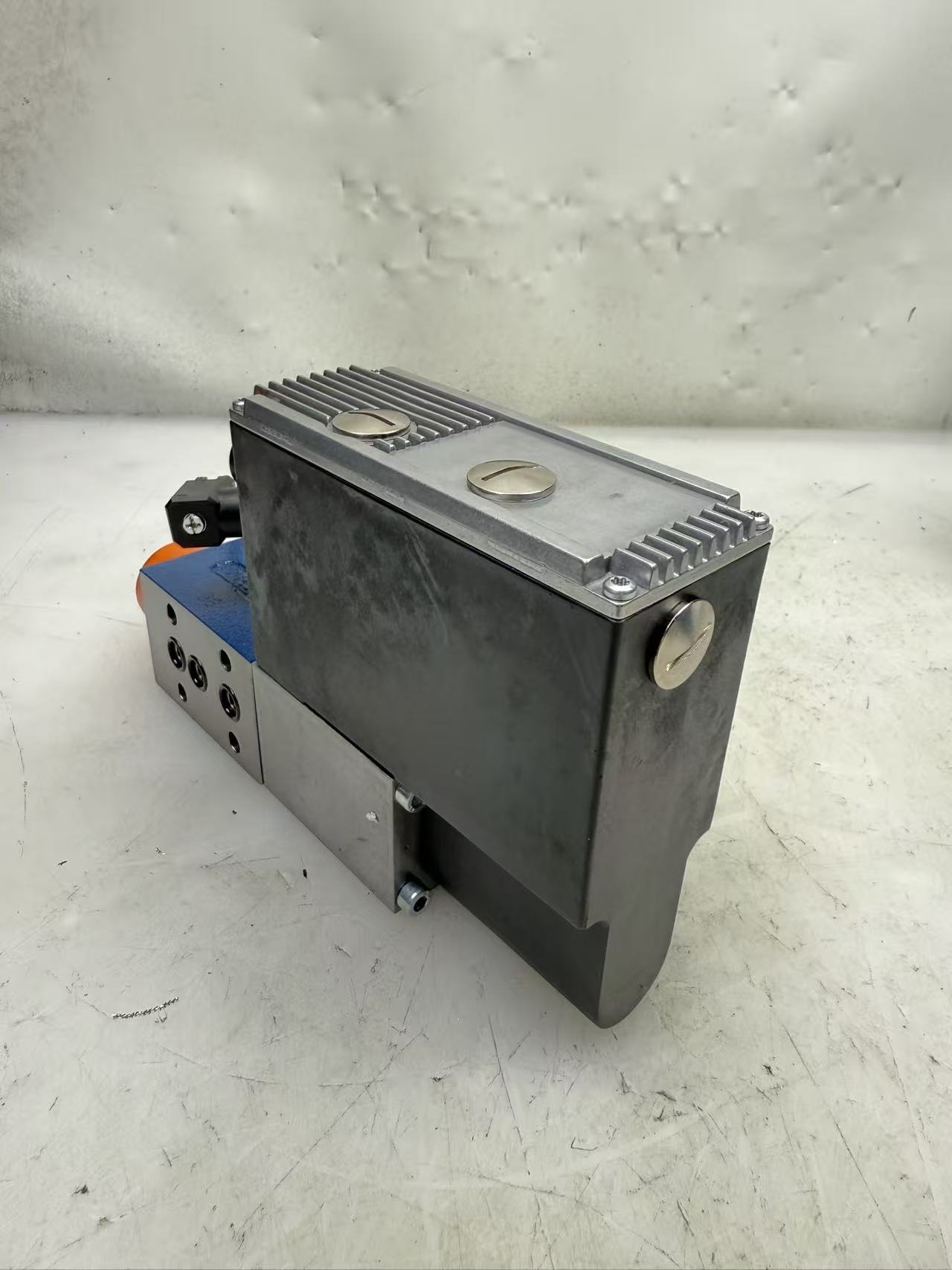

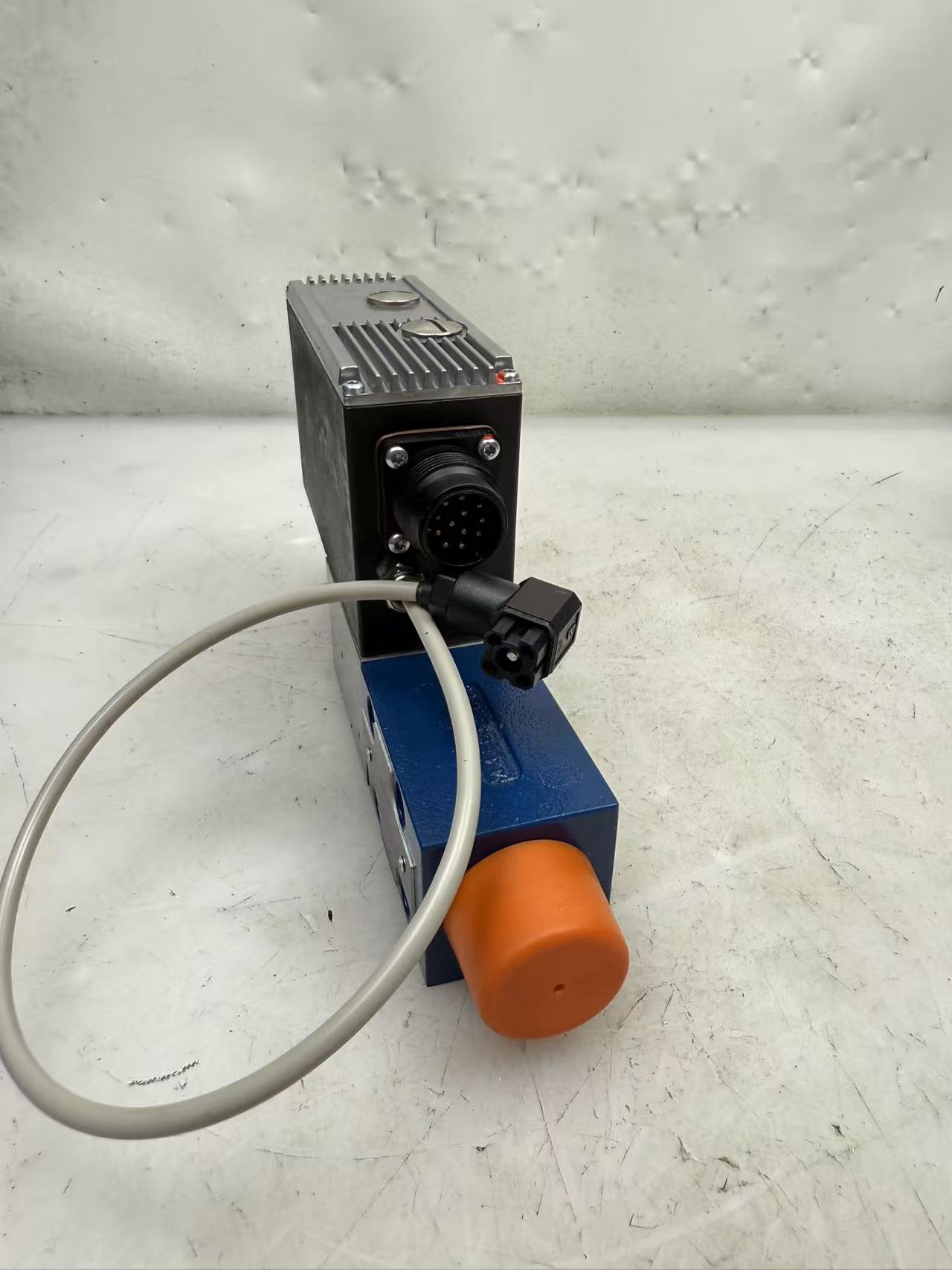

  01	Pilot control valve for external electronics		VT-DFP
  	Pilot control valve with integrated analog electronics		VT-DFPE
  	Pilot control valve with integrated digital electronics (CANopen fieldbus)		VT-DFPC1)
  	Pilot control valve with integrated digital electronics, variable-speed		VT-DFPn1)
  	Pilot control valve with integrated digital electronics (ethernet-based bus systems)		VT-DFPD
  	Pilot control valve with integrated digital electronics (ethernet-based bus systems)		VT-DFPF
  Control spool design
  02	Standard		A
  	2-groove (only for replacement requirement)		B
  	4-groove (e.g. for HFC fluids)		C
  03	Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions); only type VT-DFPD and VT-DFPF		1X
  	Component series 20 … 29 (20 … 29: unchanged installation and connection dimensions)		2X
  04	Direct voltage 24 V		G24
  05	Connector (without mating connector)		K02)
  Installation orientation connector (VT-DFP) and/or integrated electronics (see below and "Dimensions")
  06	Radially to the pump axis		0
  	folded 90° in the direction of the subplate with counterclockwise direction of rotation		1
  	folded 90° in the direction of the subplate with clockwise direction of rotation		2
  Additional functions: Closed-loop control
  07	– VT-DFP		no code
  	– VT-DFPE
  	Switchable pressure controller (high signal)		A
  	Power limitation adjustable at the OBE valve		B
  	Power limitation adjustable via analog input		C
  	Pressure controller that can be switched off (high signal)		D
  	– VT-DFPC
  	Standard		A
  	– VT-DFPn
  	Teach-in version for cyclic operation		A
  	Real-time version (speed calculation without teach-in)		R
  	– VT-DFPD
  	Standard		A
  	For variable-speed operation		N
  	– VT-DFPF
  	Standard		A
  Electronics assembly
  08	– VT-DFP		no code
  	– VT-DFPE
  	Standard electronics with leakage oil compensation		0
  	Standard electronics without leakage oil compensation		1
  	– VT-DFPC
  	Standard		0
  	– VT-DFPn
  	Standard		0
  	– VT-DFPD, VT-DFPF
  	Bus system: Sercos III		S
  	Bus system: CANopen over EtherSAAR		T
  	Bus system: servo drive over EtherSAAR		D
  	Bus system: Servodrive over Varan		V
  	Bus system: Ethernet/IP		E
  	Bus system: PROFINET RT		N
  	Bus system: Powerlink		W4)
  Actual pressure value input (see "Electrical connections")
  09	– VT-DFP		no code
  	– VT-DFPE, VT-DFPC, VT-DFPn
  	Current input 4 … 20 mA	Port X1	C
  	Voltage input 0...10 V (standard)	Port X1	V
  	Voltage input 1 … 10 V	Port X1	E
  	Voltage input 0.5...5 V (standard)	Connection X2	F
  	– VT-DFPD
  	Voltage input 0 ... 10 V (freely configurable, parameter setting on delivery)	Port XH4	V
  	Voltage input 0.5 ... 5 V (freely configurable, parameter setting on delivery)	Port X2M1	F
  	– VT-DFPF
  	Voltage input 0 ... 10 V (freely configurable, parameter setting on delivery)	Port XH1	V
  	Voltage input 0.5 ... 5 V (freely configurable, parameter setting on delivery)	Port X2N	F
  Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")
  10	FKM seals		V
  11	Further details in the plain text
