Home / Products / Hydraulic Valve / Directional Control Valve / 4WRPEH6C4B12L-20 4WRPEH6C4B12L-2X 4WRPEH 6 Series Valves Hydraulic Solenoid Valve 4wrpeh 4wrpeh6 4wrpeh10 Series

0811404611 4WRPEH6C4B12L-20/G24K0/A1M 4WRPEH6C4B12L-2X/G24K0/A1M 4WRPEH 6 Series Valves Hydraulic Solenoid Valve 4wrpeh 4wrpeh6 4wrpeh10 Series

4WRPEH6C4B12L-20 4WRPEH6C4B12L-2X 4WRPEH 6 Series Valves Hydraulic Solenoid Valve 4wrpeh 4wrpeh6 4wrpeh10 Series

Warranty: 12 Months just like OEM Pump

Mark: SENHENGYUAN Hydraulics
Short Lead Time, Prompt Delivery

Wechat:+86 188-7629-1732

Whatsapp:+86 188-7629-1732

E: wise@fjzhenyuan.com

Quantity:
Availability:





Inquire Add to Basket

Product Description

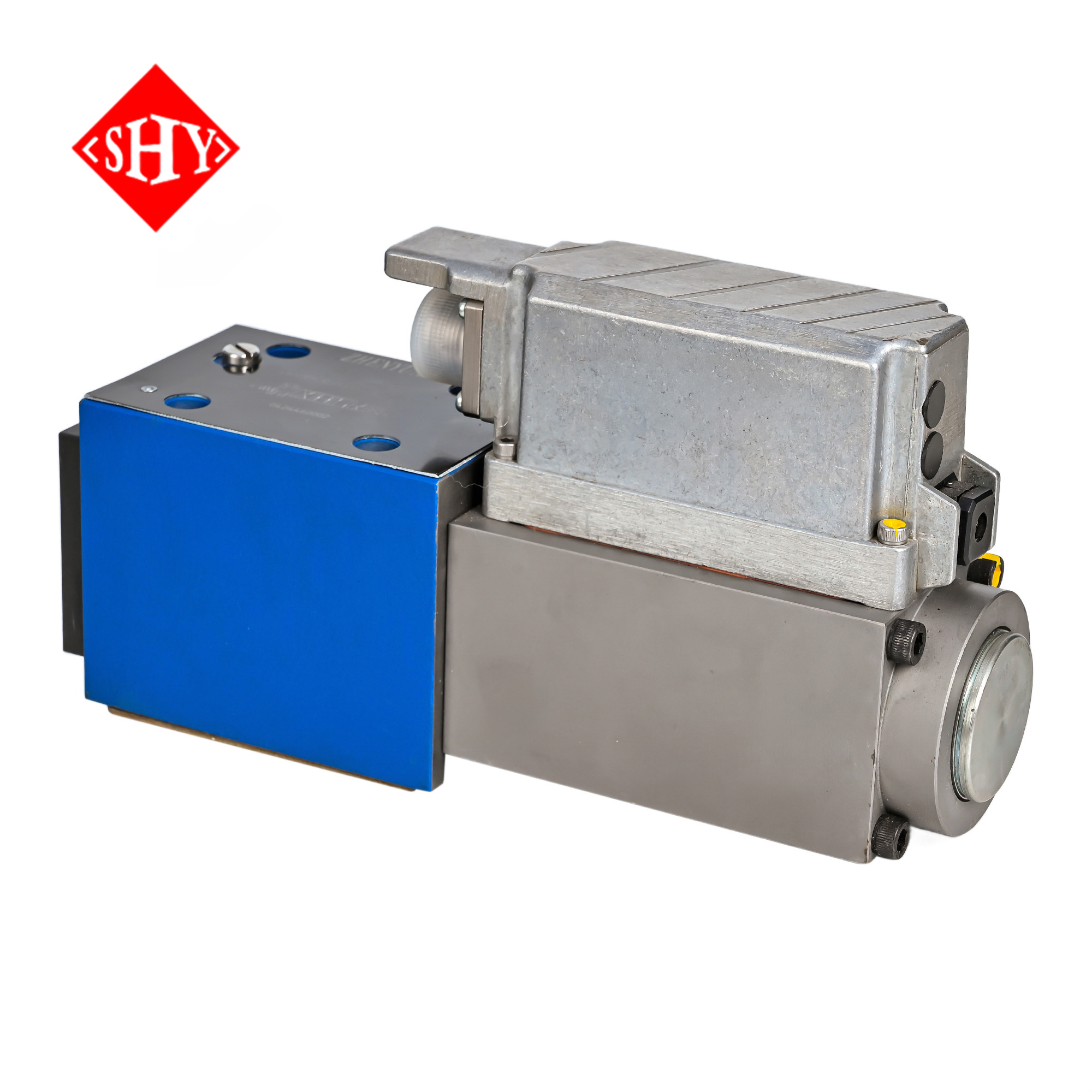

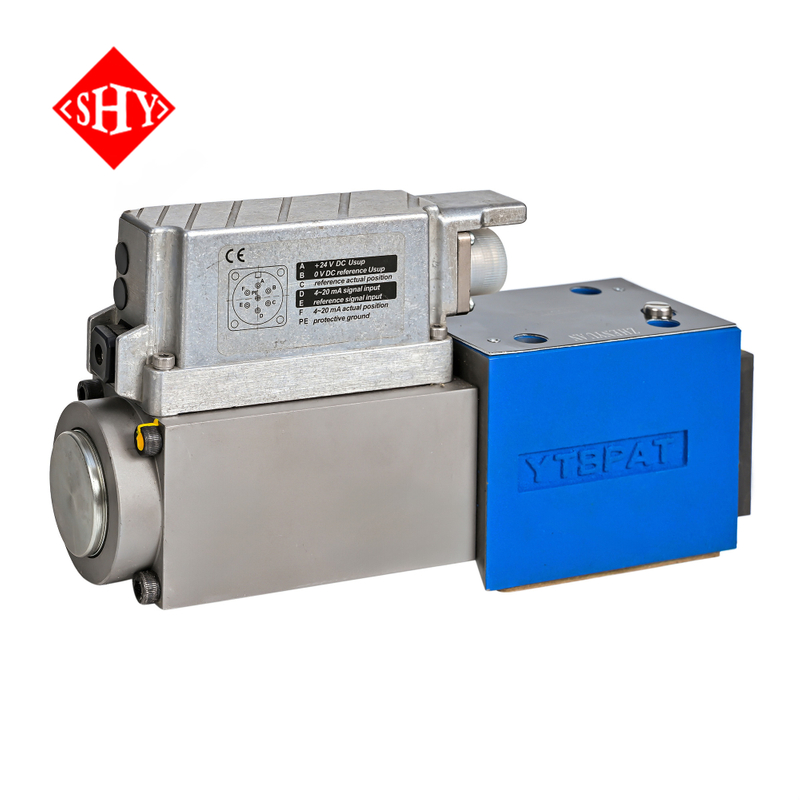

Product Explanation for 0811404611 4WRPEH6C4B12L-20/2X/G24K0/A1M Hydraulic Solenoid Valve

Core Positioning

0811404611 is the core part number of the 4WRPEH6 series high-precision hydraulic proportional solenoid valve, featuring mainstream models 4WRPEH6C4B12L-20/G24K0/A1M and 4WRPEH6C4B12L-2X/G24K0/A1M. As a key control component of industrial hydraulic systems, it is engineered for precise proportional regulation of hydraulic flow and direction, and is fully compatible with the 4WRPEH product line including 4WRPEH6 and 4WRPEH10 series. With the standard G24K0/A1M configuration, it delivers fast electro-hydraulic response and stable control performance, suitable for various automated industrial equipment with high requirements for hydraulic precision control.

Core Design & Performance Advantages

High-Precision Proportional Control
Adopts advanced solenoid drive and spool control structure, realizing micron-level hydraulic flow and direction regulation with fast response speed and small control error, perfectly matching the precise control demands of automated production lines and high-end mechanical equipment.
Standard G24K0/A1M Configuration
Equipped with the universal G24K0/A1M electro-hydraulic control module, it supports stable DC24V power supply and seamless connection with industrial control systems, with strong anti-interference ability and reliable operation in complex industrial environments.
Integrated High-Strength Structure
The one-piece forged valve body has excellent pressure resistance and fatigue resistance, with high-precision internal matching of core components, effectively reducing internal leakage and pressure loss, and ensuring long-term stable operation under high-pressure and heavy-load working conditions.
Full Series Compatibility
As the classic model of 4WRPEH6 series, it shares the same installation interface and hydraulic matching parameters with the entire 4WRPEH product line (4WRPEH6/10 series), supporting flexible replacement and assembly, and meeting the diversified configuration needs of different hydraulic systems.
Low Maintenance & Easy Installation
The modular design of key components enables quick disassembly and maintenance, without the need for professional debugging tools; the installation size is fully in line with industrial universal standards, realizing drop-in installation and reducing equipment maintenance time and cost.

Core Application Scenarios

✅ Precise hydraulic control of automated production lines, CNC machine tools and precision machining equipment✅ Flow and direction regulation of hydraulic systems in construction machinery, metallurgical equipment and lifting machinery✅ Proportional control of hydraulic circuits in injection molding machines, hydraulic presses and packaging machinery✅ Hydraulic system control of marine and aerospace supporting equipment with high reliability requirements✅ Replacement and upgrade of original 4WRPEH6/10 series proportional solenoid valves in industrial hydraulic systems

Core Model & Series Correlation

This product is marked with the exclusive part number 0811404611, including two interchangeable mainstream specifications: 4WRPEH6C4B12L-20/G24K0/A1M and 4WRPEH6C4B12L-2X/G24K0/A1M, both belonging to the 4WRPEH6 series core models. It is the key matching component of the 4WRPEH full series (4WRPEH6/10), with strong interchangeability and compatibility, and can be flexibly used with other hydraulic components of the same series to form a complete and efficient hydraulic control system.

Type code

01	02	03	04	05	06	07	08	09		10		11	12		13	14	15
4	WRP	E	H	6/10		B			‒	2X	/	G24	K0	/		M	*

01	4 main ports	4
02	High-response directional valve, direct operated	WRP
03	With integrated electronics (OBE)	E
04	Control spool/sleeve	H
05	Size 10	10
06	Symbols; for the possible version, see "Symbols/Circuit diagrams"
Installation side of the inductive position transducer
07	Valve side B (standard) (see "Symbols/Circuit diagrams")	B
Rated flow at 70 bar valve pressure differential (35 bar/control edge)
08	50 l/min	50
	100 l/min	100
Flow characteristic
09	Linear	L
09	Inflected characteristic curve	P
10	Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) - Size 6	2X
Supply voltage of the control electronics
11	Direct voltage 24 V	G24
Electrical connection
12	Without mating connector; connector DIN 43563-AM6 Mating connectors, separate order	K0
Control electronics interface
13	Command value input ±10 V	A1
13	Command value input 4 ... 20 mA	F1
Seal material
14	NBR seals, suitable for mineral oil HL and HLP according to DIN 51524	M
15	Further details in the plain text	*

More models:

0811404603	4WRPEH6C3B40L-2X/G24K0/A1M
0811404744	4WRPEH6C3B02L-2X/G24K0/A1M
0811404600	4WRPEH6C3B04L-2X/G24K0/A1M
0811404601	4WRPEH6C3B12L-2X/G24K0/A1M
0811404602	4WRPEH6C3B24L-2X/G24K0/A1M
0811404746	4WRPEH6C5B40L-2X/G24K0/A1M
0811404642	4WRPEH6C3B15P-2X/G24K0/A1M
0811404643	4WRPEH6C3B25P-2X/G24K0/A1M
0811404644	4WRPEH6C3B40P-2X/G24K0/A1M
0811404648	4WRPEH6C5B40P-2X/G24K0/A1M
0811404631	4WRPEH6C3B04L-2X/G24K0/F1M
0811404632	4WRPEH6C3B12L-2X/G24K0/F1M
0811404633	4WRPEH6C3B24L-2X/G24K0/F1M
0811404634	4WRPEH6C3B40L-2X/G24K0/F1M
0811404749	4WRPEH6C5B40L-2X/G24K0/F1M
0811404641	4WRPEH6C4B02L-2X/G24K0/A1M
0811404610	4WRPEH6C4B04L-2X/G24K0/A1M
0811404611	4WRPEH6C4B12L-2X/G24K0/A1M
0811404612	4WRPEH6C4B24L-2X/G24K0/A1M
0811404613	4WRPEH6C4B40L-2X/G24K0/A1M
0811404738	4WRPEH6C1B40L-2X/G24K0/A1M
0811404645	4WRPEH6C4B15P-2X/G24K0/A1M
0811404646	4WRPEH6C4B25P-2X/G24K0/A1M
0811404647	4WRPEH6C4B40P-2X/G24K0/A1M
0811404601	4WRPEH6C3B12L-2X/G24KO/A1M
0811404600	4WRPEH6C3B04L-2X/G24KO/A1M
0811404602	4WRPEH6C3B24L-2X/G24KO/A1M
0811404604	4WRPEH6KB50P-2X/G24KO/A1M
0811404610	4WRPEH6C4B04L-2X/G24KO/A1M
0811404611	4WRPEH6C4B12L-2X/G24KO/A1M
0811404612	4WRPEH6C4B24L-2X/G24KO/A1M
0811404613	4WRPEH6C4B40L-2X/G24KO/A1M
0811404621	4WRPEH6C3B04L-2X/G24KO/B5M
0811404622	4WRPEH6C3B24L-2X/G24KO/B5M
0811404623	4WRPEH6C4B12L-2X/G24KO/B5M
0811404626	4WRPEH6C3B15P-2X/G24KO/B5M
0811104628	4WRPEH6K3B50P-2X/G24KO/A1M
0811404631	4WRPEH6C3B04L-2X/G24KO/F1M
0811404633	4WRPEH6C3B24L-2X/G24KO/F1M
0811404634	4WRPEH6C3B40L-2X/G24KO/F1M
0811404635	4WRPEH6C3B25P-2X/G24KO/B5M
0811404637	4WRPEH6C3B40P-2X/G24KO/B5M
0811404638	4WRPEH6C4B40L-2X/G24KO/A1V
0811404639	4WRPEH6CB40L-2X/G24KO/A1M
0811404640	4WRPEH6CB40L-2X/G24KO/F1M
0811404641	4WRPEH6C4B02L-2X/G24KO/A1M
0811404642	4WRPEH6C3B15P-2X/G24KO/A1M
0811404644	4WRPEH6C3B40P-2X/G24KO/A1M
0811404645	4WRPEH6C4B15P-2X/G24KO/A1M
0811404646	4WRPEH6C4B25P-2X/G24KO/A1M
0811404647	4WRPEH6C4B40P-2X/G24KO/A1M
0811404801	4WRPEH10C3B100L-2X/G24KO/A1M
0811404802	4WRPEH10C4B50L-2X/G24KO/A1M
0811404803	4WRPEH10C4B100L-2X/G24KO/A1M
0811404806	4WRPEH10CB100L-2X/G24KO/F1M
0811404808	4WRPEH10C3B50L-2X/G24KO/B5M
0811404809	4WRPEH10CB100L-2X/G24KO/A1M
0811404812	4WRPEH10C4B50L-2X/G24KO/B5M
0811404813	4WRPEH10C3B100L-2X/G24KO/B5M
0811404816	4WRPEH10CB50P-2X/G24KO/F1M
0811404817	4WRPEH10C3B100L-2X/G24KO/F1M
0811404819	4WRPEH10C3B50L-2X/G24KO/F1M
0811404820	4WRPEH10C1B50L-2X/G24KO/A1M
0811404821	4WRPEH10C1B100L-2X/G24KO/A1M
0811404822	4WRPEH10C3B5CP-2X/G24KO/A1M
0811404823	4WRPEH10C3B100P-2X/G24KO/A1M
