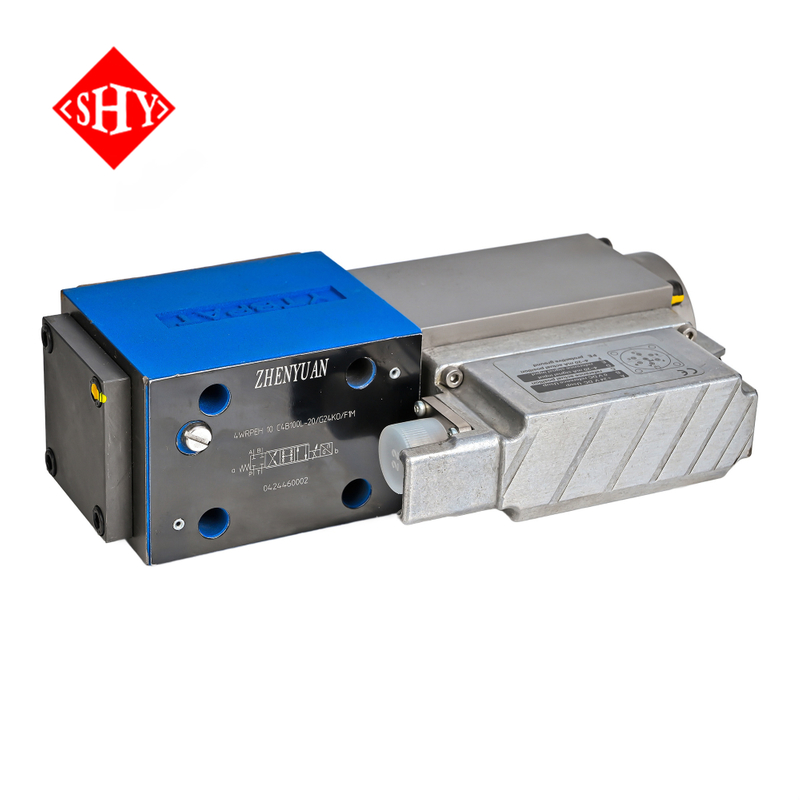

4WRPE 4WRKE 4WRSE 4WRZE 4WRPEH Hydraulic Valve 0811404061 4WRPH10C4B100L-20/G24Z4/M 4WRPH10C4B100L-2X/G24Z4/M PROPORTIONAL DIRECTIONAL VALVE

4WRPE 4WRKE 4WRSE 4WRZE 4WRPEH Hydraulic Valve 0811404061 4WRPH10C4B100L-20/2X/G24Z4/M

Warranty: 12 Months just like OEM Pump
Mark: SENHENGYUAN Hydraulics
Short Lead Time, Prompt Delivery

Wechat:+86 188-7629-1732

Whatsapp:+86 188-7629-1732

E: wise@fjzhenyuan.com

Quantity:
Availability:





Inquire Add to Basket

Product Description

Proportional Directional Valve Product Description

Proportional directional valves are core control components for industrial hydraulic systems, designed to precisely regulate the flow direction and flow rate of hydraulic oil according to electrical signal instructions. The 4WRPE, 4WRKE, 4WRSE, 4WRZE, and 4WRPEH series proportional directional valves, along with the specific model 0811404061 and high-precision variants like 4WRPH10C4B100L-20/G24Z4/M and 4WRPH10C4B100L-2X/G24Z4/M, are engineered to meet the rigorous demands of heavy-duty industrial applications.

Core Performance Features

High Precision Proportional ControlThese valves adopt advanced proportional solenoid technology, realizing linear matching between input electrical signals and output flow/pressure. The 4WRPH10C4B100L series, with its 100L nominal flow design, ensures stable and accurate control of actuator speed and position, effectively reducing system response lag and improving operation stability.
Strong Adaptability to Working ConditionsBuilt with high-strength valve bodies and wear-resistant internal components, the valves can withstand high-pressure hydraulic environments common in construction machinery, metallurgical equipment, and industrial automation lines. The G24Z4 solenoid control module supports reliable DC24V power supply, featuring anti-interference design to ensure stable performance in complex electrical environments.
Flexible Installation and MaintenanceThe valves comply with industry-standard mounting dimensions, enabling direct replacement of compatible models in existing hydraulic systems without additional structural modifications. The modular design of the solenoid and valve core simplifies disassembly and maintenance, reducing downtime for equipment maintenance.
Wide Range of Application CompatibilityThe 4WRPE, 4WRKE, 4WRSE, 4WRZE, and 4WRPEH series cover a full spectrum of flow and pressure specifications. The specific model 0811404061 is tailored for scenarios requiring precise flow regulation, while the 4WRPH10C4B100L-20/G24Z4/M and 4WRPH10C4B100L-2X/G24Z4/M variants are ideal for heavy machinery applications such as hydraulic presses, injection molding machines, and construction vehicle hydraulic systems.

Application Scenarios

Heavy Construction Machinery: Control of hydraulic cylinders and motors in excavators, loaders, and cranes
Industrial Automation Equipment: Precision positioning of hydraulic slides and clamping mechanisms in production lines
Metallurgical and Mining Equipment: Regulation of hydraulic systems in rolling mills, mine hoists, and conveyor belts
Agricultural Machinery: Hydraulic control of harvesting equipment and agricultural vehicle actuators

Quality Assurance

Each proportional directional valve undergoes strict pressure testing and performance calibration before leaving the factory to ensure compliance with industry quality standards. The durable structural design and high-quality sealing components effectively prevent oil leakage, extending the service life of the valve and the entire hydraulic system.

Type code:

01	02	03	04	05	06	07	08	09		10		11	12		13	14	15
4	WRP	E	H	6/10		B			‒	2X	/	G24	K0	/		M	*

01	4 main ports	4
02	High-response directional valve, direct operated	WRP
03
04	Control spool/sleeve	H
05	Size 10	10
06	Symbols; for the possible version, see "Symbols/Circuit diagrams"
Installation side of the inductive position transducer
07	Valve side B (standard) (see "Symbols/Circuit diagrams")	B
Rated flow at 70 bar valve pressure differential (35 bar/control edge)
08	50 l/min	50
	100 l/min	100
Flow characteristic
09	Linear	L
09	Inflected characteristic curve	P
10	Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) - Size 6	2X
Supply voltage of the control electronics
11	Direct voltage 24 V	G24
Electrical connection
12	Without mating connector; connector DIN 43563-AM6 Mating connectors, separate order	K0
Control electronics interface
13	Command value input ±10 V	A1
13	Command value input 4 ... 20 mA	F1
Seal material
14	NBR seals, suitable for mineral oil HL and HLP according to DIN 51524	M
15	Further details in the plain text	*

0811404058	4WRPH10C3B50L-2X/G24Z4/M
0811404059	4WRPH10C3B100L-2X/G24Z4/M
0811404077	4WRPH10C5B100L-2X/G24Z4/M
0811404062	4WRPH10C3B50P-2X/G24Z4/M
0811404063	4WRPH10C3B100P-2X/G24Z4/M
0811404079	4WRPH10C5B100P-2X/G24Z4/M
0811404060	4WRPH10C4B50L-2X/G24Z4/M
0811404061	4WRPH10C4B100L-2X/G24Z4/M
0811404076	4WRPH10C1B100L-2X/G24Z4/M
0811404064	4WRPH10C4B50P-2X/G24Z4/M
0811404065	4WRPH10C4B100P-2X/G24Z4/M
0811404067	4WRPH10C1B50P-2X/G24Z4/M
0811404078	4WRPH10C1B100P-2X/G24Z4/M
0811404901	4WRPH10C1B100L-2X/G24K0/M-750
0811404069	4WRPH10C4B100L-2X/G24K0/M-750
0811404076	4WRPH10C1B100L-2X/G24Z4/M
0811404089	4WRPH10C1B100P-2X/G24K0/M-750
0811404078	4WRPH10C1B100P-2X/G24Z4/M
0811404902	4WRPH10C3B100L-2X/G24K0/M-750
0811404059	4WRPH10C3B100L-2X/G24Z4/M
0811404063	4WRPH10C3B100P-2X/G24Z4/M
0811404058	4WRPH10C3B50L-2X/G24Z4/M
0811404062	4WRPH10C3B50P-2X/G24Z4/M
0811404061	4WRPH10C4B100L-2X/G24Z4/M
0811404088	4WRPH10C4B100P-2X/G24K0/M-750
0811404065	4WRPH10C4B100P-2X/G24Z4/M
0811404060	4WRPH10C4B50L-2X/G24Z4/M
