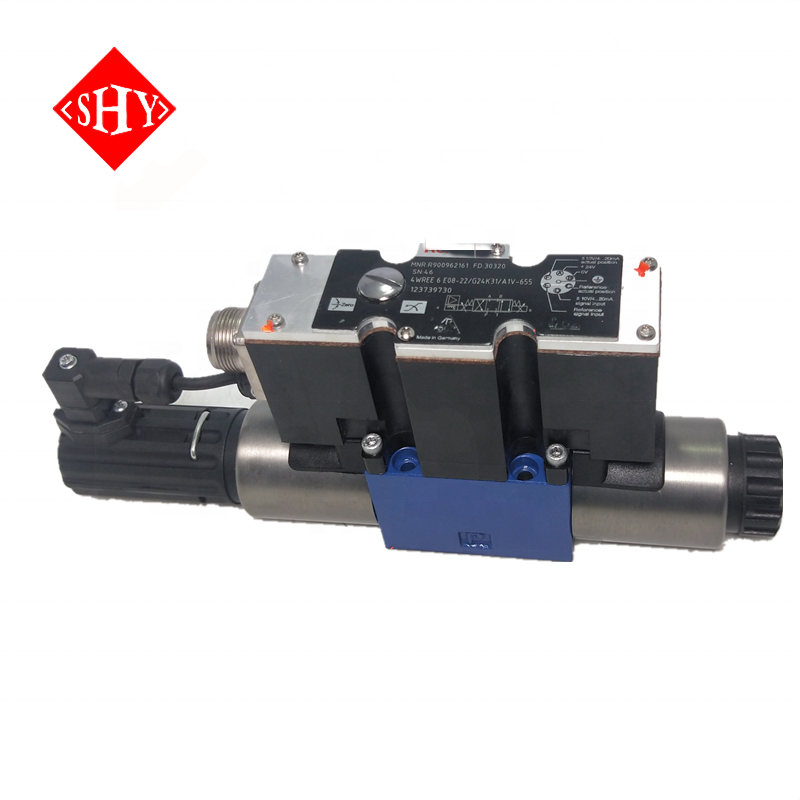

This proportional directional valve is a high-quality replacement for Rexroth 4WREE10 series, suitable for 4WREE10E75-23/A1V and 4WREE10E75-2X/G24K31/A1V. It is designed for precise flow and direction control in modern hydraulic systems, ensuring stable and responsive operation under heavy-duty conditions.
Direct replacement for Rexroth 4WREE10 series proportional directional valves
Fully interchangeable with original mounting dimensions and electrical connections
High precision control for smooth and stable hydraulic system performance
Excellent repeatability, low hysteresis, and long service life
Rugged construction for industrial and continuous operation
Cost-effective alternative to original Rexroth valves with reliable performance
Type Code:
| 01 | 02 | 03 | 04 | 05 |
| 06 |
| 07 | 08 |
| 09 | 10 | 11 |
| 4 | WREE |
|
|
| ‒ | 2X | / | G24 | K31 | / |
|
| * |
| 01 | 4 main ports | 4 |
| 02 | Proportional directional valve with electrical position feedback and integrated electronics (OBE) | WREE |
| 03 | Size 6 | 6 |
| Size 10 | 10 |
| 04 | Symbols; for the possible version, see "Symbols/Circuit diagrams" | E; E1-; V; V1-; W; W1-; EA; WA |
| Rated flow NG6 |
| 05 | 4 l/min | 4 |
| 8 l/min | 8 |
| 16 l/min | 16 |
| 32 l/min | 32 |
| Rated flow NG10 |
| 05 | 25 l/min | 25 |
| 50 l/min | 50 |
| 75 l/min | 75 |
| 06 | Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) | 2X |
| 07 | Supply voltage 24 V | G24 |
| Electrical connection |
| 08 | Connector DIN EN 175201-804 | K31 |
| Electrical interface |
| 09 | Command value ±10 V | A1 |
| Command value 4 to 20 mA | F1 |
| Seal material |
| 10 | NBR seals | M |
| FKM seals | V |
| 11 | Further details in the plain text | * |
