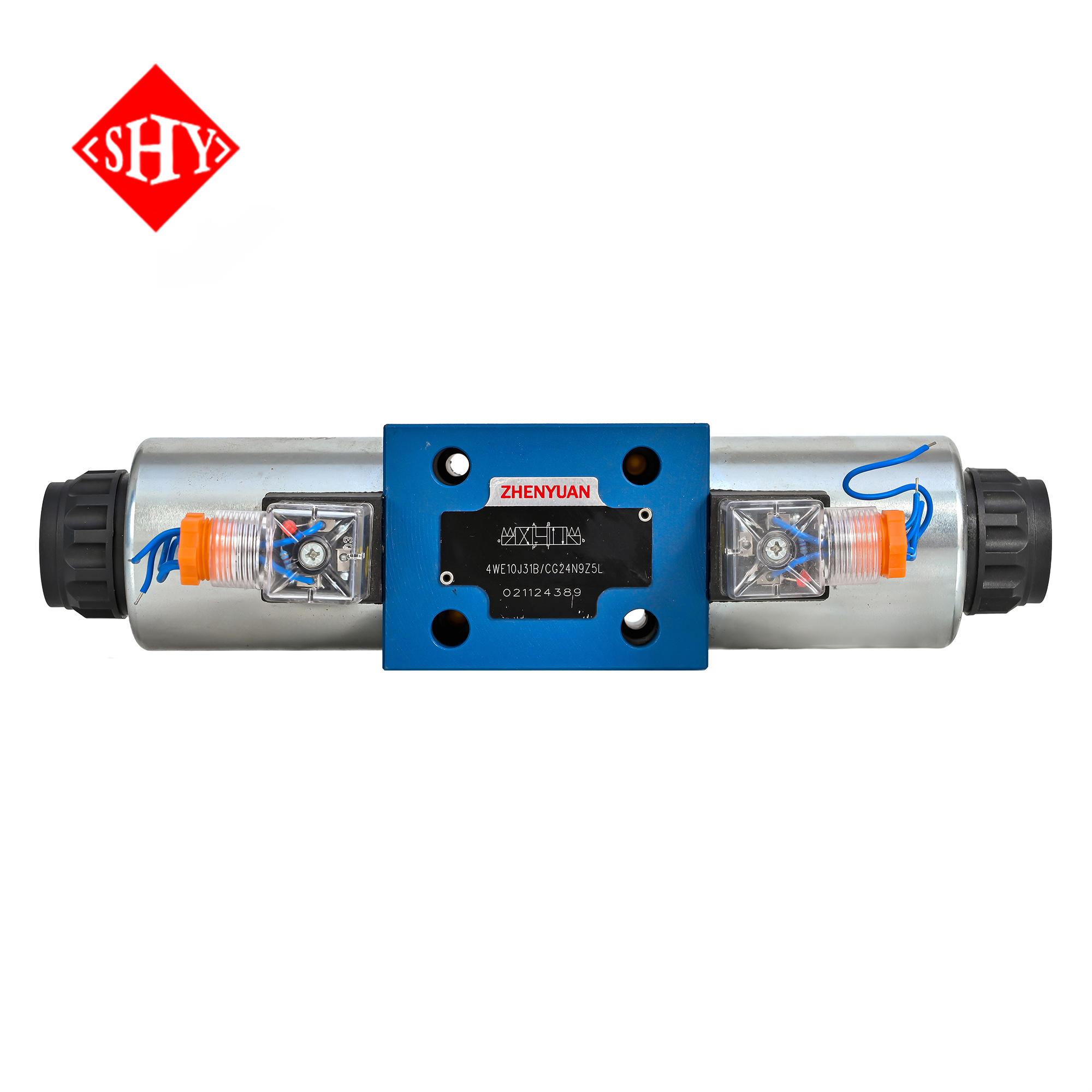

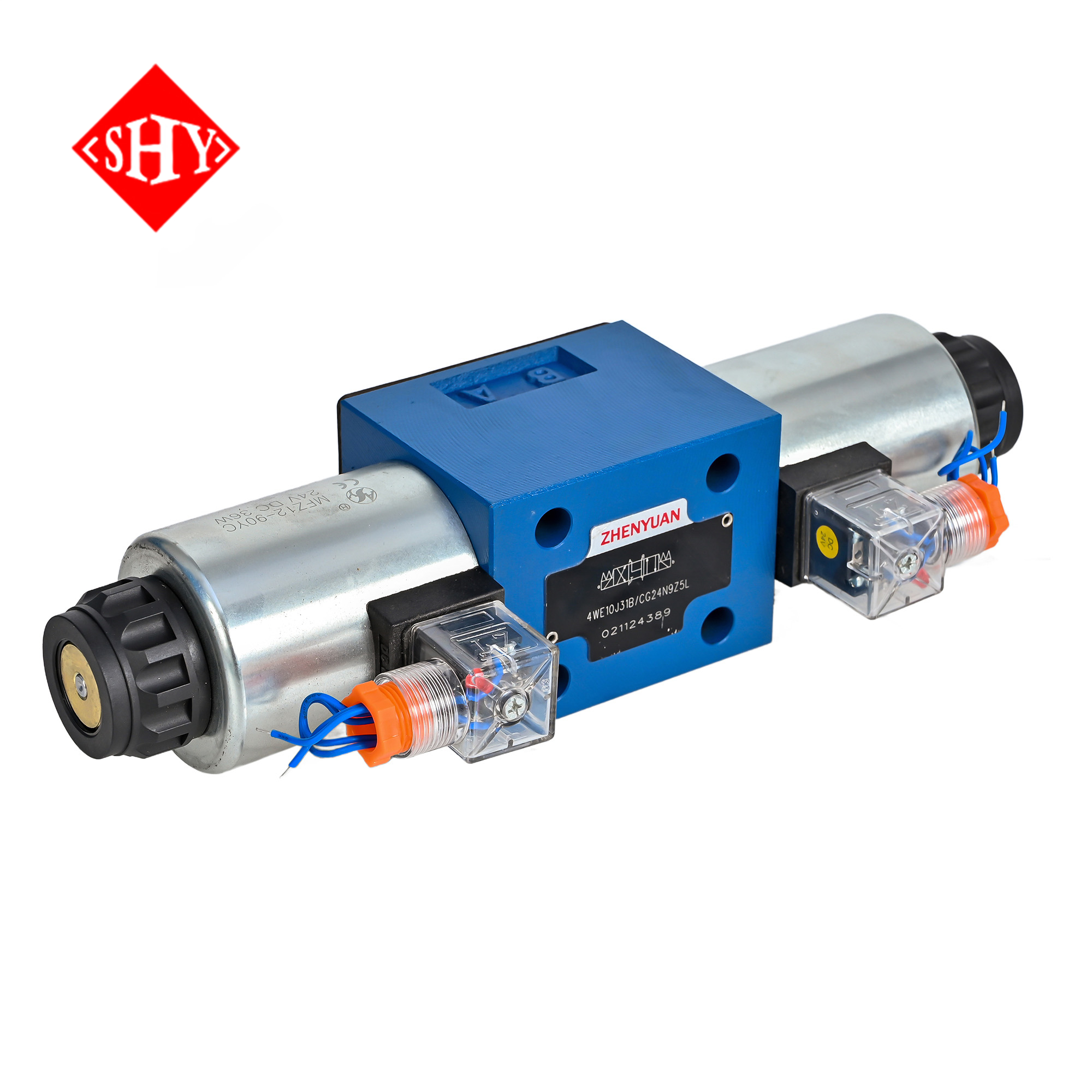

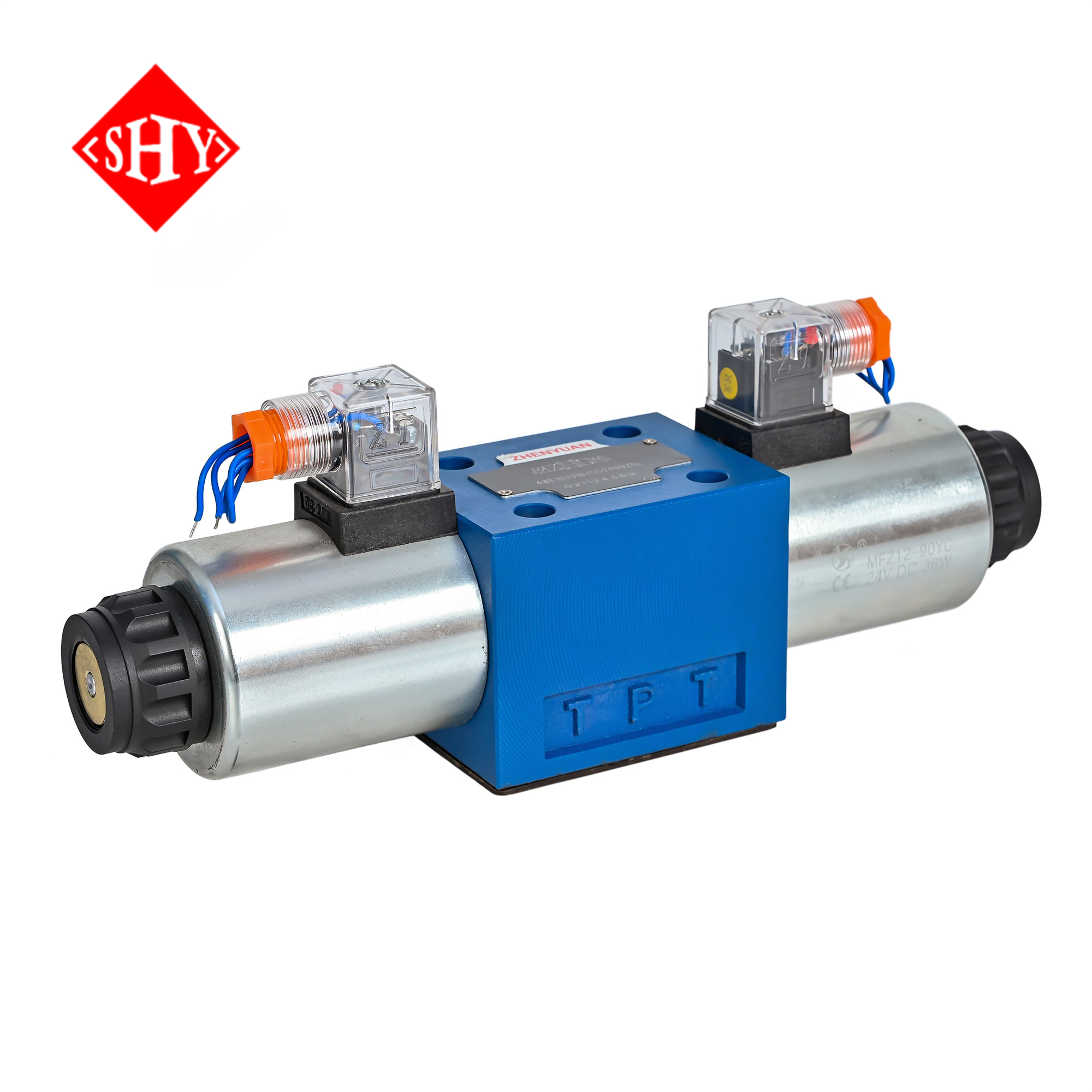

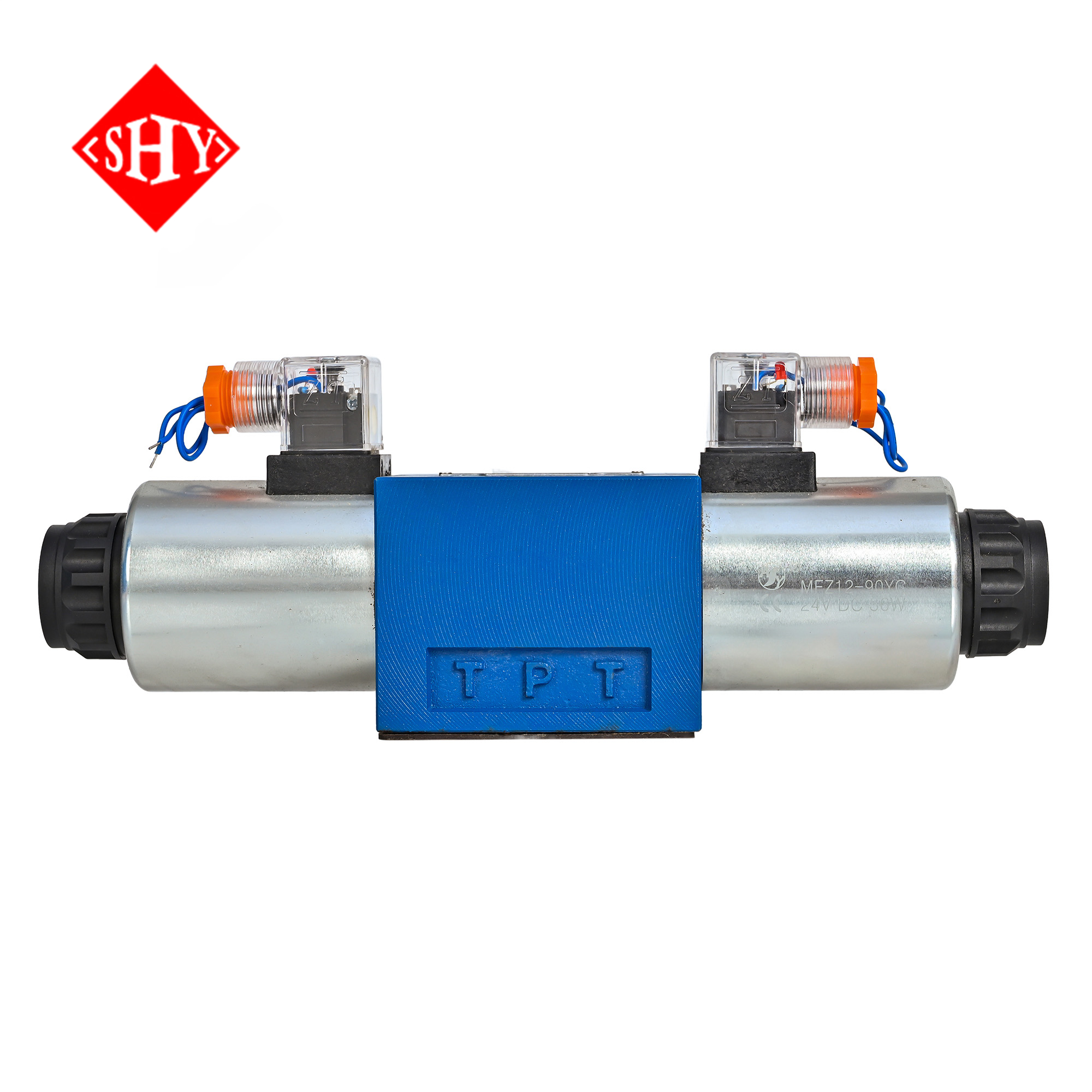

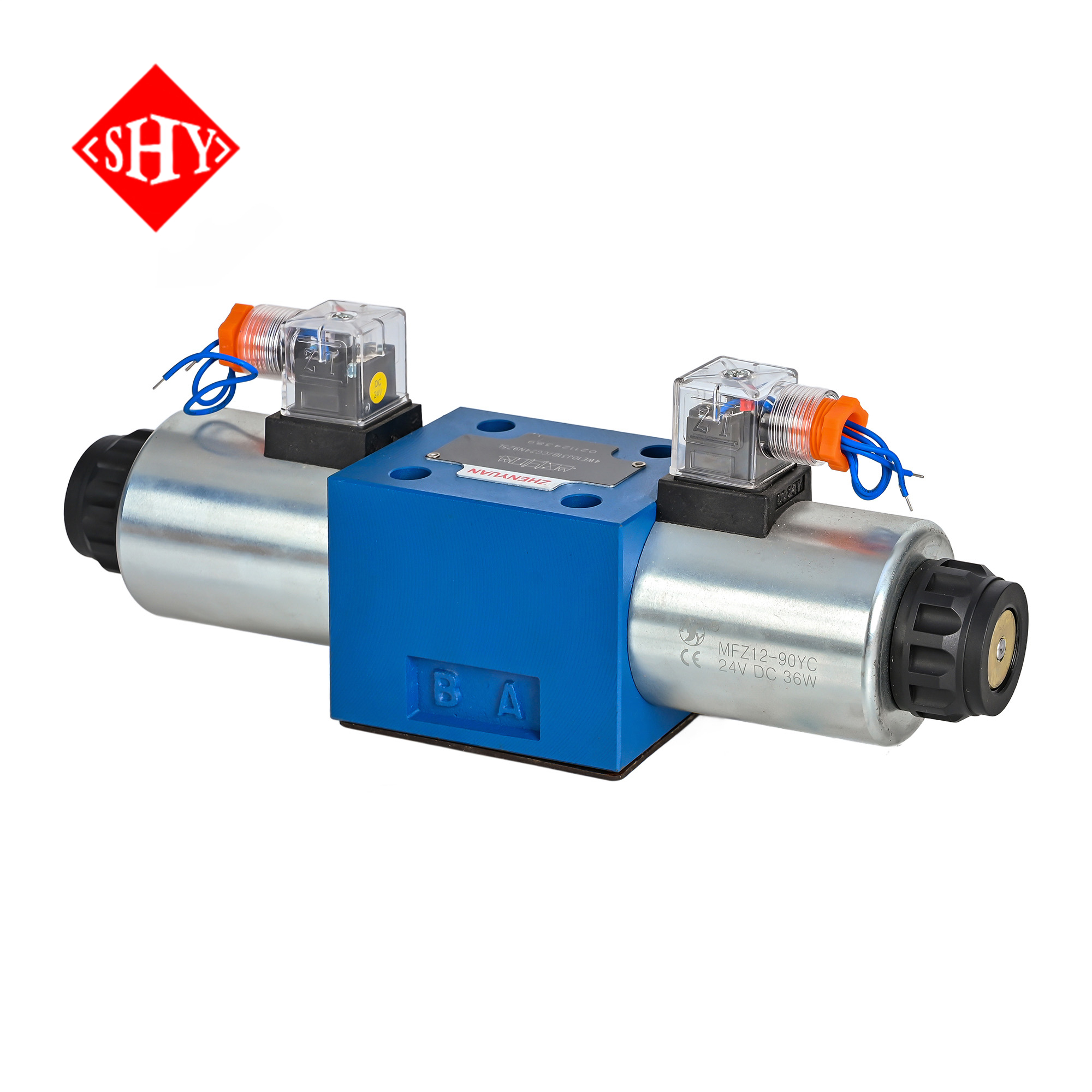

R900589988 4WE10J3X/CG24N9K4 4WE10J33/CG24N9K4 4WE10 Series Direct Operated Solenoid Directional Spool Valve

Core Features

1. High-Response Direct OperationAdopts a direct-acting solenoid drive design that eliminates intermediate transmission links, enabling fast spool switching with minimal lag time. The responsive performance ensures precise control of actuator start-stop, reversing, and speed adjustment, meeting the strict requirements of high-dynamic hydraulic systems.
2. Stable & Resilient ConstructionBuilt with a high-strength cast iron valve body and wear-resistant hard chrome-plated spool, the valve withstands high working pressure, mechanical vibration, and long-term cyclic operation. It delivers consistent performance in harsh environments including construction sites, mining operations, 及 agricultural fields, with a long service life.
3. Reliable 24V DC Solenoid ConfigurationThe CG24N9K4 solenoid is compatible with a 24V DC power supply, a standard configuration for most industrial equipment. The sealed electrical connector design effectively resists dust, moisture, and oil contamination, reducing the risk of electrical failures and ensuring stable operation even in harsh working conditions.
4. Broad Model CompatibilityThe 4WE10 series covers multiple spool types including G, J, H, adapting to different flow direction control needs of hydraulic systems. Whether for single-acting or double-acting actuator control, this series provides a 对应的 model to 满足 system requirements.

Technical Specifications

• Nominal Size: 10

• Operating Pressure Range: [Customize with actual parameters]

• Supply Voltage: 24V DC (CG24)

• Electrical Connector Type: N9K4

• Fluid Medium: Mineral hydraulic oil, synthetic hydraulic fluids

• Operating Temperature Range: -20°C to +80°C

• Flow Capacity: [Customize with actual parameters]

Typical Applications

• Construction machinery: Excavators, loaders, cranes, road rollers

• Agricultural equipment: Tractors, harvesters, combine harvesters

• Industrial machinery: Injection molding machines, metal forming equipment, hydraulic presses

• Mining equipment: Mine hoists, underground loaders, material handling systems

Quality Assurance

Every valve undergoes rigorous factory testing, including pressure holding tests, spool switching response tests, and durability tests, ensuring full compliance with international industrial standards. We provide comprehensive after-sales support, including professional installation guidance 和 troubleshooting services, to minimize equipment downtime.
