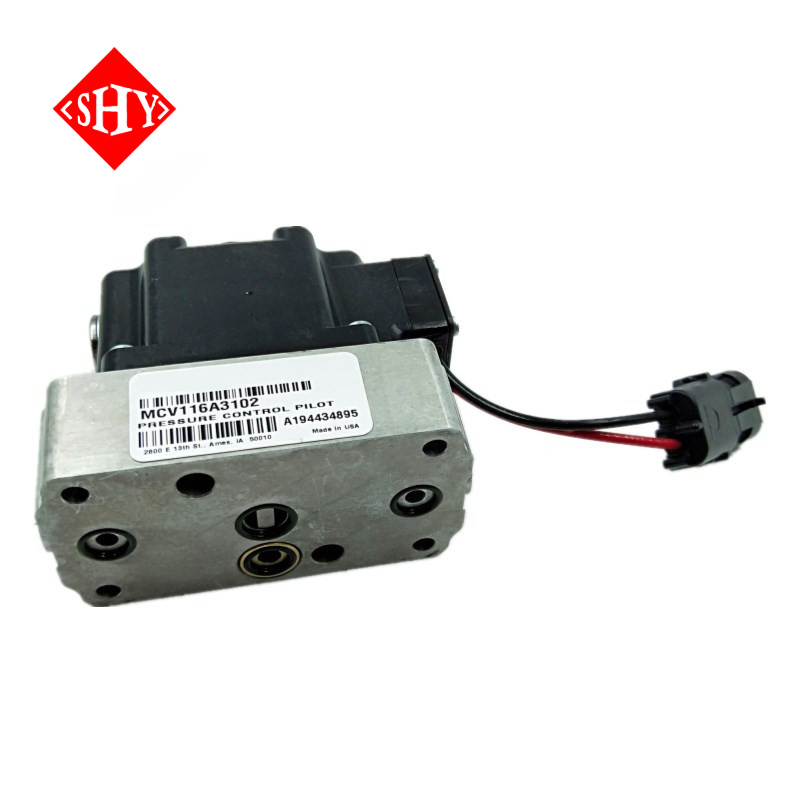

Pressure Control Pilot Hydraulic Valve MCV Series MCV116A3501 MCV116A3204 MCV116A3102 Pressure Electric Control Valve

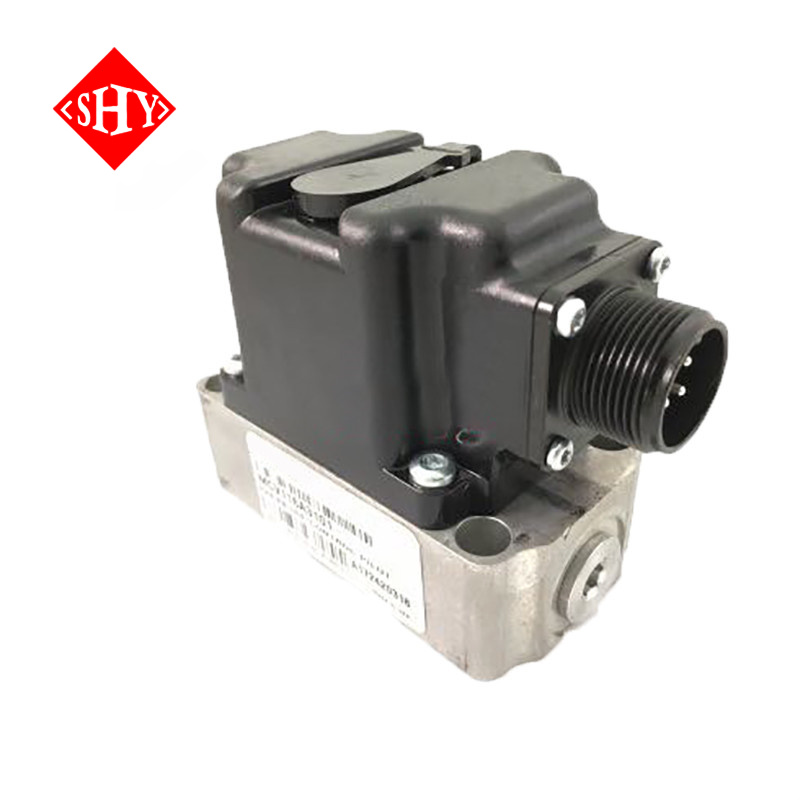

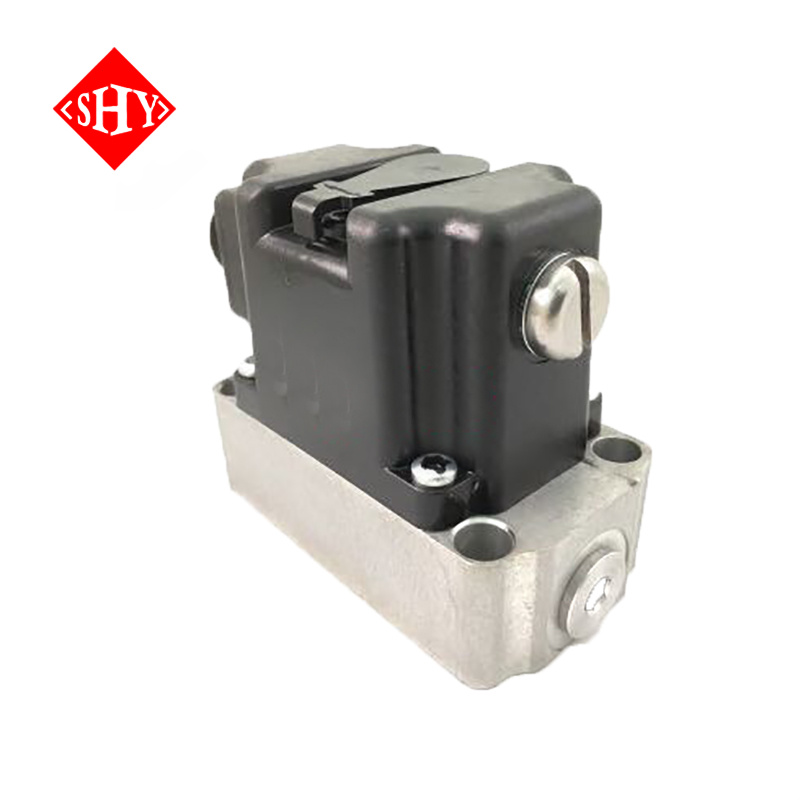

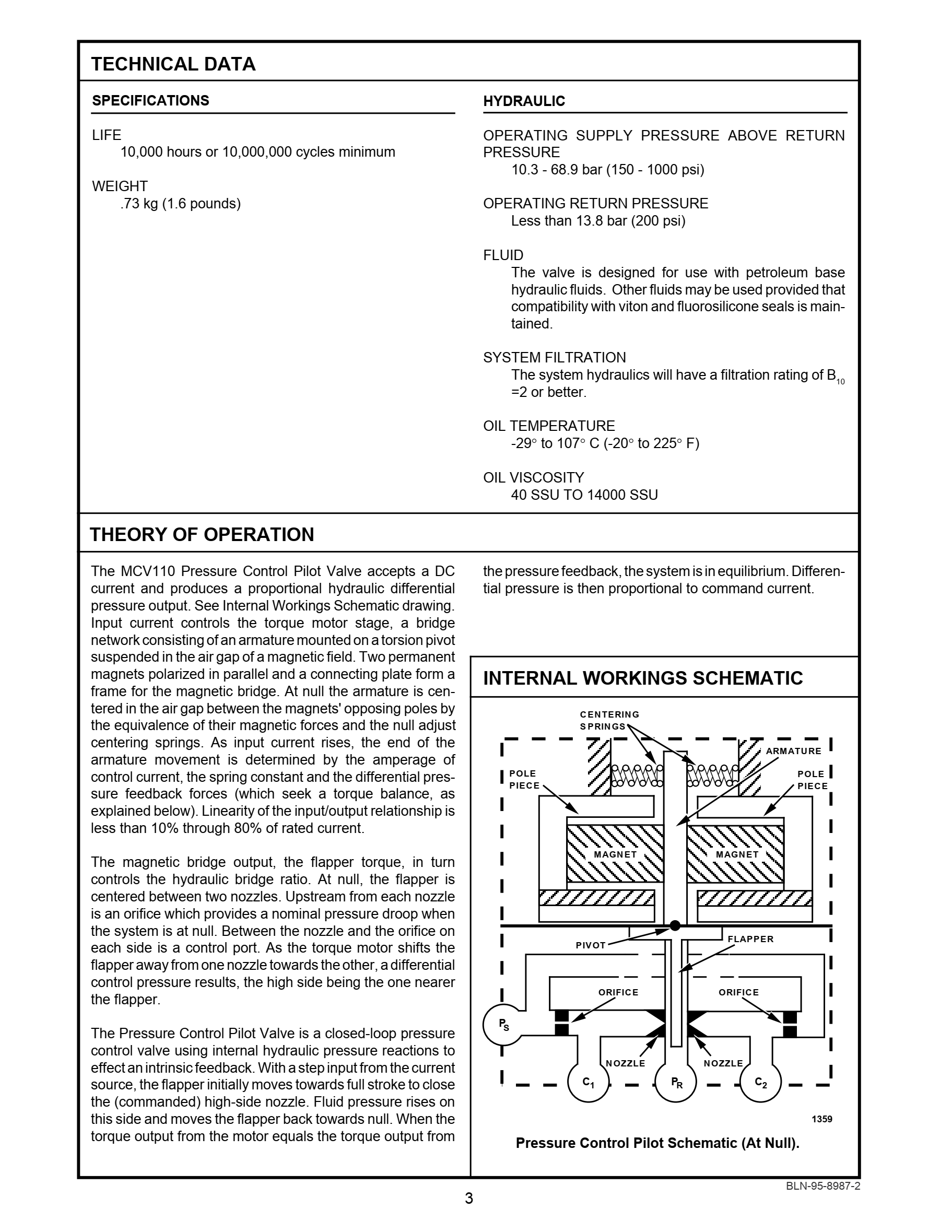

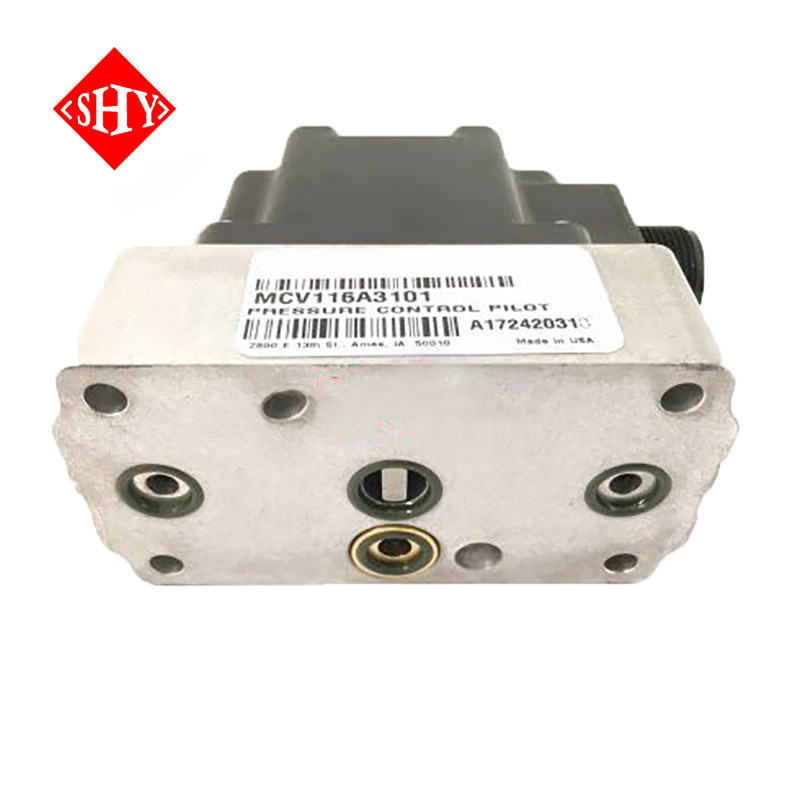

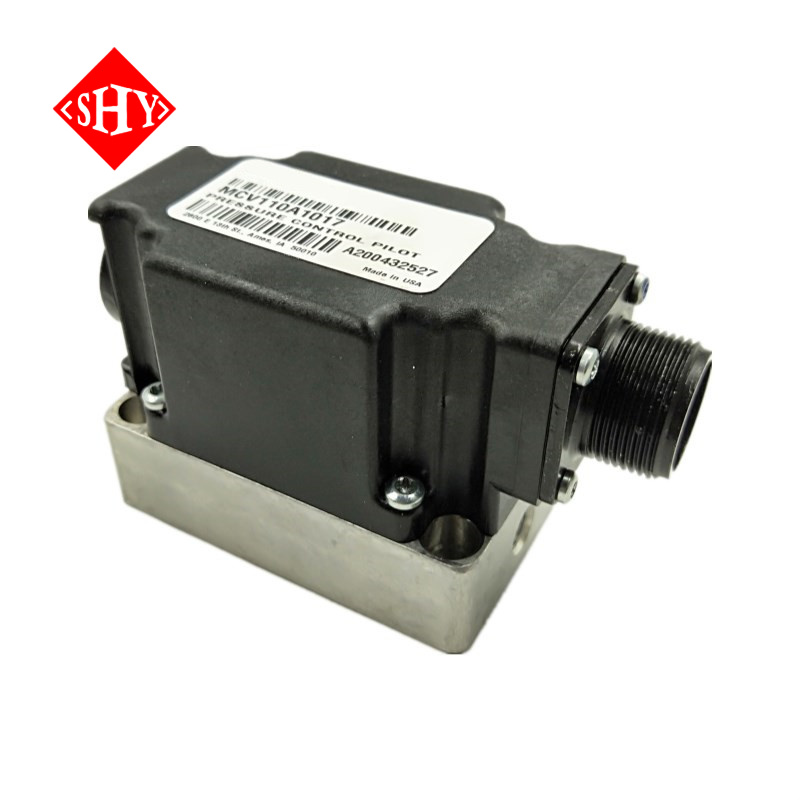

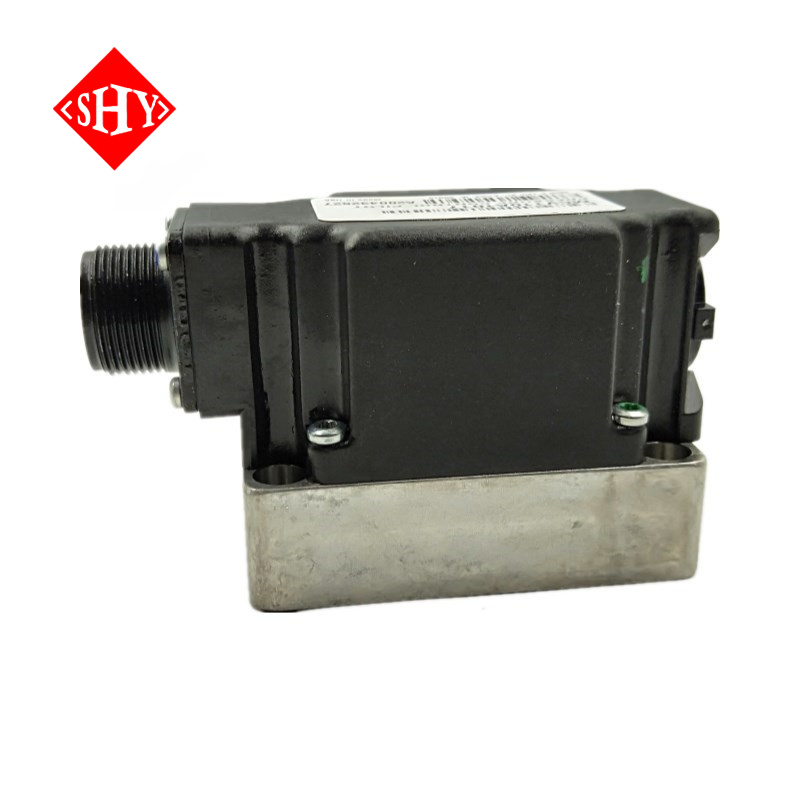

The MCV110A Pressure Control Pilot Valve (PCP) is an inexpensive control valve which provides a control signal for Sauer-Danfoss variable displacement Series 90 pumps. The pressure control pilot valve is a torque-motor actuated, double-nozzle flapper valve that produces a differential output pressure proportional to the applied electrical input signal. It is a single-stage, stand-alone closed loop pressure control valve which uses internal hydraulic pressure reactions to achieve its closed loop control characteristics.
FEATURES:
• Self-contained pressure feedback
• Choice of MS or Packard weatherpack connectors
• Constant scale factor with varying pilot pressures
• Manual control override standard
• Low profile specially designed for Series 90 Pumps and Series 51 Variable Motors
• Easy access to 64 micron filter
• Withstands mobile equipment vibration and shock conditions
