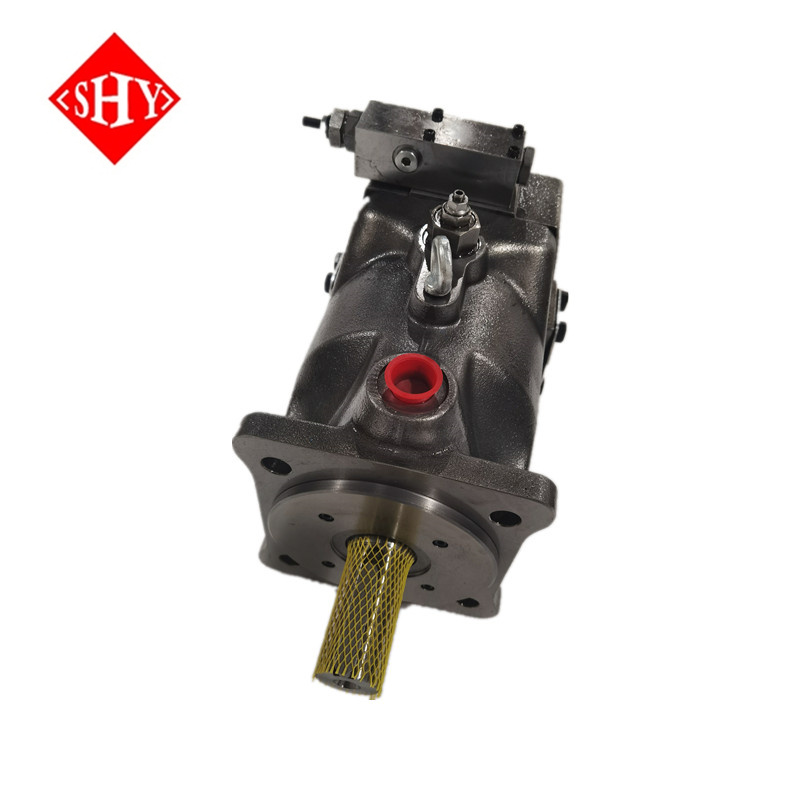

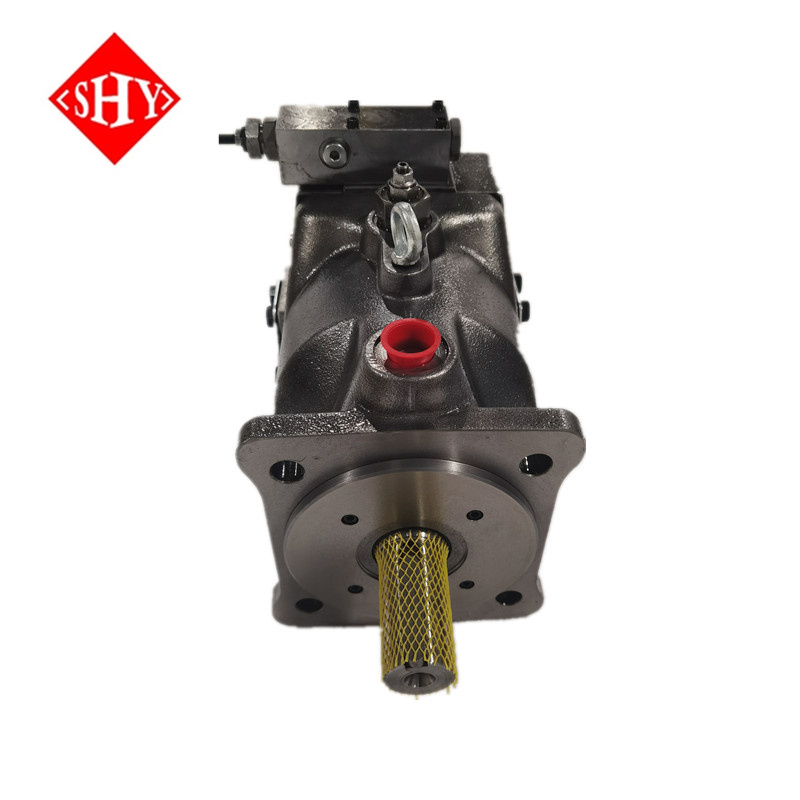

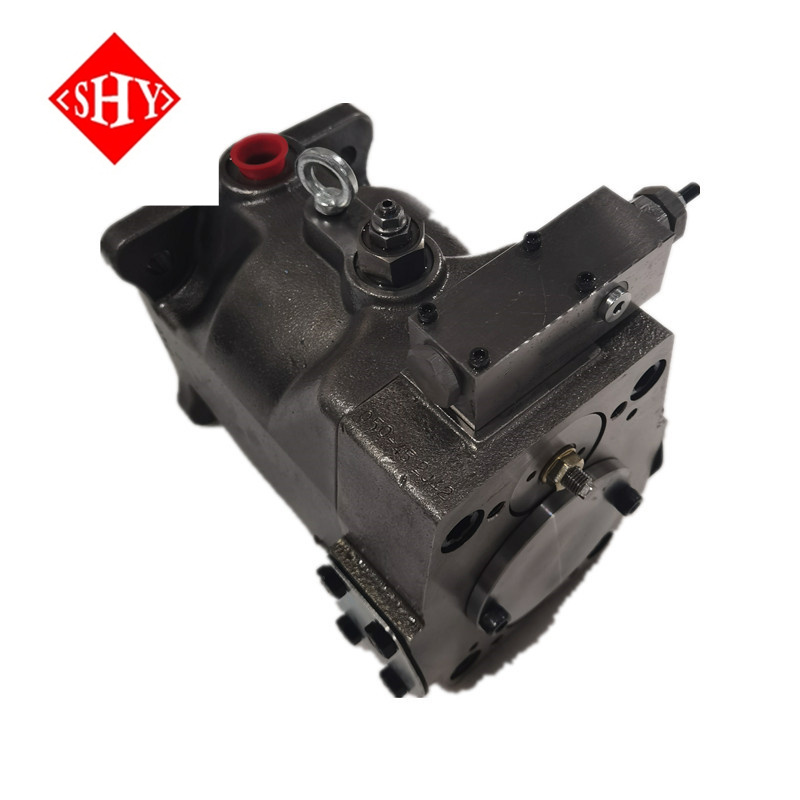

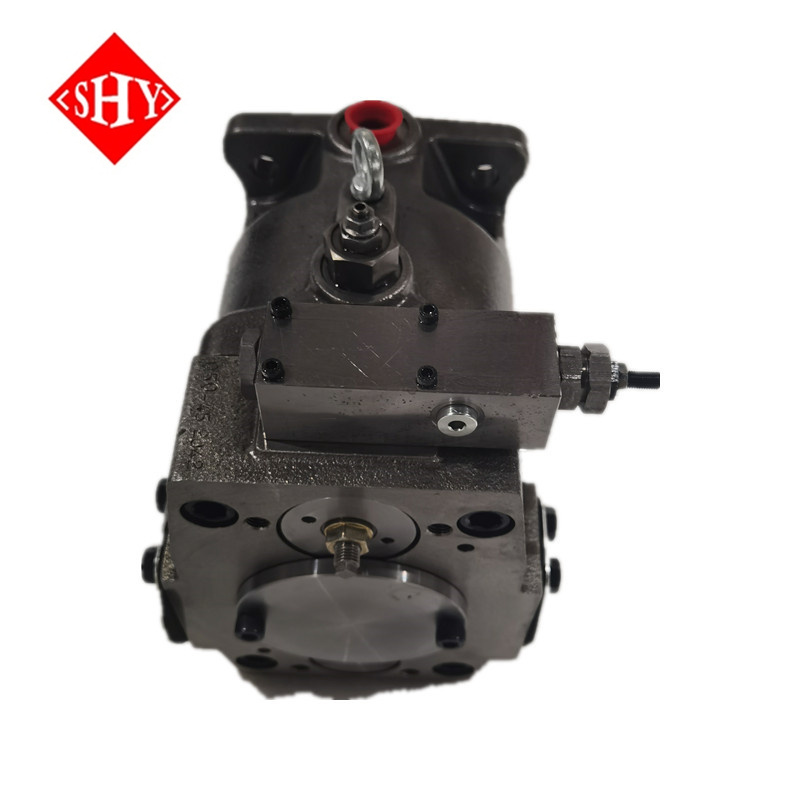

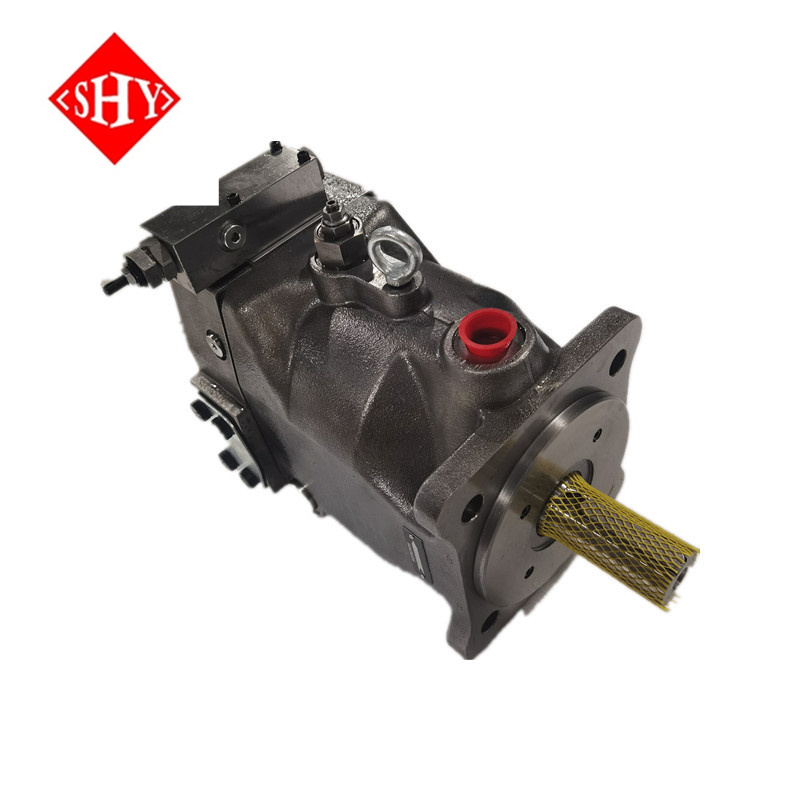

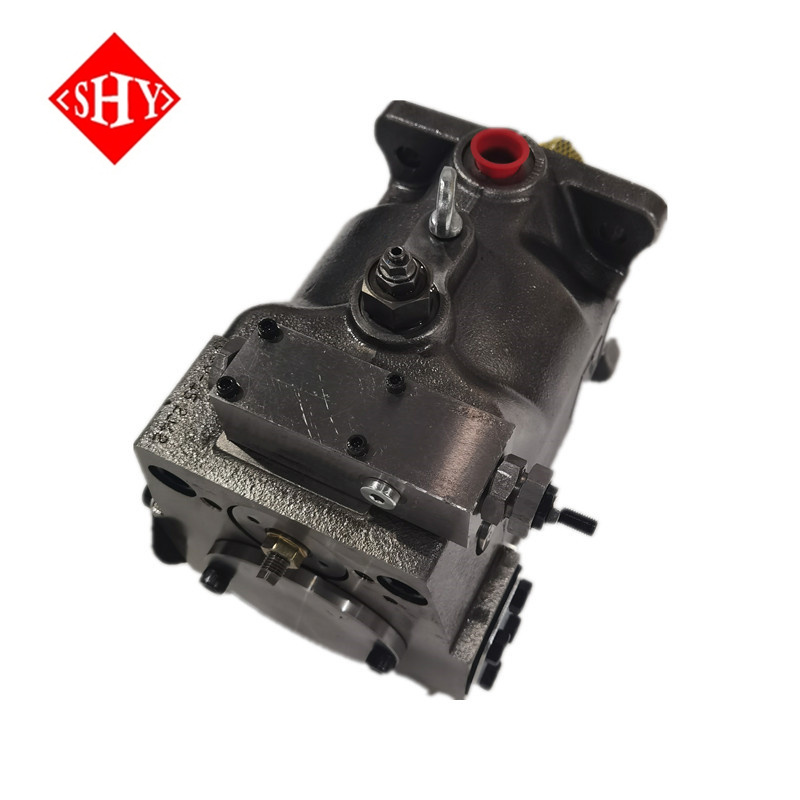

Piston Pump Hydraulic Pump PV016/ PV0/PV032/PV040/PV046/PV063 Series Photovoltaic Series Axial Piston Pump
Technical Features
• Mounting interface according to VDMA-standards
sheet 24560 part 1
• Standard: 4-hole flange ISO 3019/2 (metric)
• Large servo piston with strong bias spring achieves
fast response; e.g. for PV042
upstroke < 75 ms
downstroke < 45 ms
Note: Follow installation instructions.
• Reduced pressure peaks due to active decompression
of system at downstroke
• Also at low system pressure reliable compensator
operation. Lowest compensating pressure 12-15 bar
• 9 piston and precompression technology (precom-
pression volume) result in unbeaten low outlet flow
pulsation.
• Rigid and FEM-optimized body design for lowest noise
level
• Complete compensator program
• Thru drive for 100% nominal torque

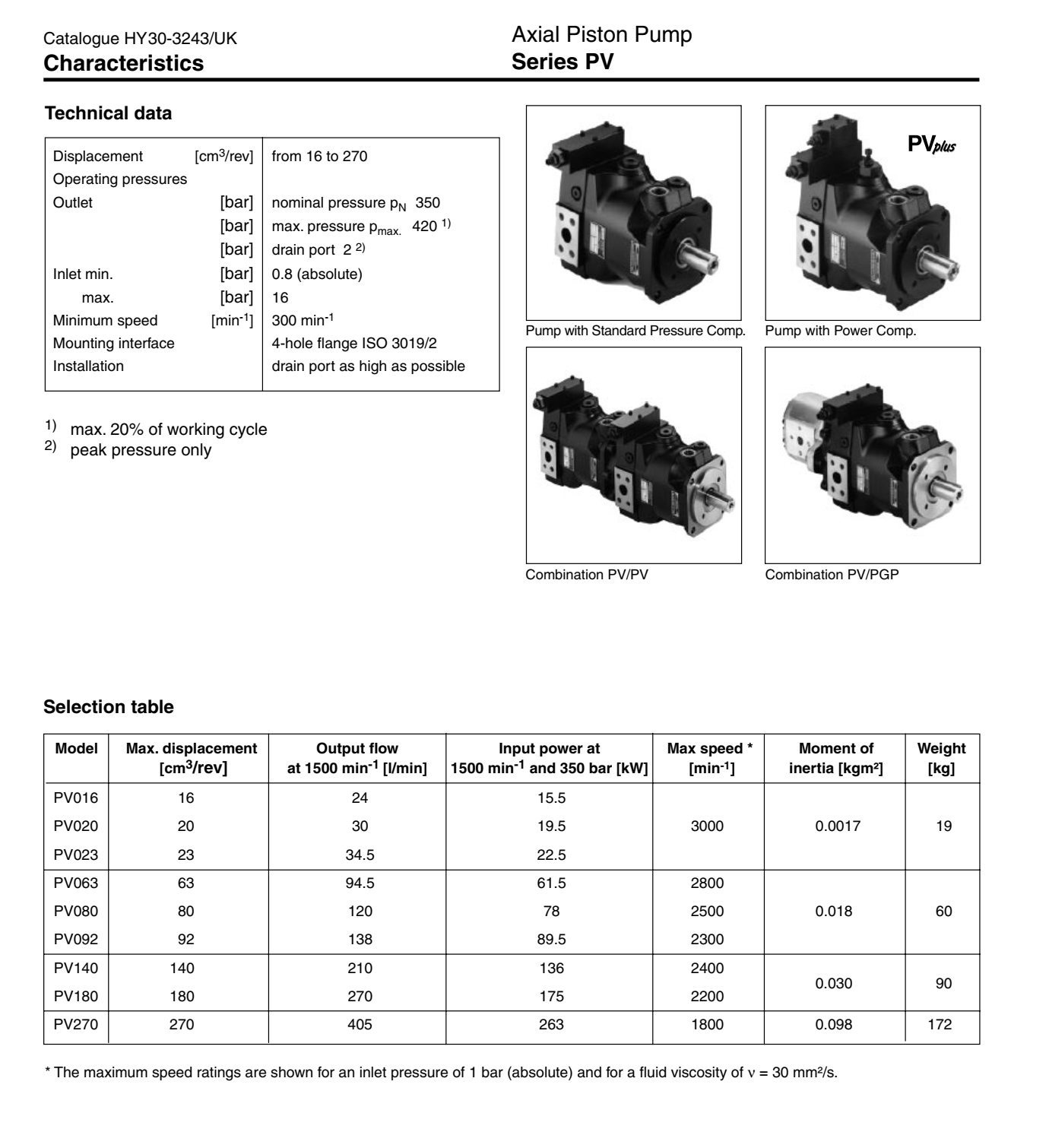

Technical data
Displacement [cm3/rev] | from 16 to 270 |
Operating pressures | |
Outlet [bar] [bar] [bar] | nominal pressure pN 350 max. pressure pmax. 420 1) drain port 2 2) |
Inlet min. [bar] | 0.8 (absolute) |
max. [bar] | 16 |
Minimum speed [min-1] | 300 min-1 |
Mounting interface | 4-hole flange ISO 3019/2 |
Installation | drain port as high as possible |
