4WE6D62/EG110N9K4 Solenoid Directional Valve Rexroth Replacement

1. Basic Product Identity

The 4WE6D62/EG110N9K4 operates as a highly responsive direct‑acting, solenoid‑operated directional spool valve, meticulously engineered as a premium replacement for the Bosch Rexroth 4WE6 series. Functioning as a 4/3‑way (four‑port, three‑position) directional control valve, it dictates the precise starting, stopping, and reversing of hydraulic fluid flow within complex industrial circuits.

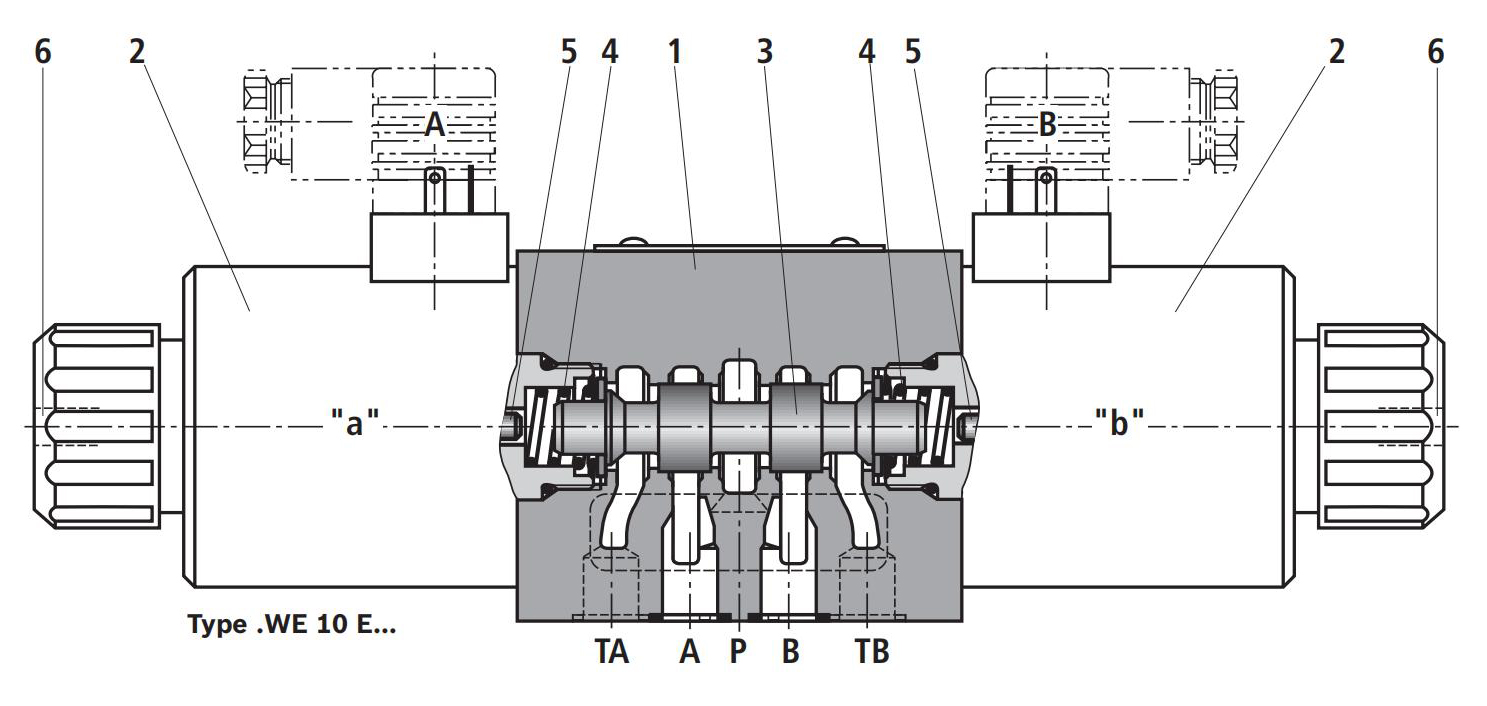

Designed with an exact ISO 4401 standard mounting interface, this unit guarantees true 1:1 interchangeability with original equipment. This allows maintenance teams to execute immediate, plug-and-play installations without modifying existing manifolds, custom subplates, or piping infrastructure. Upon handling the unit, technicians will immediately notice the substantial weight and heavy-duty tactile feel of the cast iron housing, complete with smoothly machined mounting surfaces that ensure a flawless seal. This physical robustness reflects its capability to withstand demanding mechanical environments, intense vibrations, and continuous pressure cycles without structural fatigue.

Model Code Breakdown

2. Core Technical Specifications

Engineered to deliver uncompromising performance, the valve's technical parameters are meticulously calibrated to handle heavy workloads while maintaining fluid stability and precise directional control. Below are the exact specifications that ensure this replacement component matches the operational integrity of your original hydraulic setup, safeguarding against fluid bypass and pressure drops:

• Max operating pressure: 315 bar (31.5 MPa) - ensuring safe fluid containment under extreme load conditions.

• Max flow rate: 80 L/min (DC solenoid) - facilitating rapid actuator movement and efficient system cycling.

• Nominal voltage: 110 V DC - providing stable electromagnetic force for consistent spool shifting.

• Spool function: 4/3‑way, D‑type (closed center) - maintaining load position securely when de-energized.

• Mounting interface: DIN 24340 Form A / ISO 4401‑03‑02‑0‑05 - standardizing subplate connections globally.

• Operating temperature: −30 °C to +60 °C - adapting to freezing outdoor sites or heated factory floors.

• Fluid compatibility: Mineral oil, phosphate ester fluids (per DIN 51524) - offering versatile media handling. Available with multiple industrial-grade sealing options, including NBR and FKM (fluororubber), specifically designed to precisely match different hydraulic fluid media and extreme operating temperatures.

• Response time: ≤ 20 ms - delivering near-instantaneous circuit reactions.

• Body material: Aluminum alloy / cast iron - balancing structural rigidity with thermal dissipation.

• Spool material: Steel - hardened for exceptional wear resistance over millions of cycles.

• Weight: Approx. 2 kg - optimizing the strength-to-weight ratio for manifold mounting.

3. Key Design Features

Solenoid & Actuation

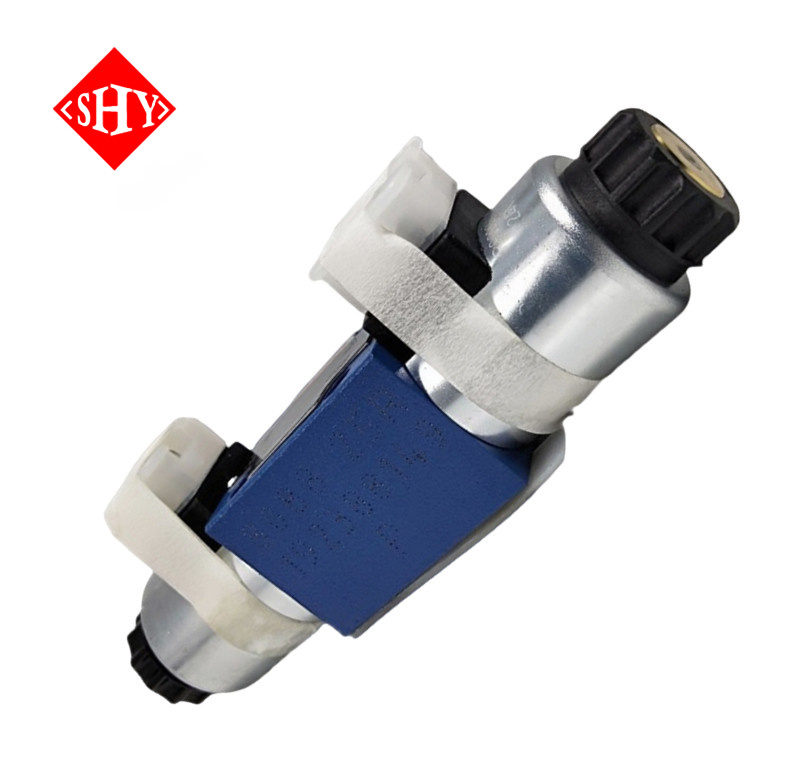

• The Wet‑pin DC solenoid (oil‑immersed) ensures optimal heat dissipation, keeping the external coil housing cool to the touch even during rapid cycling. This design inherently dampens mechanical switching noise, replacing harsh metal impacts with a quiet, muted click, resulting in a long service life and stable performance.

• Solenoid coil is rotatable 90°, granting technicians the flexibility to route cables cleanly in confined installation spaces without straining wire harnesses.

• Coil replacement can be executed without opening the pressure chamber, preventing fluid spills, avoiding air ingress into the hydraulic lines, and minimizing operational downtime.

• Equipped with a Concealed manual override (N9): Manual spool shifting allows for critical emergency operation or setup use during power failures, safely tucked away to prevent accidental triggering.

Valve Body & Flow

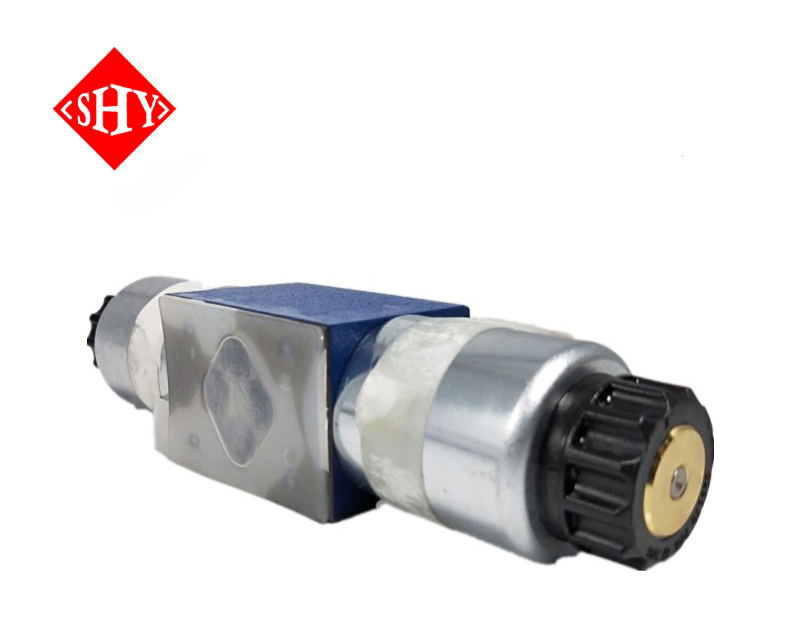

• The Direct‑acting spool design translates electromagnetic force into fast, precise switching of fluid pathways, eliminating the lag associated with pilot-operated alternatives.

• Featuring a Closed‑center (D) spool: All ports are strictly blocked in the de‑energized state, making it ideal for load‑holding applications where cylinder drift is unacceptable and absolute positional locking is required.

• By utilizing high-strength cast iron and precision-ground hardened steel spools, it achieves incredibly low internal leakage and high repeatability. The tight machining tolerances prevent cross-port bleeding.

• Its compact, rugged construction is specifically tailored for continuous vibrations and pressure spikes in industrial environments, absorbing mechanical shock without compromising the internal seal.

Electrical & Safety

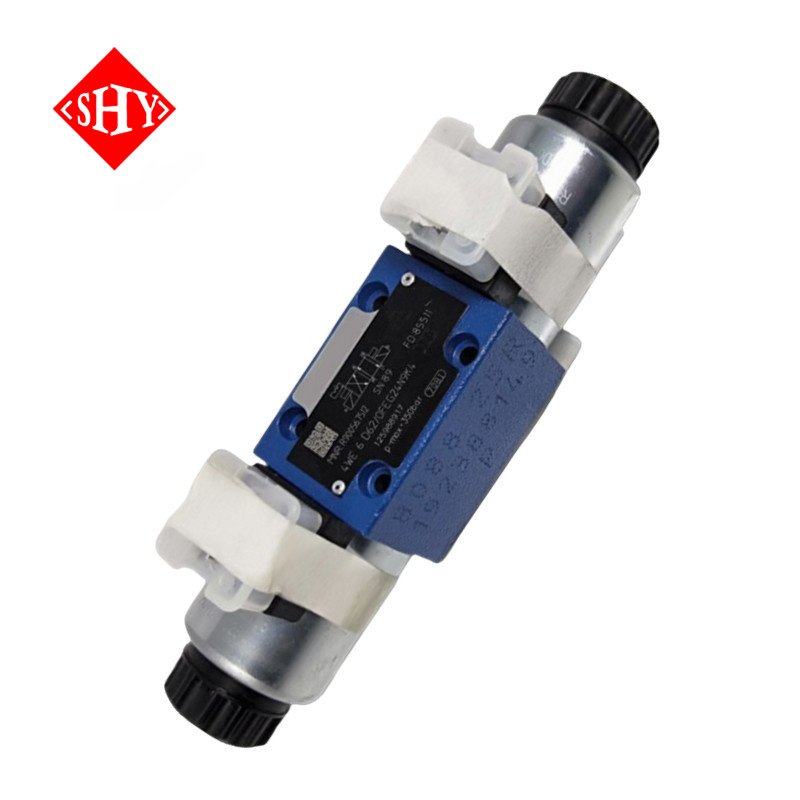

• Supports Single or central electrical connection options to accommodate diverse wiring architectures, ensuring neat integration into complex control cabinets.

• Fully complies with CE (Low‑Voltage Directive 2014/35/EU) standards for operating voltages > 50 V AC / > 75 V DC, protecting personnel from electrical hazards during operation and routine checks.

• Optional spool position monitoring is available, providing real-time feedback to central PLCs for enhanced process verification and automated safety interlocking.

4. Typical Applications

Because of its resilient build and precise fluid routing capabilities, this directional control valve is a trusted component across a multitude of heavy-duty sectors where the smell of hydraulic fluid and the deafening noise of heavy machinery are constants:

• Industrial machinery: Essential for controlling the complex movements of machine tools, hydraulic presses, and injection molding equipment with absolute precision, preventing costly material waste.

• Mobile equipment: Delivers reliable fluid direction for construction machinery and material handling vehicles operating in unforgiving outdoor conditions, shrugging off dirt, dust, and mechanical impacts.

• Metallurgy: Withstands the extreme heat and continuous operation required in steel rolling mills and continuous casting production lines, where component failure is not an option.

• Power generation: Plays a vital role in turbine control systems utilizing EH (electro-hydraulic) control fluids for stable, uninterrupted energy output.

• Shipbuilding & marine hydraulics: Engineered to resist corrosive salt-spray atmospheres while managing deck machinery, steering gears, and cargo handling systems.

• Chemical & process equipment: Provides dependable fluid isolation and routing in hazardous or highly regulated processing facilities, ensuring media containment.

5. Advantages

Integrating this valve into your hydraulic manifold brings immediate operational benefits, designed specifically to enhance system efficiency, increase production uptime, and drastically reduce maintenance overhead:

• High reliability & long life: The combination of a wet‑pin solenoid and robust construction ensures consistent functionality over an extended service lifespan, minimizing the frequency of part replacements.

• Fast response: Achieving switching times of ≤ 20 ms, it guarantees precise hydraulic control for applications demanding rapid actuator synchronization, leading to tighter manufacturing tolerances.

• Easy installation & maintenance: Features like a rotatable coil and tool‑free coil swap significantly reduce labor hours during routine servicing, allowing single-technician repairs.

• Emergency manual operation: The integrated override mechanism provides a crucial safety net, allowing manual intervention for safety lock-outs and service checks without electrical power.

• Broad compatibility: Conforming to standard hydraulic interfaces, it seamlessly integrates into existing global systems without requiring custom adapter plates or manifold re-machining.

• Suitable for high‑pressure, high‑flow industrial circuits: Capable of managing up to 315 bar and 80 L/min, effortlessly driving heavy-duty cylinders under maximum load.
