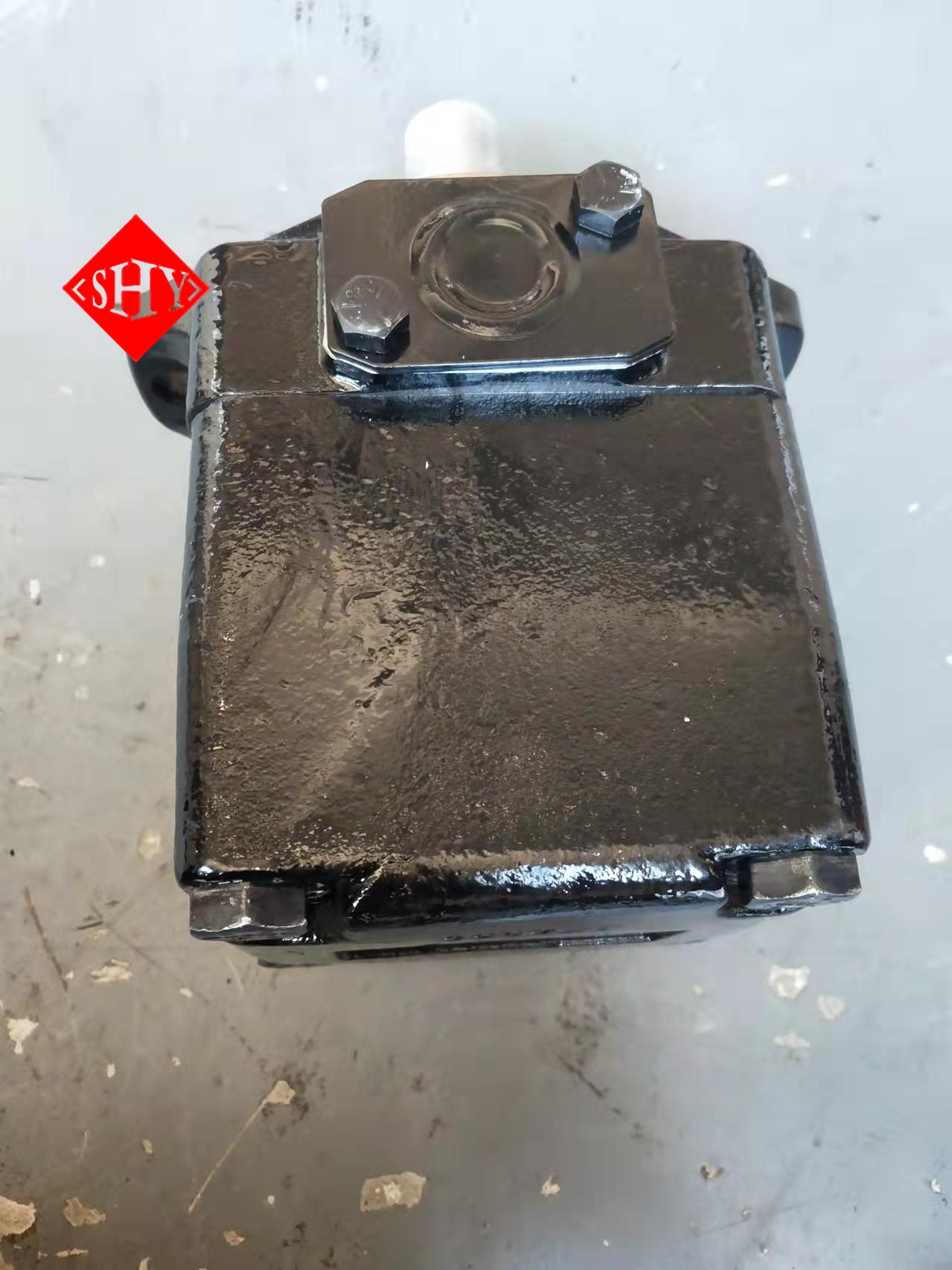

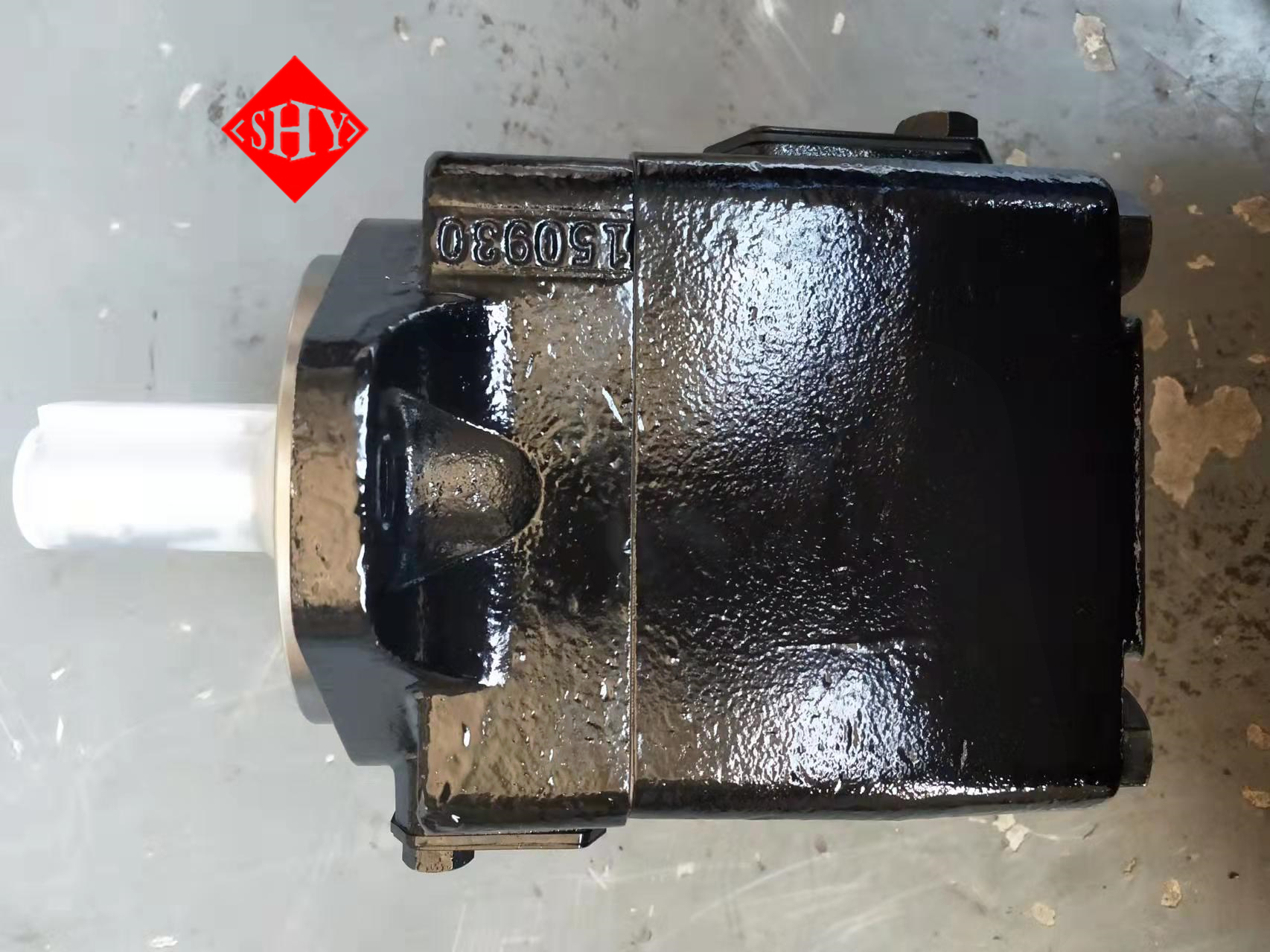

T6ED-072-038-1R00-B1 replacement Parker Denison T6 Double Hydraulic Vane Pump T6ED

Key Technical Specifications

• Model Identification: T6ED-072-038-1R00-B1 (genuine Parker Denison OEM part)

• Displacement: Total 347.4 ml/rev (P1: 227.1 ml/rev, P2: 120.3 ml/rev)

• Operating Pressure: Up to 240 bar continuous working pressure

• Speed Range: Maximum 2200 rpm for stable operation

• Mounting & Shaft: SAE-C 2-bolt J744C mounting interface, keyed SAE CC shaft (ø38.10 mm)

• Port Configuration: SAE 4-bolt J518 porting connections

• Certification: ISO 9001 compliant for quality assurance

Superior Design & Performance Advantages

• Balanced Pin-Vane Technology: The integrated pin-vane design minimizes noise levels and enhances volumetric efficiency by equalizing pressure on vane top and bottom surfaces . This innovative structure reduces wear and tear, ensuring consistent performance even in high-pressure environments.

• Cartridge Independence: The removable cartridge design allows on-site servicing without disassembling the entire pump from the mounting bracket . This feature significantly reduces maintenance time and operational downtime, lowering total cost of ownership.

• High Efficiency & Energy Savings: With 94% mechanical and volumetric efficiency , the pump converts mechanical energy to hydraulic power with minimal heat generation. Its double-acting design delivers smooth, pulse-free flow, optimizing system energy consumption.

• Robust Durability: Constructed with high-grade materials and double-lip vane technology, the pump resists particle contamination and operates reliably in harsh conditions . The balanced hydraulic force design reduces bearing load, extending service life.

Versatile Applications

• Industrial presses and injection molding machines

• Construction cranes and heavy-duty equipment

• Agricultural machinery and tipping trucks

• Marine and military hydraulic systems

• Hydraulic power units (HPUs) for mainframe separability

Quality & Support
