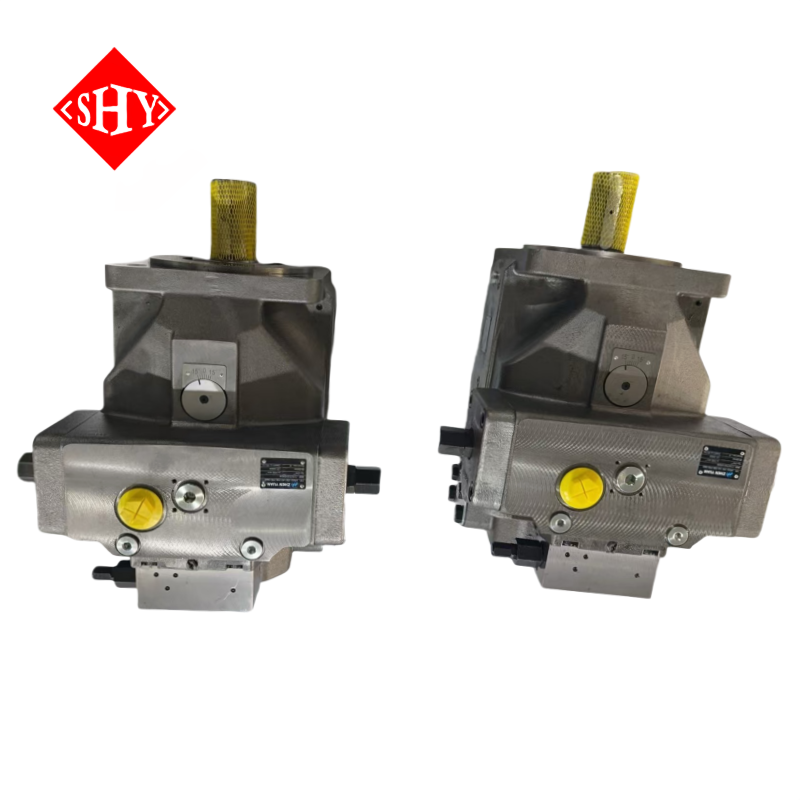

R902555191 APA4VSO250LR2DY/30R-VZB25U35-SO757 Axial Piston Variable Pump A4VSO A4VSO71 A4VSO125 A4VSO750 A4VSO180 A4VSO250 A4VSO500 A4VSO355

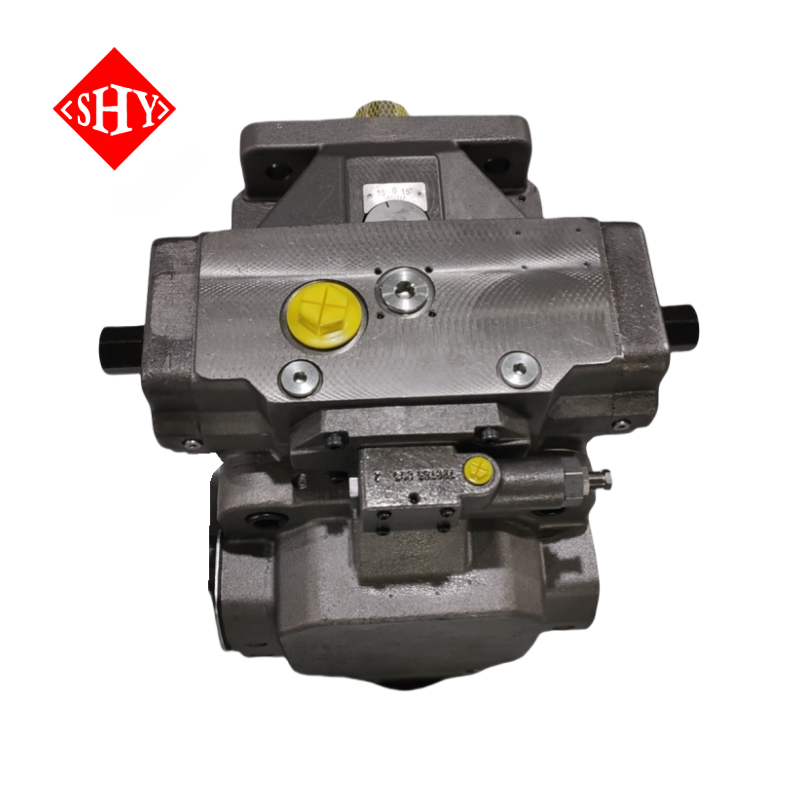

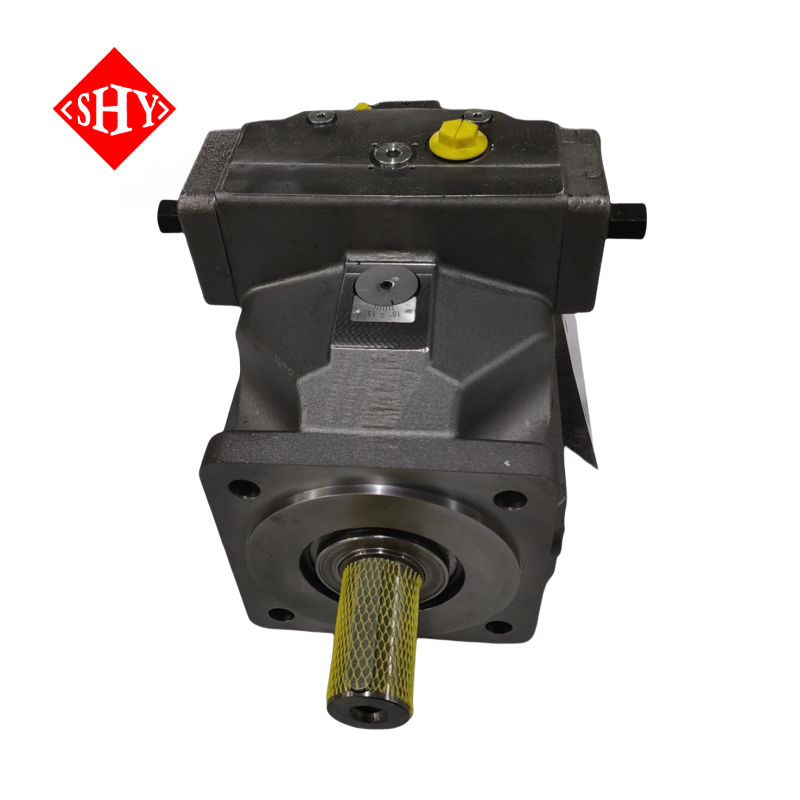

R910976965 AA4VSO250DRG/30R-PPB13N00 Axial Piston Variable Pump A4VSO A4VSO71/125/750/180/250/500/355

Warranty: 12 Months just like OEM Pump
Mark: SENHENGYUAN Hydraulics
Short Lead Time, Prompt Delivery

Wechat:+86 188-7629-1732

Whatsapp:+86 188-7629-1732

E: wise@fjzhenyuan.com

Quantity:
Availability:





Inquire Add to Basket

Product Description

A4VSO Series Axial Piston Variable Pump
The A4VSO series axial piston variable pump is a high-performance, heavy-duty hydraulic core component engineered for demanding industrial and mobile hydraulic systems. Covering a comprehensive range of models including A4VSO71, A4VSO125, A4VSO180, A4VSO250, A4VSO355, A4VSO500, and A4VSO750, this series delivers exceptional pressure output, flow control precision, and operational reliability. The specialized model AA4VSO250DRG/30R-PPB13N00 (part number R910976965) is tailored for high-pressure, continuous-operation scenarios, making it a preferred choice for heavy machinery and industrial equipment.
Core Features
Precision Variable Displacement Control
The A4VSO series adopts an advanced variable displacement design, enabling real-time adjustment of output flow according to system demands. This adaptability ensures optimal energy utilization, eliminating unnecessary power consumption and enhancing the overall efficiency of hydraulic systems—whether for low-flow precision control or high-flow heavy-load operations.
Robust Construction for Extreme Conditions
Built with high-strength alloy cylinder blocks, precision-machined pistons, and wear-resistant valve plates, the pump excels in withstanding high system pressures and harsh working environments. It resists abrasion, corrosion, and mechanical fatigue, ensuring stable performance in applications such as mining, construction, and heavy industrial manufacturing, while extending service life and reducing maintenance costs.
Smooth Operation & Low Noise
The optimized axial piston structure and hydraulic balance design minimize internal friction and pressure fluctuations during operation, resulting in ultra-smooth performance and low noise levels. This feature is particularly beneficial for indoor industrial equipment and precision machinery that requires quiet, stable operation.
Easy Integration & Maintenance
With a compact, modular design, the A4VSO series pumps are easy to integrate into various hydraulic system layouts, even in space-constrained installations. The standardized interface and disassembly-friendly structure simplify routine maintenance and part replacement, minimizing equipment downtime and operational disruptions.
Model-Specific Advantages
A4VSO71/A4VSO125: Compact and lightweight, these models are ideal for medium-pressure, medium-flow applications such as small construction machinery, agricultural equipment, and light industrial systems, offering a perfect balance of efficiency and versatility.
A4VSO180/A4VSO250: Designed for high-pressure, high-flow working conditions, these variants deliver powerful output for heavy-duty equipment like excavators, loaders, and industrial presses. The AA4VSO250DRG/30R-PPB13N00 (R910976965) model features a specialized control mechanism that enhances load response speed and pressure stability.
A4VSO355/A4VSO500/A4VSO750: These large-displacement models provide ultra-high flow and torque output, tailored for extreme heavy-load applications including mining crushers, large-scale injection molding machines, and offshore drilling equipment.
Typical Applications
The A4VSO series axial piston variable pump is widely utilized across multiple industries:
Construction machinery (excavators, bulldozers, cranes, concrete pumps)
Mining equipment (mining trucks, crushers, drilling rigs, conveyor systems)
Industrial machinery (heavy-duty presses, injection molding machines, steel rolling mills)
Agricultural machinery (large harvesters, tractors, irrigation systems)
Marine and offshore equipment (ship deck machinery, offshore platforms)
Whether for precision control tasks or extreme heavy-load operations, the A4VSO series stands as a reliable, high-efficiency hydraulic solution for modern industrial systems.

Table of values (theoretical values, without efficiency and tolerances; values rounded)
  Nominal size A4VSO71 A4VSO125 A4VSO180 A4VSO250
 Nominal pressure p N bar 350 350 350 350
 Maximum pressure pmax bar 450 450 450 450
 Displacement Vg max cm³ 71 125 180 250
 Speed Max. speed n max rpm 2200 1800 1800 1500
 Flow at n max q V max l/min 156 225 324 375
 Power Δ p = 350 bar P max kW 91 131 189 219
 Torque Δ p = 350 bar Tmax Nm 395 696 1002 1391
 Weight (approx.) m kg 53 88 102 184


 Nominal size A4VSO355 A4VSO500 A4VSO750 A4VSO1000
 Nominal pressure p N bar 350 350 350 350
 Maximum pressure pmax bar 450 450 450 450
 Displacement Vg max cm³ 355 500 750 1000
 Speed Max. speed n max rpm 1500 1320
 1000
 Flow at n max q V max l/min 533 660
 1000
 Power Δ p = 350 bar P max kW 311 385 525 583
 Torque Δ p = 350 bar Tmax Nm 1976 2783 4174 5565
 Weight (approx.) m kg 207 320 460 605
