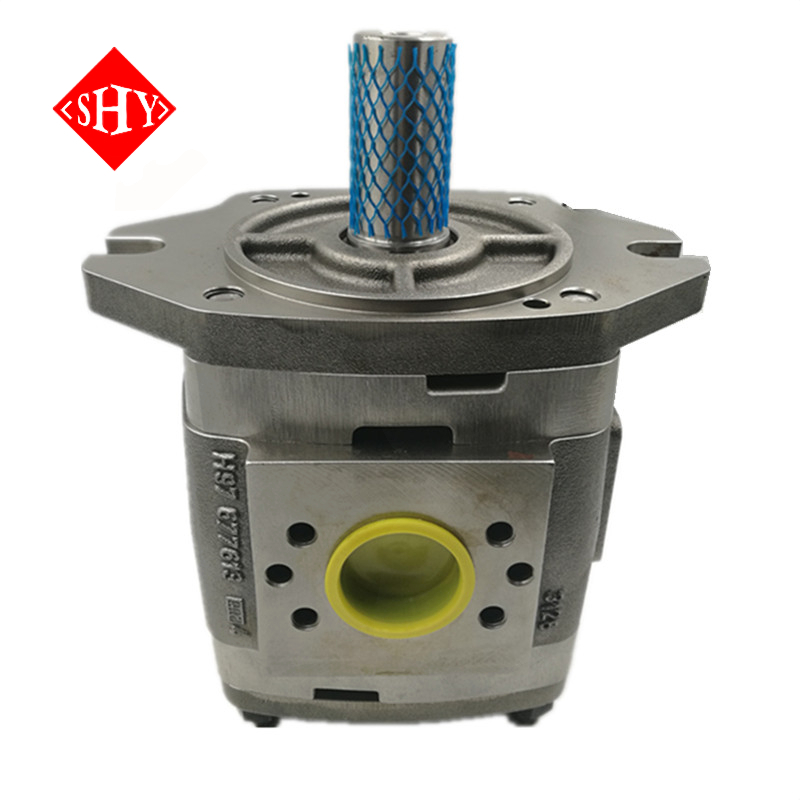

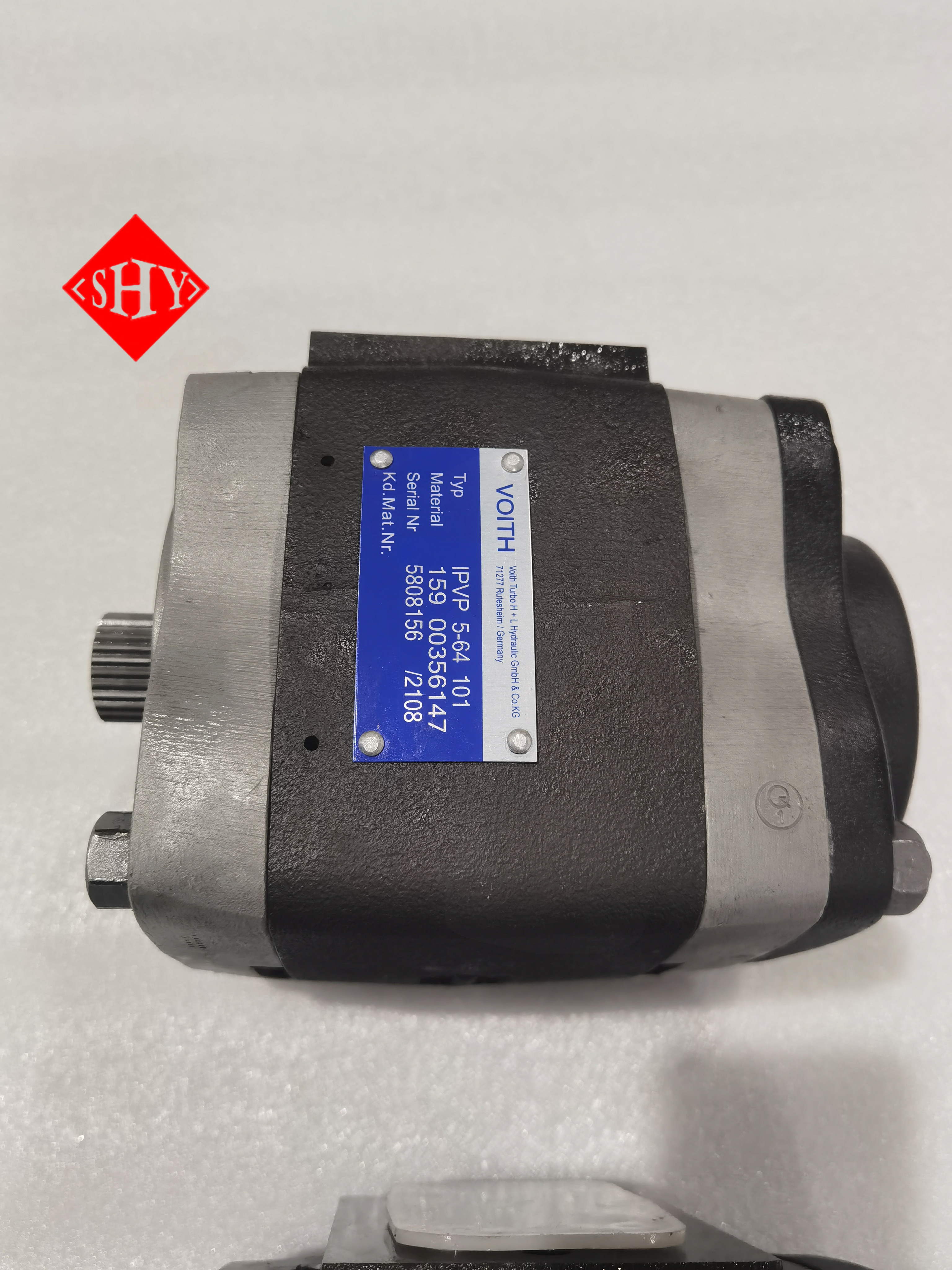

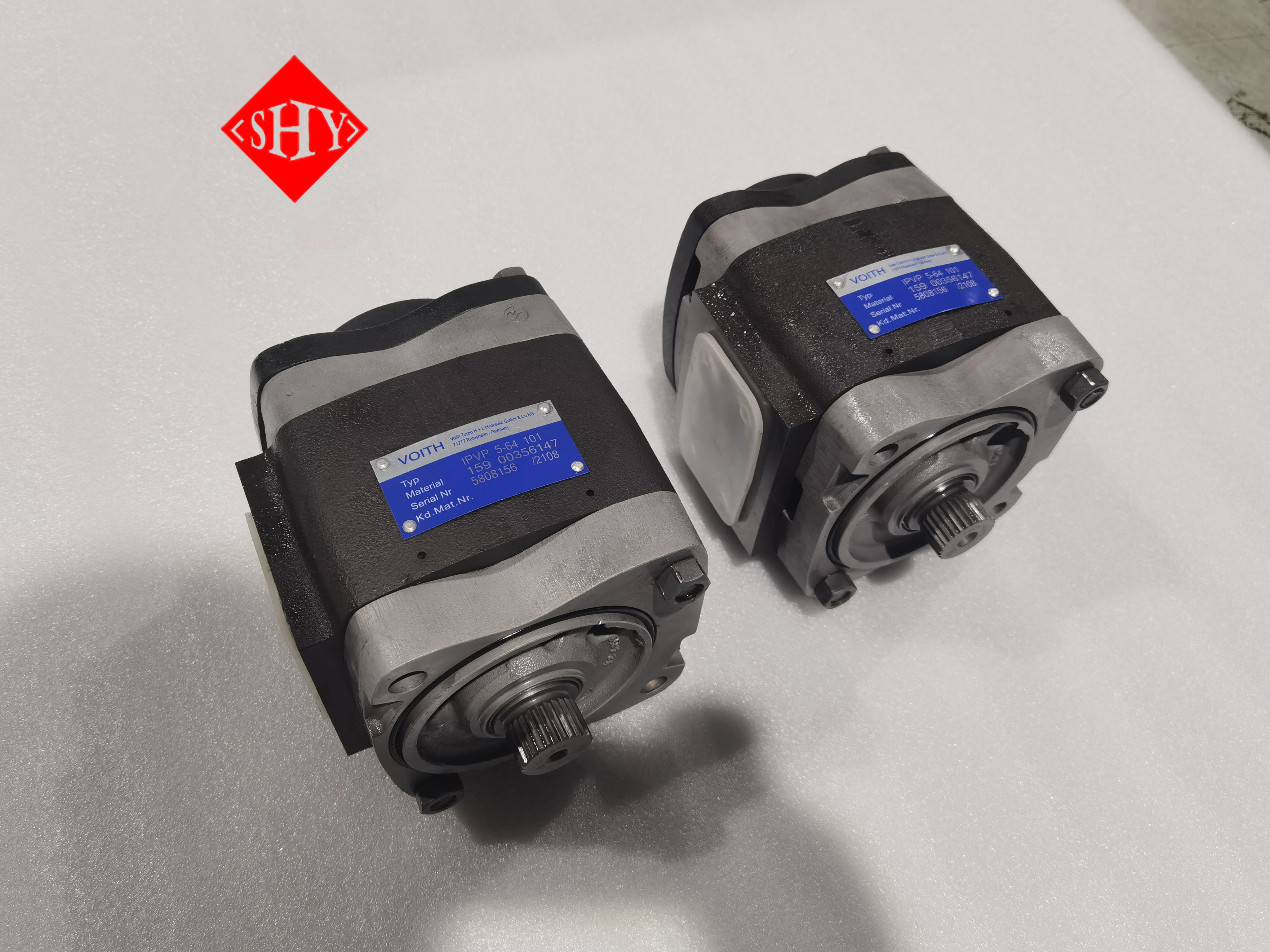

The main characteristics and types of VOITH IPVP series gear pumps are:
1. It has radial and lateral pressure compensation functions, with a very high volumetric efficiency of over 93%.
2. The pump adopts a two-piece eccentric filling design with * inside to enhance radial compensation function.
3. Low noise, noise test (DIN45 635, SHEET26) below 66 dB, very suitable for various workplaces that require quietness.
4. The pressure is stable and has low pulsation, with an average pulsation of less than 2% after pressure testing (280 bar). Ensure smooth operation of the machine and extend its service life.
Introduction to VOITH IPV series gear pump parameters:
Installation type: SAE perforated flange;
ISO3019/1 or VDMA perforated flanges;
ISO3019/2 speed [min-1]
In line installation: SAE oil suction and pressure flange J 518 C code 61 volumetric efficiency
Rotation direction: total efficiency of right-handed or left-handed rotation
Installation location: Any
Input pressure: pressure 0.6... 3 bar
Pressure oil: HLP mineral oil DIN51524, Part 2 or 3
Viscosity range of pressure oil: 10... 100mm2s-1 (cSt)
Allow initial viscosity: large value 2000 mm2s-1(cSt)
Allowable temperature for pressure oil: -20...+80 ℃
Cleanliness of pressure oil: Class 8 should comply with NAS 1638
Filtering: small filtration coefficient β 20 ≥ 75; Recommended filtration coefficient β 10 ≥ 100 (longer service life)
Allowable ambient temperature: -10...+60 ℃
IPVP5-64-101
IPVP5-64-111
IPVP6-80-101
IPVP6-80-111
IPVP6-100-101
IPVP6-100-111
IPVP6-125-101
IPVP6-125-111
IPVP7-160-101
IPVP7-160-111
IPVP7-200-101
IPVP7-200-111
IPVP7-250-101
IPVP7-250-111
IPV5-25-101
IPV5-25-111
IPV4-32-101
IPV4-32-111
IPV5-40-101
IPV5-40-111
IPV5-50-101
IPV5-50-111
IPV5-64-101
IPV5-64-111
IPV6-80-101
IPV6-80-111
IPV6-100-101
IPV6-100-111
IPV6-125-101
IPV6-125-111
IPV7-160-101
IPV7-160-111
IPV3-3.5-101
IPV3-5-101
IPV3-6.3-101；IPV3-8-101；IPV3-10-101；IPV4-13-171；IPV4-16-171；IPV4-20-171；IPV4-25-171；IPV4-32-171；IPV5-32-101；IPV5-40-101；IPV5-50-101；IPV5-64-101；IPV6-64-101；IPV6-80-101；IPV6-100-101；IPV6-125-101；IPV7-125-111；IPV7-160-111；IPV7-200-111；IPV7-250-111
More series：
| IPN | IPN 4-32、IPN 4-40、IPN 4-50、IPN 5-64、IPN 5-80、IPN 5-100、IPN 6-125、IPN 6-160、IPN 6-200、IPN 4、IPN 5、IPN 6 |
| IPNE | IPNE 4-32、IPNE 4-40、IPNE 4-50、IPNE 5-64、IPNE 5-80、IPNE 5-100、IPNE 6-125、IPNE 6-160、IPNE 6-200、IPME 4-13、IPME 5-25、IPME 6-50 |
| IPC | IPC 4-20、IPC 4-25、IPC 4-32、IPC 5-40、IPC 5-50、IPC 5-64、IPC 6-80、IPC 6-100、IPC 6-125、IPC 7-160、IPC 7-200、IPC 7-250、IPC 4、IPC 5、IPC 6、IPC 7 |
| IPM | IPM 4-6.5、IPM 4-8、IPM 4-10、IPM 4-13、IPM 4-16、IPM 4-20、IPM 5-25、IPM 5-32、IPM 5-40、IPM 6-50、IPM 6-64、IPM 6-80 |
| IPV | IPV 3-3,5、IPV 3-5、IPV 3-6,3、IPV 3-8、IPV 3-10、IPV 4-13、IPV 4-16、IPV 4-20、IPV 4-25、IPV 4-32、IPV 5-32、IPV 5-40、IPV 5-50、IPV 5-64、IPV 6-64、IPV 6-80、IPV 6-100、IPV 6-125、IPV 7-125、IPV 7-160、IPV 7-200、IPV 7-250 |
| IPVP | IPVP 3-3,5、IPVP 3-5、IPVP 3-6,3、IPVP 3-8、IPVP 3-10、IPVP 4-13、IPVP 4-16、IPVP 4-20、IPVP 4-25、IPVP 4-32、IPVP 5-32、IPVP 5-40、IPVP 5-50、IPVP 5-64、IPVP 6-64、IPVP 6-80、IPVP 6-100、IPVP 6-125、IPVP 7-125、IPVP 7-160、IPVP 7-200、IPVP 7-250 |
| IPVAP | IPVAP 3-3,5、IPVAP 3-5、IPVAP 3-6,3、IPVAP 3-8、IPVAP 3-10、IPVAP 4-13、IPVAP 4-16、IPVAP 4-20、IPVAP 4-25、IPVAP 4-32、IPVAP 5-32、IPVAP 5-40、IPVAP 5-50、IPVAP 5-64 |

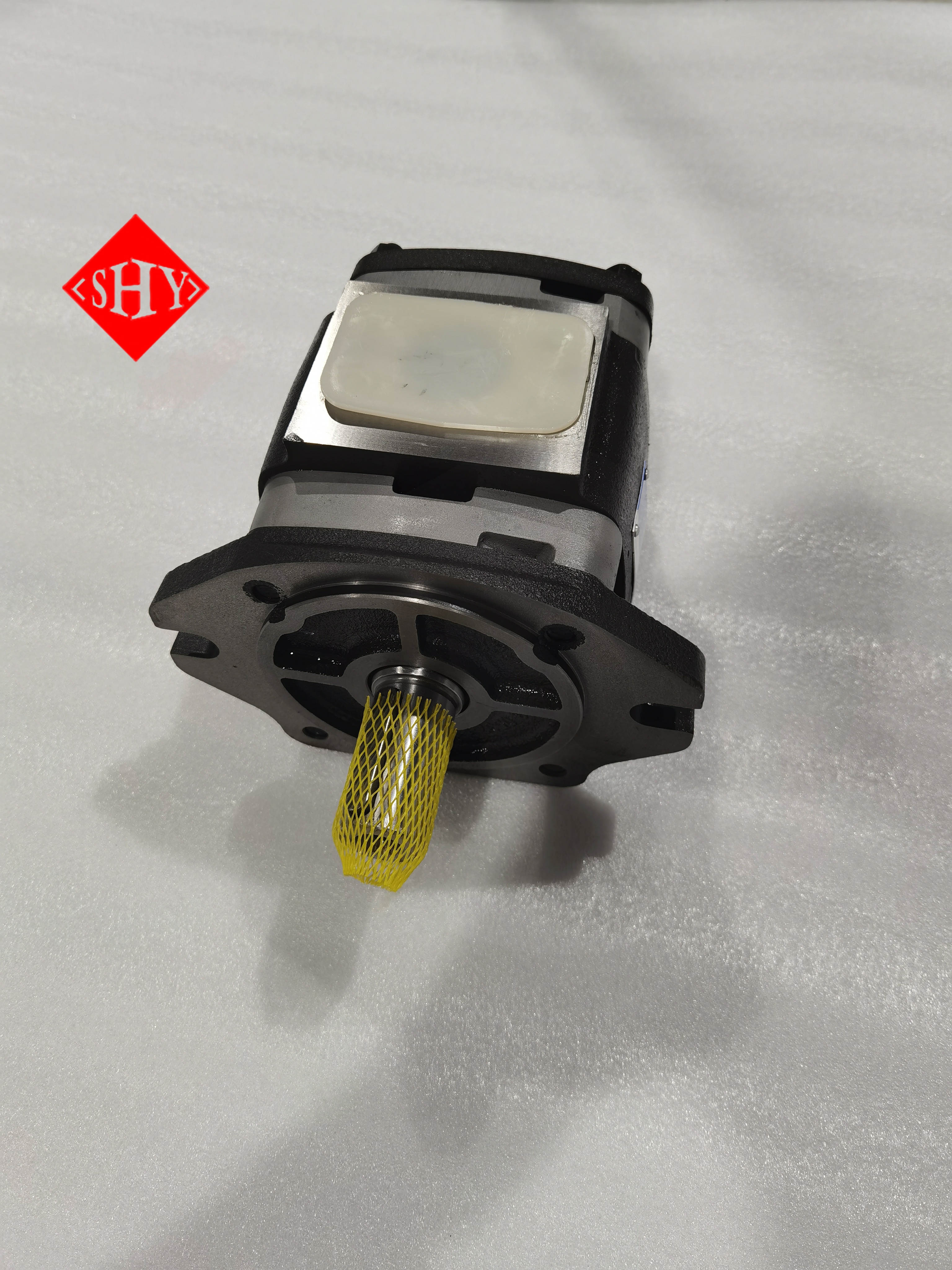

| IPVS | IPVS 3-3,5、IPVS 3-5、IPVS 3-6,3、IPVS 3-8、IPVS 3-10、IPVS 4-13、IPVS 4-16、IPVS 4-20、IPVS 4-25、IPVS 4-32、IPVS 5-32、IPVS 5-40、IPVS 5-50、IPVS 5-64、IPVS 6-64、IPVS 6-80、IPVS 6-100、IPVS 6-125、IPVS 7-125、IPVS 7-160、IPVS 7-200、IPVS 7-250 |

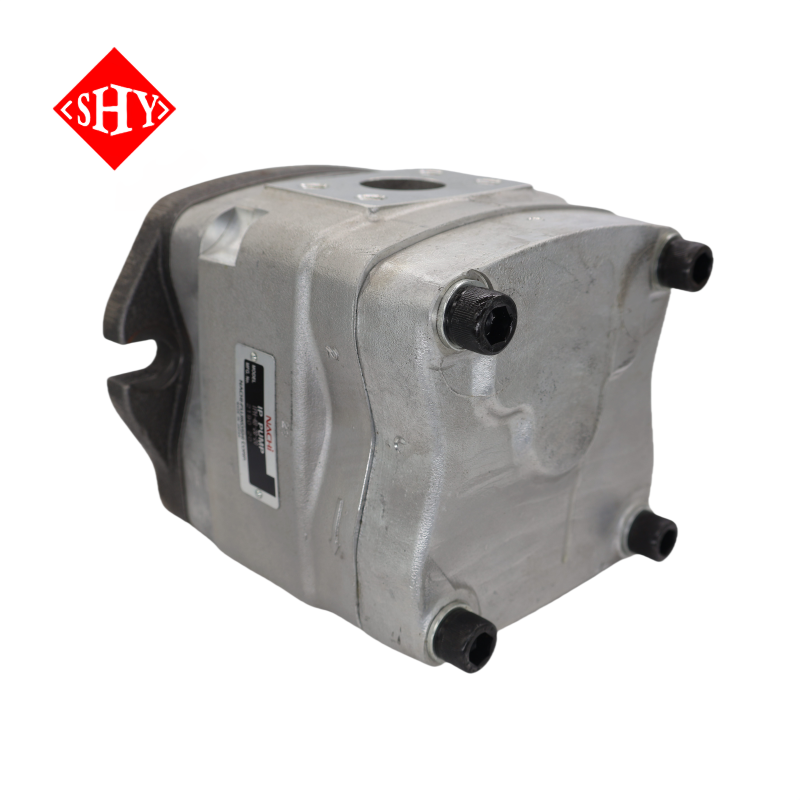

| IPH | IPH 4-20、IPH 4-25、IPH 4-32、IPH 5-40、IPH 5-50、IPH 5-64、IPH 6-80、IPH 6-100、IPH 6-125、IPH 4、IPH 5、IPH 6 |
| Others | IPV(S)(P)(A) 3、IPV(S)(P)(A) 4、IPV(S)(P)(A) 5、IPV(S)(P)(A) 6、IPV(S)(P)(A) 7、IPN(E) 4、IPN(E) 5、IPN(E) 6、IPM(E) 4、IPM(E) 5、IPM(E) 6 |
