DRM10130P-01-C-N-060V,DRM10130P-01-C-N-230V,DRM10130P-01-C-N- 350V HYDAC Pilot Pressure Reducing Valve

Wechat:+86 188-7629-1732

Whatsapp:+86 188-7629-1732

E: xiamensenhengyuan@163.com

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

1

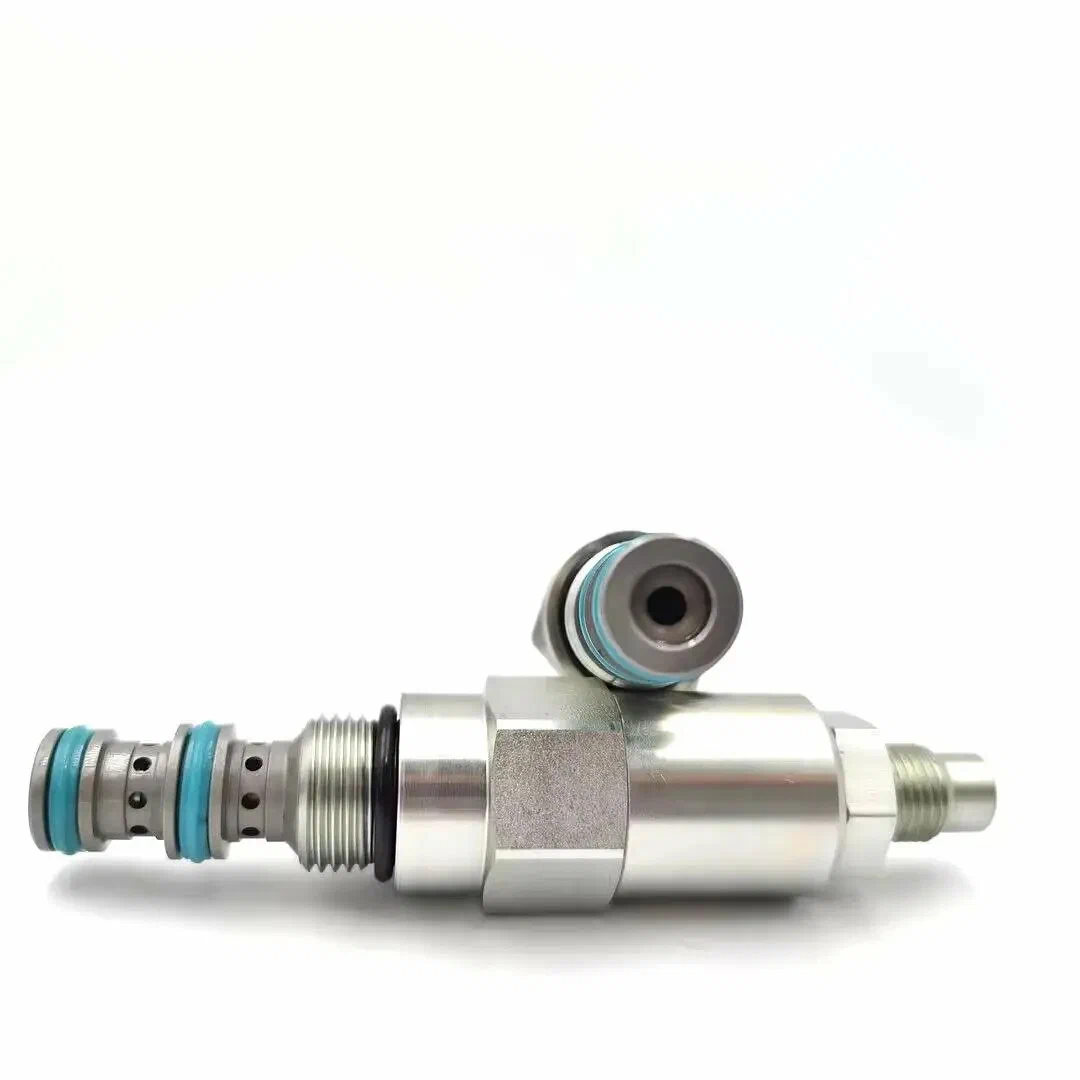

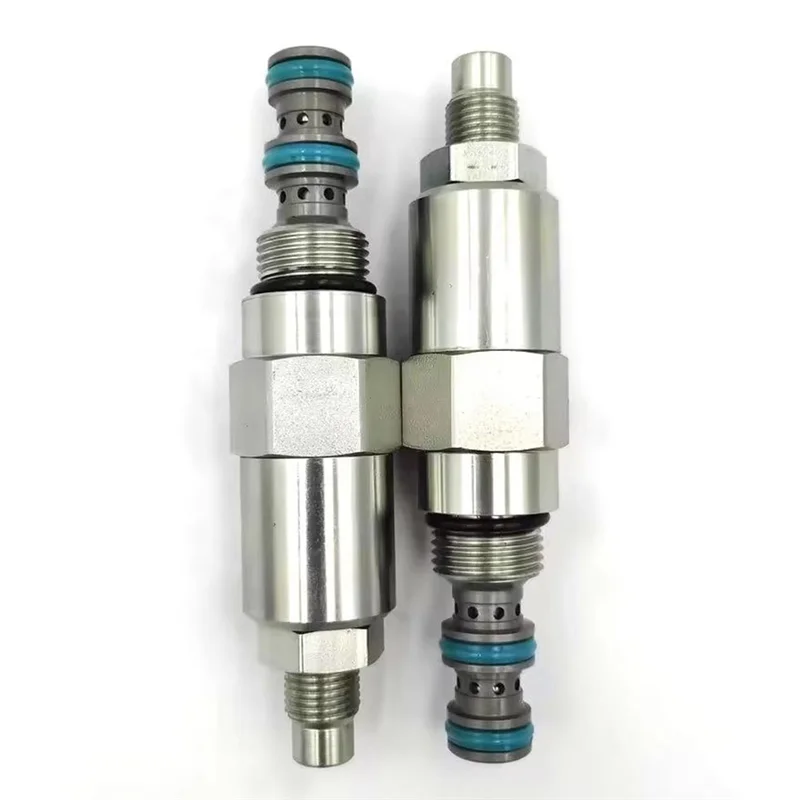

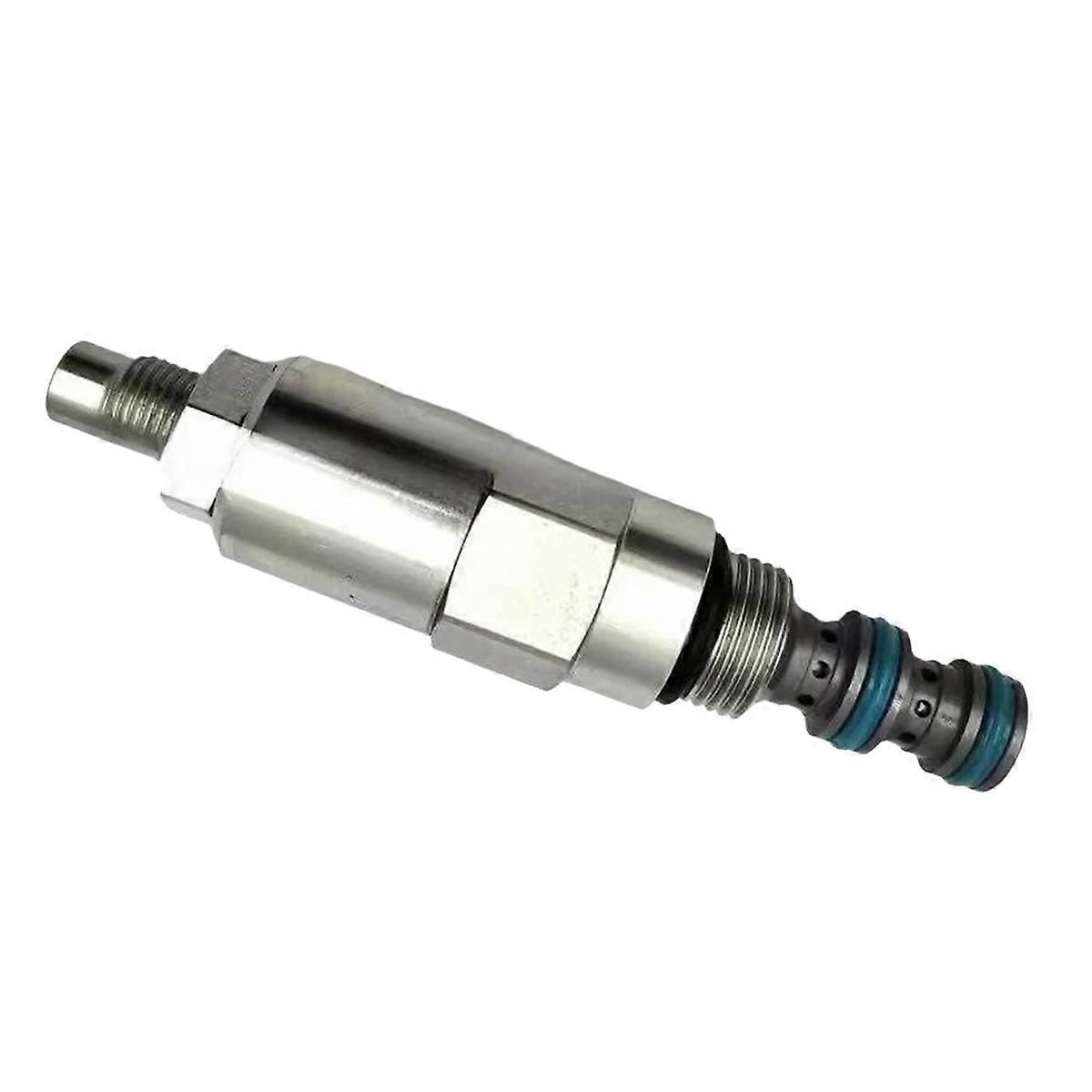

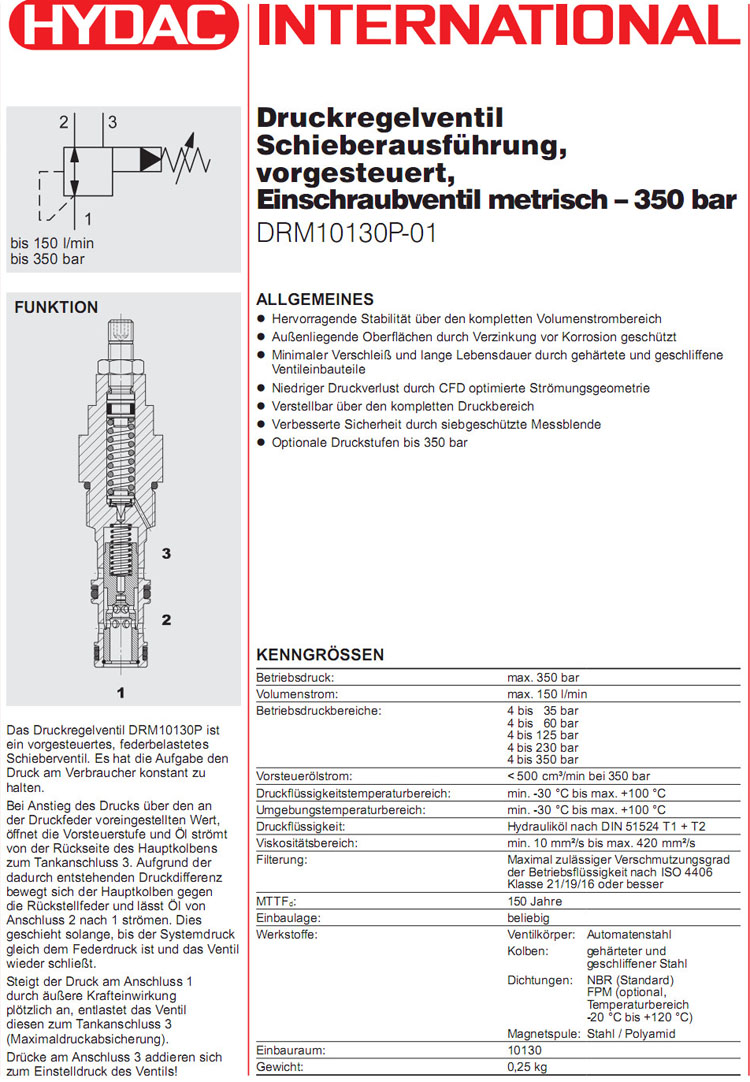

HYDAC DRM10130P Series Pilot Pressure Reducing Cartridge Valves (DRM10130P-01-C-N-060V/230V/350V)

The HYDAC DRM10130P series are high-performance  pilot-operated spool type pressure reducing cartridge valves, engineered for precise pressure regulation in industrial and mobile hydraulic systems. Designed with a compact cartridge structure, these valves deliver stable pressure output across variable flow conditions, while boasting excellent corrosion resistance and long service life. The three models DRM10130P-01-C-N-060V, DRM10130P-01-C-N-230V and DRM10130P-01-C-N-350V share identical structural specifications, with the core distinction lying in their pressure adjustment ranges.

1. Model Code Decoding (DRM10130P-01-C-N-XXXV)

Code Segment Technical Interpretation
DRM10130P Pilot-operated pressure reducing cartridge valve, DRM10130P series
01 Standard UNF threaded mounting interface, compatible with universal hydraulic circuit connections
C Cartridge valve core only (requires matching valve block or valve sleeve for installation and operation)
N Sealing material: NBR (Nitrile Butadiene Rubber), ideal for most hydraulic media with good oil resistance
060V/230V/350V Pressure adjustment range identifier; V denotes tool-adjustable mode (via hexagon socket wrench)
V Tool-adjustable pressure setting, suitable for scenarios requiring fixed or precise pressure calibration

2. Core Technical Specifications & Advantages

2.1 Key Performance Parameters

  • Pressure Range: 060V (approx. 6–85 bar), 230V (approx. 90–160 bar), 350V (approx. 170–240 bar)

  • Maximum Operating Pressure: 350 bar

  • Flow Capacity: 0–60 L/min, maintaining stable pressure even under full-flow conditions

  • Installation Compatibility: Matches FC08-3 standard cartridge valve cavity, enabling easy system integration

  • Corrosion Protection: Zinc-nickel plating on external surfaces, passing 1000-hour salt spray test for harsh working environments

2.2 Core Competitive Advantages

  1. Pilot Control Precision: The pilot stage independently regulates the main spool movement, realizing fast response and low pressure deviation, which meets the requirements of high-precision hydraulic system pressure control.

  2. Durable Structural Design: Internal components adopt hardened and precision-ground processing technology; the orifice is equipped with a built-in filter screen to prevent impurity clogging and extend the service life of the valve core.

  3. Flexible Application: Tool-adjustable design allows on-site pressure calibration without disassembly; NBR sealing material is compatible with mineral oil-based hydraulic fluids, adapting to most industrial scenarios.

3. Typical Application Scenarios

These valves are widely used in hydraulic systems that need stable branch pressure supply, and the applicable equipment includes:
  • Industrial Machinery: Hydraulic presses, injection molding machines, CNC machine tools, providing stable control pressure for actuators (hydraulic cylinders, hydraulic motors)

  • Mobile Equipment: Construction machinery (excavators, loaders), agricultural machinery (harvesters, tractors), ensuring reliable pressure output of auxiliary circuits under variable working conditions

  • Testing & Special Equipment: Hydraulic test benches, servo control systems, meeting the demand for continuous and stable pressure in precision testing processes

4. Installation Notes

  • Ensure the valve cavity is clean and free of impurities before installation to avoid scratching the valve core surface.

  • The installation direction must comply with the hydraulic oil flow direction marked on the valve body to prevent valve failure.

  • After installation, use a hexagon socket wrench to adjust the pressure gradually, and conduct pressure holding tests to confirm no leakage.


Complete Model List

  1. DRM10130P-01-C-N-030V (approx. 3–45 bar)

  2. DRM10130P-01-C-N-060V (approx. 6–85 bar)

  3. DRM10130P-01-C-N-125V (approx. 10–175 bar)

  4. DRM10130P-01-C-N-140V (approx. 12–190 bar)

  5. DRM10130P-01-C-N-190V (approx. 15–260 bar)

  6. DRM10130P-01-C-N-230V (approx. 90–160 bar)

  7. DRM10130P-01-C-N-300V (approx. 150–210 bar)

  8. DRM10130P-01-C-N-350V (approx. 170–240 bar)

  9. DRM10130P-01-C-N-420V (approx. 200–290 bar, max operating pressure 420 bar)

  10. DRM10130P-01-C-V-060V (V-seal variant, NBR replaced by FPM)

  11. DRM10130P-01-C-N-060H (handwheel-adjustable variant)

  12. DRM10130P-01M-C-N-230V (metric thread interface variant)
