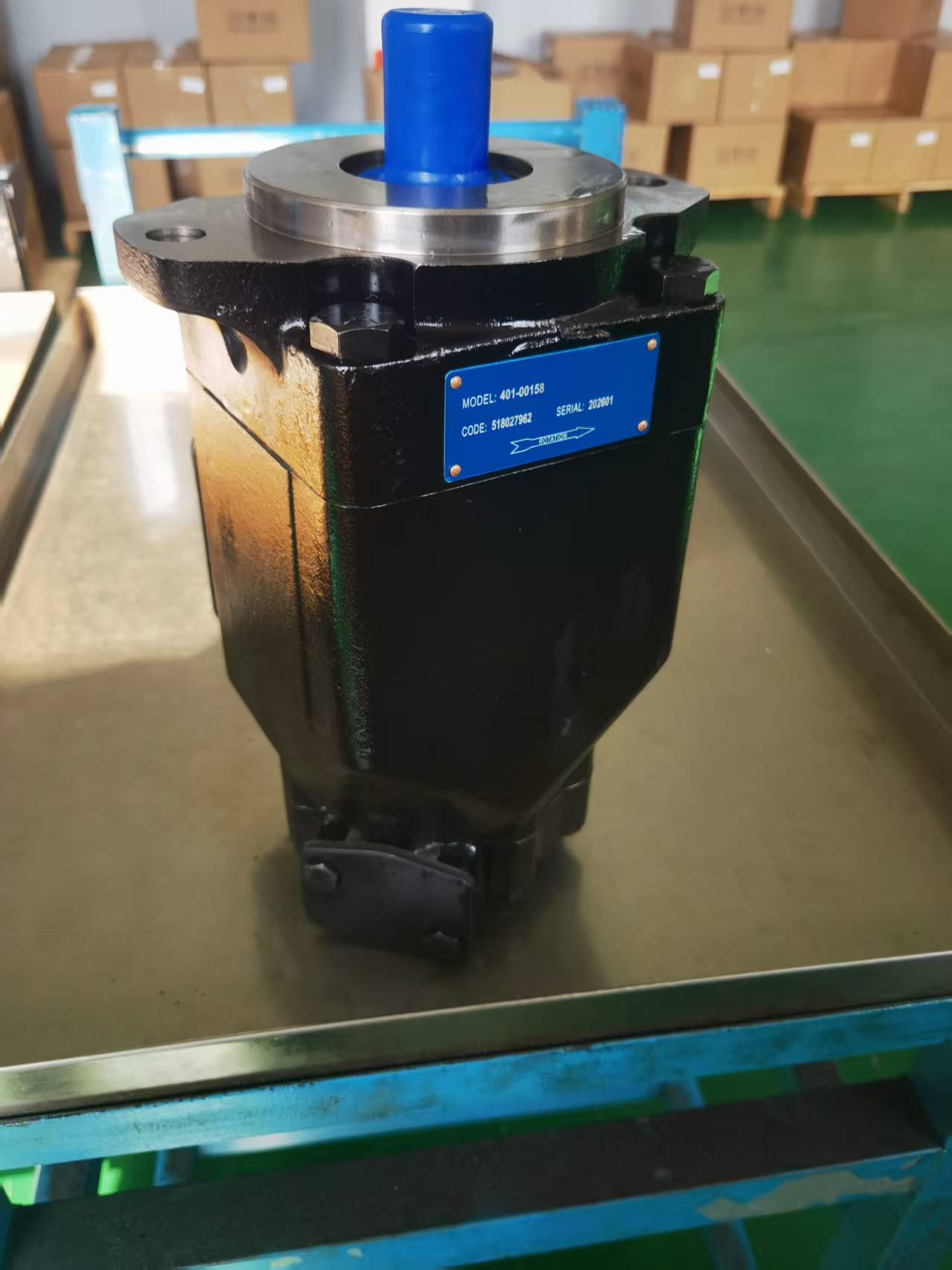

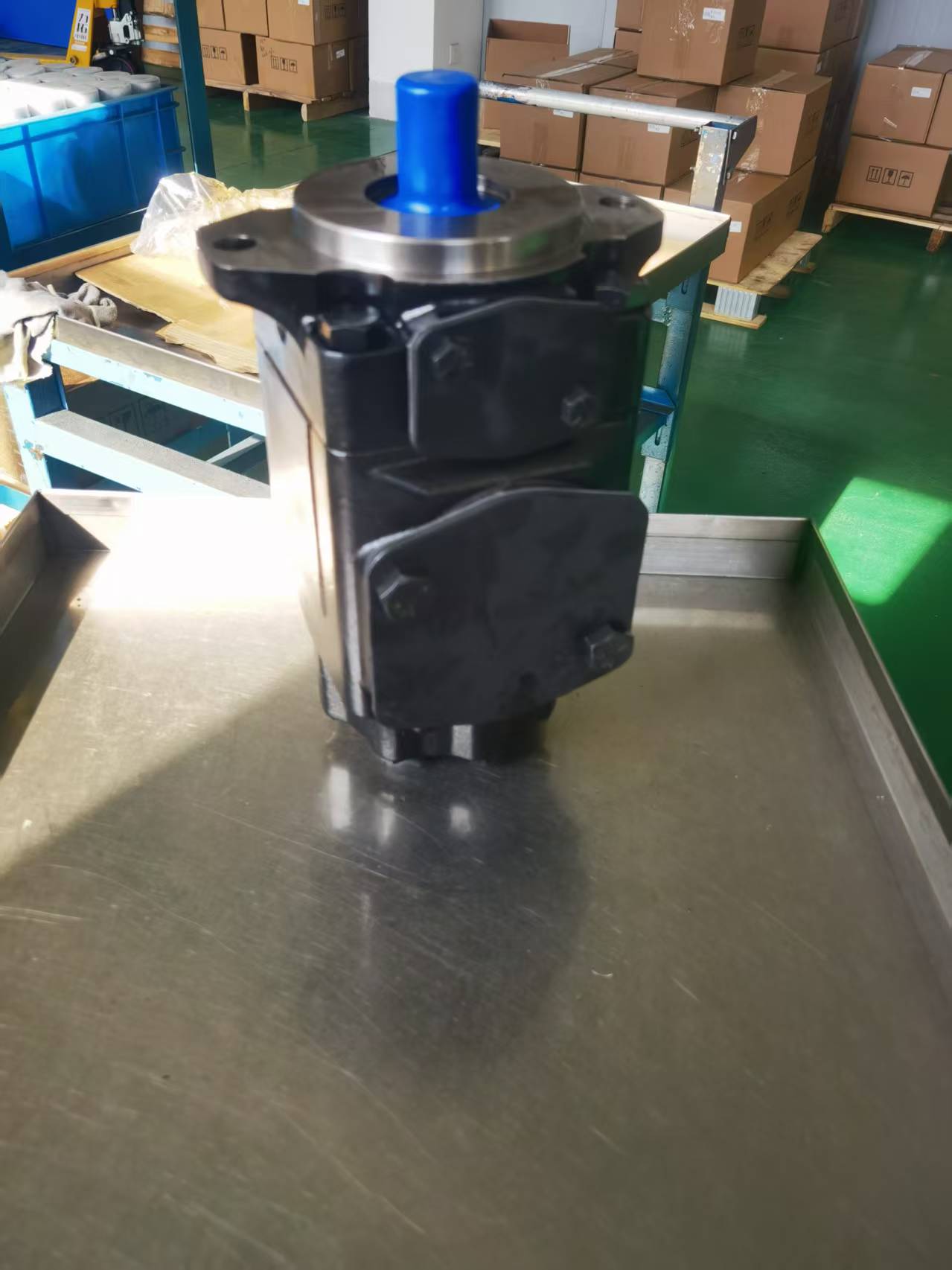

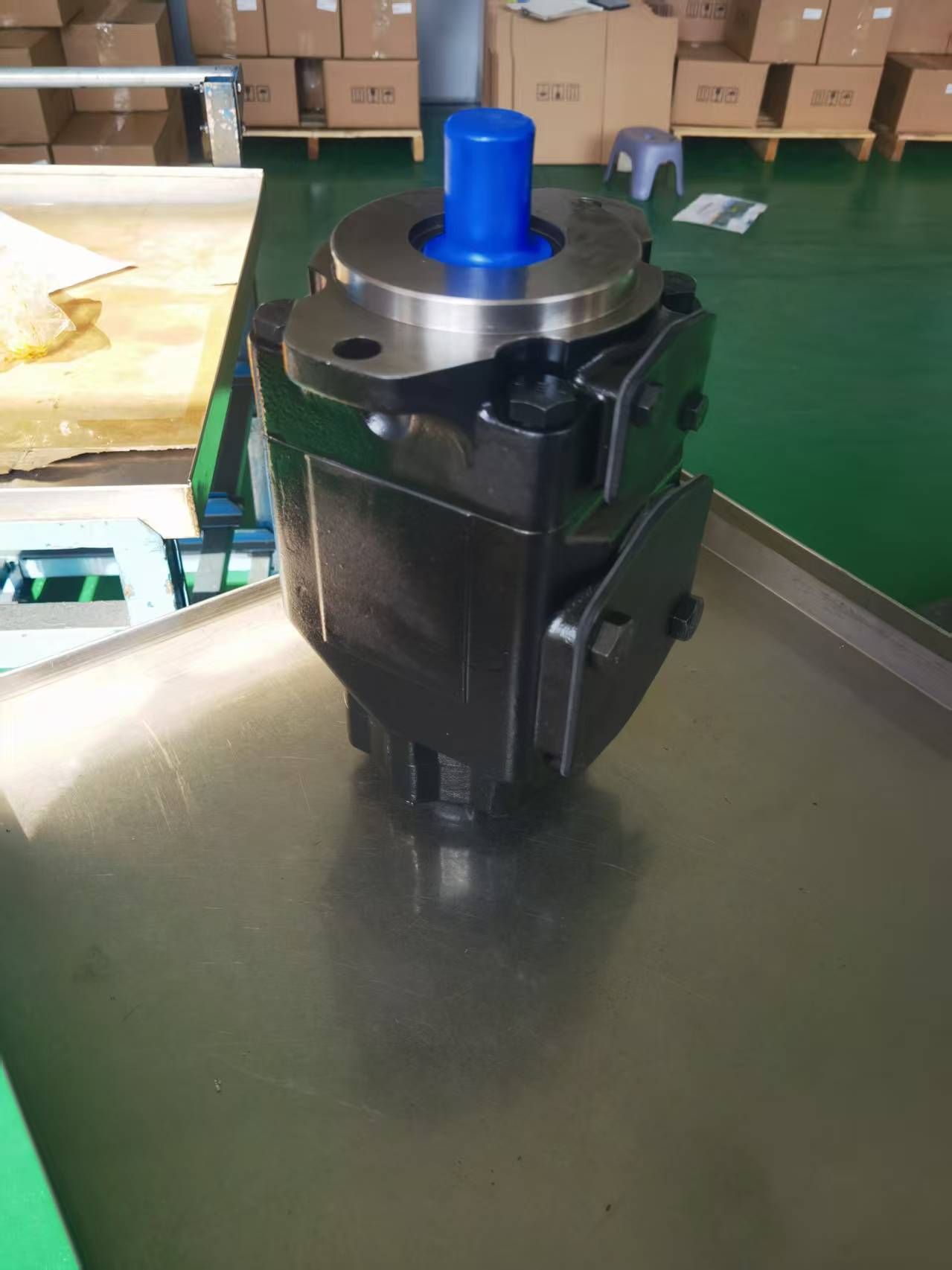

024-91069-0 T7DDBS-B42-B28-B14-2L00-A100 Parker Denison Triple Vane Pump T7DDBS

Key Features

• Triple Vane Structure

  Stable three-stage flow output, low pulsation, suitable for complex hydraulic systems with multiple actuators.

• High Pressure & High Efficiency

  Excellent volumetric and mechanical efficiency, reducing energy loss and heat generation.

• Low Noise & Smooth Operation

  Optimized flow passage and rotor design effectively reduce working noise and vibration.

• Strong Wear Resistance

  High-precision components ensure long service life and reliable performance under heavy load.

• Perfect Interchangeability

  Fully interchangeable with original Parker Denison T7DDBS series pumps, easy for installation and maintenance.

Applications

• Industrial hydraulic systems

• Injection molding machines

• Hydraulic press machines

• Die-casting machines

• Machine tools

• Heavy-duty hydraulic power units

• Construction and engineering machinery

Displacement P1 & P2
Volumetric displacement (ml/rev.)

B14 = 44,0 B31 = 99,2
B17 = 55,0 B35 = 113,4
B20 = 66,0 B38 = 120,6
B22 = 70,3 B42 = 137,5
B24 = 81,1 045 = 145,7
B28 = 90,0 050 = 158,0

Displacement P3
Volumetric displacement (ml/rev.)

B02 = 5,8 B09 = 28,0
B03 = 9,8 B10 = 31,8
B04 = 12,8 B11 = 35,0
B05 = 15,9 B12 = 41,0
B06 = 19,8 B14 = 45,0
B07 = 22,5 B15 = 50,0
B08 = 24,9
