V20F 1P11P 1C6H 22 Flow Control Vane Pump Integrated Relief Valve Industrial Hydraulic Pump

V10 Series Fixed Displacement Balanced Vane Pump

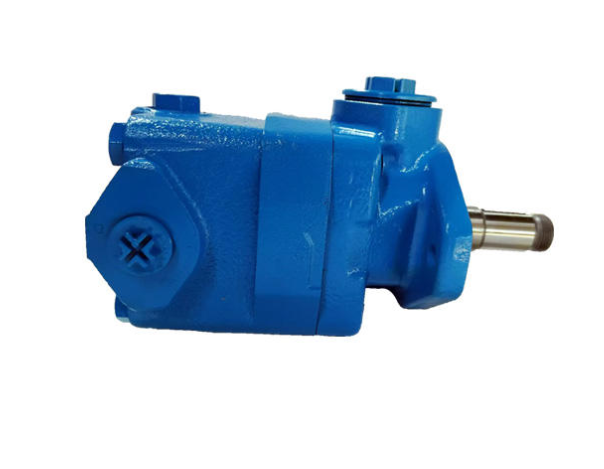

V20F Series Flow Control Hydraulic Vane Pump

The V20F series is a fixed displacement balanced vane pump with an integrated flow control and relief valve cover. Designed for hydraulic systems requiring controlled outlet flow, it offers ring sizes from 6 to 13 and nominal displacement options of approximately 19.5 to 42.4 cm³/rev. Different mounting, inlet port, shaft, outlet orientation and relief setting configurations support a wide range of hydraulic installations. Actual flow, pressure and speed limits depend on the complete model code.

• Integrated flow control cover with relief control function
• Balanced vane structure for stable hydraulic output
• Multiple displacement, shaft and port configuration options
• Suitable for hydraulic power units, industrial machinery and mobile equipment
The V10 series is a fixed displacement balanced vane pump designed for open circuit industrial hydraulic systems. With displacement options ranging from 3.3 to 22.8 cm³/rev, it supports a range of flow requirements in compact installations. The pump is available with different shaft types, mounting flanges, port connections and outlet orientations. Maximum pressure and speed depend on the selected displacement and operating conditions.

• Fixed displacement balanced vane design for stable flow output
• Seven displacement sizes from 3.3 to 22.8 cm³/rev
• Multiple shaft, flange and port configuration options
• Suitable for hydraulic power units, machine tools and industrial machinery
