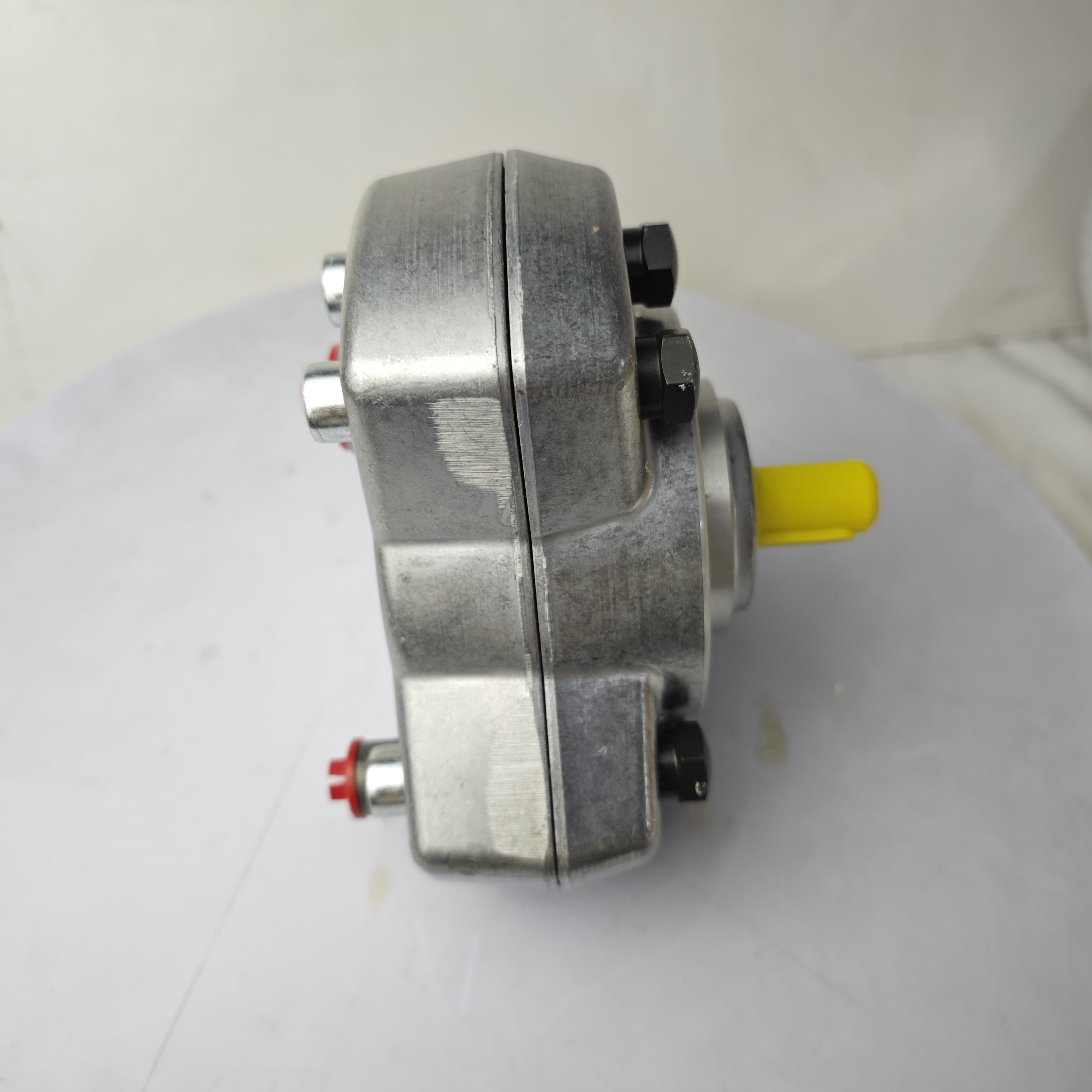

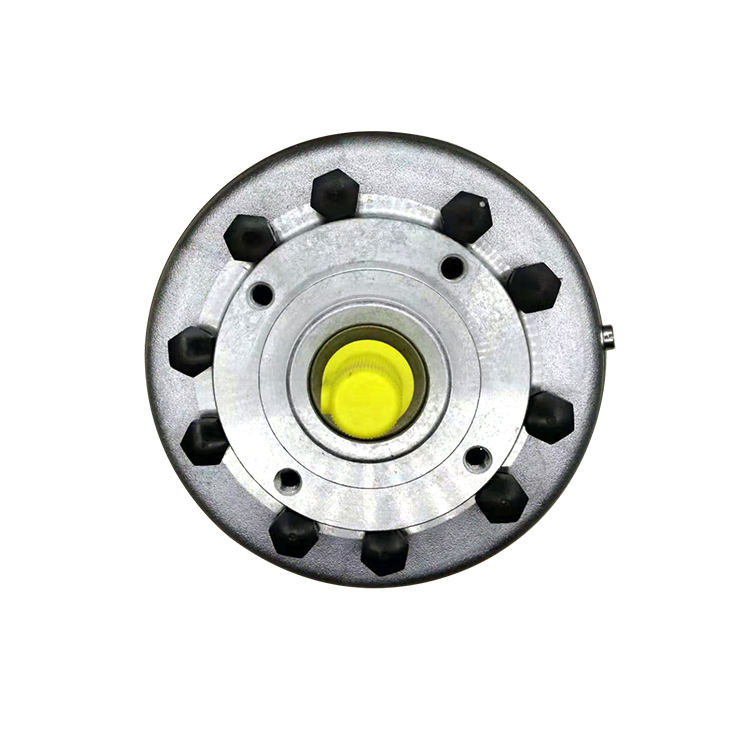

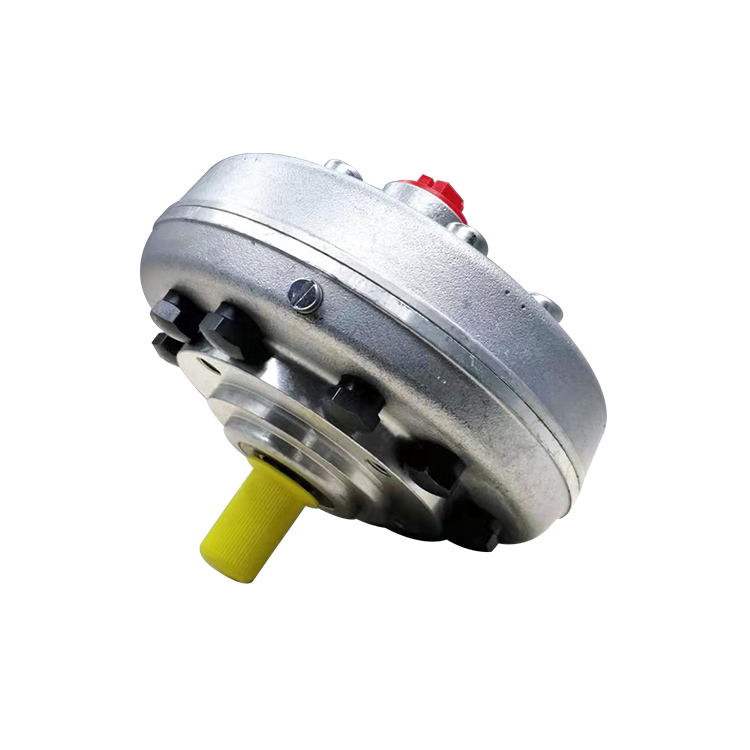

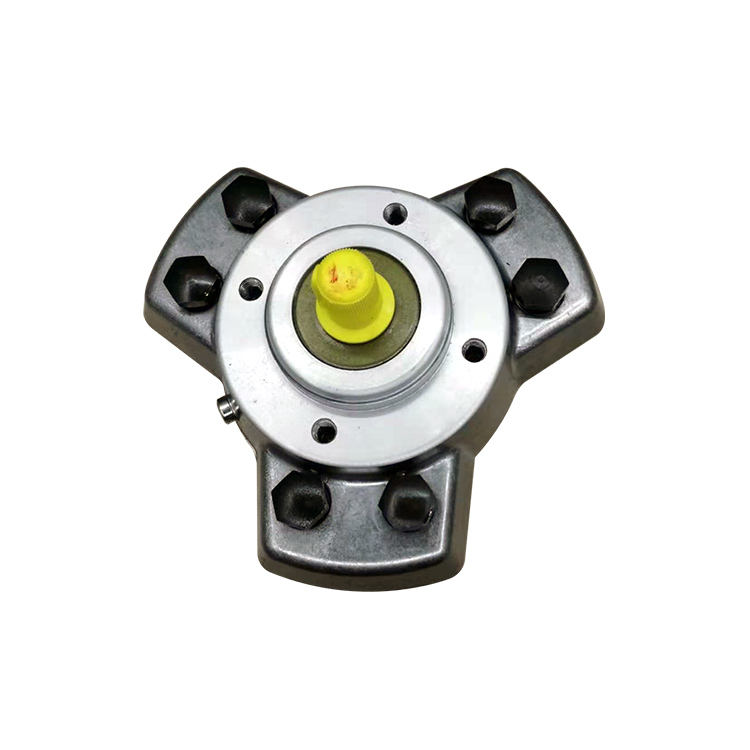

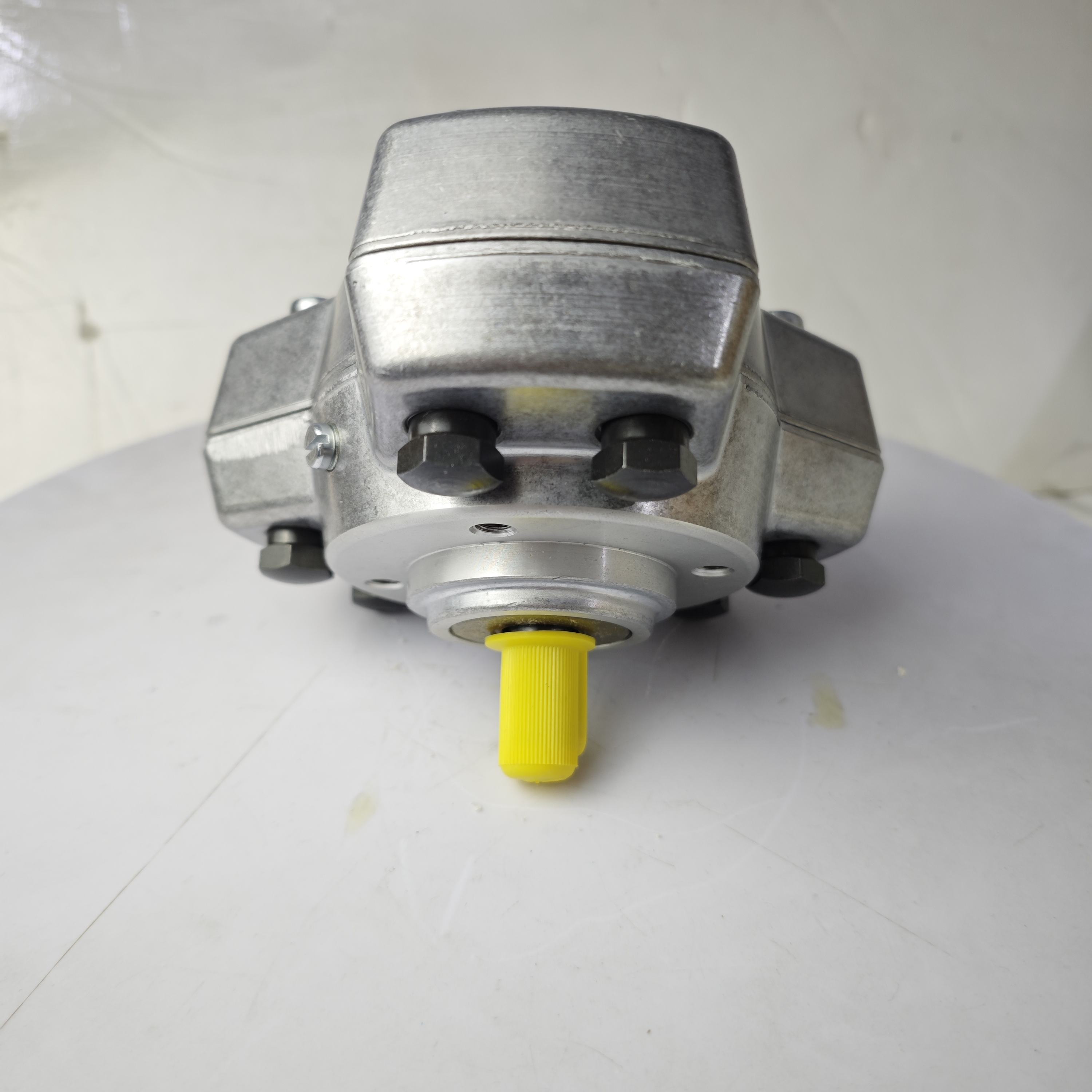

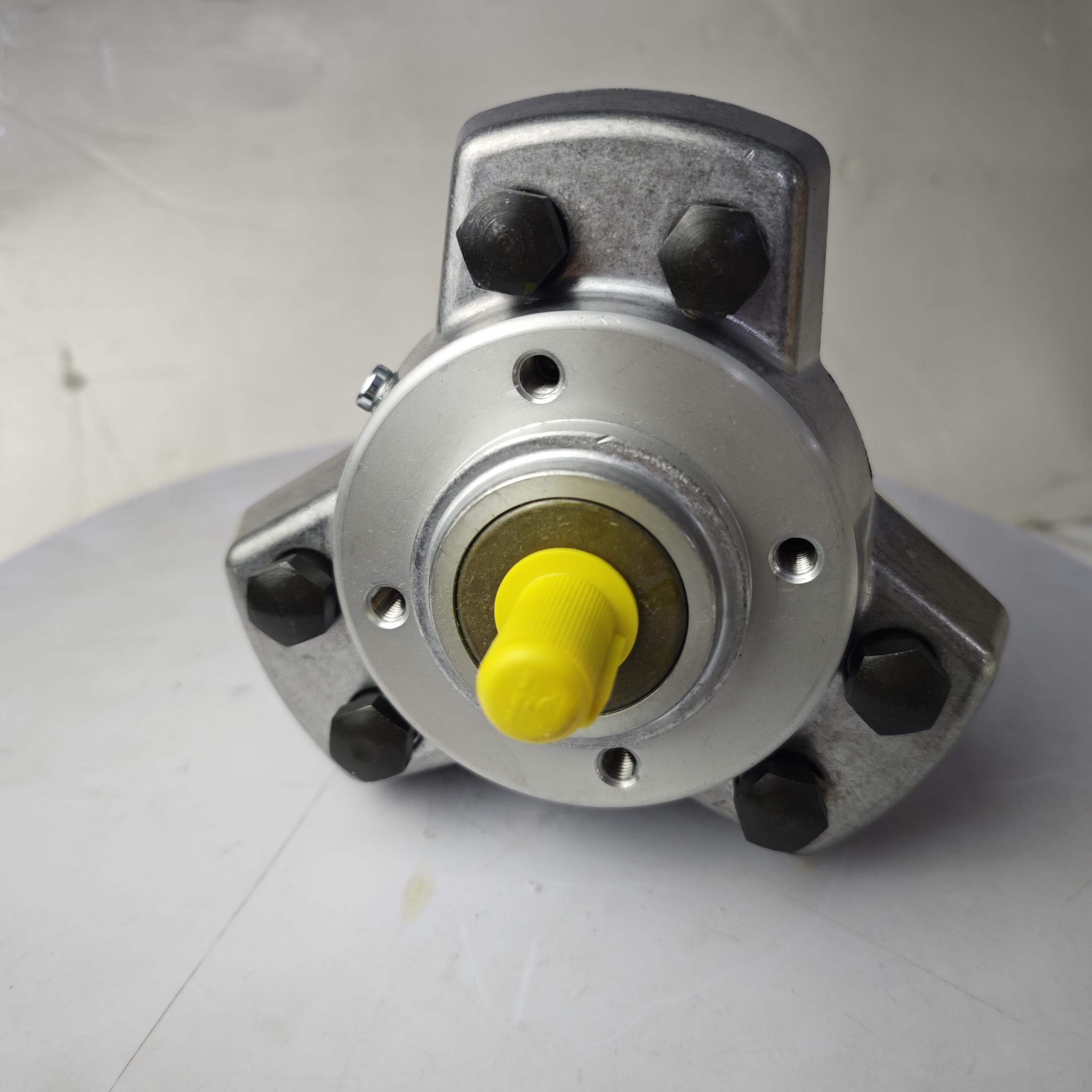

R 8.3-PYD 5.85cc Radial Piston Hydraulic Pump FKM Sealing High Pressure Oil Pump

R 8.3 radial piston hydraulic pump is a constant-displacement high-pressure pump with 5.85 cm³/rev displacement and 8.3 L/min delivery flow at 1450 rpm. The R 8.3 configuration uses five 14 mm piston elements in assembly 6011 and supports operating pressure up to 250 bar. Multi-pressure-port configurations such as R 8.3-8.3-8.3-8.3 are available for hydraulic systems requiring several pressure connections.

• 5.85 cm³/rev displacement with 8.3 L/min flow at 1450 rpm
• Maximum operating pressure up to 250 bar
• Five radial piston elements with 14 mm piston diameter
• Single-flow and multi-pressure-port configurations available
