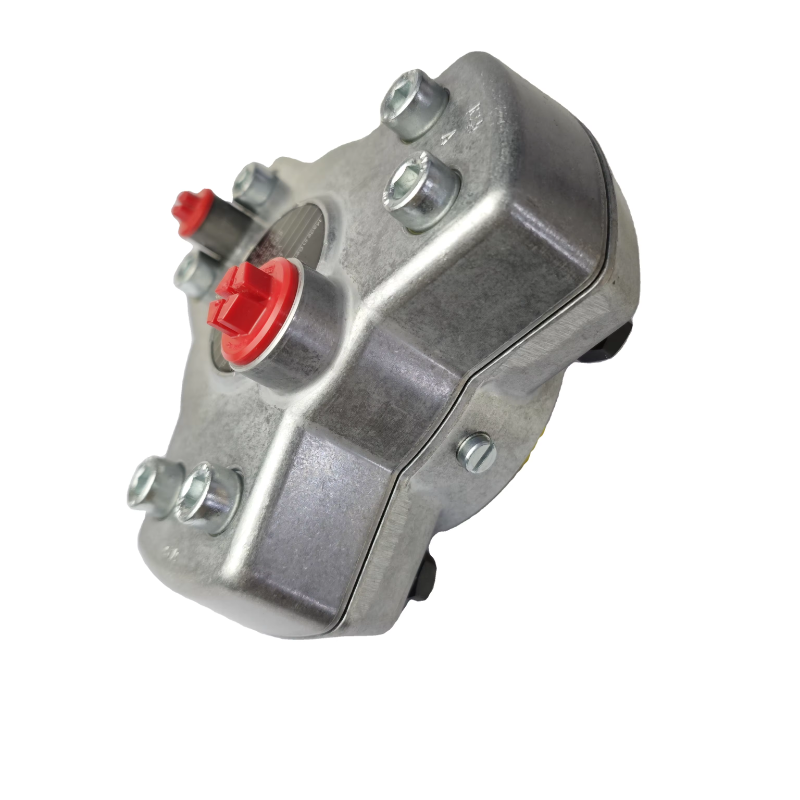

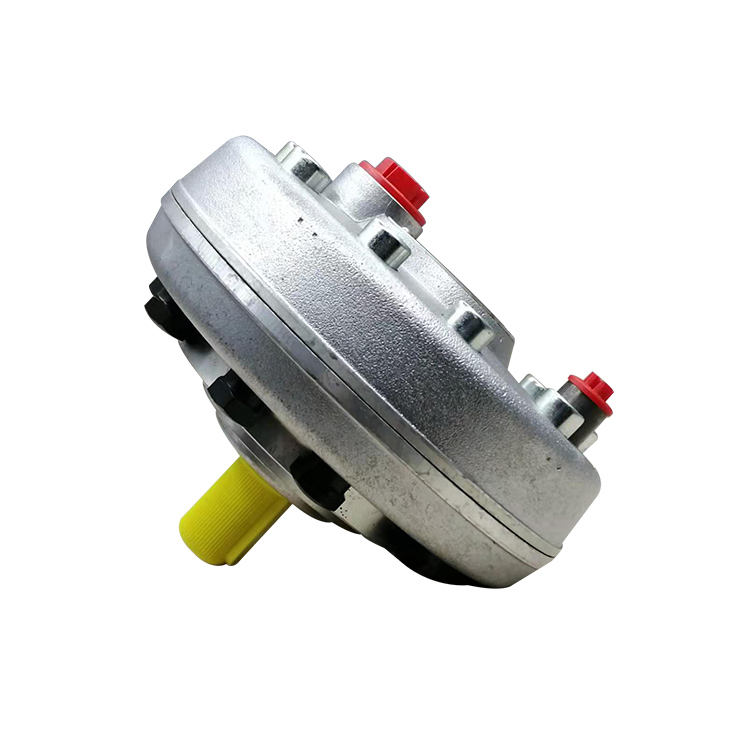

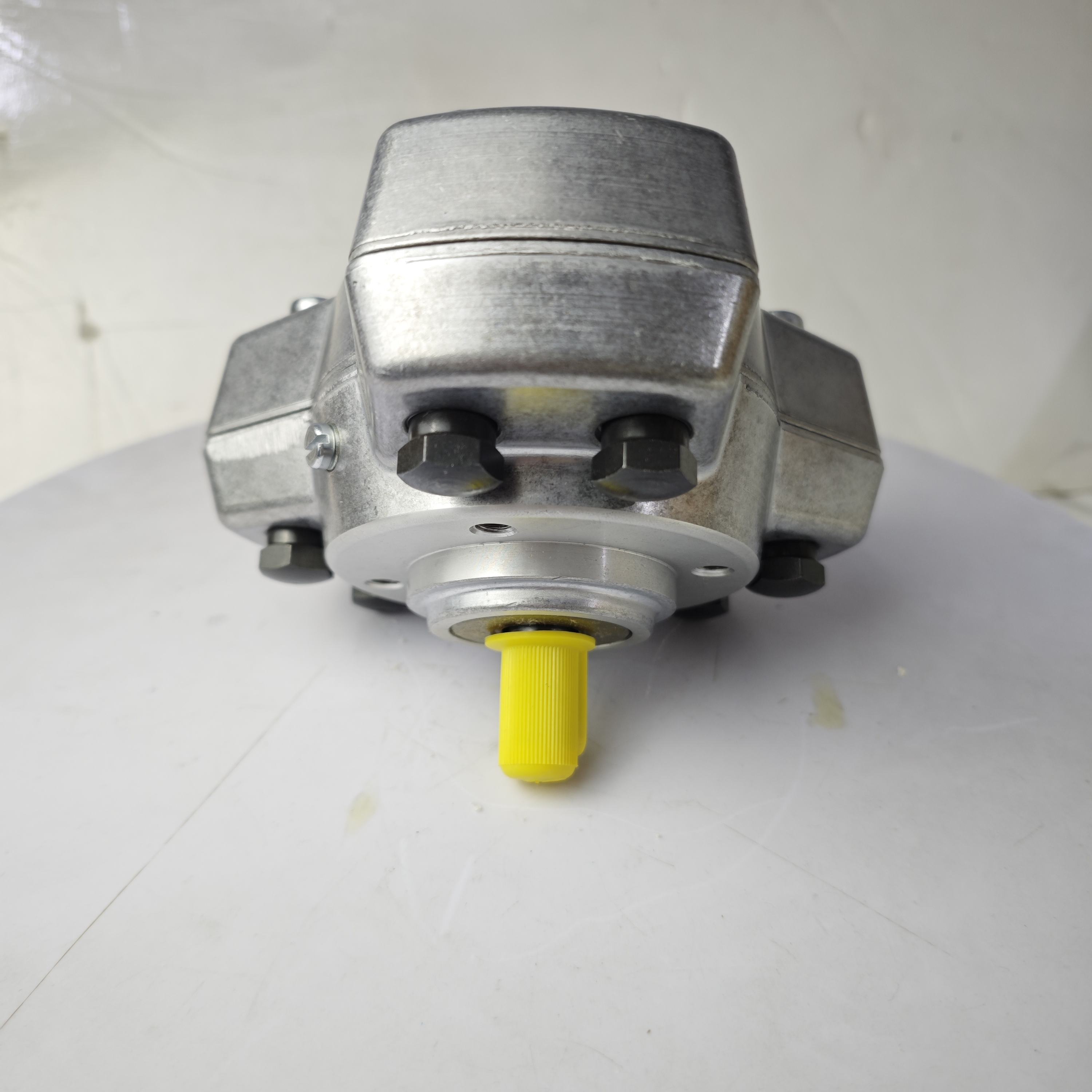

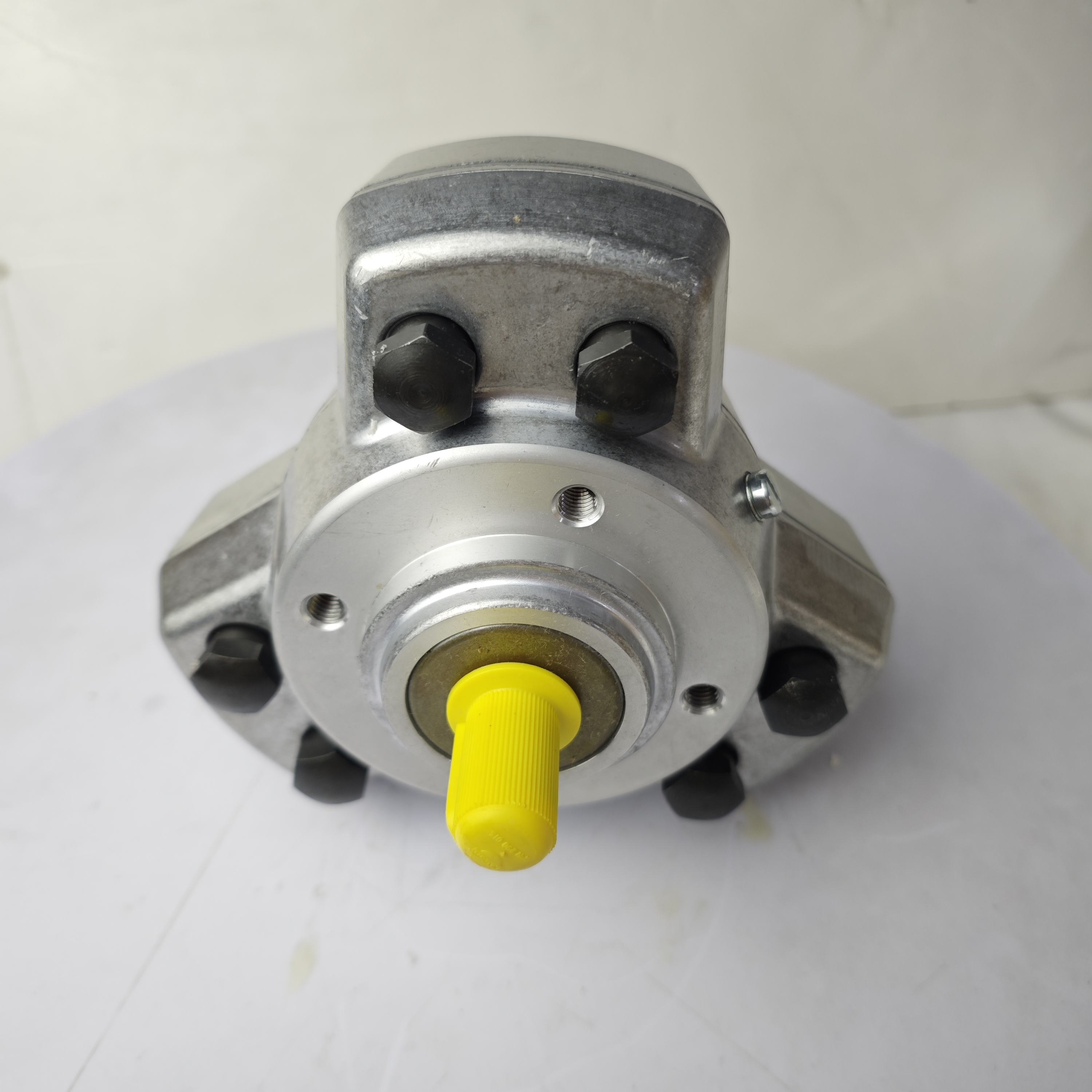

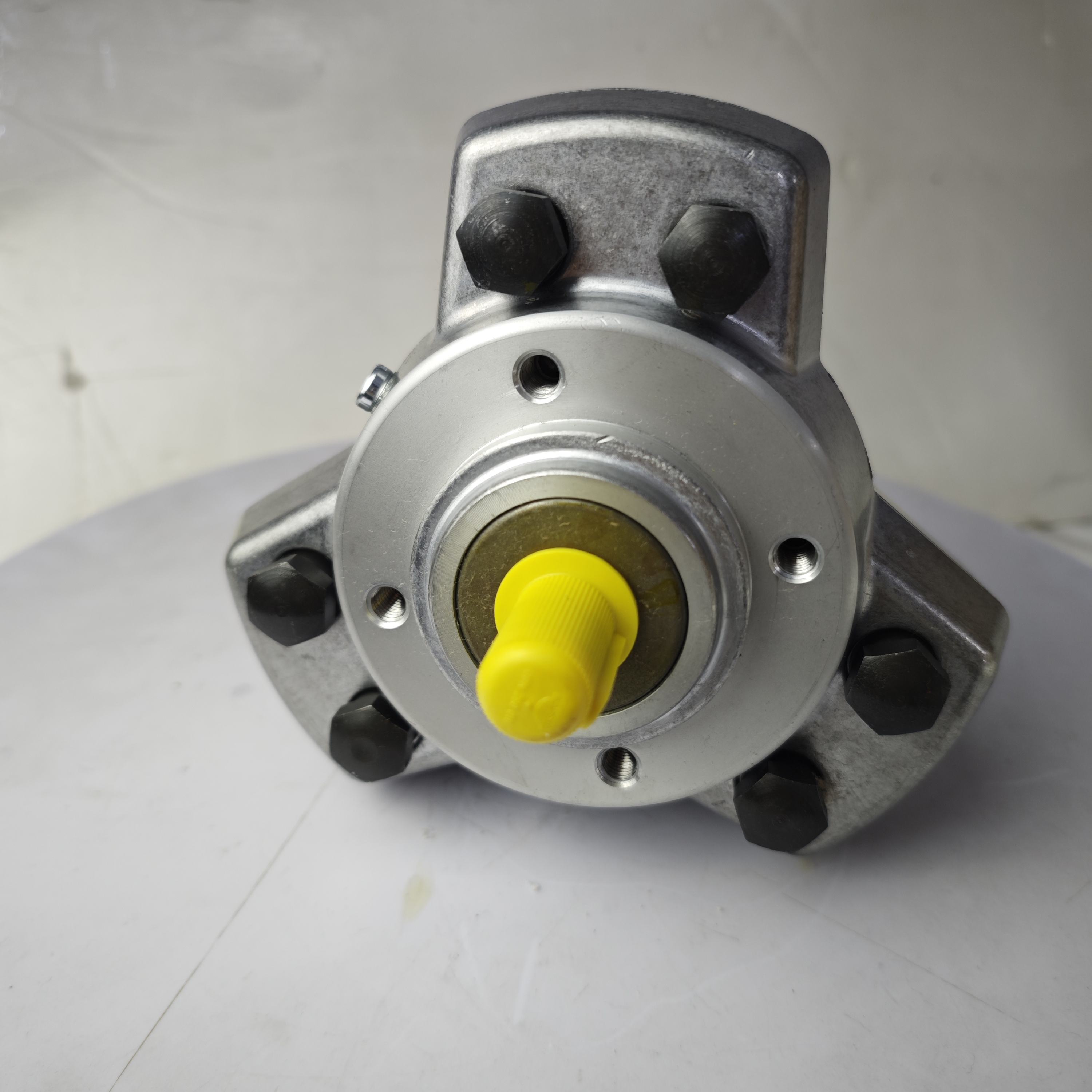

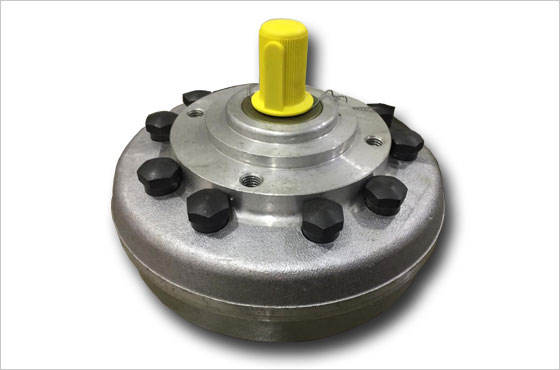

R 3.6 A 2.58cm3/rev Radial Piston Pump 350 Bar Compact Hydraulic Pump

R 3.6 radial piston hydraulic pump is a compact constant-displacement pump designed for high-pressure hydraulic applications. The pump uses three radial pump elements with 12 mm pistons, providing 2.58 cm³/rev displacement and 3.6 L/min delivery flow at 1450 rpm. Its robust construction and fine flow-rate gradation make it suitable for hydraulic power units, presses, fixtures, testing equipment and industrial hydraulic systems.

• 2.58 cm³/rev displacement with 3.6 L/min flow at 1450 rpm
• Maximum operating pressure up to 350 bar
• Three radial pump elements with 12 mm piston diameter
• NBR, FKM and EPDM seal configurations available
