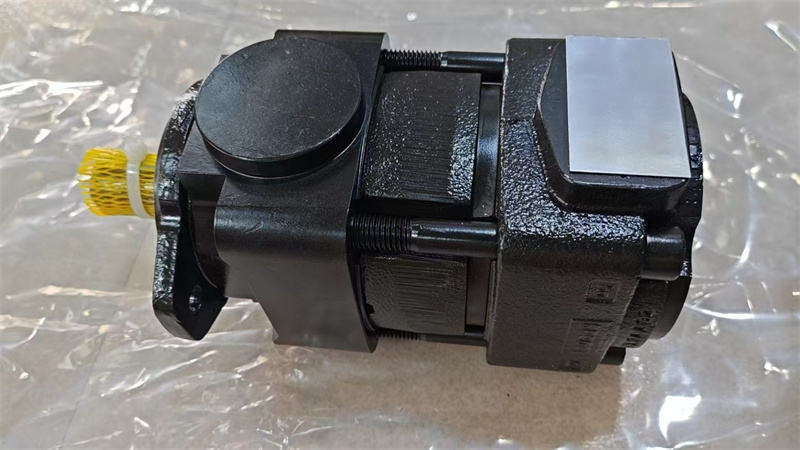

QXEH42-025//32-016R06-ME Tandem Internal Gear Hydraulic Pump Servo Drive Hydraulic Pump

QXEH series internal gear hydraulic pumps are single-stage pumps developed for high-dynamic servo hydraulic applications, variable-speed drives and reversing operation. The precision pinion-shaft design helps minimize flow and pressure pulsation while maintaining reliable performance under rapid load changes. With displacement options from 10 to 250 cm³/rev and intermittent pressure up to 280 bar, the series is suitable for hydraulic presses, injection molding machines, machine tools, lifting systems and hydraulic power units.

• Internal gear pump design with pinion-shaft technology
• Continuous operating pressure up to 250 bar and intermittent pressure up to 280 bar
• Displacement range from 10 to 250 cm³/rev
• Available as single pump or tandem double pump configuration
