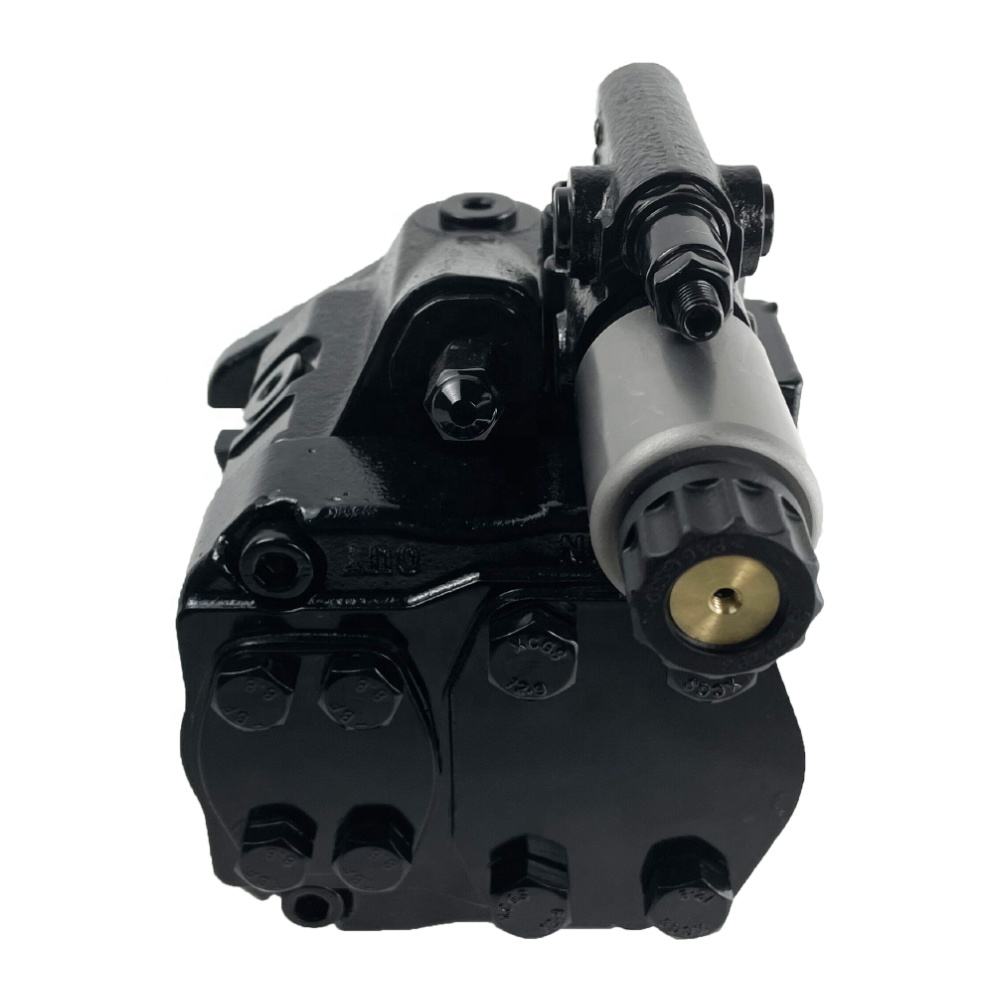

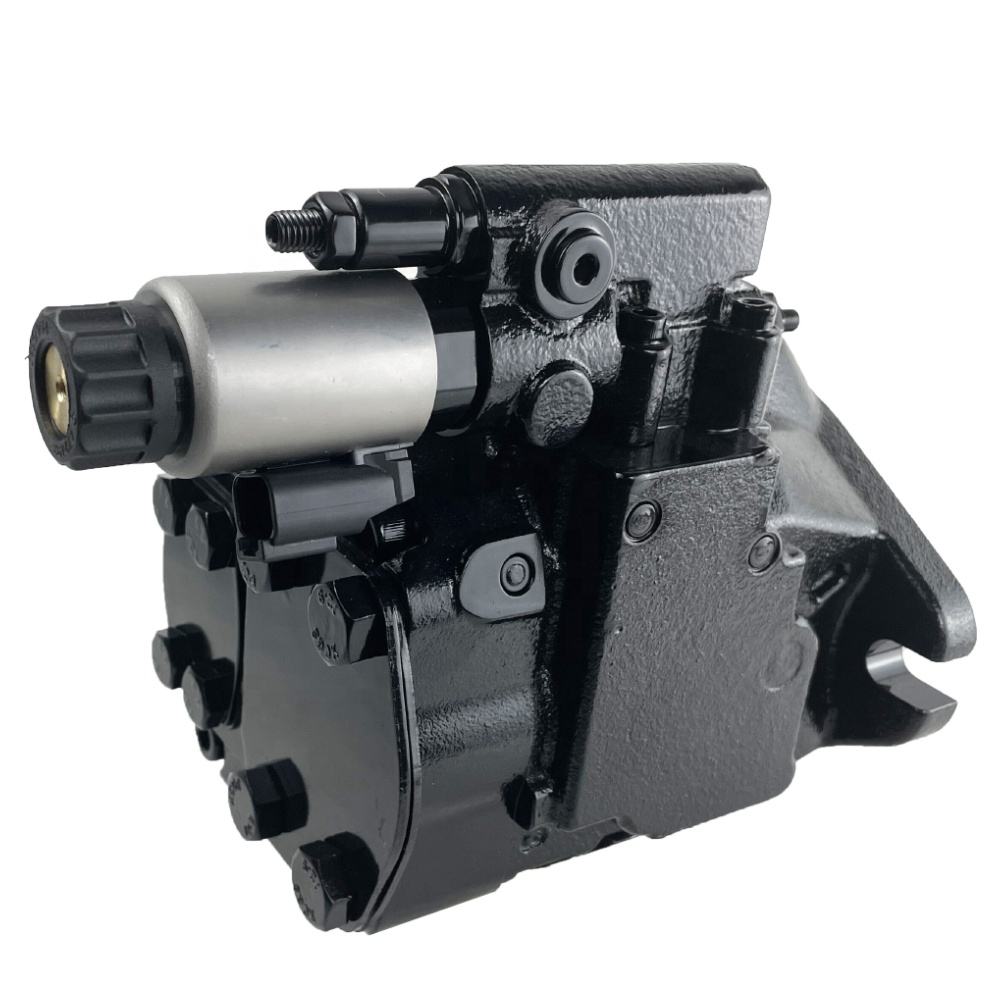

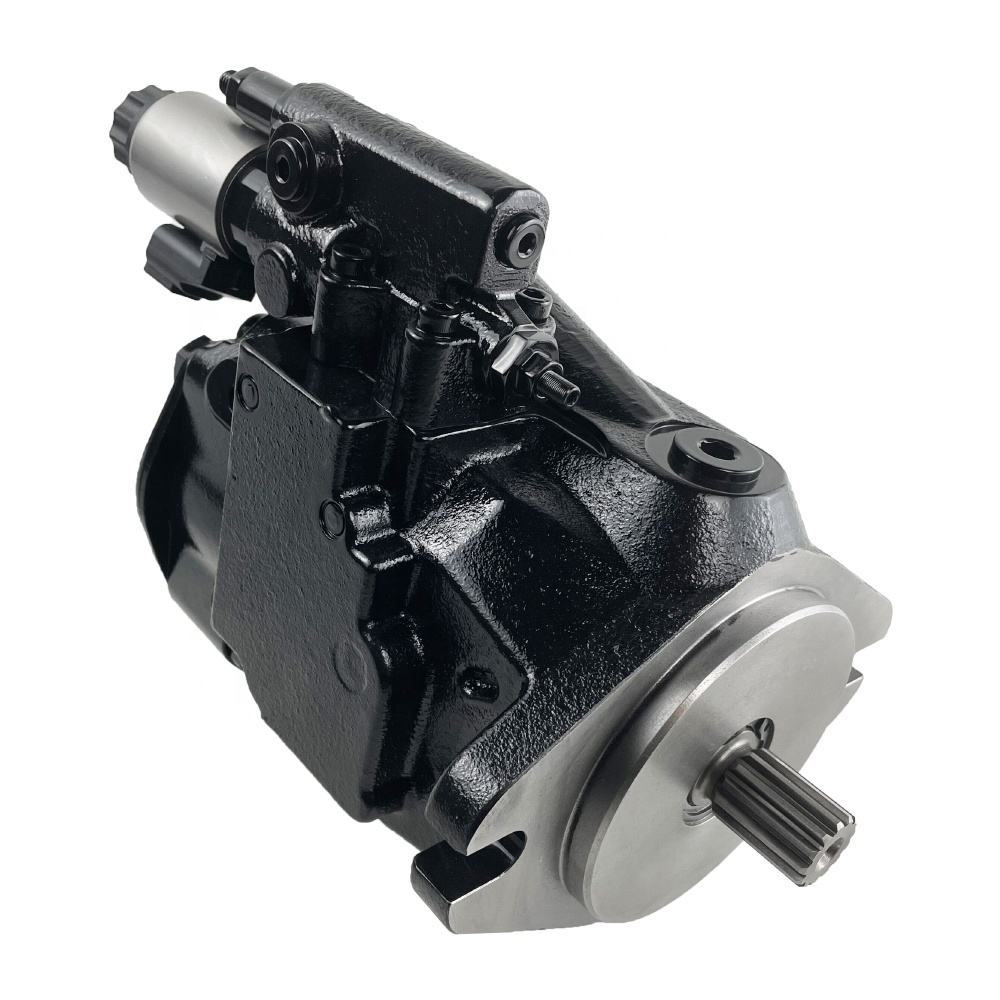

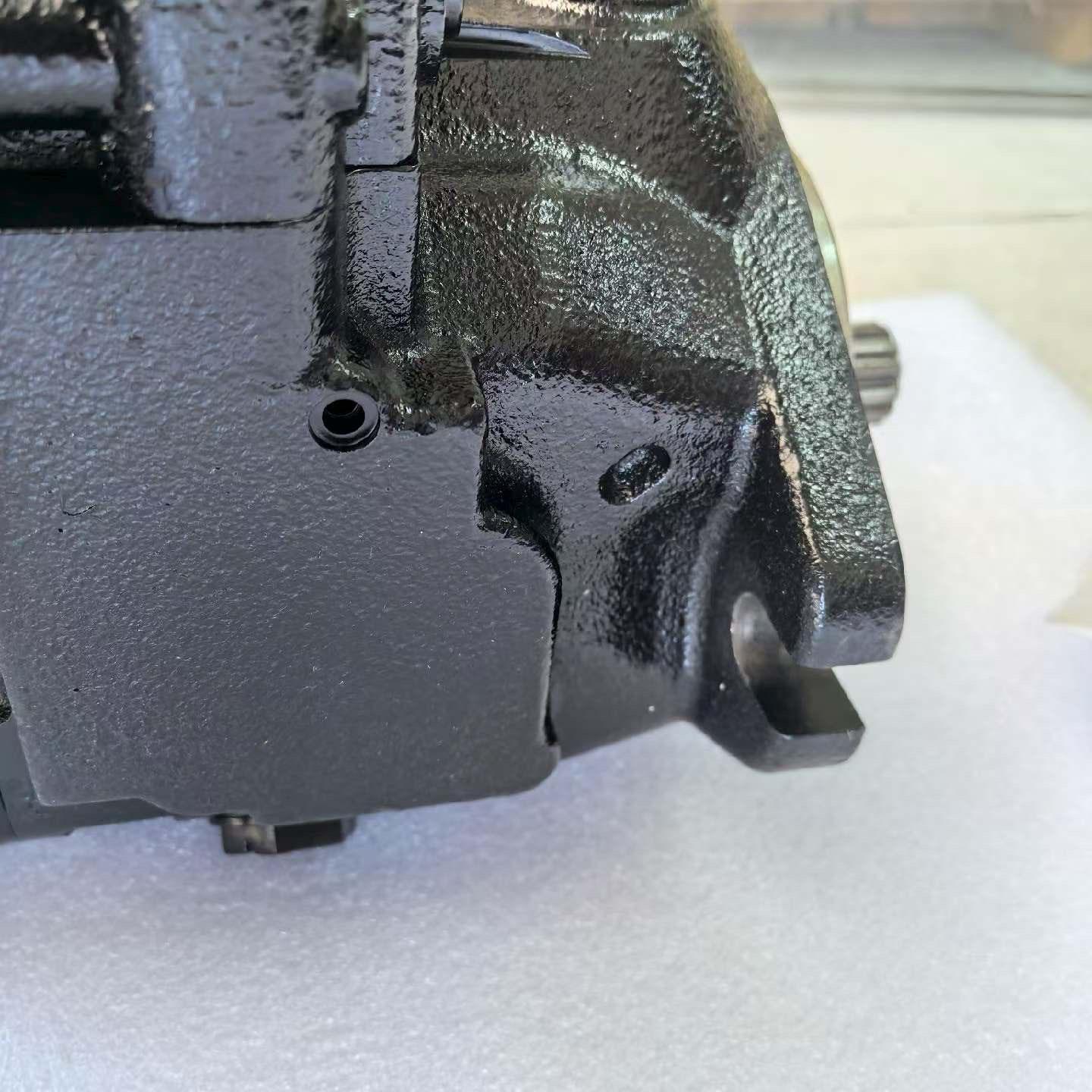

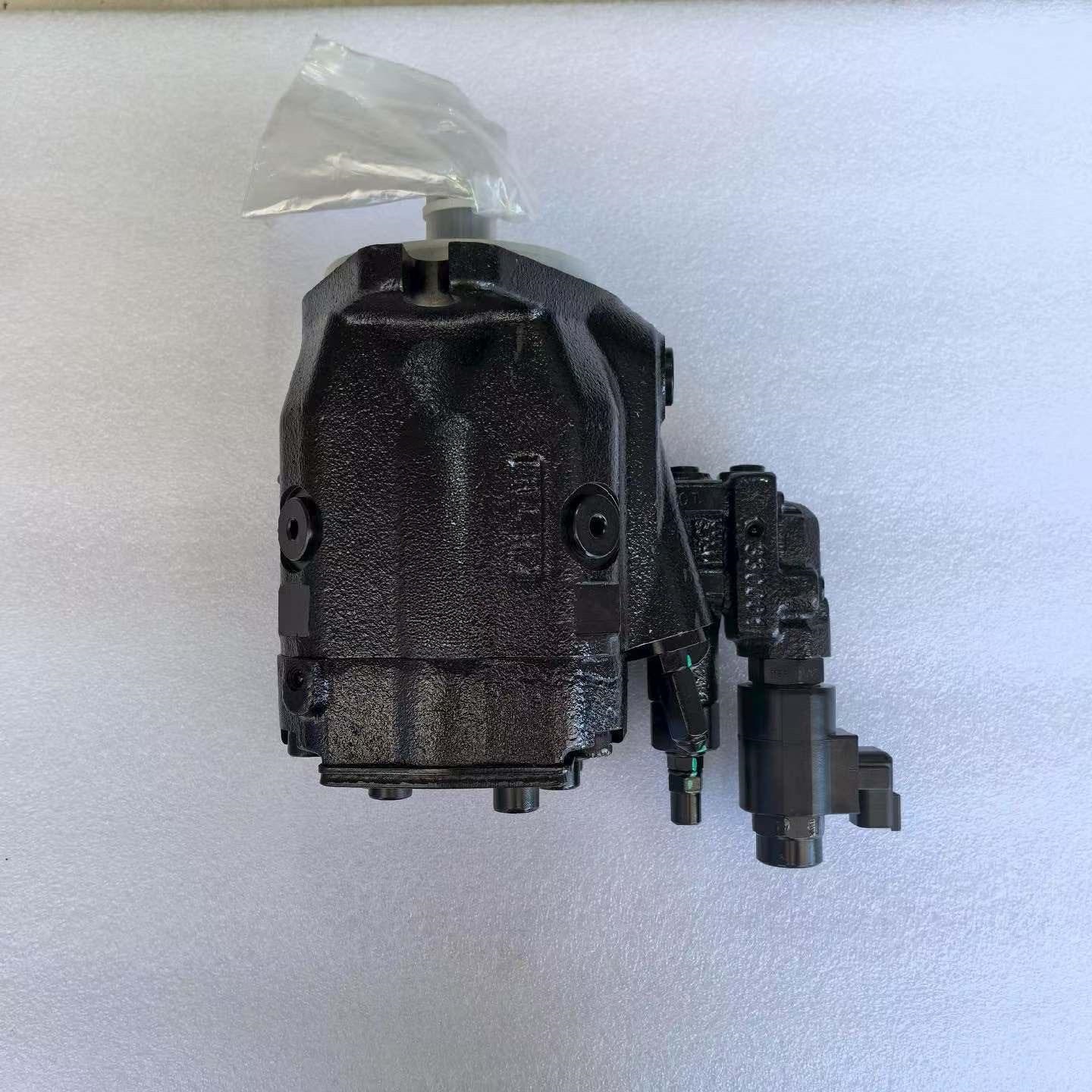

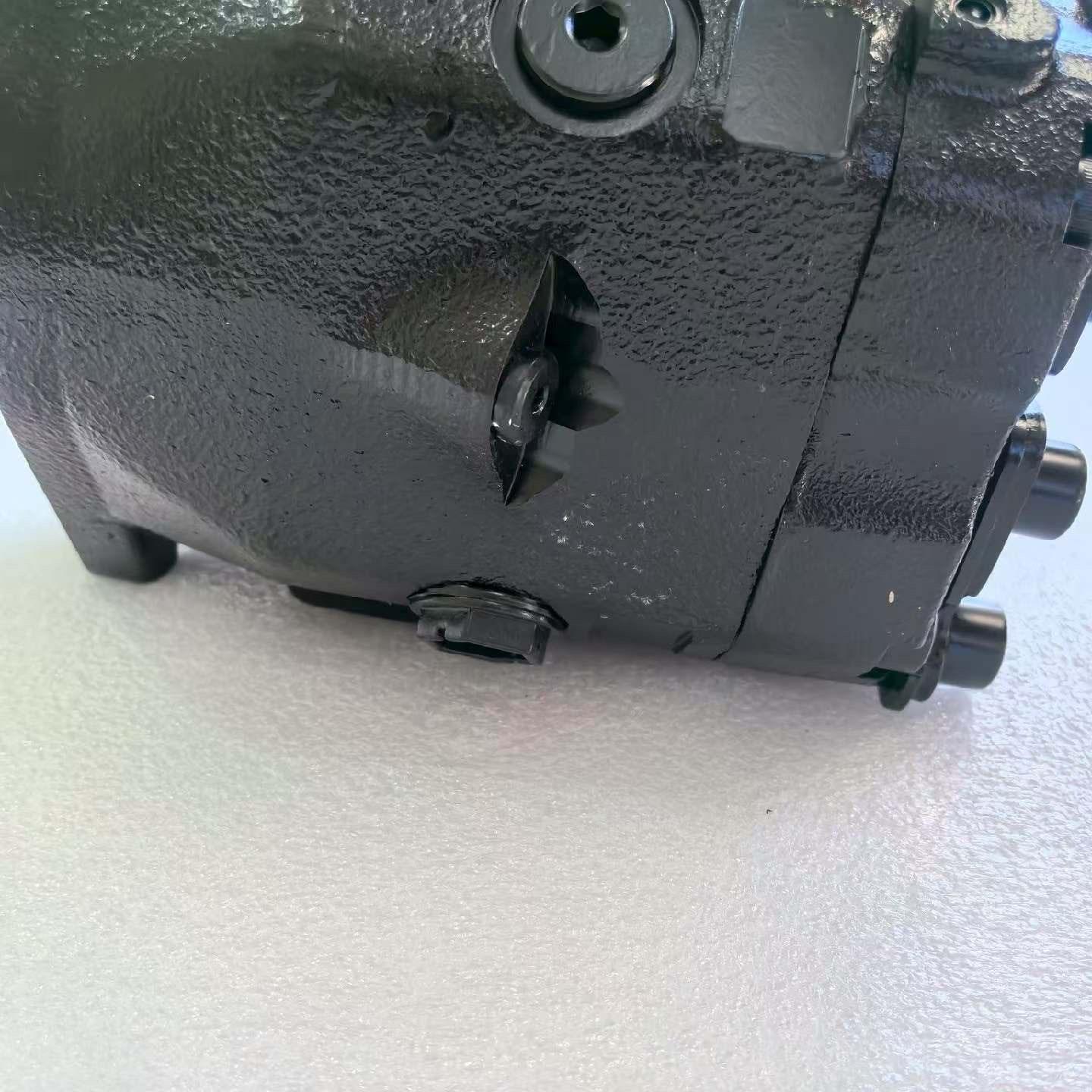

MVPD48.65 65cc Variable Displacement Axial Piston Pump High Flow Hydraulic Pump
MVPD series variable displacement axial piston pumps are compact swash plate pumps designed for open circuit mobile hydraulic systems. The series provides five displacement configurations from 34 to 65 cm³/rev and combines high operating speed with a high power-to-dimension ratio. Multiple control options allow the pump to be configured for different hydraulic power and machine control requirements.
• Variable displacement axial piston pump with swash plate design
• Displacement range from 34 to 65 cm³/rev
• Rated pressure up to 260 bar with speed up to 3200 rpm
• Pressure compensation, load sensing, torque limitation and electronic control options
