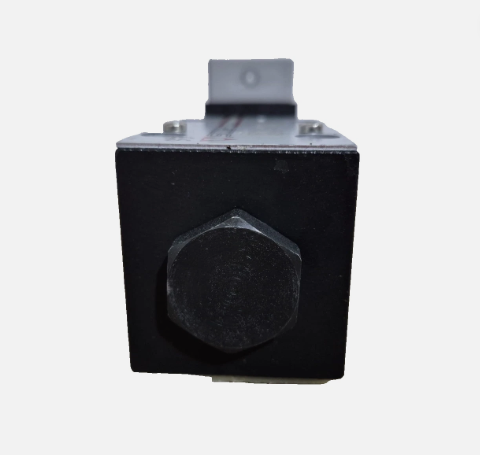

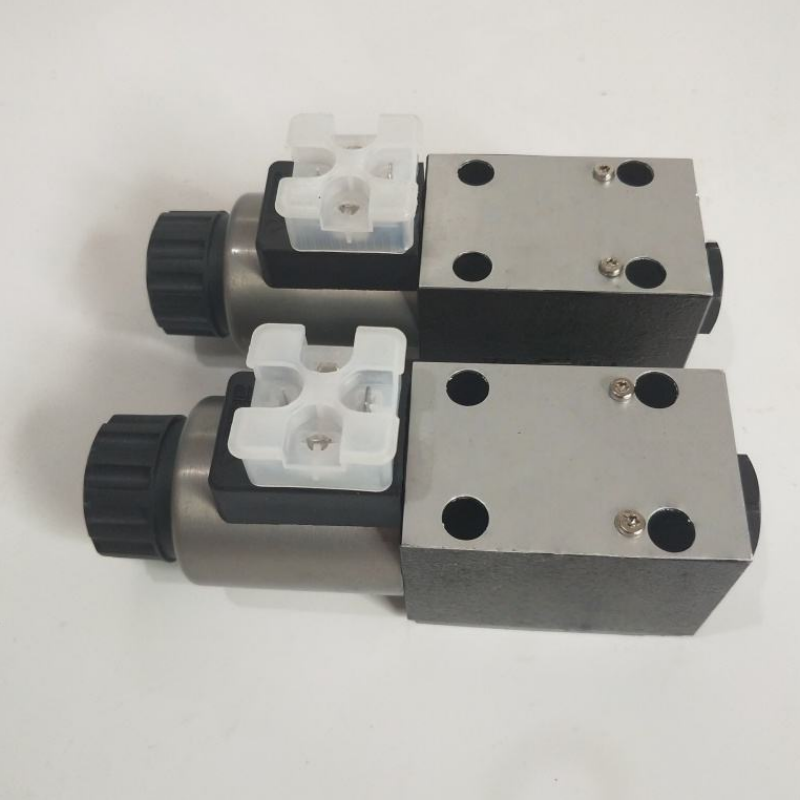

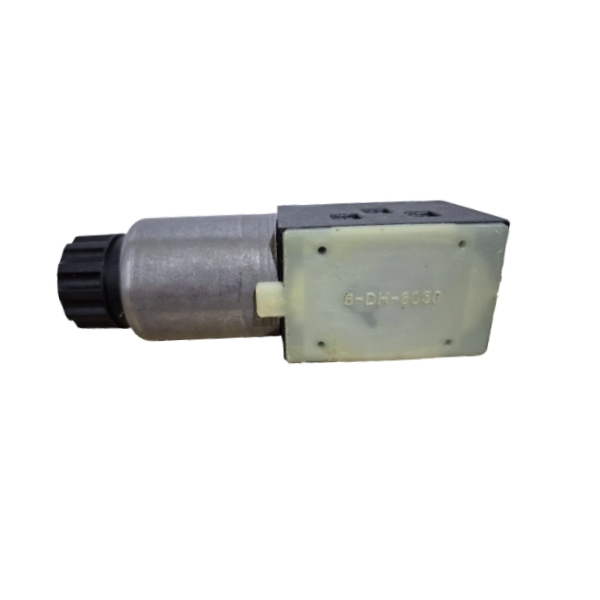

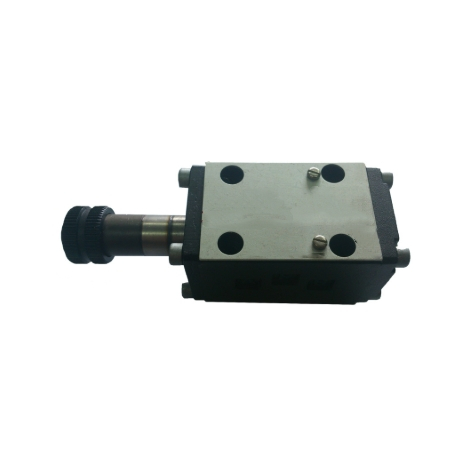

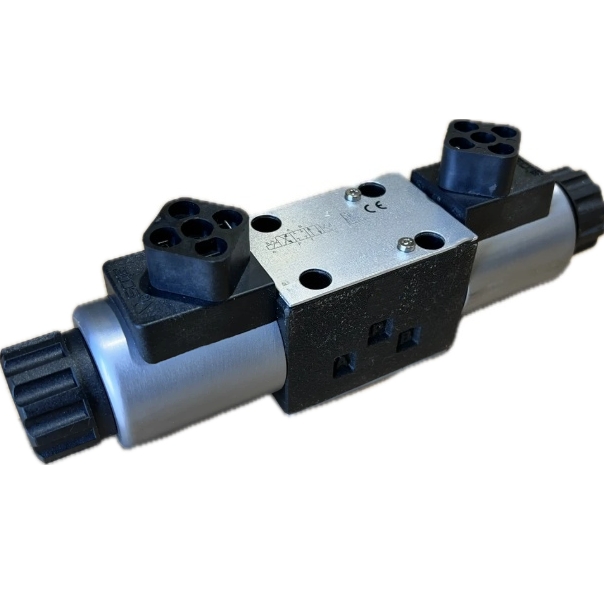

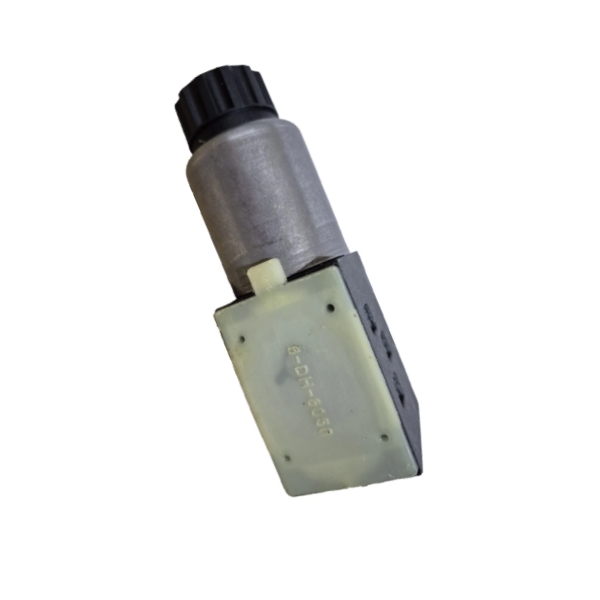

DHE-0610 24DC Solenoid Directional Control Valve ISO 4401 Size 06 Hydraulic Valve

DHE series hydraulic solenoid directional valves are direct operated spool-type valves for controlling hydraulic flow in industrial systems. The valves use an ISO 4401 size 06 subplate mounting interface and are available with AC or DC solenoids, multiple spool arrangements and different connector options. With maximum flow up to 80 L/min and maximum pressure up to 350 bar, the series is suitable for hydraulic power units, automation equipment, machine tools and mobile machinery.

• ISO 4401 size 06 subplate mounting design
• Maximum flow rate up to 80 L/min
• Maximum operating pressure up to 350 bar
• Multiple spool, solenoid and connector configurations
