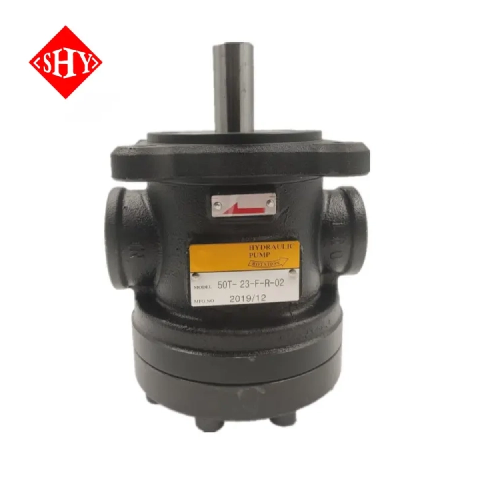

Performance differences between hydraulic pumps are rarely obvious at first glance. Two models can share similar pressure ratings while delivering very different real-world behavior once installed in a machine. This is why engineers and purchasing teams frequently compare the 50T 150T 250F Hydraulic Pump series when evaluating system upgrades or new equipment builds. True pump power is not defined by a single number. It emerges from how pressure capability, flow delivery, efficiency retention, and thermal behavior interact under real operating conditions. Understanding this relationship allows users to select a pump that improves productivity, stabilizes motion, and reduces long-term operating cost.
Hydraulic systems convert mechanical energy into fluid power that drives motion. The pump sits at the center of this process, and its output determines how effectively the system performs. When discussing pump power, the conversation must go beyond maximum pressure values. Real power reflects how consistently the pump delivers usable energy over time.
Pressure represents force potential, while flow represents movement speed. Together, they define usable output. A machine requiring fast actuator movement depends heavily on flow stability. Equipment handling heavy loads depends on pressure consistency. The balance between these two factors determines whether the system feels responsive or sluggish.
Efficiency influences how much of this theoretical output becomes practical performance. Pumps with precise machining, optimized vane structure, and strong sealing characteristics maintain higher efficiency across operating ranges. This results in lower energy loss and reduced temperature rise.
Duty cycle describes how often and how long a machine operates under load. Continuous operation places sustained thermal stress on the pump. Intermittent operation introduces repeated load transitions that test responsiveness and pressure stability. A pump designed for continuous duty must maintain consistent output without excessive heat buildup, while a pump for intermittent work must respond quickly to changing demand.
Ignoring duty cycle can lead to selecting a pump that appears sufficient on paper but struggles during extended operation.
The distinction between 150T and 250F models is best understood through application behavior rather than specification comparison. Both belong to fixed displacement vane pump architecture, but they support different performance expectations.
Operators often judge power by machine speed. Faster clamping, lifting, or positioning creates the impression of stronger performance. This perception is directly linked to flow capacity. A pump capable of delivering stable higher flow supports shorter cycle times and smoother motion transitions.
In applications where productivity depends on cycle speed, flow stability becomes the decisive factor.
Load variation reveals differences in internal design quality. Pumps that maintain pressure stability during load changes reduce vibration and protect downstream components. This improves control accuracy and extends the service life of valves, seals, and actuators.
A well-balanced vane structure helps distribute hydraulic forces evenly, minimizing ripple and noise while preserving efficiency.
One of the most persistent misconceptions in hydraulic selection is that larger models automatically provide better results. Oversizing a pump may increase theoretical capacity but can introduce inefficiencies. Excess flow leads to frequent relief valve activation, which converts unused energy into heat. Elevated oil temperature accelerates fluid degradation and increases maintenance frequency.
Undersizing presents the opposite challenge. When the pump cannot maintain required flow during peak demand, cycle time increases and pressure stability suffers. Components experience repeated stress, leading to premature wear.
The correct approach is alignment rather than maximization.
Effective selection begins with accurate operating information. Machine data provides a clearer picture than catalog specifications alone.
Flow demand is directly linked to actuator speed and cycle targets. Understanding how quickly cylinders or motors must move helps define the baseline pump requirement. Stable flow is more important than peak flow capability because consistency supports predictable production.
Working pressure reflects load conditions. Establishing a realistic operating range ensures the pump supports normal tasks without unnecessary energy consumption. A moderate safety margin protects reliability while maintaining efficiency.
Oil viscosity, ambient temperature, and contamination levels affect pump performance over time. Pumps with strong sealing design and wear-resistant components retain efficiency across varying conditions. This stability reduces downtime and improves lifecycle value.
Different industries prioritize different performance characteristics, making application context essential.
Industrial automation often demands consistent motion and low vibration to maintain precision. Construction machinery may prioritize durability and responsiveness under load changes. General hydraulic power units require balanced efficiency, flexibility, and thermal stability.
Single, double, and combination pump configurations enable designers to support multiple circuits within a compact footprint. This approach simplifies system architecture while maintaining reliable output. Combination designs also improve efficiency by allocating flow according to circuit demand rather than oversizing a single pump.
Decision factor | 150T tends to fit when | 250F tends to fit when | What to confirm before ordering |
Target flow | Moderate cycle speed | Higher production speed | Required actuator velocity |
Target pressure | Stable load range | Higher load variation | Working pressure range |
Duty cycle | Intermittent or balanced | Continuous heavy operation | Daily operating hours |
Heat sensitivity | Standard tolerance | Temperature-sensitive systems | Cooling capacity |
Motor power | Limited motor margin | Adequate motor capacity | Motor rating |
Installation | Compact layout needed | Larger footprint acceptable | Mounting dimensions |
Maintenance | Standard maintenance plan | High reliability requirement | Service expectations |
Pump selection influences more than output capability. Thermal behavior affects oil life, which in turn influences maintenance intervals. Noise characteristics affect operator comfort and indicate internal stability. Pressure ripple influences valve accuracy and system vibration.
A pump that maintains balanced internal forces reduces stress across the hydraulic circuit. This leads to smoother motion, improved energy efficiency, and extended component lifespan.
Initial purchase cost represents only a portion of total ownership cost. Energy consumption, maintenance frequency, downtime risk, and replacement intervals collectively define lifecycle value. Pumps designed for stable efficiency reduce operational expenses by lowering heat generation and minimizing internal leakage over time.
Consistency across production batches also matters. Reliable manufacturing processes ensure replacement units perform similarly, simplifying maintenance planning and spare parts management.
Modern hydraulic systems increasingly focus on energy efficiency and precision control. Even fixed displacement pumps play a critical role in achieving these goals when properly matched. Stable output reduces reliance on compensating components and simplifies control strategies.
Designers often aim to minimize energy loss within the circuit. Selecting a pump aligned with real demand reduces unnecessary throttling and improves overall system performance.
Reliability stems from material quality, machining precision, and inspection discipline. Pumps that maintain sealing integrity and internal balance preserve performance across extended operating hours. This stability prevents sudden efficiency drops and supports predictable maintenance planning.
Operational stability also contributes to product quality in manufacturing environments. Consistent hydraulic motion translates into consistent production results.
SHY focuses on understanding application requirements before recommending a pump solution. Technical teams review machine type, circuit structure, flow expectations, pressure range, installation constraints, and operating environment. This process ensures the selected pump aligns with system behavior rather than theoretical assumptions.
Each hydraulic pump is produced using controlled manufacturing procedures and undergoes rigorous inspection to verify performance consistency. Emphasis on sealing quality, pressure stability, and durability supports reliable long-term operation.
SHY provides a complete hydraulic pump range designed to support construction machinery, industrial automation, agriculture, and mining equipment. Stable delivery, technical support, and tailored configuration options help customers implement solutions that improve efficiency while reducing maintenance costs.
Selecting the correct pump influences system performance for years. Stable efficiency reduces energy consumption. Balanced thermal behavior extends oil life. Reliable pressure delivery protects downstream components. These factors combine to create a hydraulic system that operates smoothly, predictably, and economically.
Understanding the difference between 150T and 250F is therefore not about comparing numbers. It is about identifying which model best supports the intended operating profile.
Comparing 150T and 250F pump power highlights the importance of matching hydraulic output to real operating conditions. Flow stability, pressure consistency, duty cycle, and efficiency retention determine whether a system performs reliably over time. A properly matched hydraulic pump solution enables smoother motion, reduced heat, and improved lifecycle value.
Contact us to discuss your application requirements, share your operating parameters, and receive a tailored hydraulic pump recommendation that supports long-term performance.
1. Is the 250F always more powerful than the 150T?
Not necessarily. The 250F typically supports higher flow capability, but real performance depends on system demand and operating conditions.
2. What is the most important factor when comparing these pumps?
Flow stability relative to cycle time is often the most important factor because it directly affects productivity.
3. Can incorrect pump sizing increase energy consumption?
Yes. Oversized pumps generate excess flow that converts into heat, increasing energy usage and maintenance requirements.
4. How does pump selection influence system reliability?
Correct matching reduces internal stress, stabilizes temperature, and helps maintain consistent performance across the entire hydraulic circuit.
