AGAM Series High Pressure Hydraulic Relief Valve Up to 350 Bar Industrial Hydraulic Circuit Protection Valve

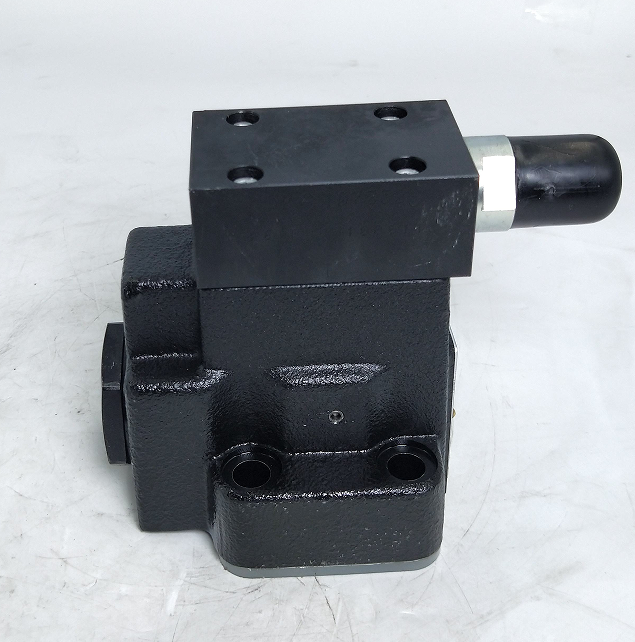

AGAM Series Pilot Operated Hydraulic Pressure Relief Valve

The AGAM series is a subplate-mounted, pilot-operated pressure relief valve with a balanced poppet design. It is designed to regulate pressure in industrial hydraulic circuits and is available in ISO 6264 sizes 10, 20 and 32. Optional pilot solenoid valves support venting or selection between pressure settings according to the selected configuration.

Key Features:
- Pilot-operated pressure relief design with balanced poppet structure
- ISO 6264 subplate mounting in sizes 10, 20 and 32
- Maximum flow rates of 200, 400 and 600 L/min by size
- Optional solenoid pilot functions for venting or pressure selection
