Selecting the wrong hydraulic component for a high-demand application severely impacts machinery reliability. It does not merely reduce system efficiency. It leads to premature component wear, excessive heat generation, and frequent system downtime. Engineers often struggle to match pump geometry to specific load profiles in severe operating environments. While both types use the positive displacement principle for fluid power tasks, their distinct internal geometries dictate entirely different performance thresholds. They also demand completely different physical installation footprints inside your machinery.
This article provides a clear, engineering-focused evaluation of axial and radial designs. We will explore their core geometric differences, compare precise performance metrics, and highlight distinct application suitability. You will learn how to make evidence-based specification decisions for your own hydraulic systems. By understanding these technical nuances, you can avoid severe specification errors, manage thermal loads effectively, and drastically extend equipment lifespan across your entire fleet.
Pressure Thresholds: Radial pumps dominate ultra-high-pressure environments (routinely exceeding 700 bar), whereas axial pumps serve as the industry standard for high-flow, medium-to-high pressure tasks (typically 280–350 bar, peaking at 420 bar).
Space & Footprint: Axial piston pumps offer a highly compact, inline profile ideal for mobile machinery (e.g., excavators), while radial pumps require a larger radial footprint.
Low-Speed Dynamics: Direct-drive radial units provide superior torque and dynamic response at very low speeds, avoiding the "crawling" or oscillation risks sometimes seen in axial setups without gearboxes.
Total Cost of Ownership (TCO): Axial pumps generally offer lower initial costs and easier localized maintenance, whereas radial pumps represent a higher initial capital expenditure that amortizes well in severe-duty, continuous-load applications.
To fully understand performance limits, we must first examine the baseline fluid mechanism. A Piston Pump relies heavily on the positive displacement principle. It draws hydraulic fluid into highly machined cylinder cavities. The internal mechanism then compresses this fluid by physically reducing the cavity volume. This mechanical action forces the fluid out into the broader system under immense pressure. However, the exact spatial layout of these internal cylinders completely changes how the unit behaves under extreme stress.

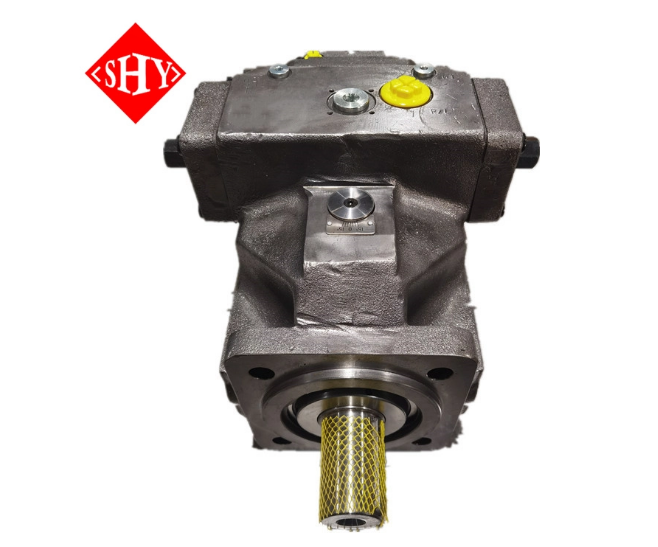

In this specific layout, manufacturers arrange the pistons circularly. They sit perfectly parallel to the main drive shaft. Actuation typically occurs via an adjustable swashplate or a specialized bent-axis mechanism. As the central shaft rotates, the angled swashplate pushes the pistons back and forth sequentially. The angle of this swashplate actively dictates the piston stroke length, which subsequently controls the fluid displacement volume.
Engineering Reality: This inline design brilliantly minimizes the outer housing diameter. It enables incredibly tight packaging. You will often see them squeezed into highly confined engine compartments where physical space is strictly limited. The parallel geometry keeps the center of gravity tight and simplifies inline drive connections.
Radial designs take a completely opposite structural approach. The internal pistons radiate outward from a central rotating shaft. They look much like the rigid spokes of a wagon wheel. Actuation happens via an eccentric cam or a specialized inner rotor positioned in the center. As the primary shaft turns, the eccentric cam aggressively pushes the pistons outward radially against strong return springs.
Engineering Reality: This perpendicular distribution naturally forces fluid outward. It allows engineers to cast much thicker, more robust cylinder walls around each individual piston. These massive walls provide fundamentally higher structural integrity. They tolerate extreme pressure spikes far better than their inline equivalents.
Comparing these two distinct architectures requires looking directly at hard field data. The technical specification chart below outlines a standard operational comparison. It clearly highlights where each specific design naturally excels.
Technical Metric | Axial Design Profile | Radial Design Profile |
|---|---|---|
Absolute Max Pressure | Standard tasks up to 420 bar | Extreme environments 700+ bar |
Rotational RPM Limits | High speeds (often 3000+ RPM) | Low-to-Medium speeds (up to 1500 RPM) |
Volumetric Efficiency | Excellent (90% - 95%) | Superior (95% - 98%) |
Operational Noise Levels | Moderate to High pulsation noise | Moderate, generally smoother |
Physical threshold constraints usually dictate your primary specification choice. Axial models comfortably handle standard heavy-duty tasks. They operate efficiently and reliably up to roughly 400 bar. They are highly capable for most mobile machinery. However, radial models become absolutely necessary for extreme industrial scenarios. When your hydraulic system routinely demands 700+ bar to bend thick metal, you must use a radial unit. They sustain these massive pressures without suffering from catastrophic internal fluid leakage.
Field measurement data reveals distinct differences in mechanical torque delivery. A typical radial motor or pump setup yields significantly higher torque per bar. You might observe roughly 50Nm per bar in a standard radial configuration. In strict contrast, a standard bent-axis unit usually delivers closer to 25Nm per bar. Because of this mechanical advantage, radial designs remain highly responsive under sudden heavy physical loads. They provide immediate, unyielding force.
Real-world operational challenges frequently occur at incredibly low rotation speeds. Radial designs maintain high volumetric efficiency and smooth rotation at these minimal speeds. They operate seamlessly even at 1 RPM. In contrast, an Axial piston pump often struggles in this exact operational scenario. It may experience "crawling" or severe rotational oscillation at minimal speeds. To successfully solve this, you usually must pair it with a high-ratio reduction gearbox. The gearbox artificially keeps the internal fluid mechanics spinning rapidly in their optimal high-efficiency RPM range.
No single pump design works perfectly in every single environment. The physical workspace and the specific duty cycle usually decide which unit you truly need.
Primary Use Cases: Excavators, agricultural tractors, wheel loaders, aerospace flight actuators, and marine steering systems.
Why They Dominate: They remain the undisputed standard choice for heavy earthmoving equipment. They offer highly advanced load-sensing capabilities. You get incredibly versatile variable displacement options optimized for constant pressure. Furthermore, their compact, slender footprint fits perfectly inside crowded upper-frame steel structures. They keep mobile machinery light and highly maneuverable.
Primary Use Cases: Metal stamping presses, massive plastic injection molding machines, heavy mechanical clamping fixtures, and aerospace test rigs.
Why They Dominate: They offer unmatched physical endurance. In stationary factories, physical floor space is rarely heavily restricted. The primary operational priority is holding extreme, continuous pressure for long durations. Think of a press holding a mold shut. Radial units manage this sustained holding phase perfectly. They do this without catastrophic internal leakage or sudden pressure drops.
Ignoring basic fluid upkeep will ultimately destroy any Hydraulic piston pump regardless of its internal geometry. You must proactively monitor system health to avoid unpredicted downtime.
You should train your maintenance operators to identify common diagnostic indicators early. Noticeable system noise and excessive structural vibration usually mean fluid cavitation is actively happening. Cavitation involves microscopic air bubbles collapsing violently under pressure. This phenomenon slowly tears metal away from the internal valve plates. Excessive oil temperature strongly indicates severe internal leakage. When internal seals degrade, pressurized fluid slips past them rapidly and generates immense friction heat. Finally, noticeable actuator jitter usually points to deep cylinder scoring or a sticking internal control valve.
Fluid cleanliness remains an absolute, non-negotiable necessity. You must strictly follow ISO 4406 standards for fluid purity. Even microscopic metallic debris will deeply score the machined pistons.
Best Practices: Keep baseline operating temperatures strictly between 40–60°C. You should also perform proper pre-charge bleeding during all cold winter starts. Bleeding manually removes trapped air pockets from the upper housing.
Common Mistakes: Technicians frequently skip pre-charge bleeding procedures to save time. This single careless mistake causes immediate dry-running friction. It dramatically shortens the component life cycle before the equipment even begins real work.
When nearing a final purchasing decision, we strongly recommend using a simple diagnostic assessment. You must align your mechanical needs closely with your physical constraints. Carefully answer these four primary engineering questions:
What is the Absolute Maximum Working Pressure? If your system consistently pushes beyond 450 bar, you typically require a radial unit to survive the stress.
Are there strict packaging or space constraints? If you have very tight space limitations inside an engine bay, the inline axial design is strongly preferred.
Is variable displacement essential? Axial units offer highly mature, widely proven variable displacement controls. They are excellent for continuous energy optimization during fluctuating loads.
What are the specific low-speed dynamic requirements? If you need entirely smooth, ultra-low RPM torque without relying on a bulky secondary gearbox, lean heavily toward a direct-drive radial configuration.
Neither pump type is objectively superior in a vacuum. Their inherent mechanical value depends entirely on accurate application alignment. Axial units provide highly versatile, beautifully compact, and high-efficiency fluid power. They suit most mobile and general industrial applications perfectly. Conversely, radial units act as highly specialized mechanical powerhouses. They belong strictly in ultra-high-pressure, continuous-duty environments where raw endurance matters most.
Actionable Next Steps:
Document your precise system flow rates and maximum pressure peaks before buying any new hardware.
Map out your exact daily duty cycle data to understand thermal loads.
Consult directly with a certified hydraulics application engineer to finalize internal sizing.
Select the appropriate variable system controls based directly on your specific real-world load demands.
A: It is rarely a simple direct drop-in replacement. You can only execute this swap if the system's maximum operating pressure is downgraded to fit the axial limits, which usually sit strictly under 400 bar. You must also fundamentally reconfigure the physical mounting space. The specific bolt patterns, shaft alignments, and plumbing connections differ significantly between the two architectures.
A: Variable displacement axial units generally offer far better overall system energy efficiency in highly fluctuating load scenarios. They feature sophisticated controls. They continuously adjust their internal flow displacement to match real-time machinery demand perfectly. This direct matching prevents unnecessary energy waste over long operating cycles.
A: Not necessarily. Both designs use standard industrial hydraulic oils. However, because radial units operate at extreme pressures, maintaining exact fluid viscosity is absolutely critical. Strict adherence to ISO fluid cleanliness standards is highly mandatory. High-pressure environments rapidly accelerate the physical damage caused by microscopic debris, making premium filtration required.
